Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

30 part groups · 8 illustrations

Illustrations

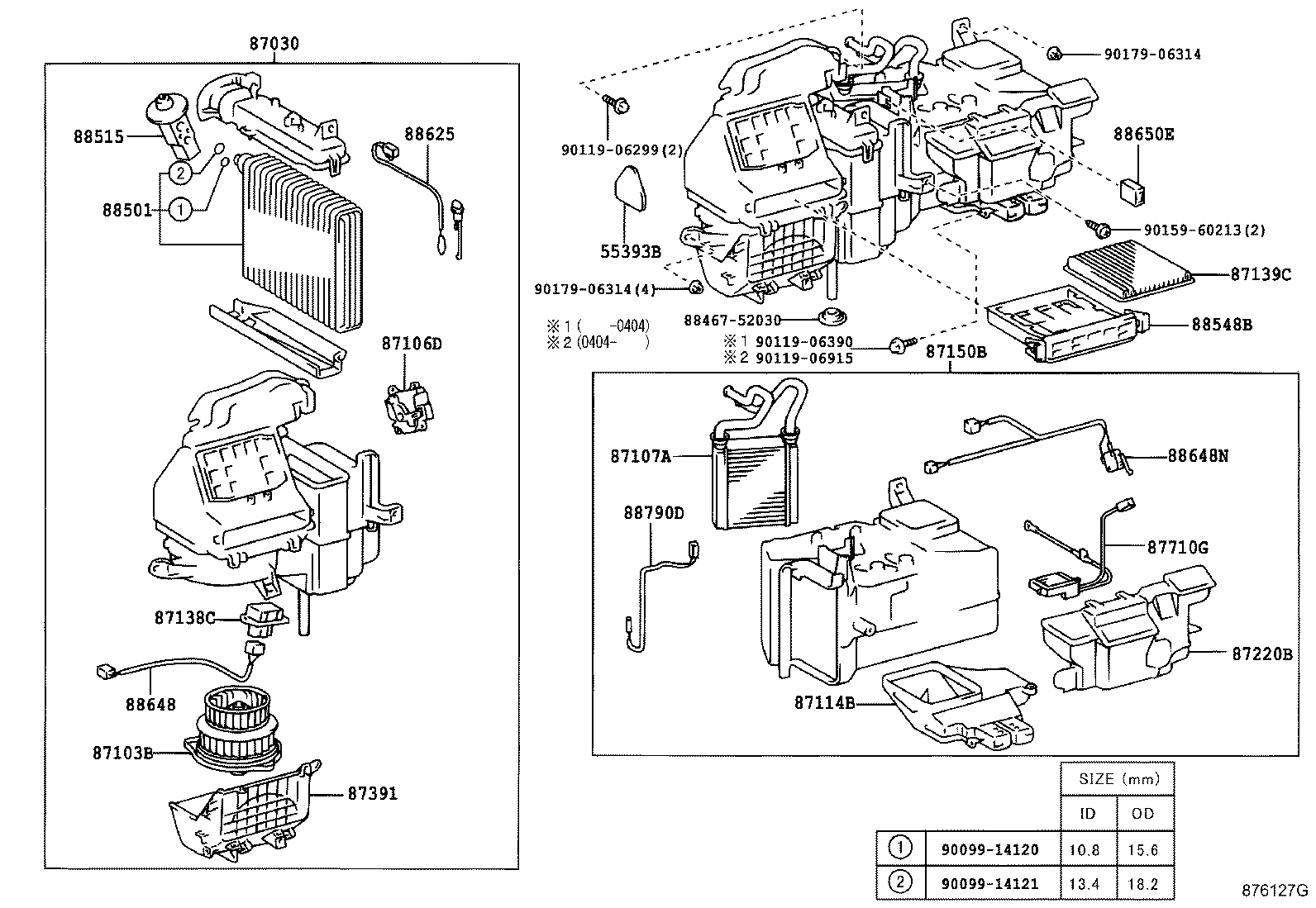

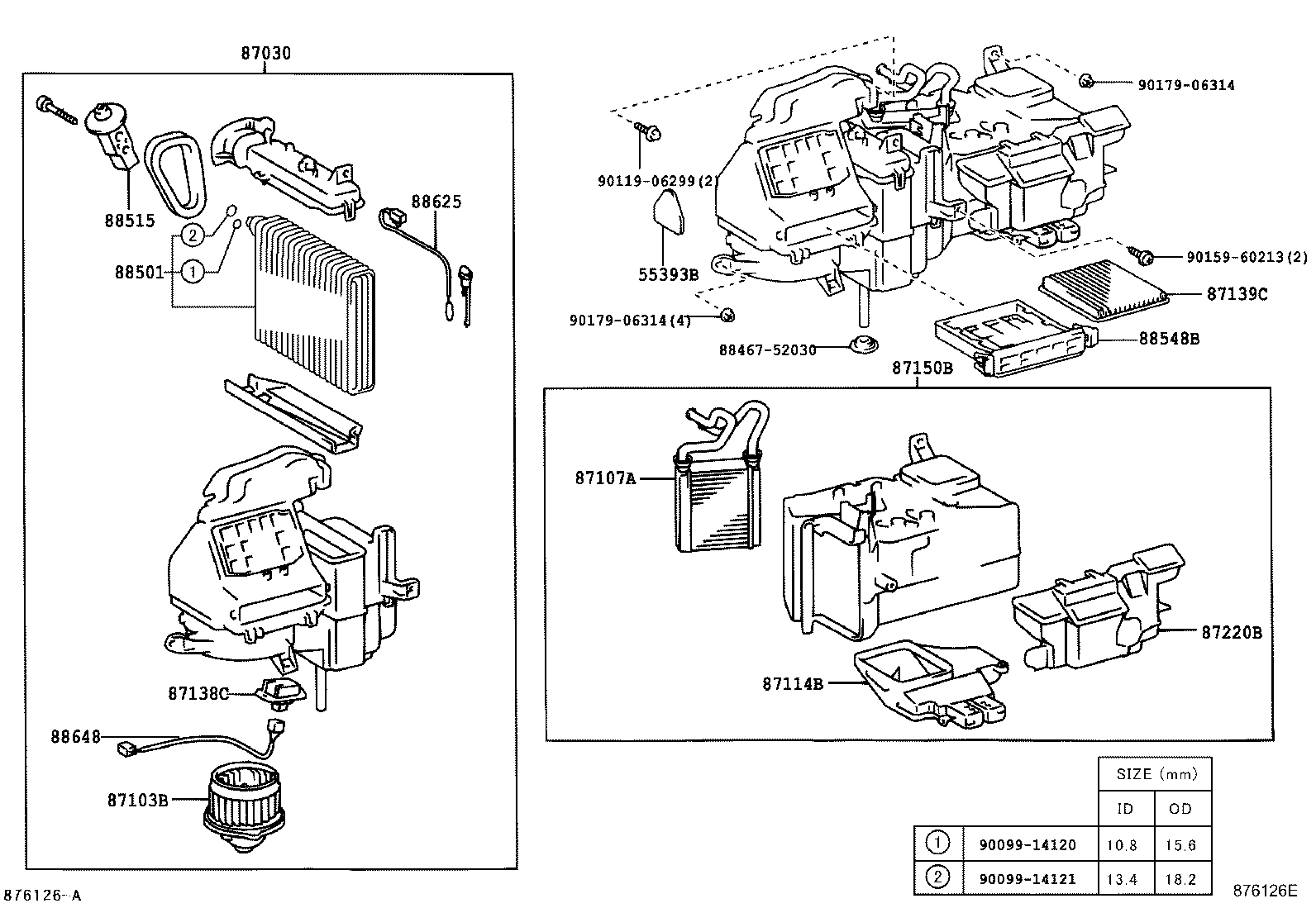

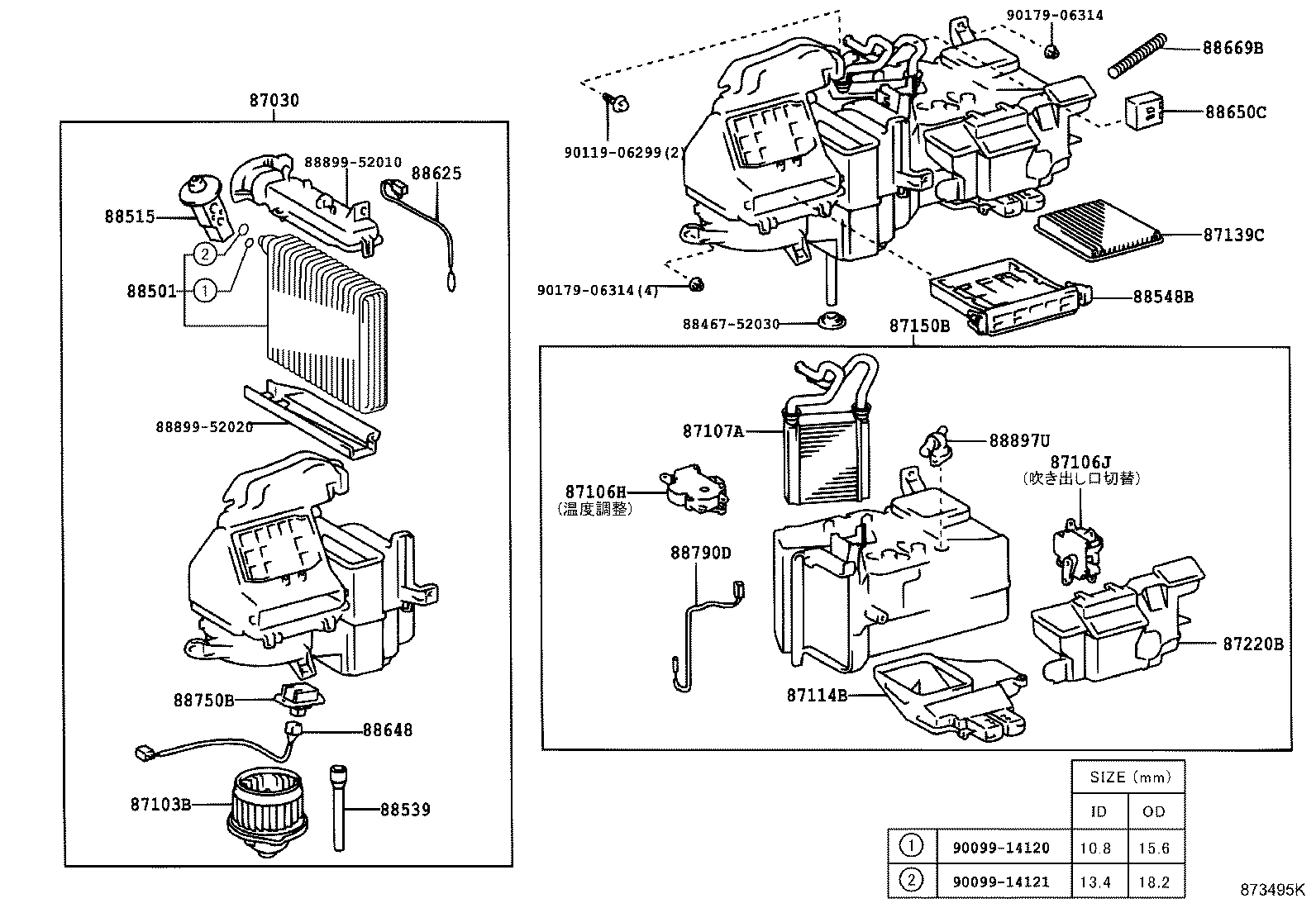

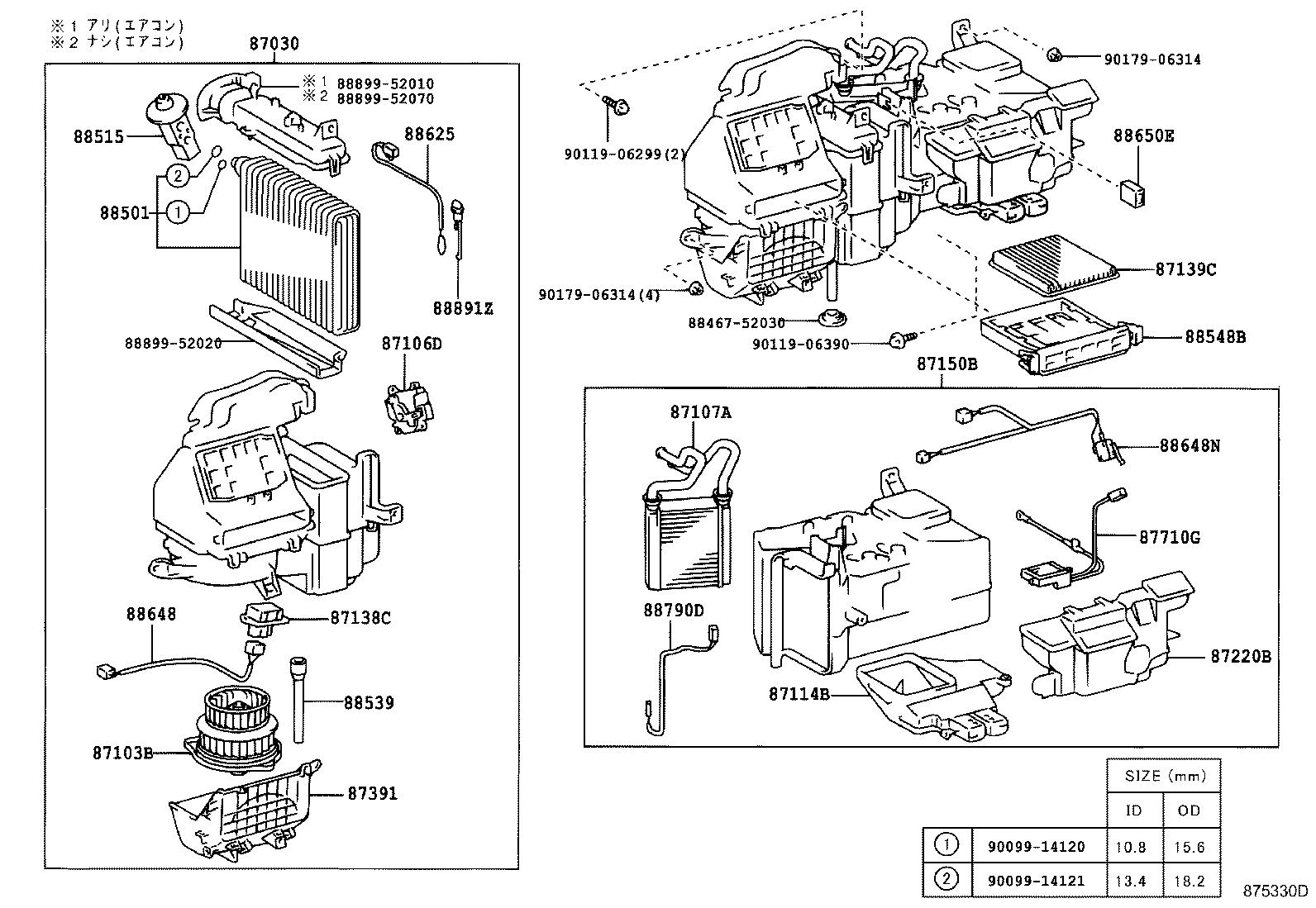

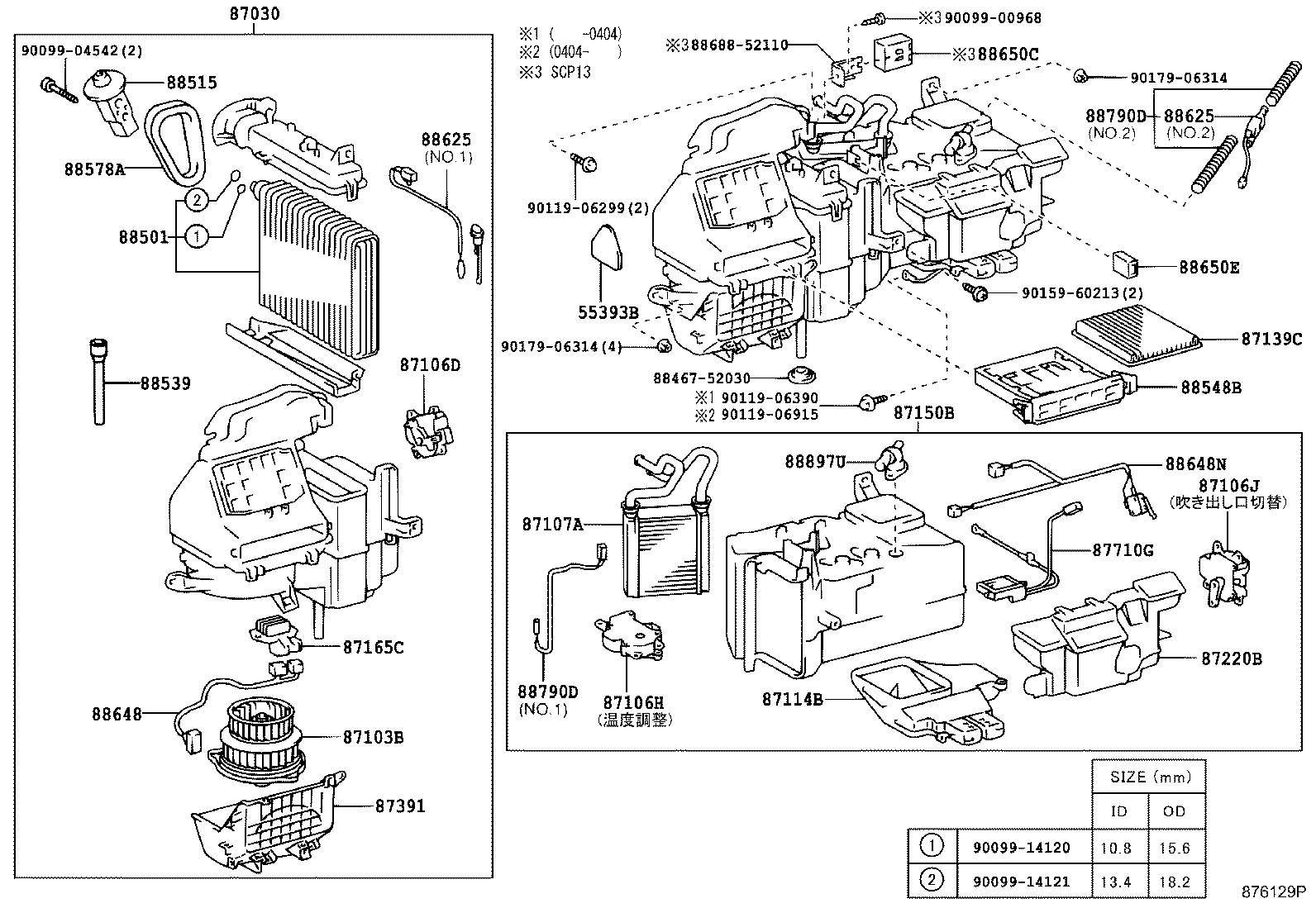

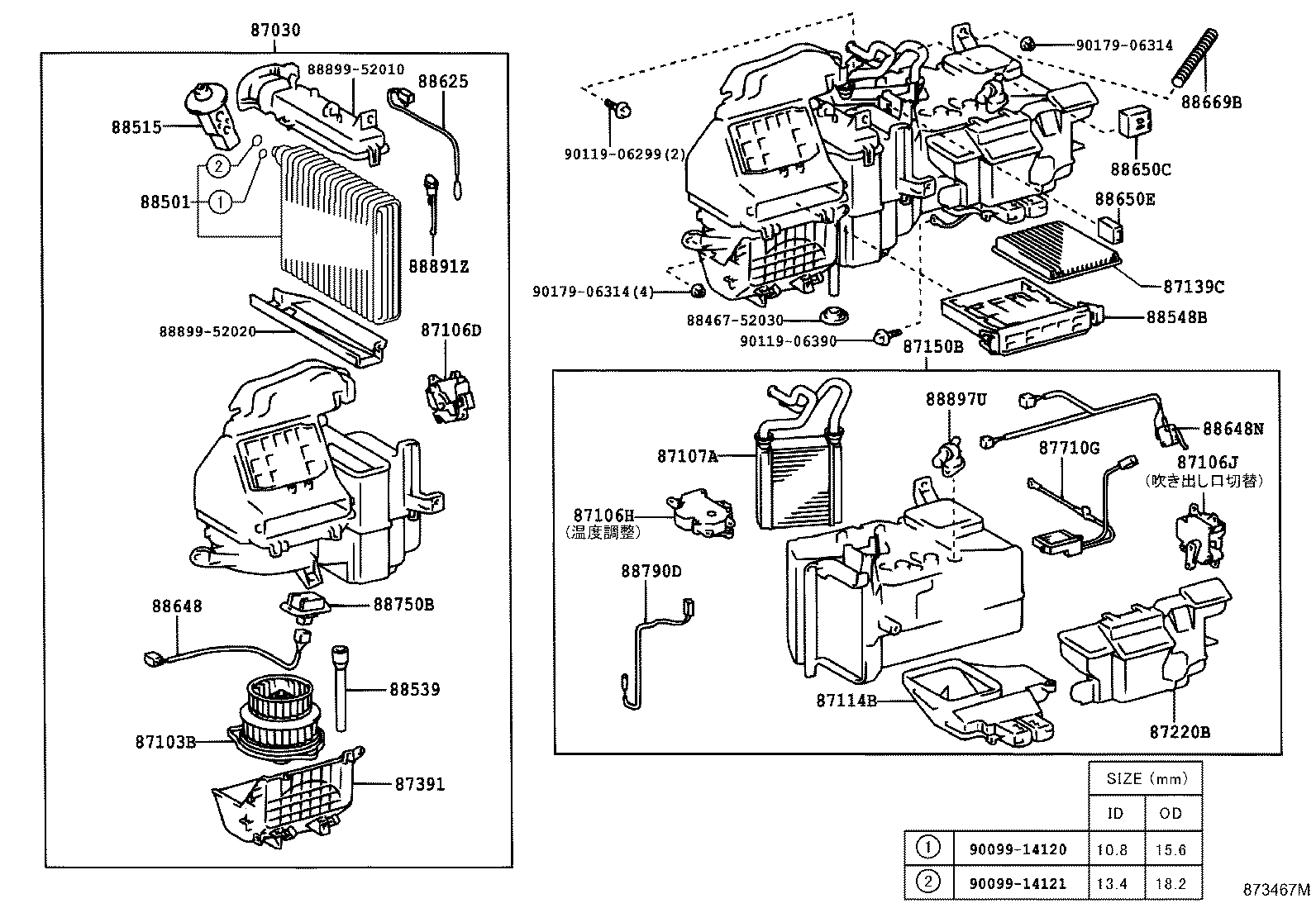

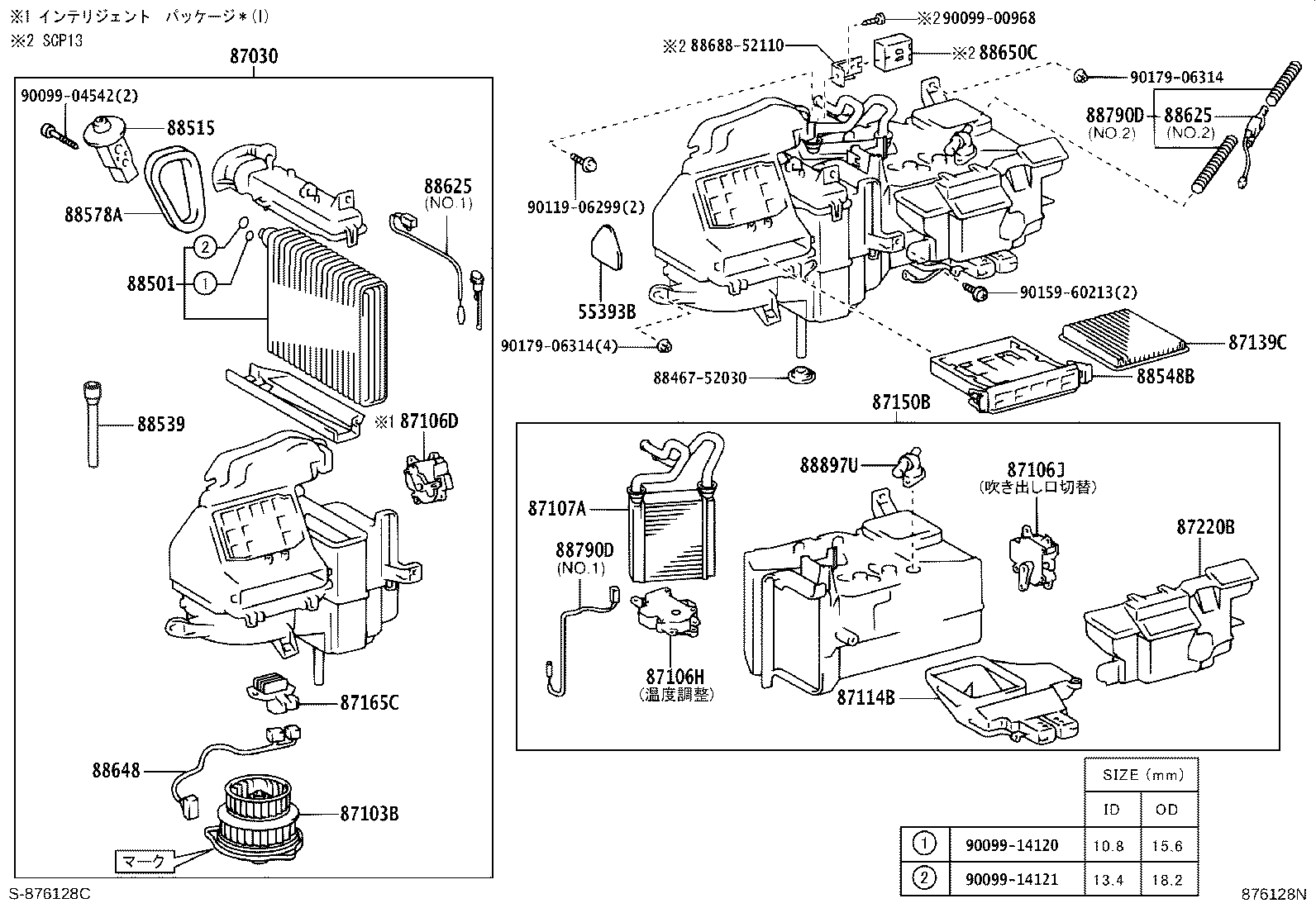

Figure 873210K 873210K 1999-01 → 2002-12 Figure 875330D 875330D 1999-01 → 2002-12 Figure 873495K 873495K 1999-01 → 2002-12 Figure 873467M 873467M 1999-01 → 2002-12 Figure 876126E 876126E 2002-12 → — Figure 876127G 876127G 2002-12 → — Figure 876128N 876128N 2002-12 → — Figure 876129P 876129P 2002-12 → —

Part groups

PNCDescription
55393B Cushion, Air Conditioning Cooler Unit
87030 Blower Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106D Servo Sub-assy, Damper, NO.1
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87138C Resistor, Blower
87139C Filter, Clean Air
87150B Radiator Assy, Heater
87165C Control, Blower Motor
87220B Duct Assy, Air
87391 Cover, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88578A Packing, Cooler Stabilizer Amplifier
88625 Thermistor, Cooler, NO.1
88648 Wiring, Cooler, NO.1
88648N Wiring, Cooler, NO.2
88650C Amplifier Sub-assy, Airconditioner
88650E Amplifier Assy, Air Conditioner, NO.1
88669B Hose, Cooler Air
88750B Transistor Assy, Blower Resistor
88790D Thermistor Assy
88891Z Bracket, Cooler Thermistor
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
