Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

39 part groups · 7 illustrations

Illustrations

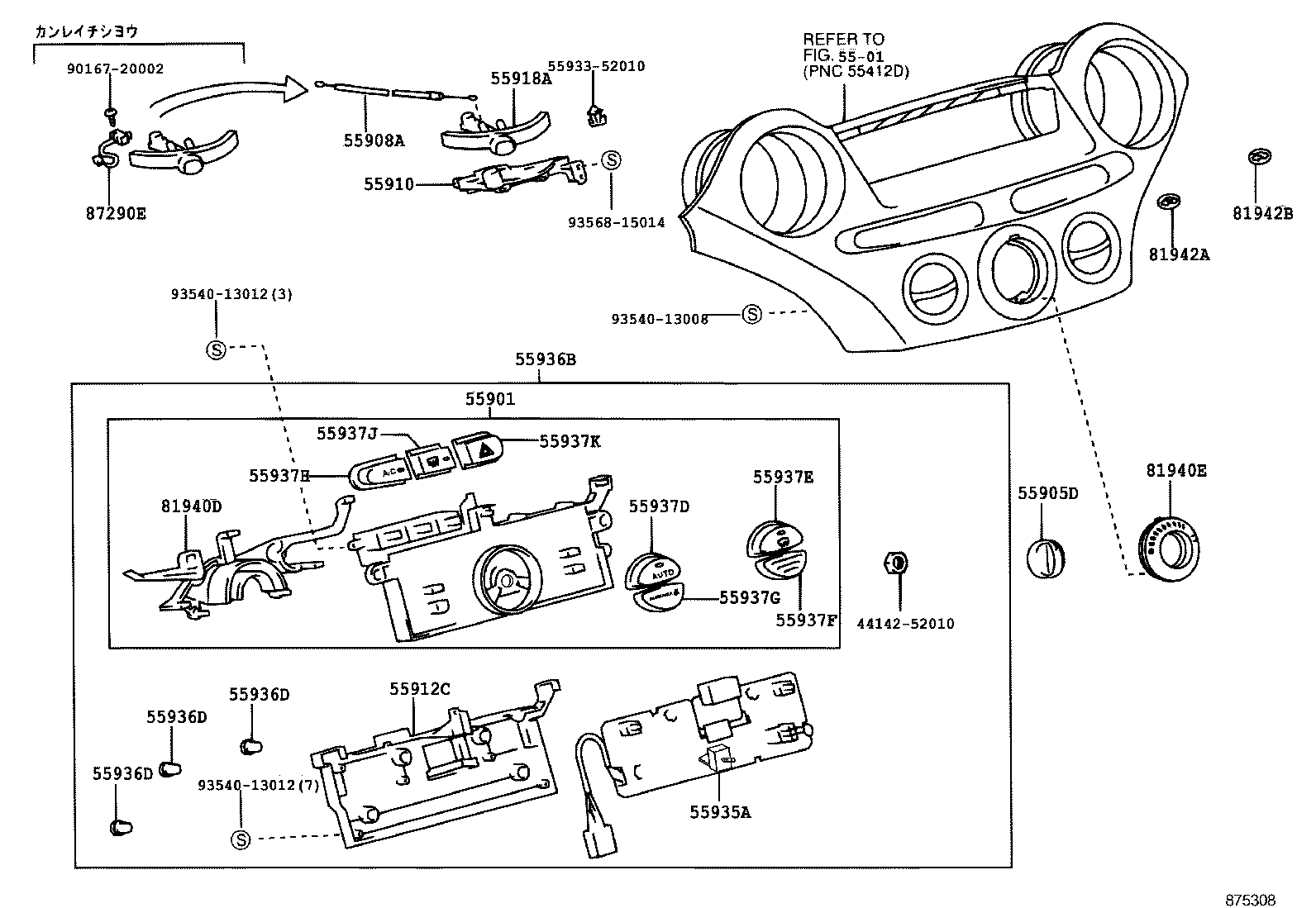

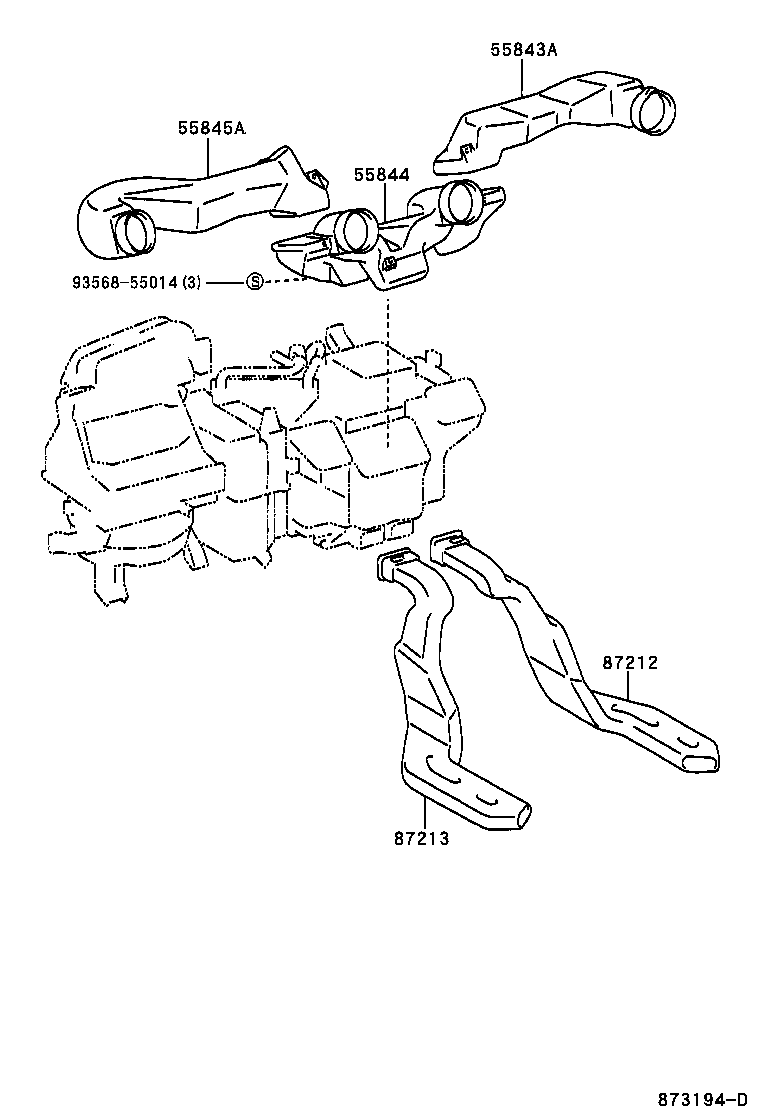

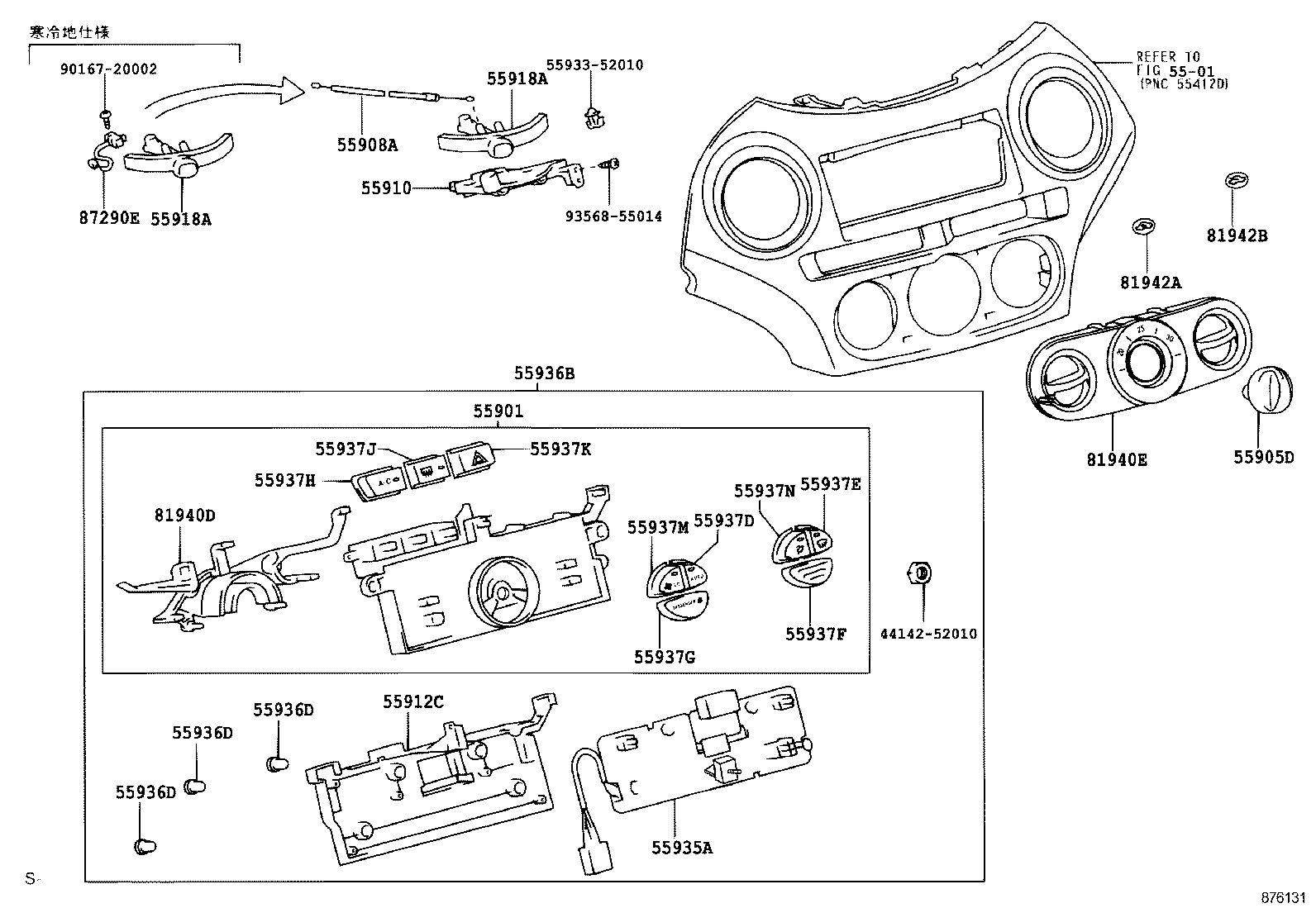

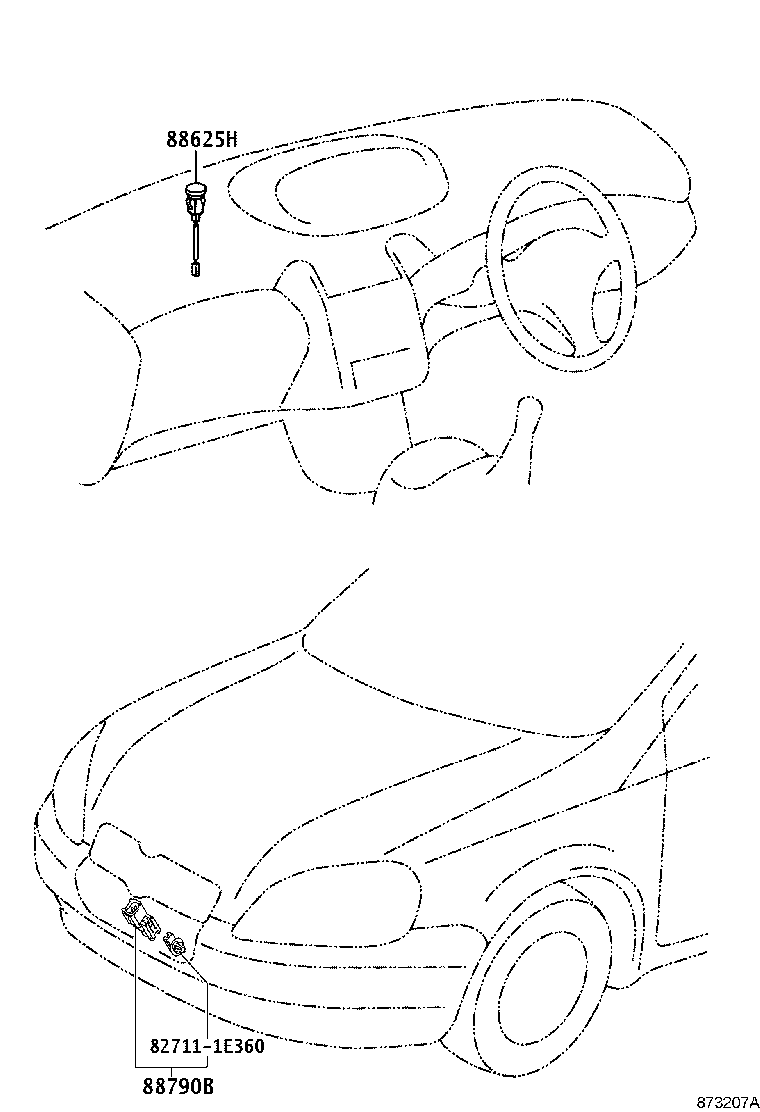

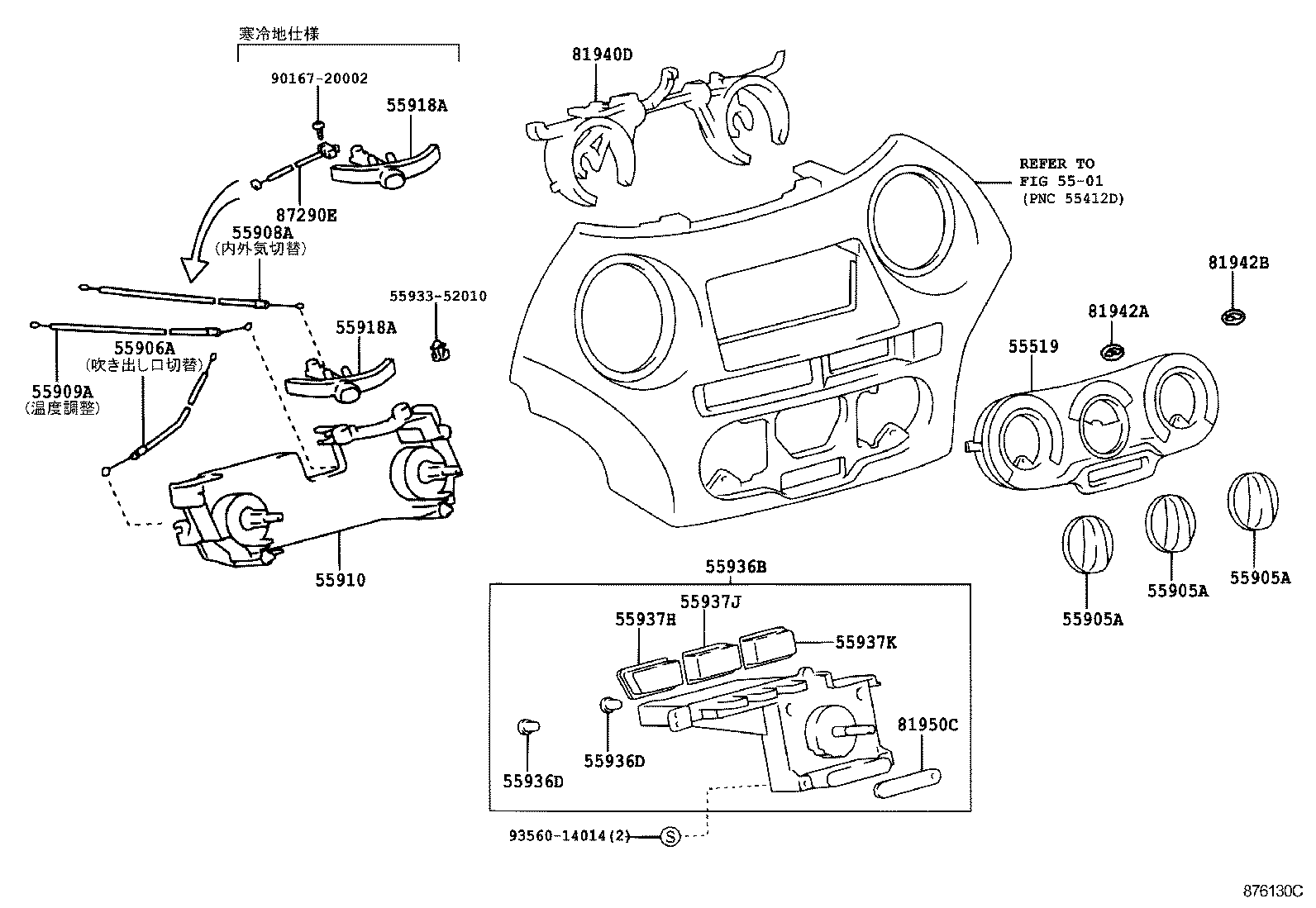

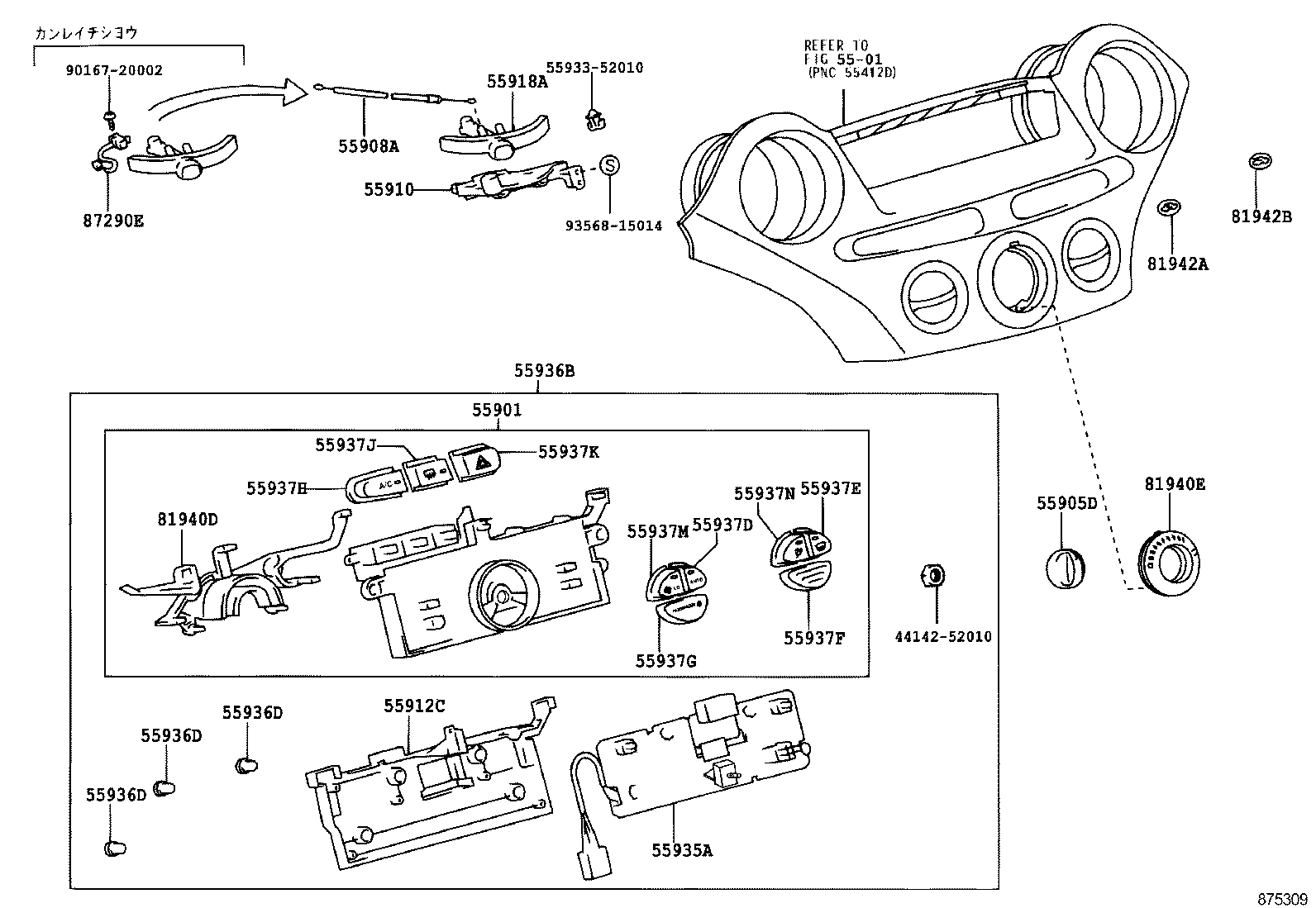

Figure 873192D 873192D 1999-01 → 2002-12 Figure 875308A 875308A 1999-01 → 2001-12 Figure 875309B 875309B 2001-12 → 2002-12 Figure 876130C 876130C 2002-12 → — Figure 876131B 876131B 2002-12 → — Figure 873194D 873194D 1999-01 → — Figure 873207A 873207A 1999-01 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55901 Base Sub-assy, Heater Control
55905A Knob, Heater Control
55905D Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55912C Housing, Heater Control
55918A Lever, Air Inlet Damper Control
55935A Circuit, Center Cluster Module
55936B Switch, Center Cluster Module
55936D Blub, Center Cluster Module Switch
55937D Knob, Center Cluster Module, NO.1
55937E Knob, Center Cluster Module, NO.2
55937F Knob, Center Cluster Module, NO.3
55937G Knob, Center Cluster Module, NO.4
55937H Knob, Center Cluster Module, NO.5
55937J Knob, Center Cluster Module, NO.6
55937K Knob, Center Cluster Module, NO.7
55937M Knob, Center Cluster Module, NO.8
55937N Knob, Center Cluster Module, NO.9
81940D Lens Assy, Heater Control
81940E Lens Assy, Heater Control
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
81950C Lens Assy, Center Cluster Module Indicator
84660H Switch Assy, Cooler Control
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87290E Switch Assy, Heater
88625H Thermistor, Cooler (SOLAR SENSOR)
88790B Thermistor Assy
