Toyota Vitz

1999-01 → 2005-01 · chassis NCP1#,SCP1# · catalogue 112110 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 4 illustrations

Illustrations

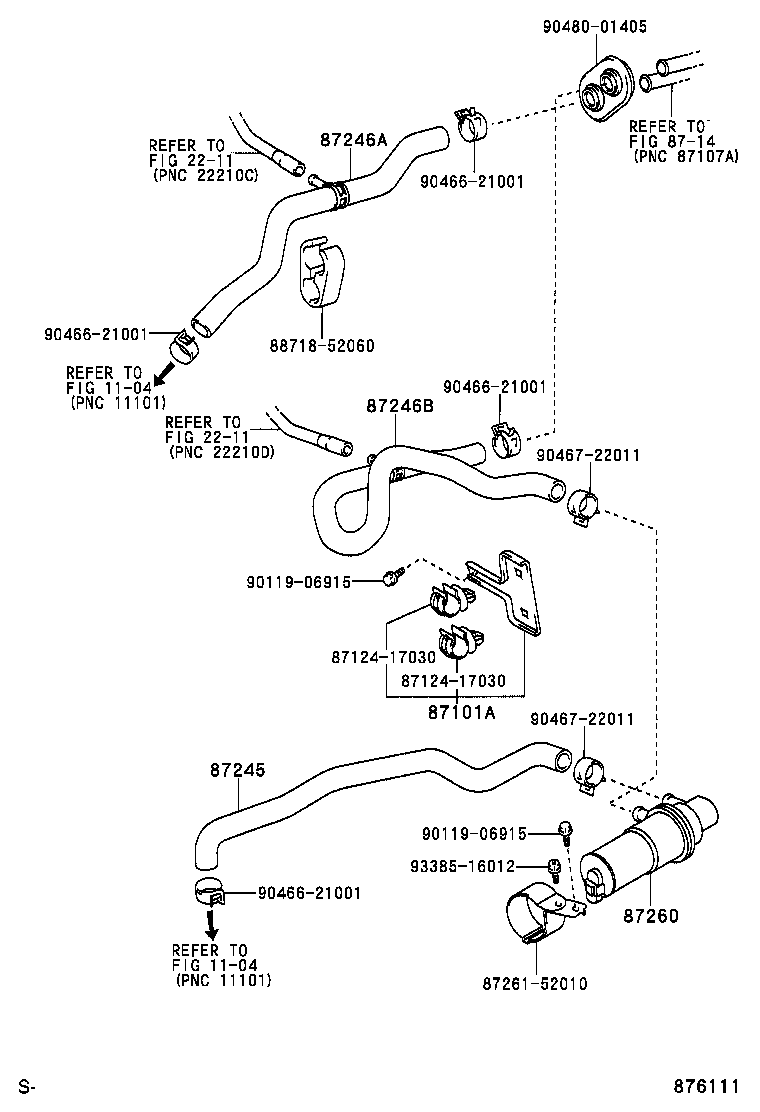

Figure 875279 875279 1999-01 → — Figure 875280 875280 1999-08 → — Figure 876110 876110 2002-12 → — Figure 876111 876111 2002-12 → —

Part groups

PNCDescription
87101A Bracket Sub-assy, Heater NO.1
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87260 Pump Assy, Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
