Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

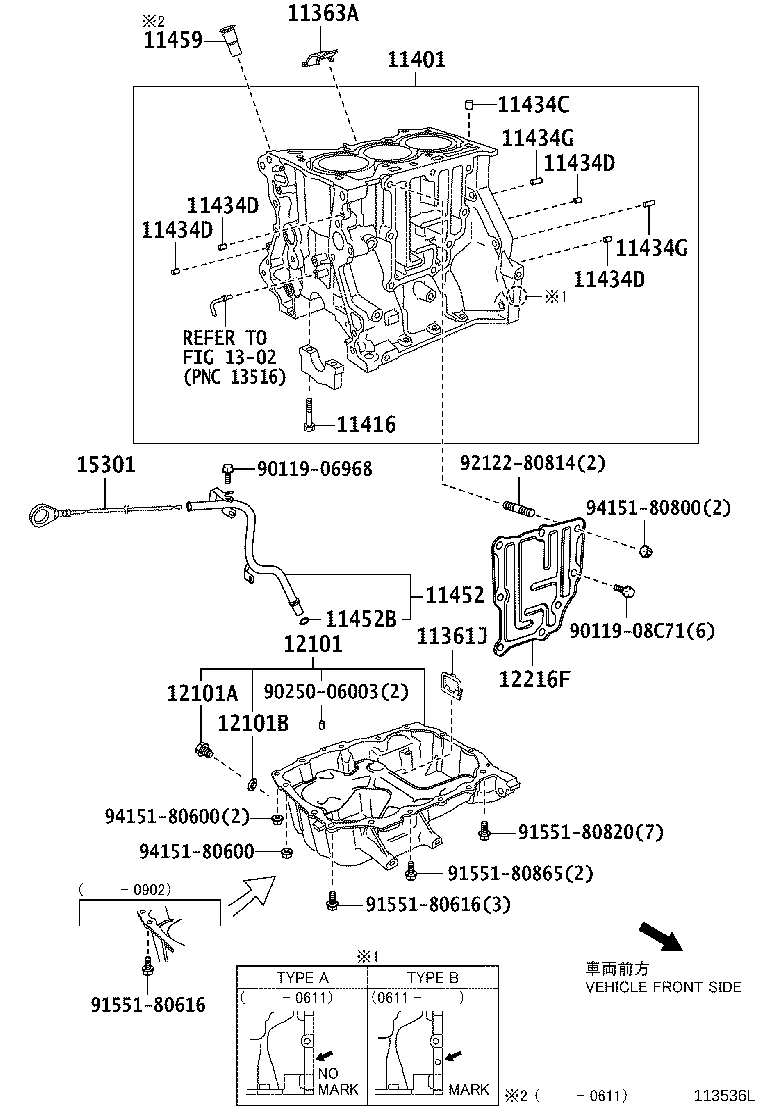

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11361J — Cover, Flywheel Housing Under | ||||
| 11361-21011 |
Cover, Flywheel Housing Under
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥490 | |
| 11361-23020 |
Cover, Flywheel Housing Under
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥540 | |
| 11361-23020 |
Cover, Flywheel Housing Under
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥540 | |
| 11361-21011 |
Cover, Flywheel Housing Under
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥490 | |
| 11361-21011 |
Cover, Flywheel Housing Under
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥490 | |
| 11361-23020 |
Cover, Flywheel Housing Under
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥540 | |
| 11361-23020 |
Cover, Flywheel Housing Under
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥540 | |
| 11361-23020 |
Cover, Flywheel Housing Under
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥540 | |
| 11361-21011 |
Cover, Flywheel Housing Under
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥490 | |
| 11361-23020 |
Cover, Flywheel Housing Under
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥540 | |
| 11361-23020 |
Cover, Flywheel Housing Under
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥540 | |
| 11363A — Cover, Flywheel Housing Side | ||||
| 11363-0Q010 note |
Cover, Flywheel Housing Side
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥270 | |
| 11363-21010 |
Cover, Flywheel Housing Side
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥350 | |
| 11363-40010 note |
Cover, Flywheel Housing Side
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥270 | |
| 11363-0Q010 note |
Cover, Flywheel Housing Side
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥270 | |
| 11363-21010 |
Cover, Flywheel Housing Side
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥350 | |
| 11363-21010 |
Cover, Flywheel Housing Side
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥350 | |
| 11363-40010 note |
Cover, Flywheel Housing Side
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥270 | |
| 11363-21010 |
Cover, Flywheel Housing Side
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥350 | |
| 11363-40010 note |
Cover, Flywheel Housing Side
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥270 | |
| 11401 — Block Sub-assy, Cylinder | ||||
| 11401-23040 |
Block Sub-assy, Cylinder
2005-01 → 2005-06
ended
|
2SZFE SCP90 | ¥136,000 | |
| 11401-23041 note |
Block Sub-assy, Cylinder
2005-06 → 2006-06
ended
|
2SZFE SCP90 | ¥136,000 | |
| 11401-23043 note |
Block Sub-assy, Cylinder
2006-06 → 2007-08
ended
|
2SZFE SCP90 | ¥136,000 | |
| 11401-29845 |
Block Sub-assy, Cylinder
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥165,000 | |
| 11401-29865 |
Block Sub-assy, Cylinder
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥182,000 | |
| 11401-40040 note |
Block Sub-assy, Cylinder
2005-01 → 2006-11
ended
|
1KRFE KSP90 | ¥139,000 | |
| 11401-40041 note |
Block Sub-assy, Cylinder
2006-11 → 2007-08
ended
|
1KRFE KSP90 | ¥139,000 | |
| 11401-23043 |
Block Sub-assy, Cylinder
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥136,000 | |
| 11401-23043 |
Block Sub-assy, Cylinder
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥136,000 | |
| 11401-29845 |
Block Sub-assy, Cylinder
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥165,000 | |
| 11401-29865 |
Block Sub-assy, Cylinder
2007-08 → 2008-09
ended
|
1NZFE NCP91 | ¥182,000 | |
| 11401-40041 |
Block Sub-assy, Cylinder
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥139,000 | |
| 11401-23043 |
Block Sub-assy, Cylinder
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥136,000 | |
| 11401-29845 |
Block Sub-assy, Cylinder
2008-08 → 2008-12
ended
|
2NZFE NCP95 | ¥165,000 | |
| 11401-29846 |
Block Sub-assy, Cylinder
2008-12 → 2010-12
ended
|
2NZFE NCP95 | ¥165,000 | |
| 11401-29865 |
Block Sub-assy, Cylinder
2008-08 → 2008-12
ended
|
1NZFE NCP91 | ¥182,000 | |
| 11401-29866 |
Block Sub-assy, Cylinder
2008-12 → 2010-12
ended
|
1NZFE NCP91 | ¥182,000 | |
| 11401-40041 |
Block Sub-assy, Cylinder
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥139,000 | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10492 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥260 | |
| 90105-10531 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥160 | |
| 90910-02125 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥220 | |
| 90105-10492 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥260 | |
| 90105-10492 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥260 | |
| 90105-10531 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥160 | |
| 90910-02125 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2007-08 → 2008-09
ended
|
1NZFE,2NZFE NCP9# | ¥220 | |
| 90105-10492 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥260 | |
| 90105-10531 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥160 | |
| 90910-02125 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥220 | |
| 11434C — Pin, Straight (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥140 | |
| 90253-12002 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥50 | |
| 90253-12002 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥50 | |
| 90250-08120 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥140 | |
| 90250-08120 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥140 | |
| 90253-12002 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥50 | |
| 90253-12002 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥50 | |
| 90253-12002 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥50 | |
| 90250-08120 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥140 | |
| 90253-12002 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥50 | |
| 90253-12002 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥50 | |
| 11434D — Pin, Straight(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥90 | |
| 90250-06030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥120 | |
| 90250-06003 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥90 | |
| 90250-06030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥120 | |
| 90250-06030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥120 | |
| 90250-06003 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥90 | |
| 90250-06030 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥120 | |
| 11434G — Pin, Straight(FOR END PLATE) | ||||
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥120 | |
| 90250-10214 |
Pin, Straight(FOR END PLATE)
2005-01 → 2005-04
ended
|
1KRFE KSP90 | ¥120 | |
| 90250-10214 |
Pin, Straight(FOR END PLATE)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥120 | |
| 90250-10232 |
Pin, Straight(FOR END PLATE)
2005-05 → 2007-08
ended
|
1KRFE KSP90 | ¥100 | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥120 | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥120 | |
| 90250-10214 |
Pin, Straight(FOR END PLATE)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥120 | |
| 90250-10214 |
Pin, Straight(FOR END PLATE)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥120 | |
| 90250-10232 |
Pin, Straight(FOR END PLATE)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥100 | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥120 | |
| 90250-10214 |
Pin, Straight(FOR END PLATE)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥120 | |
| 90250-10232 |
Pin, Straight(FOR END PLATE)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥100 | |
| 11452 — Guide, Oil Level Gage | ||||
| 11409-40030 |
Guide, Oil Level Gage
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,850 | |
| 11452-21030 |
Guide, Oil Level Gage
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥1,300 | |
| 11409-40030 |
Guide, Oil Level Gage
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,850 | |
| 11452-21030 |
Guide, Oil Level Gage
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥1,300 | |
| 11452-21030 |
Guide, Oil Level Gage
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥1,300 | |
| 11409-40030 |
Guide, Oil Level Gage
2008-08 → 2010-08
ended
|
1KRFE KSP90 | ¥1,850 | |
| 11409-40050 |
Guide, Oil Level Gage
2010-08 → 2010-12
ended
|
1KRFE KSP90 | ¥2,840 | |
| 11452-21030 |
Guide, Oil Level Gage
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥1,300 | |
| 11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥190 | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥190 | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥190 | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥190 | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥190 | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥190 | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥190 | |
| 11459 — Support, Oil Level Gage Guide | ||||
| 11459-40010 |
Support, Oil Level Gage Guide
2005-01 → 2006-11
ended
|
1KRFE KSP90 | ¥440 | |
| 12101 — Pan Sub-assy, Oil | ||||
| 12101-23052 |
Pan Sub-assy, Oil
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥26,300 | |
| 12101-40100 |
Pan Sub-assy, Oil
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥12,900 | |
| 12111-21033 |
Pan Sub-assy, Oil
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥42,200 | |
| 12101-23052 |
Pan Sub-assy, Oil
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥26,300 | |
| 12101-23052 |
Pan Sub-assy, Oil
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥26,300 | |
| 12101-40100 |
Pan Sub-assy, Oil
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥12,900 | |
| 12111-21033 |
Pan Sub-assy, Oil
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥42,200 | |
| 12111-21033 |
Pan Sub-assy, Oil
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥42,200 | |
| 12101-23052 |
Pan Sub-assy, Oil
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥26,300 | |
| 12101-40100 |
Pan Sub-assy, Oil
2008-08 → 2010-08
ended
|
1KRFE KSP90 | ¥12,900 | |
| 12101-40100 note |
Pan Sub-assy, Oil
2010-08 → 2010-12
ended
|
1KRFE KSP90 B,F | ¥12,900 | |
| 12101-40120 |
Pan Sub-assy, Oil
2010-08 → 2010-12
ended
|
1KRFE KSP90 | ¥12,900 | |
| 12111-21033 |
Pan Sub-assy, Oil
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥42,200 | |
| 12101A — Plug(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥160 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥190 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥190 | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥160 | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥160 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥190 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥190 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥190 | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥160 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥190 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥190 | |
| 12101B — Gasket(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥90 | |
| 12216F — Plate, Ventilation Baffle | ||||
| 12216-40020 |
Plate, Ventilation Baffle
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥2,650 | |
| 12216-40020 |
Plate, Ventilation Baffle
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥2,650 | |
| 12216-40020 |
Plate, Ventilation Baffle
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥2,650 | |
| 15301 — Gage Sub-assy, Oil Level | ||||
| 15301-21030 |
Gage Sub-assy, Oil Level
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥1,200 | |
| 15301-40070 |
Gage Sub-assy, Oil Level
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,200 | |
| 15301-21030 |
Gage Sub-assy, Oil Level
2007-08 → 2007-09
ended
|
1NZFE,2NZFE NCP9# | ¥1,200 | |
| 15301-21040 |
Gage Sub-assy, Oil Level
2007-09 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥1,200 | |
| 15301-21040 |
Gage Sub-assy, Oil Level
2007-09 → 2008-09
ended
|
1NZFE NCP91 RS | ¥1,200 | |
| 15301-40070 |
Gage Sub-assy, Oil Level
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,200 | |
| 15301-21040 |
Gage Sub-assy, Oil Level
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥1,200 | |
| 15301-40070 |
Gage Sub-assy, Oil Level
2008-08 → 2010-08
ended
|
1KRFE KSP90 | ¥1,200 | |
| 15301-40100 |
Gage Sub-assy, Oil Level
2010-08 → 2010-12
ended
|
1KRFE KSP90 | ¥1,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
