Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

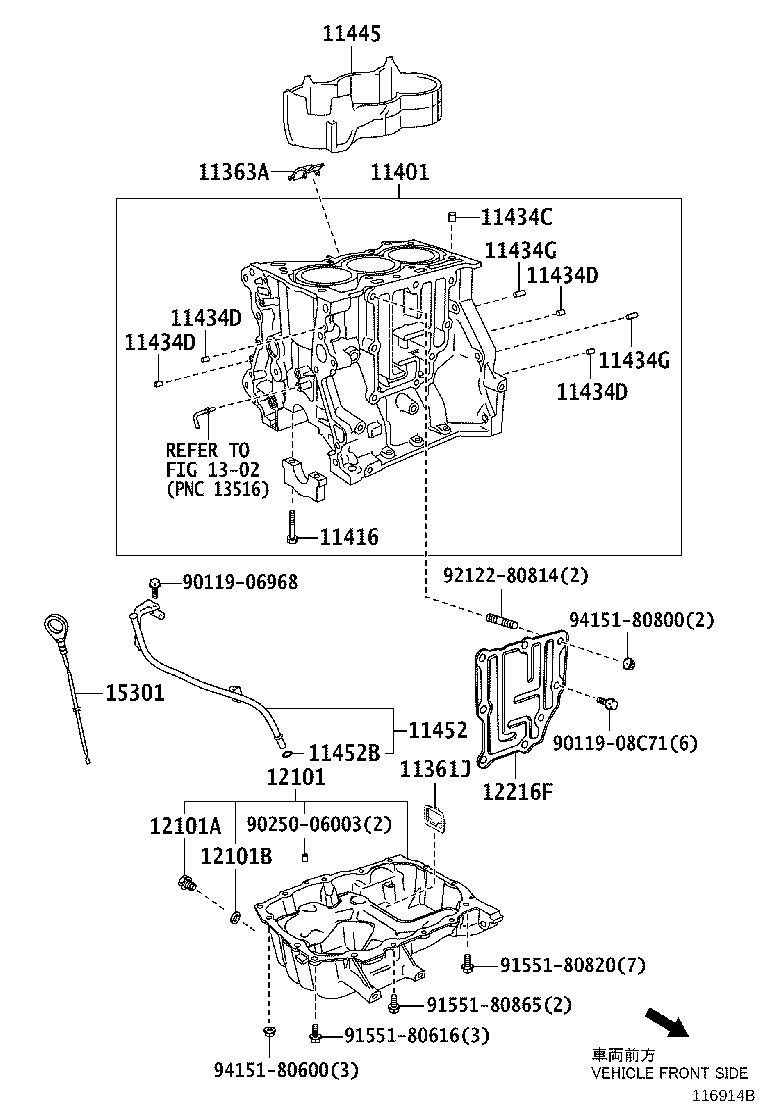

Exploded illustration 116914B 11363A — COVER, FLYWHEEL HOUSING SIDE (9 parts) 11401 — BLOCK SUB-ASSY, CYLINDER (18 parts) 11452 — GUIDE, OIL LEVEL GAGE (8 parts) 11452B — RING, O(FOR OIL LEVEL GAGE GUIDE) (7 parts) 12101 — PAN SUB-ASSY, OIL (13 parts) 12101A — PLUG(FOR OIL PAN DRAIN) (11 parts) 12101B — GASKET(FOR OIL PAN DRAIN PLUG) (11 parts) 12216F — PLATE, VENTILATION BAFFLE (3 parts) 15301 — GAGE SUB-ASSY, OIL LEVEL (9 parts) 11416 — BOLT(FOR CRANKSHAFT BEARING CAP SET) (10 parts) 11361J — COVER, FLYWHEEL HOUSING UNDER (11 parts) 11434D — PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) (7 parts) 11434G — PIN, STRAIGHT(FOR END PLATE) (12 parts) 11434G — PIN, STRAIGHT(FOR END PLATE) (12 parts) 11434C — PIN, STRAIGHT (FOR CYLINDER HEAD SET) (11 parts) 11434D — PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) (7 parts) 11434D — PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) (7 parts) 11434D — PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) (7 parts) 9212280814 — not listed in this catalogue 9415180800 — not listed in this catalogue 9011908C71 — not listed in this catalogue 9155180616 — not listed in this catalogue 9155180865 — not listed in this catalogue 9155180820 — not listed in this catalogue 9025006003 — not listed in this catalogue 9011906968 — not listed in this catalogue 1302 — not listed in this catalogue 9415180600 — not listed in this catalogue 11445 — SPACER, CYLINDER BLOCK WATER JACKET (5 parts)
116914B · 19 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
145 parts on this figure
Part number Description Fitment Price
11361J — Cover, Flywheel Housing Under
11361-21011 Cover, Flywheel Housing Under
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥490
11361-23020 Cover, Flywheel Housing Under
2005-01 → 2007-08 ended
2SZFE SCP90 ¥540
11361-23020 Cover, Flywheel Housing Under
2005-01 → 2007-08 ended
1KRFE KSP90 ¥540
11361-21011 Cover, Flywheel Housing Under
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥490
11361-21011 Cover, Flywheel Housing Under
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥490
11361-23020 Cover, Flywheel Housing Under
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥540
11361-23020 Cover, Flywheel Housing Under
2007-08 → 2008-08 ended
1KRFE KSP90 ¥540
11361-23020 Cover, Flywheel Housing Under
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥540
11361-21011 Cover, Flywheel Housing Under
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥490
11361-23020 Cover, Flywheel Housing Under
2008-08 → 2010-12 ended
2SZFE SCP90 ¥540
11361-23020 Cover, Flywheel Housing Under
2008-08 → 2010-12 ended
1KRFE KSP90 ¥540
11363A — Cover, Flywheel Housing Side
11363-0Q010 note Cover, Flywheel Housing Side
2005-01 → 2007-08 ended
1KRFE KSP90 ¥270
11363-21010 Cover, Flywheel Housing Side
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥350
11363-40010 note Cover, Flywheel Housing Side
2005-01 → 2007-08 ended
1KRFE KSP90 ¥270
11363-0Q010 note Cover, Flywheel Housing Side
2007-08 → 2008-08 ended
1KRFE KSP90 ¥270
11363-21010 Cover, Flywheel Housing Side
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥350
11363-21010 Cover, Flywheel Housing Side
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥350
11363-40010 note Cover, Flywheel Housing Side
2007-08 → 2008-08 ended
1KRFE KSP90 ¥270
11363-21010 Cover, Flywheel Housing Side
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥350
11363-40010 note Cover, Flywheel Housing Side
2008-08 → 2010-12 ended
1KRFE KSP90 ¥270
11401 — Block Sub-assy, Cylinder
11401-23040 Block Sub-assy, Cylinder
2005-01 → 2005-06 ended
2SZFE SCP90 ¥136,000
11401-23041 note Block Sub-assy, Cylinder
2005-06 → 2006-06 ended
2SZFE SCP90 ¥136,000
11401-23043 note Block Sub-assy, Cylinder
2006-06 → 2007-08 ended
2SZFE SCP90 ¥136,000
11401-29845 Block Sub-assy, Cylinder
2005-01 → 2007-08 ended
2NZFE NCP95 ¥165,000
11401-29865 Block Sub-assy, Cylinder
2005-01 → 2007-08 ended
1NZFE NCP91 ¥182,000
11401-40040 note Block Sub-assy, Cylinder
2005-01 → 2006-11 ended
1KRFE KSP90 ¥139,000
11401-40041 note Block Sub-assy, Cylinder
2006-11 → 2007-08 ended
1KRFE KSP90 ¥139,000
11401-23043 Block Sub-assy, Cylinder
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥136,000
11401-23043 Block Sub-assy, Cylinder
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥136,000
11401-29845 Block Sub-assy, Cylinder
2007-08 → 2008-08 ended
2NZFE NCP95 ¥165,000
11401-29865 Block Sub-assy, Cylinder
2007-08 → 2008-09 ended
1NZFE NCP91 ¥182,000
11401-40041 Block Sub-assy, Cylinder
2007-08 → 2008-08 ended
1KRFE KSP90 ¥139,000
11401-23043 Block Sub-assy, Cylinder
2008-08 → 2010-12 ended
2SZFE SCP90 ¥136,000
11401-29845 Block Sub-assy, Cylinder
2008-08 → 2008-12 ended
2NZFE NCP95 ¥165,000
11401-29846 Block Sub-assy, Cylinder
2008-12 → 2010-12 ended
2NZFE NCP95 ¥165,000
11401-29865 Block Sub-assy, Cylinder
2008-08 → 2008-12 ended
1NZFE NCP91 ¥182,000
11401-29866 Block Sub-assy, Cylinder
2008-12 → 2010-12 ended
1NZFE NCP91 ¥182,000
11401-40041 Block Sub-assy, Cylinder
2008-08 → 2010-12 ended
1KRFE KSP90 ¥139,000
11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET)
90105-10492 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥260
90105-10531 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥160
90910-02125 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥220
90105-10492 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥260
90105-10492 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥260
90105-10531 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥160
90910-02125 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2007-08 → 2008-09 ended
1NZFE,2NZFE NCP9# ¥220
90105-10492 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥260
90105-10531 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥160
90910-02125 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥220
11434C — Pin, Straight (FOR CYLINDER HEAD SET)
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥140
90253-12002 note Pin, Straight (FOR CYLINDER HEAD SET)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥50
90253-12002 note Pin, Straight (FOR CYLINDER HEAD SET)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥50
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥140
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥140
90253-12002 note Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥50
90253-12002 note Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥50
90253-12002 note Pin, Straight (FOR CYLINDER HEAD SET)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥50
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥140
90253-12002 note Pin, Straight (FOR CYLINDER HEAD SET)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥50
90253-12002 note Pin, Straight (FOR CYLINDER HEAD SET)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥50
11434D — Pin, Straight(FOR ENGINE REAR OIL SEAL)
90250-06003 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥90
90250-06030 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥120
90250-06003 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥90
90250-06030 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥120
90250-06030 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥120
90250-06003 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥90
90250-06030 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥120
11434G — Pin, Straight(FOR END PLATE)
90250-10113 Pin, Straight(FOR END PLATE)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥120
90250-10214 Pin, Straight(FOR END PLATE)
2005-01 → 2005-04 ended
1KRFE KSP90 ¥120
90250-10214 Pin, Straight(FOR END PLATE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥120
90250-10232 Pin, Straight(FOR END PLATE)
2005-05 → 2007-08 ended
1KRFE KSP90 ¥100
90250-10113 Pin, Straight(FOR END PLATE)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥120
90250-10113 Pin, Straight(FOR END PLATE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥120
90250-10214 Pin, Straight(FOR END PLATE)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥120
90250-10214 Pin, Straight(FOR END PLATE)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥120
90250-10232 Pin, Straight(FOR END PLATE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥100
90250-10113 Pin, Straight(FOR END PLATE)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥120
90250-10214 Pin, Straight(FOR END PLATE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥120
90250-10232 Pin, Straight(FOR END PLATE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥100
11445 — Spacer, Cylinder Block Water Jacket
11445-23010 Spacer, Cylinder Block Water Jacket
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,040
11445-23010 Spacer, Cylinder Block Water Jacket
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,040
11445-23010 Spacer, Cylinder Block Water Jacket
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,040
11445-23010 Spacer, Cylinder Block Water Jacket
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,040
11445-40010 Spacer, Cylinder Block Water Jacket
2010-08 → 2010-12 ended
1KRFE KSP90 ¥2,700
11452 — Guide, Oil Level Gage
11409-40030 Guide, Oil Level Gage
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,850
11452-21030 Guide, Oil Level Gage
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥1,300
11409-40030 Guide, Oil Level Gage
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,850
11452-21030 Guide, Oil Level Gage
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥1,300
11452-21030 Guide, Oil Level Gage
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,300
11409-40030 Guide, Oil Level Gage
2008-08 → 2010-08 ended
1KRFE KSP90 ¥1,850
11409-40050 Guide, Oil Level Gage
2010-08 → 2010-12 ended
1KRFE KSP90 ¥2,840
11452-21030 Guide, Oil Level Gage
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥1,300
11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥190
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥190
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥190
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥190
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥190
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥190
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥190
12101 — Pan Sub-assy, Oil
12101-23052 Pan Sub-assy, Oil
2005-01 → 2007-08 ended
2SZFE SCP90 ¥26,300
12101-40100 Pan Sub-assy, Oil
2005-01 → 2007-08 ended
1KRFE KSP90 ¥12,900
12111-21033 Pan Sub-assy, Oil
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥42,200
12101-23052 Pan Sub-assy, Oil
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥26,300
12101-23052 Pan Sub-assy, Oil
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥26,300
12101-40100 Pan Sub-assy, Oil
2007-08 → 2008-08 ended
1KRFE KSP90 ¥12,900
12111-21033 Pan Sub-assy, Oil
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥42,200
12111-21033 Pan Sub-assy, Oil
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥42,200
12101-23052 Pan Sub-assy, Oil
2008-08 → 2010-12 ended
2SZFE SCP90 ¥26,300
12101-40100 Pan Sub-assy, Oil
2008-08 → 2010-08 ended
1KRFE KSP90 ¥12,900
12101-40100 note Pan Sub-assy, Oil
2010-08 → 2010-12 ended
1KRFE KSP90 B,F ¥12,900
12101-40120 Pan Sub-assy, Oil
2010-08 → 2010-12 ended
1KRFE KSP90 ¥12,900
12111-21033 Pan Sub-assy, Oil
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥42,200
12101A — Plug(FOR OIL PAN DRAIN)
90341-12012 Plug(FOR OIL PAN DRAIN)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥160
90341-12032 Plug(FOR OIL PAN DRAIN)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥190
90341-12032 Plug(FOR OIL PAN DRAIN)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥190
90341-12012 Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥160
90341-12012 Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥160
90341-12032 Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥190
90341-12032 Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥190
90341-12032 Plug(FOR OIL PAN DRAIN)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥190
90341-12012 Plug(FOR OIL PAN DRAIN)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥160
90341-12032 Plug(FOR OIL PAN DRAIN)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥190
90341-12032 Plug(FOR OIL PAN DRAIN)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥190
12101B — Gasket(FOR OIL PAN DRAIN PLUG)
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥90
12216F — Plate, Ventilation Baffle
12216-40020 Plate, Ventilation Baffle
2005-01 → 2007-08 ended
1KRFE KSP90 ¥2,650
12216-40020 Plate, Ventilation Baffle
2007-08 → 2008-08 ended
1KRFE KSP90 ¥2,650
12216-40020 Plate, Ventilation Baffle
2008-08 → 2010-12 ended
1KRFE KSP90 ¥2,650
15301 — Gage Sub-assy, Oil Level
15301-21030 Gage Sub-assy, Oil Level
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥1,200
15301-40070 Gage Sub-assy, Oil Level
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,200
15301-21030 Gage Sub-assy, Oil Level
2007-08 → 2007-09 ended
1NZFE,2NZFE NCP9# ¥1,200
15301-21040 Gage Sub-assy, Oil Level
2007-09 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥1,200
15301-21040 Gage Sub-assy, Oil Level
2007-09 → 2008-09 ended
1NZFE NCP91 RS ¥1,200
15301-40070 Gage Sub-assy, Oil Level
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,200
15301-21040 Gage Sub-assy, Oil Level
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥1,200
15301-40070 Gage Sub-assy, Oil Level
2008-08 → 2010-08 ended
1KRFE KSP90 ¥1,200
15301-40100 Gage Sub-assy, Oil Level
2010-08 → 2010-12 ended
1KRFE KSP90 ¥1,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
