Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

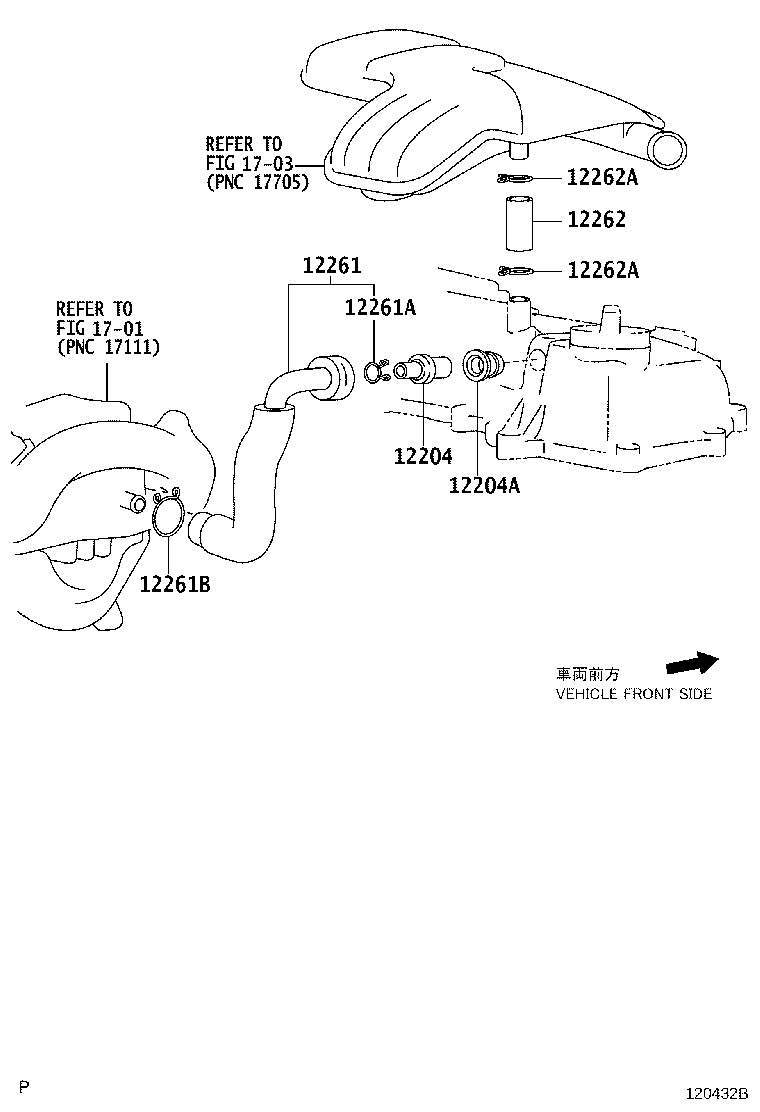

Exploded illustration 120432B 12262A — CLIP(FOR VENTILATION HOSE NO.2) (8 parts) 1703 — not listed in this catalogue 1701 — not listed in this catalogue 12204 — VALVE SUB-ASSY, VENTILATION (14 parts) 12204A — GROMMET(FOR VENTILATION SYSTEM) (8 parts) 12261 — HOSE, VENTILATION (14 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (20 parts) 12261B — CLIP OR CLAMP(FOR VENTILATION HOSE) (3 parts) 12262 — HOSE, VENTILATION, NO.2 (9 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (8 parts)
120432B · 8 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
12204 — Valve Sub-assy, Ventilation
12204-21011 note Valve Sub-assy, Ventilation
2005-01 → 2007-08 ended
2NZFE NCP95 ¥2,070
12204-21020 note Valve Sub-assy, Ventilation
2005-01 → 2007-08 ended
1NZFE NCP91 ¥800
12204-23020 Valve Sub-assy, Ventilation
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,290
12204-40030 Valve Sub-assy, Ventilation
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,290
12204-21011 note Valve Sub-assy, Ventilation
2007-08 → 2008-06 ended
2NZFE NCP95 ¥2,070
12204-21012 note Valve Sub-assy, Ventilation
2008-06 → 2008-08 ended
2NZFE NCP95 ¥1,290
12204-21020 note Valve Sub-assy, Ventilation
2007-08 → 2008-09 ended
1NZFE NCP91 ¥800
12204-23020 Valve Sub-assy, Ventilation
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,290
12204-23020 Valve Sub-assy, Ventilation
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,290
12204-40030 Valve Sub-assy, Ventilation
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,290
12204-21012 note Valve Sub-assy, Ventilation
2008-08 → 2010-12 ended
2NZFE NCP95 ¥1,290
12204-21020 note Valve Sub-assy, Ventilation
2008-08 → 2010-12 ended
1NZFE NCP91 ¥800
12204-23020 Valve Sub-assy, Ventilation
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,290
12204-40030 Valve Sub-assy, Ventilation
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,290
12204A — Grommet(FOR VENTILATION SYSTEM)
90480-12019 Grommet(FOR VENTILATION SYSTEM)
2006-01 → 2007-08 ended
2SZFE SCP90 ¥220
90480-18001 Grommet(FOR VENTILATION SYSTEM)
2005-01 → 2006-01 ended
2SZFE SCP90 ¥390
90480-18014 Grommet(FOR VENTILATION SYSTEM)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥300
90480-12019 Grommet(FOR VENTILATION SYSTEM)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥220
90480-12019 Grommet(FOR VENTILATION SYSTEM)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥220
90480-18014 Grommet(FOR VENTILATION SYSTEM)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥300
90480-12019 Grommet(FOR VENTILATION SYSTEM)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥220
90480-18014 Grommet(FOR VENTILATION SYSTEM)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥300
12261 — Hose, Ventilation
12261-21030 Hose, Ventilation
2005-01 → 2007-08 ended
2NZFE NCP95 ¥1,720
12261-21060 Hose, Ventilation
2005-01 → 2007-08 ended
1NZFE NCP91 ¥1,300
12261-23040 Hose, Ventilation
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,530
12261-40020 Hose, Ventilation
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,530
12261-21030 Hose, Ventilation
2007-08 → 2008-08 ended
2NZFE NCP95 ¥1,720
12261-21060 Hose, Ventilation
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥1,300
12261-21060 Hose, Ventilation
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,300
12261-23040 Hose, Ventilation
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,530
12261-23040 Hose, Ventilation
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,530
12261-40020 Hose, Ventilation
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,530
12261-21030 Hose, Ventilation
2008-08 → 2010-12 ended
2NZFE NCP95 ¥1,720
12261-21060 Hose, Ventilation
2008-08 → 2010-12 ended
1NZFE NCP91 ¥1,300
12261-23040 Hose, Ventilation
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,530
12261-40020 Hose, Ventilation
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,530
12261A — Clip OR Clamp(FOR VENTILATION HOSE)
90467-14001 note Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥70
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥100
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥100
90467-18003 note Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥120
90467-24038 note Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥180
90467-14001 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥70
90467-14001 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥70
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥100
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥100
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥100
90467-18003 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥120
90467-18003 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥120
90467-24038 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥180
90467-24038 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥180
90466-23003 note Clip OR Clamp(FOR VENTILATION HOSE)
2009-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥120
90467-14001 note Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥70
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥100
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥100
90467-18003 note Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥120
90467-24038 note Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2009-08 ended
1NZFE,2NZFE NCP9# ¥180
12261B — Clip OR Clamp(FOR VENTILATION HOSE)
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥240
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥240
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥240
12262 — Hose, Ventilation, NO.2
12262-21080 Hose, Ventilation, NO.2
2005-01 → 2005-08 ended
2NZFE NCP95 ¥1,530
12262-21090 Hose, Ventilation, NO.2
2005-01 → 2005-08 ended
1NZFE NCP91 ¥1,040
12262-40020 Hose, Ventilation, NO.2
2005-01 → 2007-08 ended
1KRFE KSP90 ¥650
90910-05227 Hose, Ventilation, NO.2
2005-01 → 2007-08 ended
2SZFE SCP90 ¥510
12262-40020 Hose, Ventilation, NO.2
2007-08 → 2008-08 ended
1KRFE KSP90 ¥650
90910-05227 Hose, Ventilation, NO.2
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥510
90910-05227 Hose, Ventilation, NO.2
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥510
12262-40020 Hose, Ventilation, NO.2
2008-08 → 2010-12 ended
1KRFE KSP90 ¥650
90910-05227 Hose, Ventilation, NO.2
2008-08 → 2010-12 ended
2SZFE SCP90 ¥510
12262A — Clip(FOR VENTILATION HOSE NO.2)
16581-21050 Clip(FOR VENTILATION HOSE NO.2)
2005-01 → 2005-08 ended
1NZFE,2NZFE NCP9# ¥100
90467-21152 Clip(FOR VENTILATION HOSE NO.2)
2005-08 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥350
90467-23002 Clip(FOR VENTILATION HOSE NO.2)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥90
90467-21152 Clip(FOR VENTILATION HOSE NO.2)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥350
90467-21152 Clip(FOR VENTILATION HOSE NO.2)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥350
90467-23002 Clip(FOR VENTILATION HOSE NO.2)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥90
90467-21152 Clip(FOR VENTILATION HOSE NO.2)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥350
90467-23002 Clip(FOR VENTILATION HOSE NO.2)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥90
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
