Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

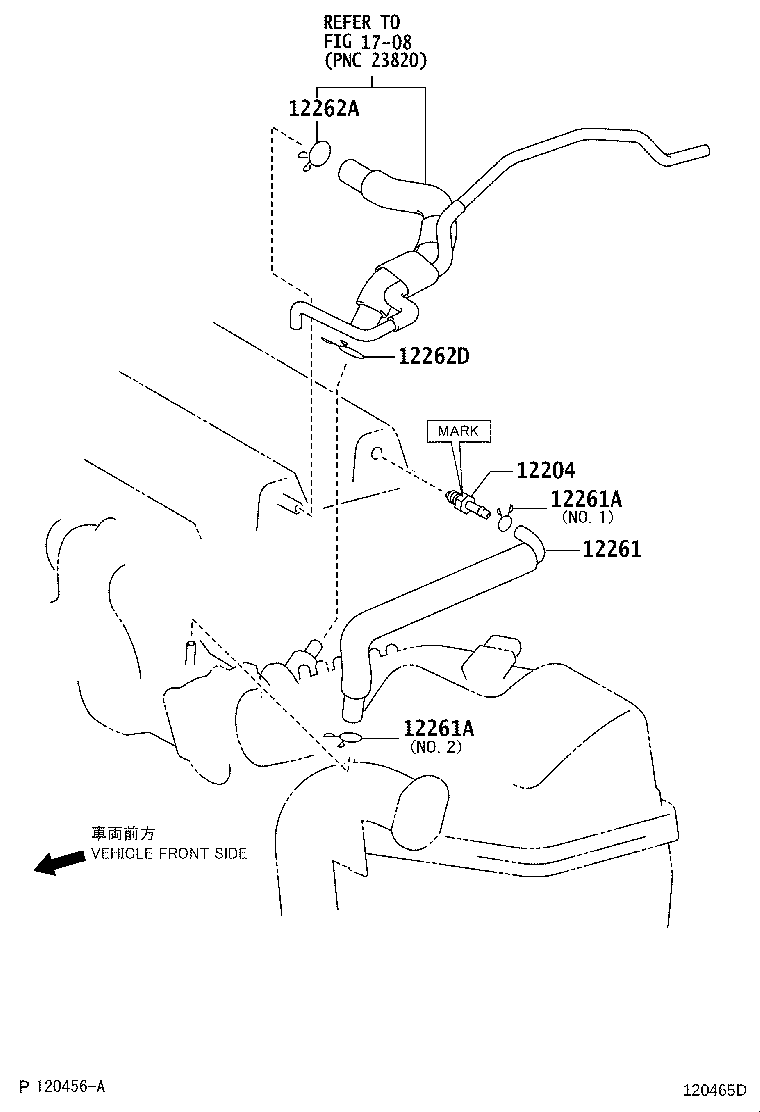

Exploded illustration 120465D 1708 — not listed in this catalogue 12262A — CLIP(FOR VENTILATION HOSE NO.2) (8 parts) 12262D — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (20 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (20 parts) 12261 — HOSE, VENTILATION (14 parts) 12204 — VALVE SUB-ASSY, VENTILATION (14 parts)
120465D · 6 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
12204 — Valve Sub-assy, Ventilation
12204-21011 note Valve Sub-assy, Ventilation
2005-01 → 2007-08 ended
2NZFE NCP95 ¥2,070
12204-21020 note Valve Sub-assy, Ventilation
2005-01 → 2007-08 ended
1NZFE NCP91 ¥800
12204-23020 Valve Sub-assy, Ventilation
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,290
12204-40030 Valve Sub-assy, Ventilation
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,290
12204-21011 note Valve Sub-assy, Ventilation
2007-08 → 2008-06 ended
2NZFE NCP95 ¥2,070
12204-21012 note Valve Sub-assy, Ventilation
2008-06 → 2008-08 ended
2NZFE NCP95 ¥1,290
12204-21020 note Valve Sub-assy, Ventilation
2007-08 → 2008-09 ended
1NZFE NCP91 ¥800
12204-23020 Valve Sub-assy, Ventilation
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,290
12204-23020 Valve Sub-assy, Ventilation
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,290
12204-40030 Valve Sub-assy, Ventilation
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,290
12204-21012 note Valve Sub-assy, Ventilation
2008-08 → 2010-12 ended
2NZFE NCP95 ¥1,290
12204-21020 note Valve Sub-assy, Ventilation
2008-08 → 2010-12 ended
1NZFE NCP91 ¥800
12204-23020 Valve Sub-assy, Ventilation
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,290
12204-40030 Valve Sub-assy, Ventilation
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,290
12261 — Hose, Ventilation
12261-21030 Hose, Ventilation
2005-01 → 2007-08 ended
2NZFE NCP95 ¥1,720
12261-21060 Hose, Ventilation
2005-01 → 2007-08 ended
1NZFE NCP91 ¥1,300
12261-23040 Hose, Ventilation
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,530
12261-40020 Hose, Ventilation
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,530
12261-21030 Hose, Ventilation
2007-08 → 2008-08 ended
2NZFE NCP95 ¥1,720
12261-21060 Hose, Ventilation
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥1,300
12261-21060 Hose, Ventilation
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,300
12261-23040 Hose, Ventilation
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,530
12261-23040 Hose, Ventilation
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,530
12261-40020 Hose, Ventilation
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,530
12261-21030 Hose, Ventilation
2008-08 → 2010-12 ended
2NZFE NCP95 ¥1,720
12261-21060 Hose, Ventilation
2008-08 → 2010-12 ended
1NZFE NCP91 ¥1,300
12261-23040 Hose, Ventilation
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,530
12261-40020 Hose, Ventilation
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,530
12261A — Clip OR Clamp(FOR VENTILATION HOSE)
90467-14001 note Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥70
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥100
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥100
90467-18003 note Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥120
90467-24038 note Clip OR Clamp(FOR VENTILATION HOSE)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥180
90467-14001 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥70
90467-14001 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥70
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥100
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥100
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥100
90467-18003 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥120
90467-18003 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥120
90467-24038 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥180
90467-24038 note Clip OR Clamp(FOR VENTILATION HOSE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥180
90466-23003 note Clip OR Clamp(FOR VENTILATION HOSE)
2009-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥120
90467-14001 note Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥70
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥100
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥100
90467-18003 note Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥120
90467-24038 note Clip OR Clamp(FOR VENTILATION HOSE)
2008-08 → 2009-08 ended
1NZFE,2NZFE NCP9# ¥180
12262A — Clip(FOR VENTILATION HOSE NO.2)
16581-21050 Clip(FOR VENTILATION HOSE NO.2)
2005-01 → 2005-08 ended
1NZFE,2NZFE NCP9# ¥100
90467-21152 Clip(FOR VENTILATION HOSE NO.2)
2005-08 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥350
90467-23002 Clip(FOR VENTILATION HOSE NO.2)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥90
90467-21152 Clip(FOR VENTILATION HOSE NO.2)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥350
90467-21152 Clip(FOR VENTILATION HOSE NO.2)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥350
90467-23002 Clip(FOR VENTILATION HOSE NO.2)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥90
90467-21152 Clip(FOR VENTILATION HOSE NO.2)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥350
90467-23002 Clip(FOR VENTILATION HOSE NO.2)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥90
12262D — Clip(FOR VENTILATION HOSE NO.2)
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥130
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥130
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥130
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥130
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
