Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

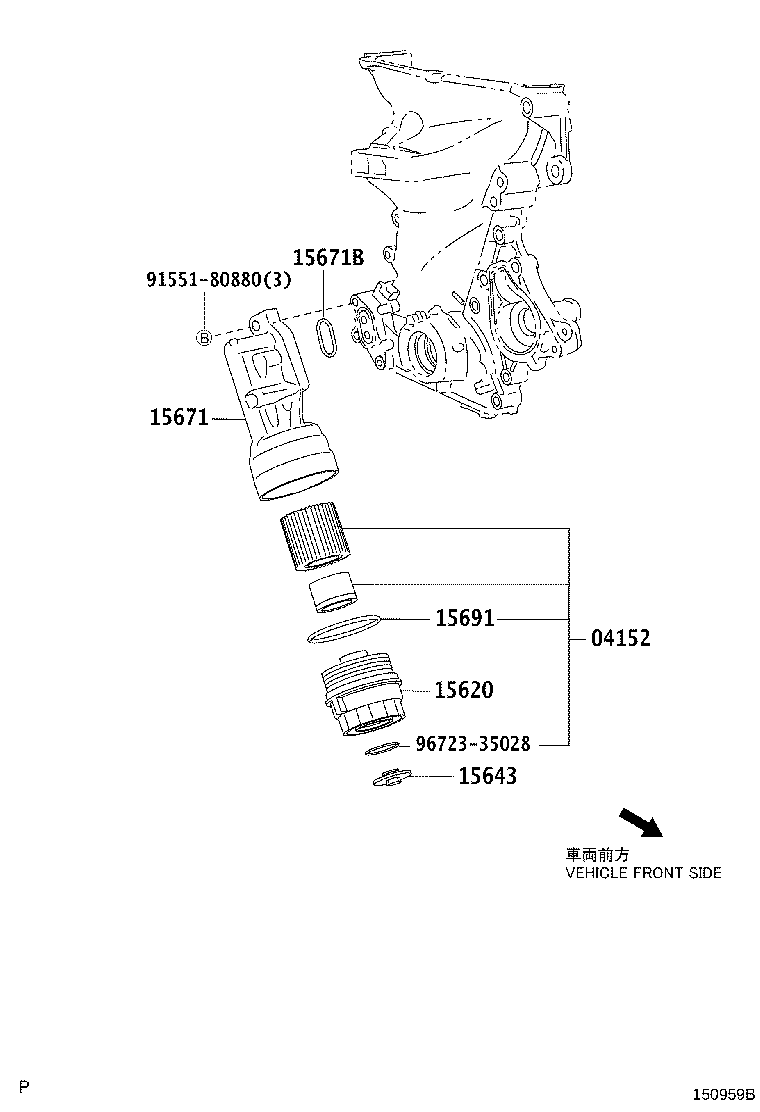

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-40060 |
Element Kit, Oil Filter
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥940 | |
| 04152-40060 |
Element Kit, Oil Filter
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥940 | |
| 04152-40060 |
Element Kit, Oil Filter
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥940 | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-40030 |
Cap Assy, Oil Filter
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥880 | |
| 15620-40030 |
Cap Assy, Oil Filter
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥880 | |
| 15620-40030 |
Cap Assy, Oil Filter
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥880 | |
| 15643 — Plug, Oil Filter Drain | ||||
| 15643-31040 |
Plug, Oil Filter Drain
2005-01 → 2006-08
ended
|
1KRFE KSP90 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2006-08 → 2007-08
ended
|
1KRFE KSP90 | ¥0 | |
| 15643-31050 |
Plug, Oil Filter Drain
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥0 | |
| 15643-31050 |
Plug, Oil Filter Drain
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥0 | |
| 15671 — Bracket, Oil Filter | ||||
| 15671-40010 |
Bracket, Oil Filter
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥7,700 | |
| 15677-23021 |
Bracket, Oil Filter
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥10,900 | |
| 15671-40010 |
Bracket, Oil Filter
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥7,700 | |
| 15677-23021 |
Bracket, Oil Filter
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥10,900 | |
| 15677-23021 |
Bracket, Oil Filter
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥10,900 | |
| 15671-40010 |
Bracket, Oil Filter
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥7,700 | |
| 15677-23021 |
Bracket, Oil Filter
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥10,900 | |
| 15671B — Gasket, Oil Filter Bracket | ||||
| 15691-40020 |
Gasket, Oil Filter Bracket
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥190 | |
| 15691-40020 |
Gasket, Oil Filter Bracket
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥190 | |
| 15691-40020 |
Gasket, Oil Filter Bracket
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥190 | |
| 15691 — Gasket, Oil Filter | ||||
| 90301-69010 |
Gasket, Oil Filter
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥330 | |
| 90301-69010 |
Gasket, Oil Filter
2007-08 → 2008-01
ended
|
1KRFE KSP90 | ¥330 | |
| 90301-69011 |
Gasket, Oil Filter
2008-01 → 2008-08
ended
|
1KRFE KSP90 | — | |
| 90301-69011 |
Gasket, Oil Filter
2008-08 → 2010-12
ended
|
1KRFE KSP90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
