Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

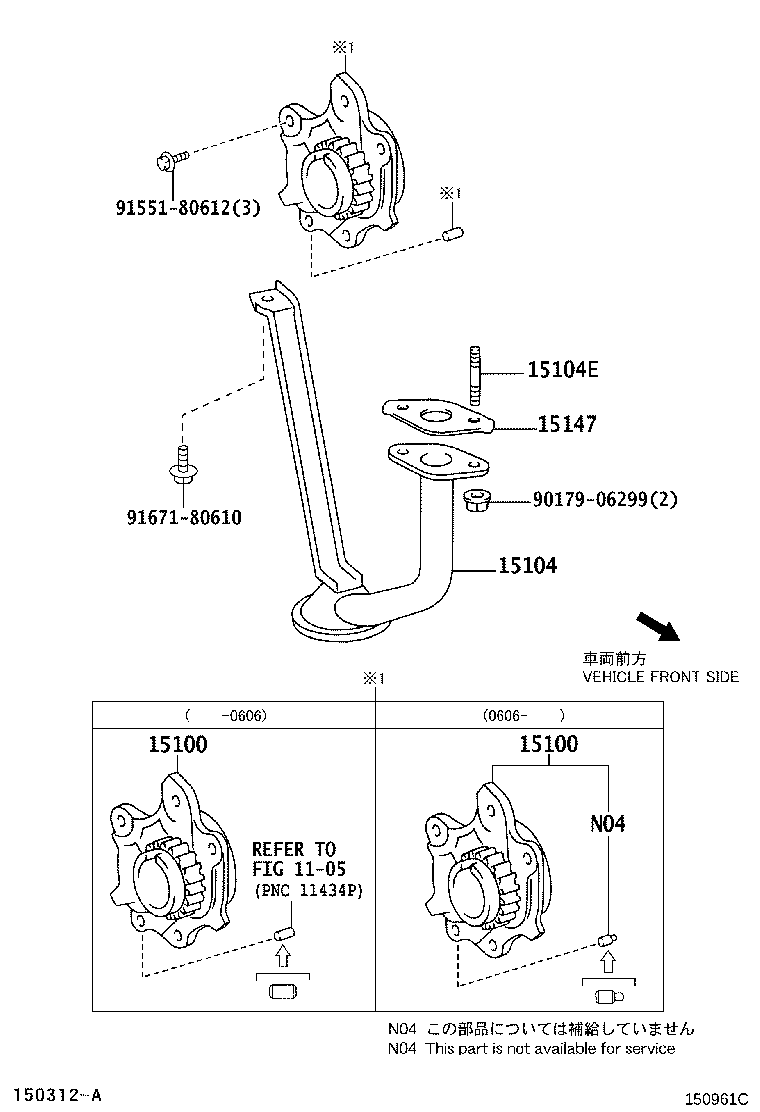

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15100 — Pump Assy, Oil | ||||
| 15100-21030 |
Pump Assy, Oil
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥16,000 | |
| 15100-21060 |
Pump Assy, Oil
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥16,700 | |
| 15100-23030 note |
Pump Assy, Oil
2005-01 → 2006-06
ended
|
2SZFE SCP90 | ¥16,100 | |
| 15100-23040 note |
Pump Assy, Oil
2006-06 → 2007-08
ended
|
2SZFE SCP90 | ¥16,000 | |
| 15100-21030 |
Pump Assy, Oil
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥16,000 | |
| 15100-21060 |
Pump Assy, Oil
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥16,700 | |
| 15100-21060 |
Pump Assy, Oil
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥16,700 | |
| 15100-23040 |
Pump Assy, Oil
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥16,000 | |
| 15100-23040 |
Pump Assy, Oil
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥16,000 | |
| 15100-21030 |
Pump Assy, Oil
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥16,000 | |
| 15100-21060 |
Pump Assy, Oil
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥16,700 | |
| 15100-23040 |
Pump Assy, Oil
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥16,000 | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-21021 |
Strainer Sub-assy, Oil
2005-01 → 2006-12
ended
|
1NZFE,2NZFE NCP9# | ¥3,110 | |
| 15104-21022 |
Strainer Sub-assy, Oil
2006-12 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥1,960 | |
| 15104-23070 |
Strainer Sub-assy, Oil
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥4,540 | |
| 15104-40030 |
Strainer Sub-assy, Oil
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥2,440 | |
| 15104-21022 |
Strainer Sub-assy, Oil
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥1,960 | |
| 15104-21022 |
Strainer Sub-assy, Oil
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥1,960 | |
| 15104-23070 |
Strainer Sub-assy, Oil
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥4,540 | |
| 15104-23070 |
Strainer Sub-assy, Oil
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥4,540 | |
| 15104-40030 |
Strainer Sub-assy, Oil
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥2,440 | |
| 15104-21022 |
Strainer Sub-assy, Oil
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥1,960 | |
| 15104-23070 |
Strainer Sub-assy, Oil
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥4,540 | |
| 15104-40030 |
Strainer Sub-assy, Oil
2008-08 → 2010-08
ended
|
1KRFE KSP90 | ¥2,440 | |
| 15104-40050 |
Strainer Sub-assy, Oil
2010-08 → 2010-12
ended
|
1KRFE KSP90 | ¥2,030 | |
| 15104E — Bolt, Stud(FOR OIL STRAINER) | ||||
| 90126-06021 |
Bolt, Stud(FOR OIL STRAINER)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥80 | |
| 92122-B0614 |
Bolt, Stud(FOR OIL STRAINER)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥120 | |
| 90126-06021 |
Bolt, Stud(FOR OIL STRAINER)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥80 | |
| 90126-06021 |
Bolt, Stud(FOR OIL STRAINER)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥80 | |
| 92122-B0614 |
Bolt, Stud(FOR OIL STRAINER)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥120 | |
| 92122-B0614 |
Bolt, Stud(FOR OIL STRAINER)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥120 | |
| 90126-06021 |
Bolt, Stud(FOR OIL STRAINER)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥80 | |
| 92122-B0614 |
Bolt, Stud(FOR OIL STRAINER)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥120 | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-23020 |
Gasket, Oil Strainer
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥360 | |
| 15147-40030 |
Gasket, Oil Strainer
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥200 | |
| 15147-23020 |
Gasket, Oil Strainer
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥360 | |
| 15147-23020 |
Gasket, Oil Strainer
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥360 | |
| 15147-40030 |
Gasket, Oil Strainer
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥200 | |
| 15147-23020 |
Gasket, Oil Strainer
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥360 | |
| 15147-40030 |
Gasket, Oil Strainer
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
