Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

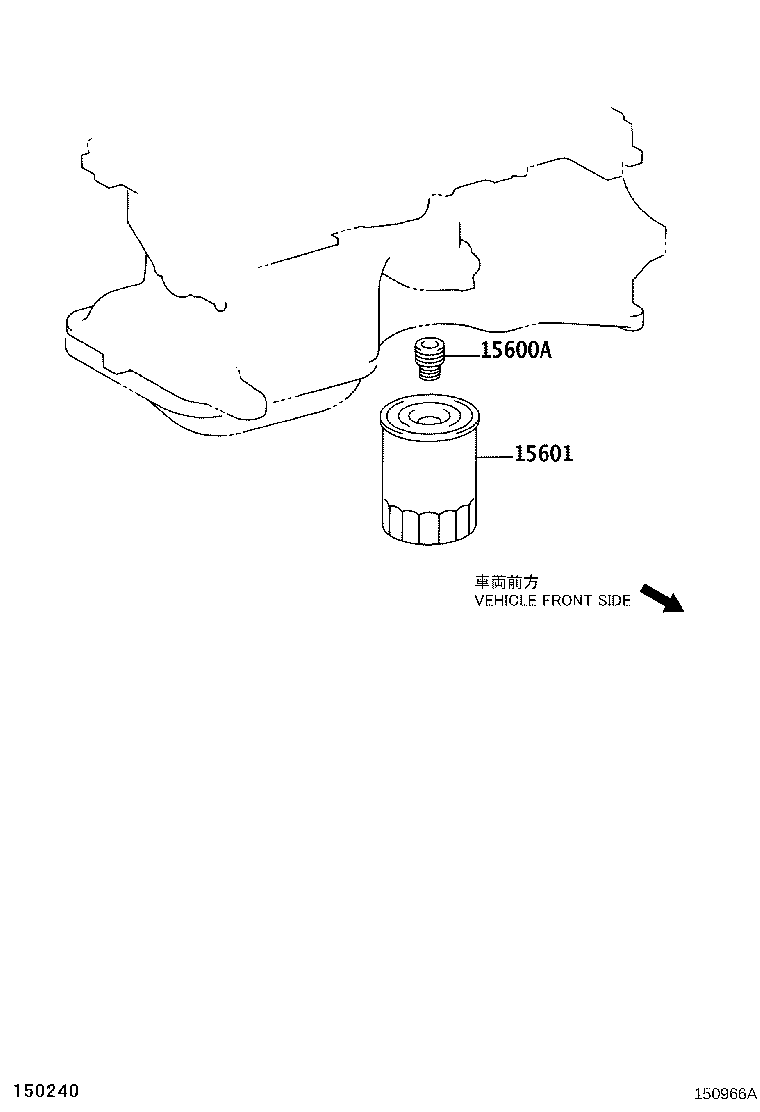

Exploded illustration 150966A 15600A — UNION(FOR OIL FILTER) (4 parts) 15601 — FILTER SUB-ASSY, OIL (8 parts)
150966A · 2 callouts Full size ↗
12 parts on this figure
Part number Description Fitment Price
15600A — Union(FOR OIL FILTER)
90904-04004 Union(FOR OIL FILTER)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥510
90904-04004 Union(FOR OIL FILTER)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥510
90904-04004 Union(FOR OIL FILTER)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥510
90904-04004 Union(FOR OIL FILTER)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥510
15601 — Filter Sub-assy, Oil
90915-10003 Filter Sub-assy, Oil
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,050
90915-10003 Filter Sub-assy, Oil
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥1,050
90915-10003 Filter Sub-assy, Oil
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,050
90915-10003 Filter Sub-assy, Oil
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥1,050
90915-10003 Filter Sub-assy, Oil
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,050
90915-10003 Filter Sub-assy, Oil
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,050
90915-10003 Filter Sub-assy, Oil
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,050
90915-10003 Filter Sub-assy, Oil
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥1,050
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
