Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

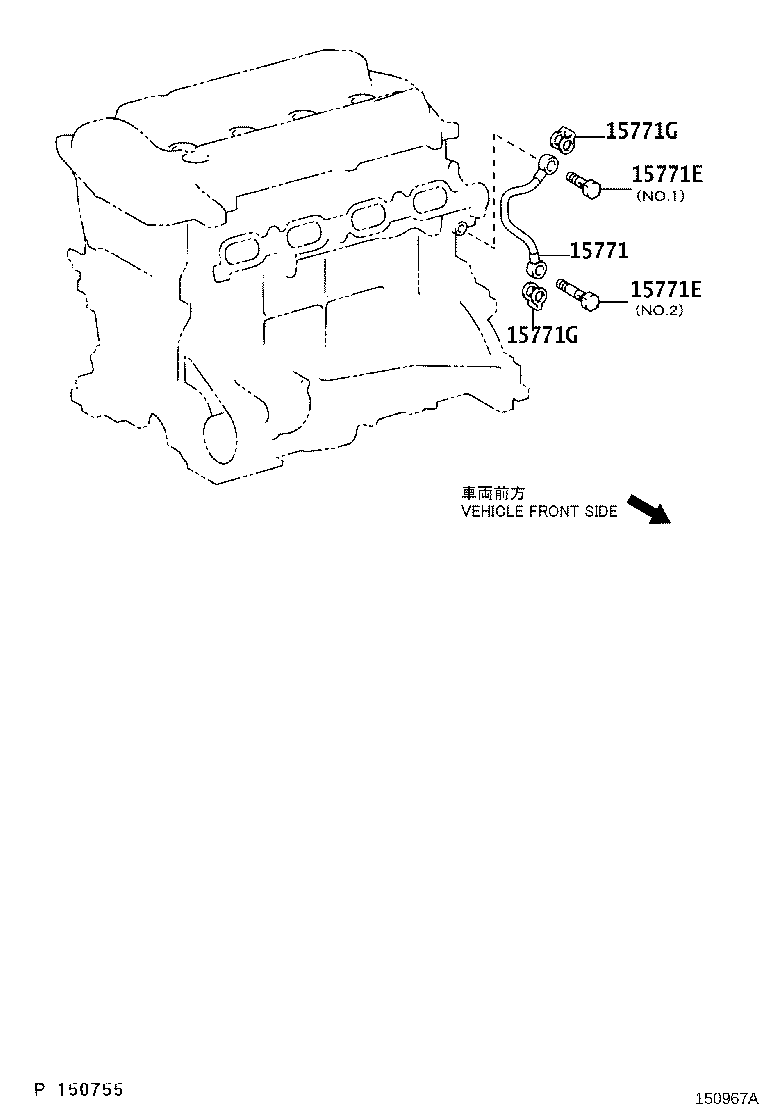

Exploded illustration 150967A 15771 — PIPE, OIL, NO.1 (4 parts) 15771G — GASKET (4 parts) 15771E — BOLT, UNION(FOR OIL PIPE) (8 parts) 15771E — BOLT, UNION(FOR OIL PIPE) (8 parts) 15771G — GASKET (4 parts)
150967A · 5 callouts Full size ↗
16 parts on this figure
Part number Description Fitment Price
15771 — Pipe, Oil, NO.1
15771-21010 Pipe, Oil, NO.1
2005-01 → 2007-08 ended
1NZFE NCP91 ¥2,540
15771-21010 Pipe, Oil, NO.1
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥2,540
15771-21010 Pipe, Oil, NO.1
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥2,540
15771-21010 Pipe, Oil, NO.1
2008-08 → 2010-12 ended
1NZFE NCP91 ¥2,540
15771E — Bolt, Union(FOR OIL PIPE)
90401-12009 note Bolt, Union(FOR OIL PIPE)
2005-01 → 2007-08 ended
1NZFE NCP91 ¥260
90401-12037 note Bolt, Union(FOR OIL PIPE)
2005-01 → 2007-08 ended
1NZFE NCP91 ¥310
90401-12009 note Bolt, Union(FOR OIL PIPE)
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥260
90401-12009 note Bolt, Union(FOR OIL PIPE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥260
90401-12037 note Bolt, Union(FOR OIL PIPE)
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥310
90401-12037 note Bolt, Union(FOR OIL PIPE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥310
90401-12009 note Bolt, Union(FOR OIL PIPE)
2008-08 → 2010-12 ended
1NZFE NCP91 ¥260
90401-12037 note Bolt, Union(FOR OIL PIPE)
2008-08 → 2010-12 ended
1NZFE NCP91 ¥310
15771G — Gasket
90430-12037 Gasket
2005-01 → 2007-08 ended
1NZFE NCP91 ¥80
90430-12037 Gasket
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥80
90430-12037 Gasket
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥80
90430-12037 Gasket
2008-08 → 2010-12 ended
1NZFE NCP91 ¥80
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
