Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

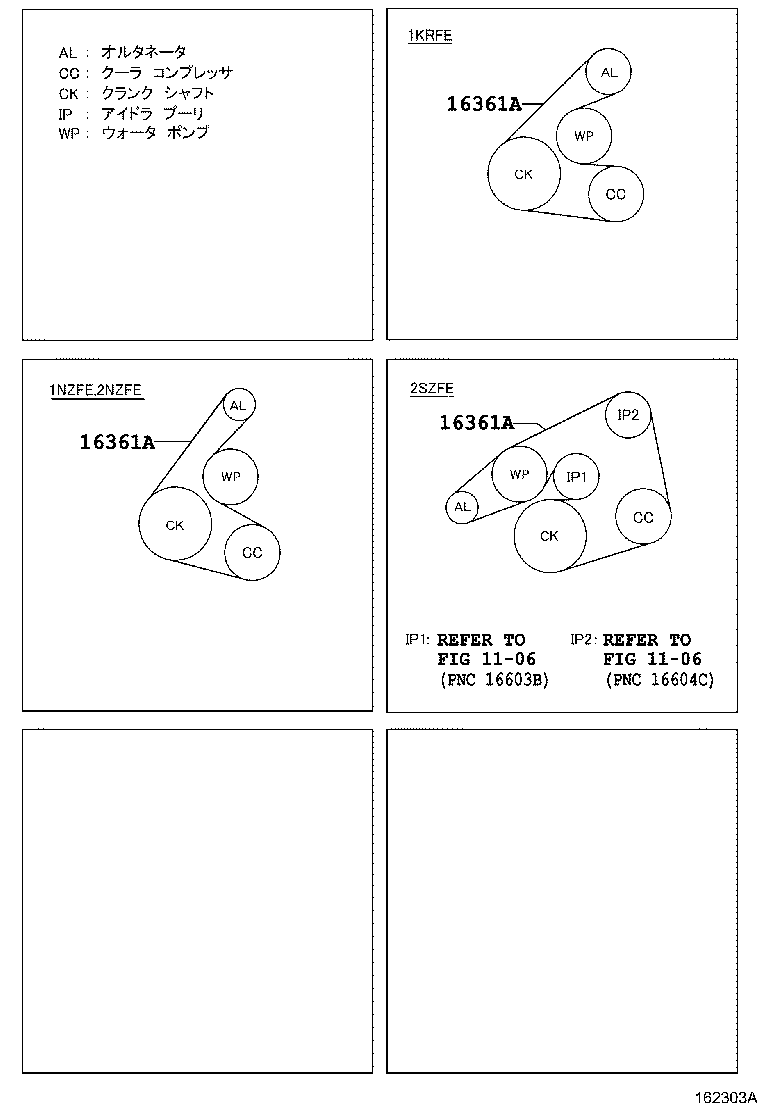

| 16361A — Belt, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02556 |
Belt, V(FOR FAN & ALTERNATOR)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥3,470 | |
| 90916-02603 note |
Belt, V(FOR FAN & ALTERNATOR)
2005-04 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥6,000 | |
| 90916-02606 |
Belt, V(FOR FAN & ALTERNATOR)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥5,200 | |
| 90916-02649 |
Belt, V(FOR FAN & ALTERNATOR)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥7,400 | |
| 90916-02556 |
Belt, V(FOR FAN & ALTERNATOR)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥3,470 | |
| 90916-02556 |
Belt, V(FOR FAN & ALTERNATOR)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥3,470 | |
| 90916-02603 note |
Belt, V(FOR FAN & ALTERNATOR)
2007-08 → 2008-08
ended
|
1KRFE KSP90 B,F | ¥6,000 | |
| 90916-02606 |
Belt, V(FOR FAN & ALTERNATOR)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥5,200 | |
| 90916-02649 |
Belt, V(FOR FAN & ALTERNATOR)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥7,400 | |
| 90916-02649 |
Belt, V(FOR FAN & ALTERNATOR)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥7,400 | |
| 90916-02556 |
Belt, V(FOR FAN & ALTERNATOR)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥3,470 | |
| 90916-02603 |
Belt, V(FOR FAN & ALTERNATOR)
2008-08 → 2008-10
ended
|
1KRFE KSP90 | ¥6,000 | |
| 90916-02649 |
Belt, V(FOR FAN & ALTERNATOR)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥7,400 | |
| 90916-02683 |
Belt, V(FOR FAN & ALTERNATOR)
2008-11 → 2010-12
ended
|
1KRFE KSP90 | ¥5,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
