Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

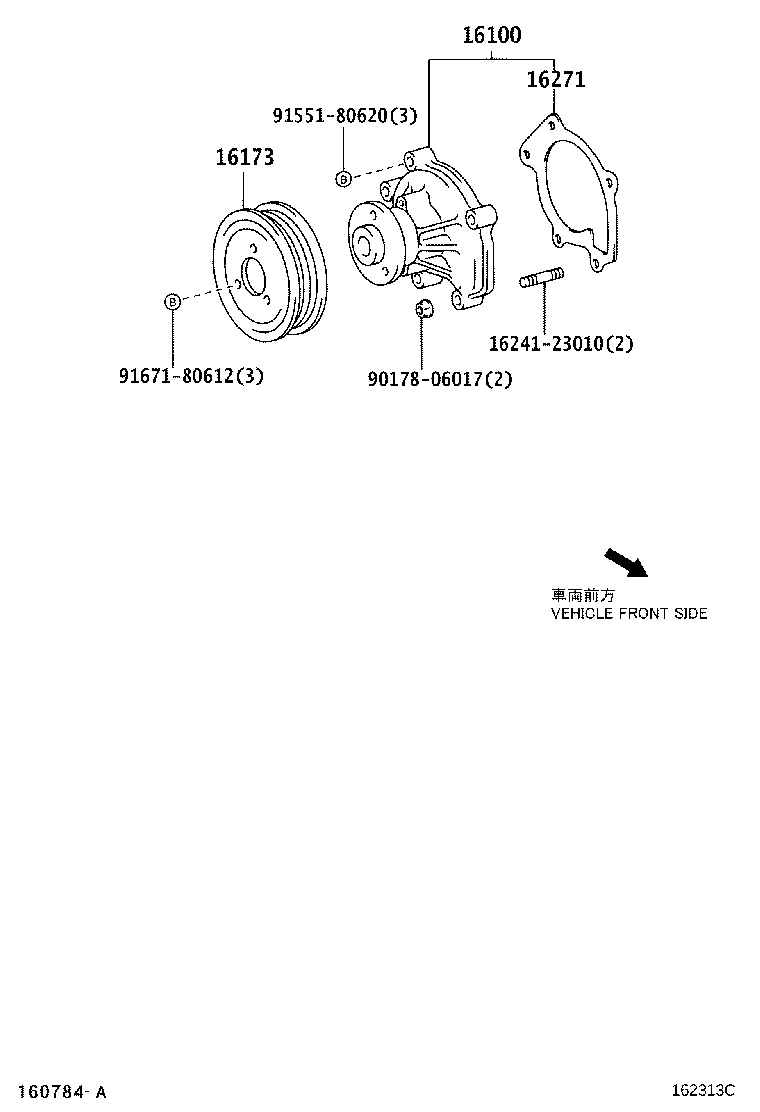

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-29116 |
Pump Assy, Engine Water
2005-01 → 2007-04
ended
|
2SZFE SCP90 | ¥10,000 | |
| 16100-29117 |
Pump Assy, Engine Water
2007-05 → 2007-08
ended
|
2SZFE SCP90 | ¥8,700 | |
| 16100-29155 |
Pump Assy, Engine Water
2005-01 → 2005-06
ended
|
2NZFE NCP95 | ¥10,700 | |
| 16100-29156 |
Pump Assy, Engine Water
2005-06 → 2007-08
ended
|
2NZFE NCP95 | ¥9,300 | |
| 16100-29205 |
Pump Assy, Engine Water
2005-01 → 2005-06
ended
|
1NZFE NCP91 | ¥11,400 | |
| 16100-29206 |
Pump Assy, Engine Water
2005-06 → 2007-08
ended
|
1NZFE NCP91 | ¥11,400 | |
| 16100-80001 note |
Pump Assy, Engine Water
2005-01 → 2005-08
ended
|
1KRFE KSP90 | ¥10,000 | |
| 16100-80003 note |
Pump Assy, Engine Water
2005-08 → 2007-08
ended
|
1KRFE KSP90 | ¥10,000 | |
| 16100-29117 |
Pump Assy, Engine Water
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥8,700 | |
| 16100-29117 |
Pump Assy, Engine Water
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥8,700 | |
| 16100-29156 |
Pump Assy, Engine Water
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥9,300 | |
| 16100-29206 |
Pump Assy, Engine Water
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥11,400 | |
| 16100-29206 |
Pump Assy, Engine Water
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥11,400 | |
| 16100-80003 |
Pump Assy, Engine Water
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥10,000 | |
| 16100-29117 |
Pump Assy, Engine Water
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥8,700 | |
| 16100-29156 |
Pump Assy, Engine Water
2009-08 → 2010-12
ended
|
1NZFE NCP91 | ¥9,300 | |
| 16100-29156 |
Pump Assy, Engine Water
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥9,300 | |
| 16100-29206 |
Pump Assy, Engine Water
2008-08 → 2009-07
ended
|
1NZFE NCP91 | ¥11,400 | |
| 16100-80003 |
Pump Assy, Engine Water
2008-08 → 2008-11
ended
|
1KRFE KSP90 | ¥10,000 | |
| 16100-80007 |
Pump Assy, Engine Water
2008-11 → 2010-12
ended
|
1KRFE KSP90 | ¥8,700 | |
| 16173 — Pulley, Water Pump | ||||
| 16173-21020 |
Pulley, Water Pump
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥2,970 | |
| 16173-23040 |
Pulley, Water Pump
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥5,100 | |
| 16173-21020 |
Pulley, Water Pump
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥2,970 | |
| 16173-21020 |
Pulley, Water Pump
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥2,970 | |
| 16173-23040 |
Pulley, Water Pump
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥5,100 | |
| 16173-23040 |
Pulley, Water Pump
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥5,100 | |
| 16173-21020 |
Pulley, Water Pump
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥2,970 | |
| 16173-23040 |
Pulley, Water Pump
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥5,100 | |
| 16271 — Gasket, Water Pump | ||||
| 16271-21020 |
Gasket, Water Pump
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥620 | |
| 16271-23020 |
Gasket, Water Pump
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥520 | |
| 16271-40020 |
Gasket, Water Pump
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥440 | |
| 16271-21020 |
Gasket, Water Pump
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥620 | |
| 16271-21020 |
Gasket, Water Pump
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥620 | |
| 16271-23020 |
Gasket, Water Pump
2007-08 → 2008-05
ended
|
2SZFE SCP90 | ¥520 | |
| 16271-23030 |
Gasket, Water Pump
2008-05 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥500 | |
| 16271-40020 |
Gasket, Water Pump
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥440 | |
| 16271-21020 |
Gasket, Water Pump
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥620 | |
| 16271-23030 |
Gasket, Water Pump
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥500 | |
| 16271-40020 |
Gasket, Water Pump
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥440 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
