Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

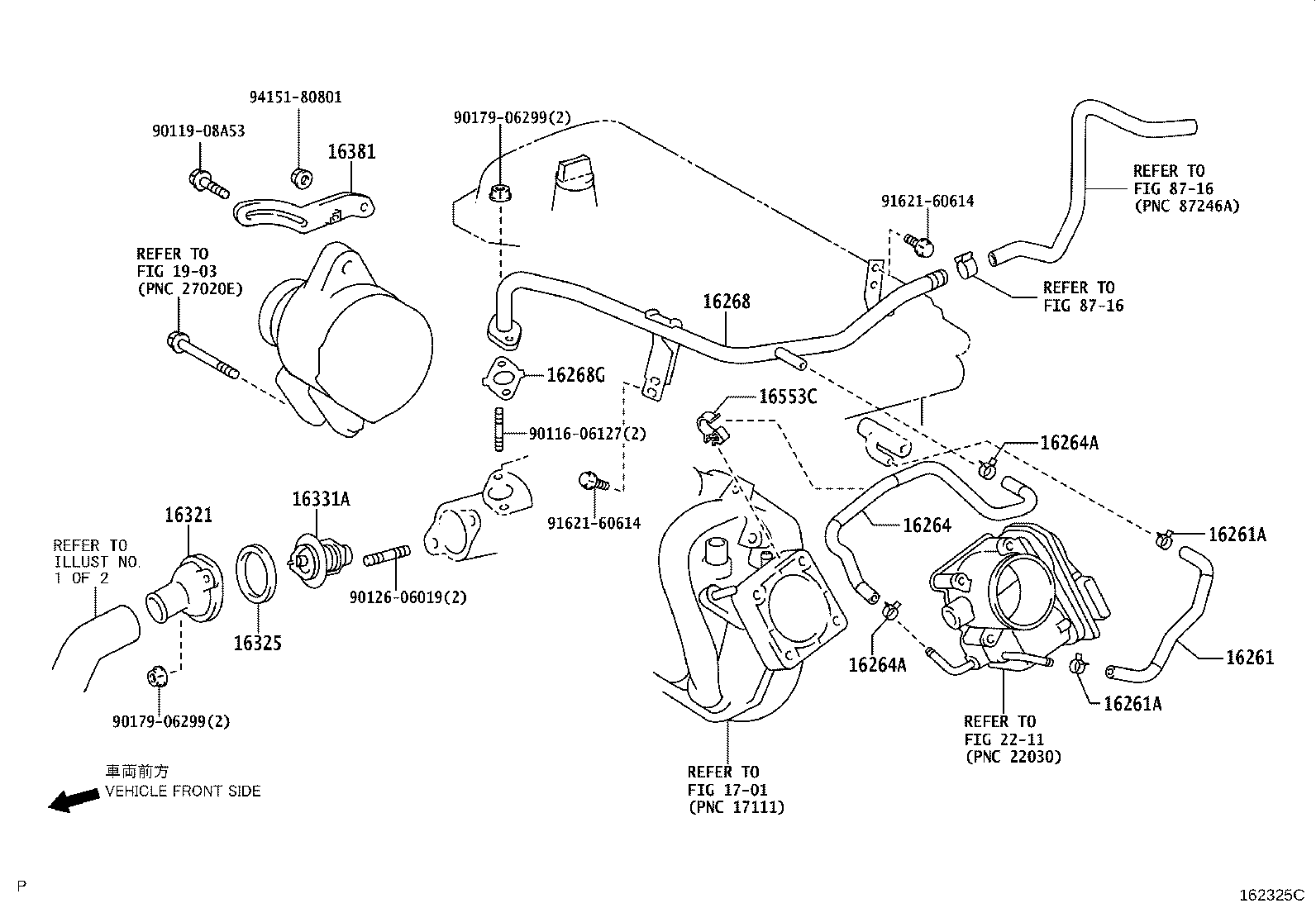

| 16261 — Hose, Water By-pass | ||||
| 16261-21070 |
Hose, Water By-pass
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥350 | |
| 16261-21090 |
Hose, Water By-pass
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥480 | |
| 16261-40060 note |
Hose, Water By-pass
2005-04 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥580 | |
| 16261-40060 note |
Hose, Water By-pass
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥580 | |
| 16261-21070 |
Hose, Water By-pass
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥350 | |
| 16261-21070 |
Hose, Water By-pass
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥350 | |
| 16261-21090 |
Hose, Water By-pass
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥480 | |
| 16261-40060 note |
Hose, Water By-pass
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥580 | |
| 16261-21070 |
Hose, Water By-pass
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥350 | |
| 16261-21090 |
Hose, Water By-pass
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥480 | |
| 16261-40060 note |
Hose, Water By-pass
2008-08 → 2010-07
ended
|
1KRFE KSP90 B,F | ¥580 | |
| 16261-40060 note |
Hose, Water By-pass
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥580 | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥110 | |
| 96134-42100 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥90 | |
| 90467-13054 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥110 | |
| 90467-13054 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥110 | |
| 96134-42100 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥90 | |
| 90467-13054 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥110 | |
| 96134-42100 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥90 | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-21060 |
Hose, Water By-pass, NO.2
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥350 | |
| 16264-21070 |
Hose, Water By-pass, NO.2
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥1,060 | |
| 99556-10260 note |
Hose, Water By-pass, NO.2
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥320 | |
| 16264-21060 |
Hose, Water By-pass, NO.2
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥350 | |
| 16264-21060 |
Hose, Water By-pass, NO.2
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥350 | |
| 16264-21070 |
Hose, Water By-pass, NO.2
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥1,060 | |
| 99556-10260 note |
Hose, Water By-pass, NO.2
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥320 | |
| 16264-21060 |
Hose, Water By-pass, NO.2
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥350 | |
| 16264-21070 |
Hose, Water By-pass, NO.2
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥1,060 | |
| 99556-10260 note |
Hose, Water By-pass, NO.2
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥320 | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥110 | |
| 90467-13054 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥110 | |
| 90467-13054 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥110 | |
| 90467-13054 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥110 | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-21022 |
Pipe, Water By-pass, NO.1
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥3,650 | |
| 16268-21050 |
Pipe, Water By-pass, NO.1
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥3,810 | |
| 16268-40010 |
Pipe, Water By-pass, NO.1
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥6,300 | |
| 16268-21022 |
Pipe, Water By-pass, NO.1
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥3,650 | |
| 16268-21050 |
Pipe, Water By-pass, NO.1
2007-08 → 2008-09
ended
|
1NZFE NCP91 | ¥3,810 | |
| 16268-40010 |
Pipe, Water By-pass, NO.1
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥6,300 | |
| 16268-21022 |
Pipe, Water By-pass, NO.1
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥3,650 | |
| 16268-21050 |
Pipe, Water By-pass, NO.1
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥3,810 | |
| 16268-40010 |
Pipe, Water By-pass, NO.1
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥6,300 | |
| 16268G — Gasket(FOR WATER BY-PASS PIPE) | ||||
| 16258-21020 |
Gasket(FOR WATER BY-PASS PIPE)
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥450 | |
| 16258-21020 |
Gasket(FOR WATER BY-PASS PIPE)
2007-08 → 2008-09
ended
|
1NZFE,2NZFE NCP9# | ¥450 | |
| 16258-21020 |
Gasket(FOR WATER BY-PASS PIPE)
2008-08 → 2008-11
ended
|
1NZFE,2NZFE NCP9# | ¥450 | |
| 16258-21021 |
Gasket(FOR WATER BY-PASS PIPE)
2008-11 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥270 | |
| 16321 — Inlet, Water | ||||
| 16321-21020 |
Inlet, Water
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥890 | |
| 16321-23010 |
Inlet, Water
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥3,010 | |
| 16321-40010 |
Inlet, Water
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,670 | |
| 16321-21020 |
Inlet, Water
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥890 | |
| 16321-21020 |
Inlet, Water
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥890 | |
| 16321-23010 |
Inlet, Water
2007-08 → 2008-09
ended
|
2SZFE SCP90 | ¥3,010 | |
| 16321-40010 |
Inlet, Water
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,670 | |
| 16321-21020 |
Inlet, Water
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥890 | |
| 16321-23010 |
Inlet, Water
2008-08 → 2008-12
ended
|
2SZFE SCP90 | ¥3,010 | |
| 16321-23040 |
Inlet, Water
2008-12 → 2009-06
ended
|
2SZFE SCP90 | ¥3,170 | |
| 16321-23041 |
Inlet, Water
2009-06 → 2010-12
ended
|
2SZFE SCP90 | ¥3,170 | |
| 16321-40010 |
Inlet, Water
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥1,670 | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥350 | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥350 | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥350 | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥350 | |
| 16331A — Thermostat | ||||
| 90916-03093 note |
Thermostat
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥1,600 | |
| 90916-03122 note |
Thermostat
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥1,760 | |
| 90916-03126 note |
Thermostat
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥2,030 | |
| 90916-03134 |
Thermostat
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,760 | |
| 90916-03093 note |
Thermostat
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥1,600 | |
| 90916-03122 note |
Thermostat
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥1,760 | |
| 90916-03122 note |
Thermostat
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥1,760 | |
| 90916-03126 note |
Thermostat
2007-08 → 2007-11
ended
|
1NZFE NCP91 | ¥2,030 | |
| 90916-03134 |
Thermostat
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,760 | |
| 90916-03142 note |
Thermostat
2007-11 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥1,600 | |
| 90916-03142 note |
Thermostat
2007-11 → 2008-09
ended
|
1NZFE NCP91 RS | ¥1,600 | |
| 90916-03093 note |
Thermostat
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥1,600 | |
| 90916-03122 note |
Thermostat
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥1,760 | |
| 90916-03134 |
Thermostat
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥1,760 | |
| 90916-03142 note |
Thermostat
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥1,600 | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-21020 |
Bar, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥500 | |
| 16381-21040 |
Bar, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥370 | |
| 16381-23060 |
Bar, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥910 | |
| 16381-40041 |
Bar, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥610 | |
| 16381-21020 |
Bar, Fan Belt Adjusting
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥500 | |
| 16381-21040 |
Bar, Fan Belt Adjusting
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥370 | |
| 16381-21040 |
Bar, Fan Belt Adjusting
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥370 | |
| 16381-23060 |
Bar, Fan Belt Adjusting
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥910 | |
| 16381-23060 |
Bar, Fan Belt Adjusting
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥910 | |
| 16381-40041 |
Bar, Fan Belt Adjusting
2007-08 → 2008-07
ended
|
1KRFE KSP90 | ¥610 | |
| 16381-40070 |
Bar, Fan Belt Adjusting
2008-07 → 2008-08
ended
|
1KRFE KSP90 | ¥590 | |
| 16381-21020 |
Bar, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥500 | |
| 16381-21040 |
Bar, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥370 | |
| 16381-23060 |
Bar, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥910 | |
| 16381-40070 |
Bar, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥590 | |
| 16553C — Clamp, Hose | ||||
| 16581-21010 |
Clamp, Hose
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥300 | |
| 16581-21010 |
Clamp, Hose
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥300 | |
| 16581-21010 |
Clamp, Hose
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
