Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

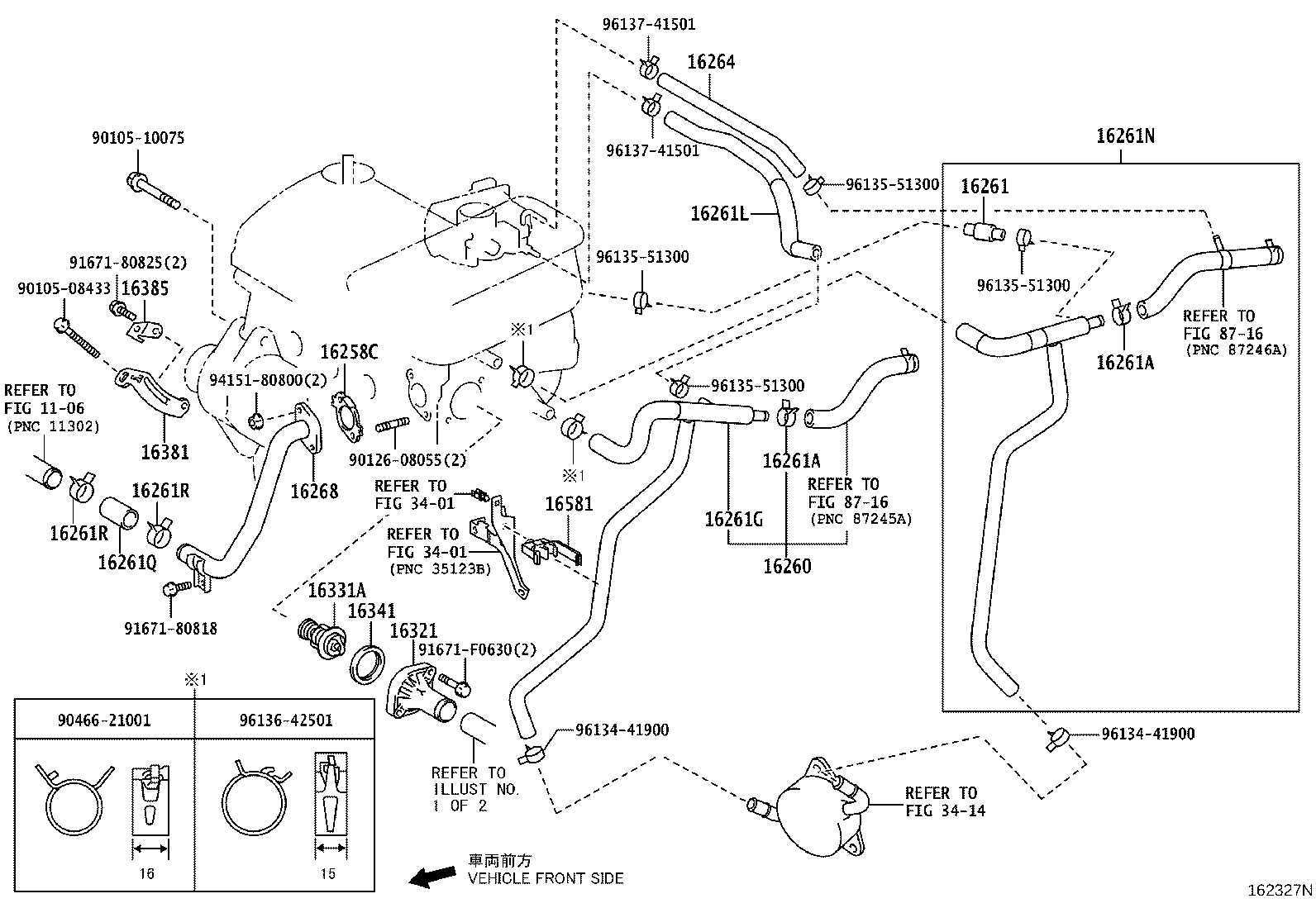

Exploded illustration 162327N 16261L — HOSE, WATER BY-PASS (3 parts) 8716 — not listed in this catalogue 8716 — not listed in this catalogue 16260 — HOSE ASSY, WATER BY-PASS (12 parts) 16264 — HOSE, WATER BY-PASS, NO.2 (10 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (7 parts) 16261N — HOSE, WATER BY-PASS, NO.2 (4 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (7 parts) 16321 — INLET, WATER (12 parts) 16331A — THERMOSTAT (15 parts) 16341 — GASKET, WATER OUTLET (3 parts) 16381 — BAR, FAN BELT ADJUSTING (15 parts) 16385 — SLIDER, FAN BELT ADJUSTING (7 parts) 9010508433 — not listed in this catalogue 9010510075 — not listed in this catalogue 9167180825 — not listed in this catalogue 9613441900 — not listed in this catalogue 9613441900 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613741501 — not listed in this catalogue 16261R — CLAMP OR CLIP(FOR WATER BY-PASS HOSE) (7 parts) 16261R — CLAMP OR CLIP(FOR WATER BY-PASS HOSE) (7 parts) 16268 — PIPE, WATER BY-PASS, NO.1 (9 parts) 9167180818 — not listed in this catalogue 9046621001 — not listed in this catalogue 9613642501 — not listed in this catalogue 9012608055 — not listed in this catalogue 9415180800 — not listed in this catalogue 9613741501 — not listed in this catalogue 16261G — HOSE, WATER BY-PASS, NO.1 (7 parts) 91671F0630 — not listed in this catalogue 16581 — CLAMP, HOSE(FOR WATER HOSE) (12 parts) 3401 — not listed in this catalogue 3401 — not listed in this catalogue 16261Q — HOSE, WATER BY-PASS (3 parts) 16261 — HOSE, WATER BY-PASS (12 parts) 16258C — GASKET(FOR WATER BY-PASS PIPE) (4 parts) 3414 — not listed in this catalogue 1106 — not listed in this catalogue
162327N · 19 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
142 parts on this figure
Part number Description Fitment Price
16258C — Gasket(FOR WATER BY-PASS PIPE)
16258-40010 Gasket(FOR WATER BY-PASS PIPE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥670
16258-40010 Gasket(FOR WATER BY-PASS PIPE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥670
16258-40010 Gasket(FOR WATER BY-PASS PIPE)
2008-08 → 2008-11 ended
1KRFE KSP90 ¥670
16258-40020 Gasket(FOR WATER BY-PASS PIPE)
2008-11 → 2010-12 ended
1KRFE KSP90 ¥670
16260 — Hose Assy, Water By-pass
16260-23040 Hose Assy, Water By-pass
2005-01 → 2005-05 ended
2SZFE SCP90 ¥4,820
16260-23041 Hose Assy, Water By-pass
2005-06 → 2007-06 ended
2SZFE SCP90 ¥4,830
16260-23042 Hose Assy, Water By-pass
2007-07 → 2007-08 ended
2SZFE SCP90 ¥4,830
16260-40061 Hose Assy, Water By-pass
2005-01 → 2007-08 ended
1KRFE KSP90 ¥4,440
16260-40080 note Hose Assy, Water By-pass
2005-04 → 2006-11 ended
1KRFE KSP90 B,F ¥4,190
16260-40081 note Hose Assy, Water By-pass
2006-11 → 2007-08 ended
1KRFE KSP90 B,F ¥4,190
16260-23042 Hose Assy, Water By-pass
2007-08 → 2008-09 ended
2SZFE SCP90 ¥4,830
16260-40061 Hose Assy, Water By-pass
2007-08 → 2008-08 ended
1KRFE KSP90 ¥4,440
16260-40081 note Hose Assy, Water By-pass
2007-08 → 2008-08 ended
1KRFE KSP90 B,F ¥4,190
16260-23042 Hose Assy, Water By-pass
2008-08 → 2010-12 ended
2SZFE SCP90 ¥4,830
16260-40061 Hose Assy, Water By-pass
2008-08 → 2010-12 ended
1KRFE KSP90 ¥4,440
16260-40081 note Hose Assy, Water By-pass
2008-08 → 2010-07 ended
1KRFE KSP90 B,F ¥4,190
16261 — Hose, Water By-pass
16261-21070 Hose, Water By-pass
2005-01 → 2007-08 ended
1NZFE NCP91 ¥350
16261-21090 Hose, Water By-pass
2005-01 → 2007-08 ended
2NZFE NCP95 ¥480
16261-40060 note Hose, Water By-pass
2005-01 → 2007-08 ended
1KRFE KSP90 ¥580
16261-40060 note Hose, Water By-pass
2005-04 → 2007-08 ended
1KRFE KSP90 B,F ¥580
16261-21070 Hose, Water By-pass
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥350
16261-21070 Hose, Water By-pass
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥350
16261-21090 Hose, Water By-pass
2007-08 → 2008-08 ended
2NZFE NCP95 ¥480
16261-40060 note Hose, Water By-pass
2007-08 → 2008-08 ended
1KRFE KSP90 ¥580
16261-21070 Hose, Water By-pass
2008-08 → 2010-12 ended
1NZFE NCP91 ¥350
16261-21090 Hose, Water By-pass
2008-08 → 2010-12 ended
2NZFE NCP95 ¥480
16261-40060 note Hose, Water By-pass
2008-08 → 2010-07 ended
1KRFE KSP90 B,F ¥580
16261-40060 note Hose, Water By-pass
2008-08 → 2010-12 ended
1KRFE KSP90 ¥580
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90467-13054 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥110
96134-42100 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥90
90467-13054 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥110
90467-13054 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥110
96134-42100 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥90
90467-13054 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥110
96134-42100 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥90
16261G — Hose, Water By-pass, NO.1
87209-52200 note Hose, Water By-pass, NO.1
2005-04 → 2006-11 ended
1KRFE KSP90 B,F ¥2,290
87209-52201 note Hose, Water By-pass, NO.1
2006-11 → 2007-08 ended
1KRFE KSP90 B,F ¥2,290
87209-52201 Hose, Water By-pass, NO.1
2005-01 → 2007-08 ended
1KRFE KSP90 ¥2,290
87209-52201 Hose, Water By-pass, NO.1
2007-08 → 2008-08 ended
1KRFE KSP90 ¥2,290
87209-52201 note Hose, Water By-pass, NO.1
2007-08 → 2008-08 ended
1KRFE KSP90 B,F ¥2,290
87209-52201 note Hose, Water By-pass, NO.1
2008-08 → 2010-07 ended
1KRFE KSP90 B,F ¥2,290
87209-52201 Hose, Water By-pass, NO.1
2008-08 → 2010-12 ended
1KRFE KSP90 ¥2,290
16261L — Hose, Water By-pass
16261-40120 Hose, Water By-pass
2005-01 → 2007-08 ended
1KRFE KSP90 ¥870
16261-40120 Hose, Water By-pass
2007-08 → 2008-08 ended
1KRFE KSP90 ¥870
16261-40120 Hose, Water By-pass
2008-08 → 2010-12 ended
1KRFE KSP90 ¥870
16261N — Hose, Water By-pass, NO.2
16260-40050 note Hose, Water By-pass, NO.2
2005-04 → 2006-11 ended
1KRFE KSP90 B,F ¥5,100
16260-40051 Hose, Water By-pass, NO.2
2005-01 → 2007-08 ended
1KRFE KSP90 ¥5,100
16260-40051 Hose, Water By-pass, NO.2
2007-08 → 2008-08 ended
1KRFE KSP90 ¥5,100
16260-40051 Hose, Water By-pass, NO.2
2008-08 → 2010-12 ended
1KRFE KSP90 ¥5,100
16261Q — Hose, Water By-pass
16261-40111 Hose, Water By-pass
2005-01 → 2007-08 ended
1KRFE KSP90 ¥580
16261-40111 Hose, Water By-pass
2007-08 → 2008-08 ended
1KRFE KSP90 ¥580
16261-40111 Hose, Water By-pass
2008-08 → 2010-12 ended
1KRFE KSP90 ¥580
16261R — Clamp OR Clip(FOR WATER BY-PASS HOSE)
90466-30001 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥410
96134-41900 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-01 → 2005-05 ended
2SZFE SCP90 ¥90
96134-41900 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08 ended
2SZFE SCP90 ILL ¥90
96134-41900 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-06 → 2007-08 ended
2SZFE SCP90 F,U ¥90
96134-41900 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-05 → 2005-06 ended
2SZFE SCP90 ¥90
90466-30001 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥410
90466-30001 Clamp OR Clip(FOR WATER BY-PASS HOSE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥410
16264 — Hose, Water By-pass, NO.2
16264-21060 Hose, Water By-pass, NO.2
2005-01 → 2007-08 ended
1NZFE NCP91 ¥350
16264-21070 Hose, Water By-pass, NO.2
2005-01 → 2007-08 ended
2NZFE NCP95 ¥1,060
99556-10260 note Hose, Water By-pass, NO.2
2005-01 → 2007-08 ended
1KRFE KSP90 ¥320
16264-21060 Hose, Water By-pass, NO.2
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥350
16264-21060 Hose, Water By-pass, NO.2
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥350
16264-21070 Hose, Water By-pass, NO.2
2007-08 → 2008-08 ended
2NZFE NCP95 ¥1,060
99556-10260 note Hose, Water By-pass, NO.2
2007-08 → 2008-08 ended
1KRFE KSP90 ¥320
16264-21060 Hose, Water By-pass, NO.2
2008-08 → 2010-12 ended
1NZFE NCP91 ¥350
16264-21070 Hose, Water By-pass, NO.2
2008-08 → 2010-12 ended
2NZFE NCP95 ¥1,060
99556-10260 note Hose, Water By-pass, NO.2
2008-08 → 2010-12 ended
1KRFE KSP90 ¥320
16268 — Pipe, Water By-pass, NO.1
16268-21022 Pipe, Water By-pass, NO.1
2005-01 → 2007-08 ended
2NZFE NCP95 ¥3,650
16268-21050 Pipe, Water By-pass, NO.1
2005-01 → 2007-08 ended
1NZFE NCP91 ¥3,810
16268-40010 Pipe, Water By-pass, NO.1
2005-01 → 2007-08 ended
1KRFE KSP90 ¥6,300
16268-21022 Pipe, Water By-pass, NO.1
2007-08 → 2008-08 ended
2NZFE NCP95 ¥3,650
16268-21050 Pipe, Water By-pass, NO.1
2007-08 → 2008-09 ended
1NZFE NCP91 ¥3,810
16268-40010 Pipe, Water By-pass, NO.1
2007-08 → 2008-08 ended
1KRFE KSP90 ¥6,300
16268-21022 Pipe, Water By-pass, NO.1
2008-08 → 2010-12 ended
2NZFE NCP95 ¥3,650
16268-21050 Pipe, Water By-pass, NO.1
2008-08 → 2010-12 ended
1NZFE NCP91 ¥3,810
16268-40010 Pipe, Water By-pass, NO.1
2008-08 → 2010-12 ended
1KRFE KSP90 ¥6,300
16321 — Inlet, Water
16321-21020 Inlet, Water
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥890
16321-23010 Inlet, Water
2005-01 → 2007-08 ended
2SZFE SCP90 ¥3,010
16321-40010 Inlet, Water
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,670
16321-21020 Inlet, Water
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥890
16321-21020 Inlet, Water
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥890
16321-23010 Inlet, Water
2007-08 → 2008-09 ended
2SZFE SCP90 ¥3,010
16321-40010 Inlet, Water
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,670
16321-21020 Inlet, Water
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥890
16321-23010 Inlet, Water
2008-08 → 2008-12 ended
2SZFE SCP90 ¥3,010
16321-23040 Inlet, Water
2008-12 → 2009-06 ended
2SZFE SCP90 ¥3,170
16321-23041 Inlet, Water
2009-06 → 2010-12 ended
2SZFE SCP90 ¥3,170
16321-40010 Inlet, Water
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,670
16331A — Thermostat
90916-03093 note Thermostat
2005-01 → 2007-08 ended
2NZFE NCP95 ¥1,600
90916-03122 note Thermostat
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,760
90916-03126 note Thermostat
2005-01 → 2007-08 ended
1NZFE NCP91 ¥2,030
90916-03134 Thermostat
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,760
90916-03093 note Thermostat
2007-08 → 2008-08 ended
2NZFE NCP95 ¥1,600
90916-03122 note Thermostat
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,760
90916-03122 note Thermostat
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,760
90916-03126 note Thermostat
2007-08 → 2007-11 ended
1NZFE NCP91 ¥2,030
90916-03134 Thermostat
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,760
90916-03142 note Thermostat
2007-11 → 2008-08 ended
1NZFE NCP91 ILL,U ¥1,600
90916-03142 note Thermostat
2007-11 → 2008-09 ended
1NZFE NCP91 RS ¥1,600
90916-03093 note Thermostat
2008-08 → 2010-12 ended
2NZFE NCP95 ¥1,600
90916-03122 note Thermostat
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,760
90916-03134 Thermostat
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,760
90916-03142 note Thermostat
2008-08 → 2010-12 ended
1NZFE NCP91 ¥1,600
16341 — Gasket, Water Outlet
16341-35010 Gasket, Water Outlet
2005-01 → 2007-08 ended
1KRFE KSP90 ¥170
16341-35010 Gasket, Water Outlet
2007-08 → 2008-08 ended
1KRFE KSP90 ¥170
16341-35010 Gasket, Water Outlet
2008-08 → 2010-12 ended
1KRFE KSP90 ¥170
16381 — Bar, Fan Belt Adjusting
16381-21020 Bar, Fan Belt Adjusting
2005-01 → 2007-08 ended
2NZFE NCP95 ¥500
16381-21040 Bar, Fan Belt Adjusting
2005-01 → 2007-08 ended
1NZFE NCP91 ¥370
16381-23060 Bar, Fan Belt Adjusting
2005-01 → 2007-08 ended
2SZFE SCP90 ¥910
16381-40041 Bar, Fan Belt Adjusting
2005-01 → 2007-08 ended
1KRFE KSP90 ¥610
16381-21020 Bar, Fan Belt Adjusting
2007-08 → 2008-08 ended
2NZFE NCP95 ¥500
16381-21040 Bar, Fan Belt Adjusting
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥370
16381-21040 Bar, Fan Belt Adjusting
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥370
16381-23060 Bar, Fan Belt Adjusting
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥910
16381-23060 Bar, Fan Belt Adjusting
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥910
16381-40041 Bar, Fan Belt Adjusting
2007-08 → 2008-07 ended
1KRFE KSP90 ¥610
16381-40070 Bar, Fan Belt Adjusting
2008-07 → 2008-08 ended
1KRFE KSP90 ¥590
16381-21020 Bar, Fan Belt Adjusting
2008-08 → 2010-12 ended
2NZFE NCP95 ¥500
16381-21040 Bar, Fan Belt Adjusting
2008-08 → 2010-12 ended
1NZFE NCP91 ¥370
16381-23060 Bar, Fan Belt Adjusting
2008-08 → 2010-12 ended
2SZFE SCP90 ¥910
16381-40070 Bar, Fan Belt Adjusting
2008-08 → 2010-12 ended
1KRFE KSP90 ¥590
16385 — Slider, Fan Belt Adjusting
16385-23030 Slider, Fan Belt Adjusting
2005-01 → 2007-08 ended
2SZFE SCP90 ¥910
16385-40011 Slider, Fan Belt Adjusting
2005-01 → 2007-08 ended
1KRFE KSP90 ¥360
16385-23030 Slider, Fan Belt Adjusting
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥910
16385-23030 Slider, Fan Belt Adjusting
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥910
16385-40011 Slider, Fan Belt Adjusting
2007-08 → 2008-08 ended
1KRFE KSP90 ¥360
16385-23030 Slider, Fan Belt Adjusting
2008-08 → 2010-12 ended
2SZFE SCP90 ¥910
16385-40011 Slider, Fan Belt Adjusting
2008-08 → 2010-12 ended
1KRFE KSP90 ¥360
16581 — Clamp, Hose(FOR WATER HOSE)
16581-21020 note Clamp, Hose(FOR WATER HOSE)
2005-01 → 2007-08 ended
1NZFE NCP91 CVFC ¥730
16581-21030 note Clamp, Hose(FOR WATER HOSE)
2005-01 → 2007-08 ended
1NZFE NCP91 CVFC ¥590
16581-40030 Clamp, Hose(FOR WATER HOSE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,030
16581-40030 Clamp, Hose(FOR WATER HOSE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,030
16581-21020 note Clamp, Hose(FOR WATER HOSE)
2007-08 → 2008-09 ended
1NZFE NCP91 CVFC ¥730
16581-21030 note Clamp, Hose(FOR WATER HOSE)
2007-08 → 2008-09 ended
1NZFE NCP91 CVFC ¥590
16581-40030 Clamp, Hose(FOR WATER HOSE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,030
16581-40030 Clamp, Hose(FOR WATER HOSE)
2007-08 → 2008-09 ended
2SZFE SCP90 ¥1,030
16581-21020 note Clamp, Hose(FOR WATER HOSE)
2008-08 → 2010-12 ended
1NZFE NCP91 CVFC ¥730
16581-21030 note Clamp, Hose(FOR WATER HOSE)
2008-08 → 2010-12 ended
1NZFE NCP91 CVFC ¥590
16581-40030 Clamp, Hose(FOR WATER HOSE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,030
16581-40030 Clamp, Hose(FOR WATER HOSE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,030
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
