Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

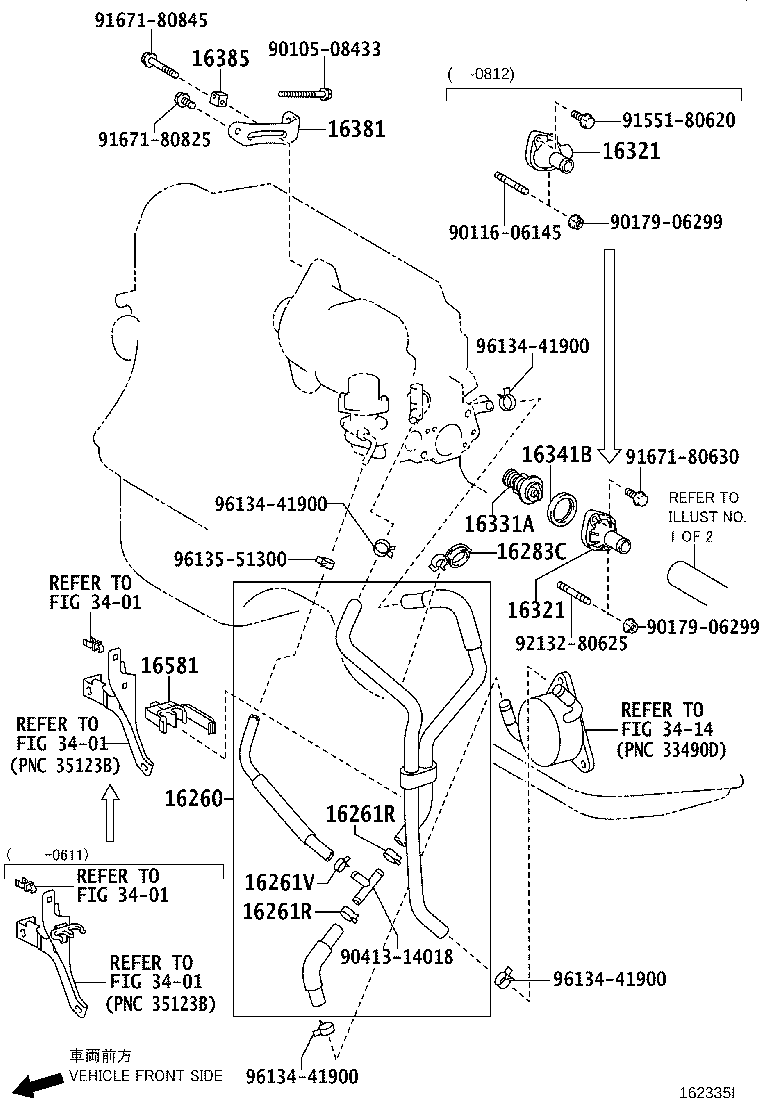

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16260 — Hose Assy, Water By-pass | ||||
| 16260-23040 |
Hose Assy, Water By-pass
2005-01 → 2005-05
ended
|
2SZFE SCP90 | ¥4,820 | |
| 16260-23041 |
Hose Assy, Water By-pass
2005-06 → 2007-06
ended
|
2SZFE SCP90 | ¥4,830 | |
| 16260-23042 |
Hose Assy, Water By-pass
2007-07 → 2007-08
ended
|
2SZFE SCP90 | ¥4,830 | |
| 16260-40061 |
Hose Assy, Water By-pass
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥4,440 | |
| 16260-40080 note |
Hose Assy, Water By-pass
2005-04 → 2006-11
ended
|
1KRFE KSP90 B,F | ¥4,190 | |
| 16260-40081 note |
Hose Assy, Water By-pass
2006-11 → 2007-08
ended
|
1KRFE KSP90 B,F | ¥4,190 | |
| 16260-23042 |
Hose Assy, Water By-pass
2007-08 → 2008-09
ended
|
2SZFE SCP90 | ¥4,830 | |
| 16260-40061 |
Hose Assy, Water By-pass
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥4,440 | |
| 16260-40081 note |
Hose Assy, Water By-pass
2007-08 → 2008-08
ended
|
1KRFE KSP90 B,F | ¥4,190 | |
| 16260-23042 |
Hose Assy, Water By-pass
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥4,830 | |
| 16260-40061 |
Hose Assy, Water By-pass
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥4,440 | |
| 16260-40081 note |
Hose Assy, Water By-pass
2008-08 → 2010-07
ended
|
1KRFE KSP90 B,F | ¥4,190 | |
| 16261R — Clamp OR Clip(FOR WATER BY-PASS HOSE) | ||||
| 90466-30001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥410 | |
| 96134-41900 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-05 → 2005-06
ended
|
2SZFE SCP90 | ¥90 | |
| 96134-41900 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-01 → 2005-05
ended
|
2SZFE SCP90 | ¥90 | |
| 96134-41900 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08
ended
|
2SZFE SCP90 ILL | ¥90 | |
| 96134-41900 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-06 → 2007-08
ended
|
2SZFE SCP90 F,U | ¥90 | |
| 90466-30001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥410 | |
| 90466-30001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥410 | |
| 16261V — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-14037 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-01 → 2005-05
ended
|
2SZFE SCP90 | ¥130 | |
| 90467-14037 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08
ended
|
2SZFE SCP90 ILL | ¥130 | |
| 90467-14037 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-06 → 2007-08
ended
|
2SZFE SCP90 F,U | ¥130 | |
| 16283C — Clamp OR Clip(FOR WATER BY-PASS HOSE) | ||||
| 90464-00887 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥280 | |
| 90464-00887 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥280 | |
| 90464-00887 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥280 | |
| 90464-00887 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥280 | |
| 16321 — Inlet, Water | ||||
| 16321-21020 |
Inlet, Water
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥890 | |
| 16321-23010 |
Inlet, Water
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥3,010 | |
| 16321-40010 |
Inlet, Water
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,670 | |
| 16321-21020 |
Inlet, Water
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥890 | |
| 16321-21020 |
Inlet, Water
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥890 | |
| 16321-23010 |
Inlet, Water
2007-08 → 2008-09
ended
|
2SZFE SCP90 | ¥3,010 | |
| 16321-40010 |
Inlet, Water
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,670 | |
| 16321-21020 |
Inlet, Water
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥890 | |
| 16321-23010 |
Inlet, Water
2008-08 → 2008-12
ended
|
2SZFE SCP90 | ¥3,010 | |
| 16321-23040 |
Inlet, Water
2008-12 → 2009-06
ended
|
2SZFE SCP90 | ¥3,170 | |
| 16321-23041 |
Inlet, Water
2009-06 → 2010-12
ended
|
2SZFE SCP90 | ¥3,170 | |
| 16321-40010 |
Inlet, Water
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥1,670 | |
| 16331A — Thermostat | ||||
| 90916-03093 note |
Thermostat
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥1,600 | |
| 90916-03122 note |
Thermostat
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥1,760 | |
| 90916-03126 note |
Thermostat
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥2,030 | |
| 90916-03134 |
Thermostat
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,760 | |
| 90916-03093 note |
Thermostat
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥1,600 | |
| 90916-03122 note |
Thermostat
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥1,760 | |
| 90916-03122 note |
Thermostat
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥1,760 | |
| 90916-03126 note |
Thermostat
2007-08 → 2007-11
ended
|
1NZFE NCP91 | ¥2,030 | |
| 90916-03134 |
Thermostat
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,760 | |
| 90916-03142 note |
Thermostat
2007-11 → 2008-09
ended
|
1NZFE NCP91 RS | ¥1,600 | |
| 90916-03142 note |
Thermostat
2007-11 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥1,600 | |
| 90916-03093 note |
Thermostat
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥1,600 | |
| 90916-03122 note |
Thermostat
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥1,760 | |
| 90916-03134 |
Thermostat
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥1,760 | |
| 90916-03142 note |
Thermostat
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥1,600 | |
| 16341B — Gasket, Water Inlet | ||||
| 16341-35010 |
Gasket, Water Inlet
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥170 | |
| 16341-35010 |
Gasket, Water Inlet
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥170 | |
| 16341-35010 |
Gasket, Water Inlet
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥170 | |
| 16341-35010 |
Gasket, Water Inlet
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥170 | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-21020 |
Bar, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥500 | |
| 16381-21040 |
Bar, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥370 | |
| 16381-23060 |
Bar, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥910 | |
| 16381-40041 |
Bar, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥610 | |
| 16381-21020 |
Bar, Fan Belt Adjusting
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥500 | |
| 16381-21040 |
Bar, Fan Belt Adjusting
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥370 | |
| 16381-21040 |
Bar, Fan Belt Adjusting
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥370 | |
| 16381-23060 |
Bar, Fan Belt Adjusting
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥910 | |
| 16381-23060 |
Bar, Fan Belt Adjusting
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥910 | |
| 16381-40041 |
Bar, Fan Belt Adjusting
2007-08 → 2008-07
ended
|
1KRFE KSP90 | ¥610 | |
| 16381-40070 |
Bar, Fan Belt Adjusting
2008-07 → 2008-08
ended
|
1KRFE KSP90 | ¥590 | |
| 16381-21020 |
Bar, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥500 | |
| 16381-21040 |
Bar, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥370 | |
| 16381-23060 |
Bar, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥910 | |
| 16381-40070 |
Bar, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥590 | |
| 16385 — Slider, Fan Belt Adjusting | ||||
| 16385-23030 |
Slider, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥910 | |
| 16385-40011 |
Slider, Fan Belt Adjusting
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥360 | |
| 16385-23030 |
Slider, Fan Belt Adjusting
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥910 | |
| 16385-23030 |
Slider, Fan Belt Adjusting
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥910 | |
| 16385-40011 |
Slider, Fan Belt Adjusting
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥360 | |
| 16385-23030 |
Slider, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥910 | |
| 16385-40011 |
Slider, Fan Belt Adjusting
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥360 | |
| 16581 — Clamp, Hose(FOR WATER HOSE) | ||||
| 16581-21020 note |
Clamp, Hose(FOR WATER HOSE)
2005-01 → 2007-08
ended
|
1NZFE NCP91 CVFC | ¥730 | |
| 16581-21030 note |
Clamp, Hose(FOR WATER HOSE)
2005-01 → 2007-08
ended
|
1NZFE NCP91 CVFC | ¥590 | |
| 16581-40030 |
Clamp, Hose(FOR WATER HOSE)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥1,030 | |
| 16581-40030 |
Clamp, Hose(FOR WATER HOSE)
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,030 | |
| 16581-21020 note |
Clamp, Hose(FOR WATER HOSE)
2007-08 → 2008-09
ended
|
1NZFE NCP91 CVFC | ¥730 | |
| 16581-21030 note |
Clamp, Hose(FOR WATER HOSE)
2007-08 → 2008-09
ended
|
1NZFE NCP91 CVFC | ¥590 | |
| 16581-40030 |
Clamp, Hose(FOR WATER HOSE)
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,030 | |
| 16581-40030 |
Clamp, Hose(FOR WATER HOSE)
2007-08 → 2008-09
ended
|
2SZFE SCP90 | ¥1,030 | |
| 16581-21020 note |
Clamp, Hose(FOR WATER HOSE)
2008-08 → 2010-12
ended
|
1NZFE NCP91 CVFC | ¥730 | |
| 16581-21030 note |
Clamp, Hose(FOR WATER HOSE)
2008-08 → 2010-12
ended
|
1NZFE NCP91 CVFC | ¥590 | |
| 16581-40030 |
Clamp, Hose(FOR WATER HOSE)
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥1,030 | |
| 16581-40030 |
Clamp, Hose(FOR WATER HOSE)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥1,030 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
