Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

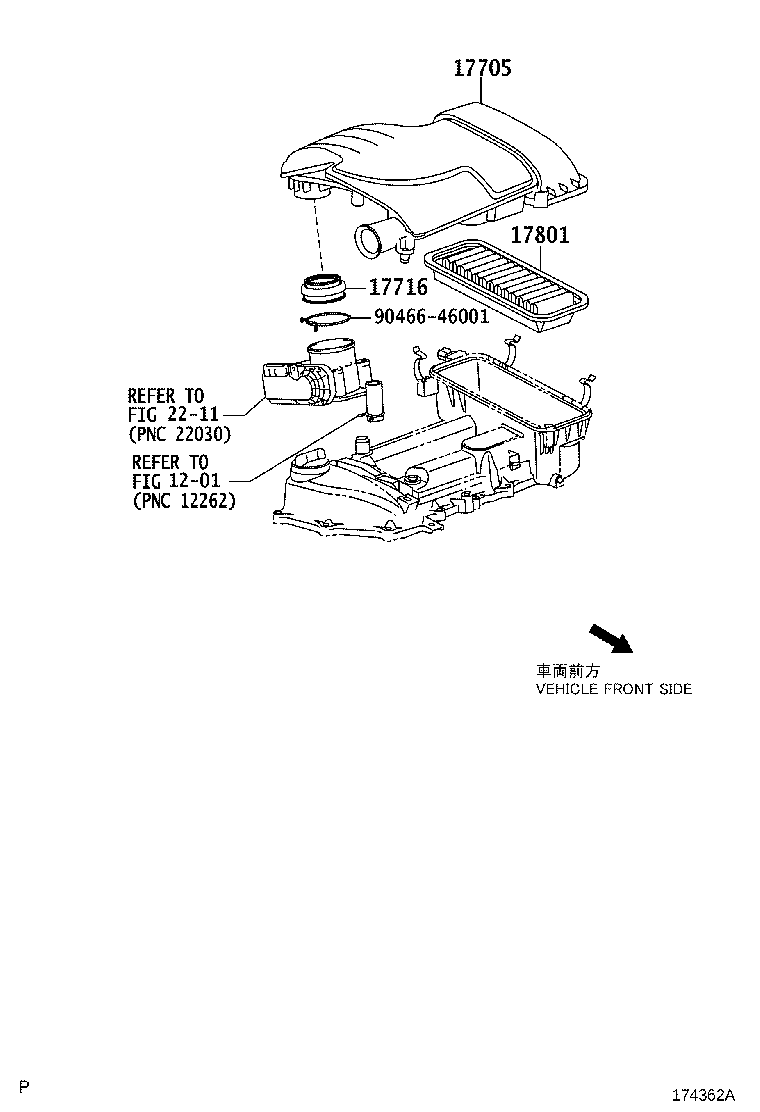

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-21090 |
Cap Sub-assy, Air Cleaner
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥0 | |
| 17705-23060 |
Cap Sub-assy, Air Cleaner
2005-01 → 2007-08
ended
|
2SZFE SCP90 | — | |
| 17705-40110 |
Cap Sub-assy, Air Cleaner
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥0 | |
| 17705-21090 |
Cap Sub-assy, Air Cleaner
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥0 | |
| 17705-21090 |
Cap Sub-assy, Air Cleaner
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥0 | |
| 17705-23060 |
Cap Sub-assy, Air Cleaner
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | — | |
| 17705-23060 |
Cap Sub-assy, Air Cleaner
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | — | |
| 17705-40110 |
Cap Sub-assy, Air Cleaner
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥0 | |
| 17705-21090 |
Cap Sub-assy, Air Cleaner
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥0 | |
| 17705-23060 |
Cap Sub-assy, Air Cleaner
2008-08 → 2010-12
ended
|
2SZFE SCP90 | — | |
| 17705-40110 |
Cap Sub-assy, Air Cleaner
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥0 | |
| 17716 — Support,Air Cleaner Cap | ||||
| 17716-40040 |
Support,Air Cleaner Cap
2005-01 → 2007-08
ended
|
1KRFE KSP90 | — | |
| 17716-40040 |
Support,Air Cleaner Cap
2007-08 → 2008-08
ended
|
1KRFE KSP90 | — | |
| 17716-40040 |
Support,Air Cleaner Cap
2008-08 → 2010-12
ended
|
1KRFE KSP90 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-21050 |
Element Sub-assy, Air Cleaner Filter
2005-01 → 2007-08
ended
|
1NZFE,2NZFE NCP9# | ¥3,050 | |
| 17801-23030 |
Element Sub-assy, Air Cleaner Filter
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥2,200 | |
| 17801-23030 |
Element Sub-assy, Air Cleaner Filter
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥2,200 | |
| 17801-21050 |
Element Sub-assy, Air Cleaner Filter
2007-08 → 2008-08
ended
|
1NZFE,2NZFE NCP9# F,ILL,U | ¥3,050 | |
| 17801-21050 |
Element Sub-assy, Air Cleaner Filter
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥3,050 | |
| 17801-23030 |
Element Sub-assy, Air Cleaner Filter
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥2,200 | |
| 17801-23030 |
Element Sub-assy, Air Cleaner Filter
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥2,200 | |
| 17801-23030 |
Element Sub-assy, Air Cleaner Filter
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥2,200 | |
| 17801-21050 |
Element Sub-assy, Air Cleaner Filter
2008-08 → 2010-12
ended
|
1NZFE,2NZFE NCP9# | ¥3,050 | |
| 17801-23030 |
Element Sub-assy, Air Cleaner Filter
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥2,200 | |
| 17801-23030 |
Element Sub-assy, Air Cleaner Filter
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥2,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
