Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 174366D 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5305 — not listed in this catalogue 5305 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (21 parts) 17410B — GASKET, EXHAUST PIPE (7 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (14 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (14 parts) 17451 — GASKET, EXHAUST PIPE (18 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (7 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (7 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (7 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (7 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (7 parts) 9050135035 — not listed in this catalogue 9050135036 — not listed in this catalogue 9090105020 — not listed in this catalogue 9090105026 — not listed in this catalogue

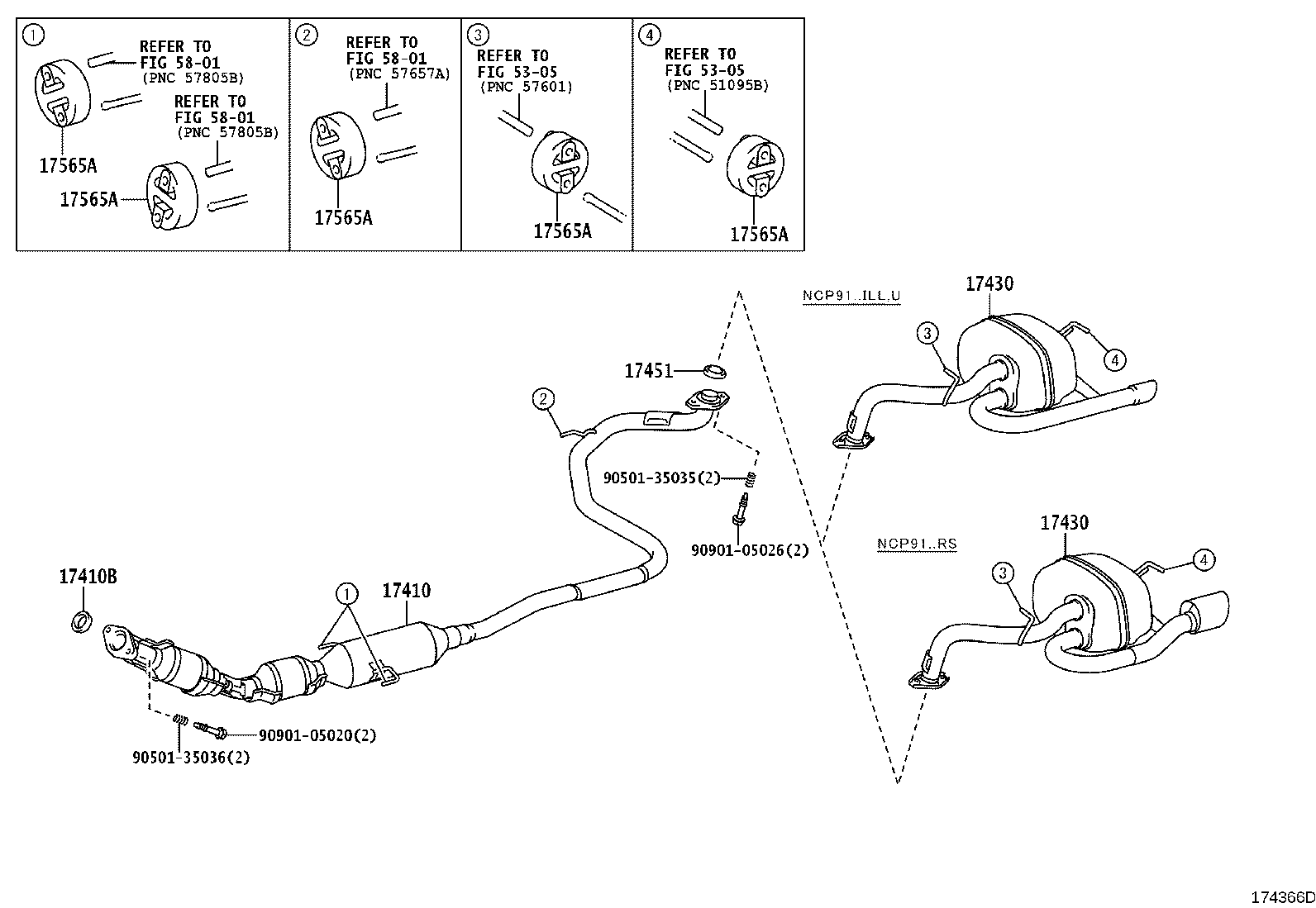

174366D · 10 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-21630 Pipe Assy, Exhaust, Front
2005-01 → 2007-08 ended
1NZFE NCP91 ¥105,000
17410-21640 Pipe Assy, Exhaust, Front
2005-01 → 2007-05 ended
2NZFE NCP95 ¥12,600
17410-21641 Pipe Assy, Exhaust, Front
2007-05 → 2007-08 ended
2NZFE NCP95 ¥12,600
17410-23150 Pipe Assy, Exhaust, Front
2005-01 → 2007-08 ended
2SZFE SCP90 ¥102,000
17410-40090 Pipe Assy, Exhaust, Front
2005-01 → 2006-06 ended
1KRFE KSP90 ¥25,900
17410-40091 Pipe Assy, Exhaust, Front
2006-07 → 2006-11 ended
1KRFE KSP90 ¥25,900
17410-40092 Pipe Assy, Exhaust, Front
2006-12 → 2007-08 ended
1KRFE KSP90 ¥25,900
17410-21630 Pipe Assy, Exhaust, Front
2007-08 → 2008-09 ended
1NZFE NCP91 ¥105,000
17410-21641 Pipe Assy, Exhaust, Front
2007-08 → 2008-08 ended
2NZFE NCP95 ¥12,600
17410-23150 Pipe Assy, Exhaust, Front
2007-08 → 2008-09 ended
2SZFE SCP90 ¥102,000
17410-40093 Pipe Assy, Exhaust, Front
2007-08 → 2008-08 ended
1KRFE KSP90 ¥25,700
17410-21630 Pipe Assy, Exhaust, Front
2008-08 → 2009-12 ended
1NZFE NCP91 ¥105,000
17410-21631 Pipe Assy, Exhaust, Front
2010-01 → 2010-08 ended
1NZFE NCP91 ¥105,000
17410-21641 Pipe Assy, Exhaust, Front
2008-08 → 2010-08 ended
2NZFE NCP95 ¥12,600
17410-21840 Pipe Assy, Exhaust, Front
2010-08 → 2010-12 ended
2NZFE NCP95 ¥6,400
17410-21B60 Pipe Assy, Exhaust, Front
2010-08 → 2010-12 ended
1NZFE NCP91 ¥105,000
17410-23150 Pipe Assy, Exhaust, Front
2008-08 → 2010-01 ended
2SZFE SCP90 ¥102,000
17410-23151 Pipe Assy, Exhaust, Front
2010-01 → 2010-08 ended
2SZFE SCP90 ¥102,000
17410-23190 Pipe Assy, Exhaust, Front
2010-08 → 2010-12 ended
2SZFE SCP90 ¥75,900
17410-40093 Pipe Assy, Exhaust, Front
2008-08 → 2010-08 ended
1KRFE KSP90 ¥25,700
17410-40210 Pipe Assy, Exhaust, Front
2010-08 → 2010-12 ended
1KRFE KSP90 ¥85,100
17410B — Gasket, Exhaust Pipe
17451-21070 Gasket, Exhaust Pipe
2005-01 → 2007-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 ¥1,360
17451-40010 Gasket, Exhaust Pipe
2005-01 → 2007-08 ended
1KRFE KSP90 ¥720
17451-21070 Gasket, Exhaust Pipe
2007-08 → 2008-09 ended
1NZFE,2SZFE NCP91,SCP90 RS ¥1,360
17451-21070 Gasket, Exhaust Pipe
2007-08 → 2008-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 F,ILL,U ¥1,360
17451-40010 Gasket, Exhaust Pipe
2007-08 → 2008-08 ended
1KRFE KSP90 ¥720
17451-21070 Gasket, Exhaust Pipe
2008-08 → 2010-12 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 ¥1,360
17451-40010 Gasket, Exhaust Pipe
2008-08 → 2010-12 ended
1KRFE KSP90 ¥720
17430 — Pipe Assy, Exhaust, Tail
17430-21500 Pipe Assy, Exhaust, Tail
2005-01 → 2006-11 ended
1NZFE,2SZFE NCP91,SCP90 F,ILL,U,X ¥25,300
17430-21501 Pipe Assy, Exhaust, Tail
2006-12 → 2007-08 ended
1NZFE,2SZFE NCP91,SCP90 F,ILL,U,X ¥25,200
17430-21510 Pipe Assy, Exhaust, Tail
2005-01 → 2007-08 ended
2NZFE NCP95 ¥25,200
17430-21550 Pipe Assy, Exhaust, Tail
2005-01 → 2007-08 ended
1NZFE NCP91 RS ¥25,200
17430-40050 Pipe Assy, Exhaust, Tail
2005-01 → 2007-08 ended
1KRFE KSP90 ¥17,900
17430-21501 Pipe Assy, Exhaust, Tail
2007-08 → 2008-08 ended
1NZFE,2SZFE NCP91,SCP90 F,ILL,U ¥25,200
17430-21510 Pipe Assy, Exhaust, Tail
2007-08 → 2008-06 ended
2NZFE NCP95 ¥25,200
17430-21511 Pipe Assy, Exhaust, Tail
2008-07 → 2008-08 ended
2NZFE NCP95 ¥25,200
17430-21550 Pipe Assy, Exhaust, Tail
2007-08 → 2008-09 ended
1NZFE,2SZFE NCP91,SCP90 RS ¥25,200
17430-40051 Pipe Assy, Exhaust, Tail
2007-08 → 2008-08 ended
1KRFE KSP90 ¥17,800
17430-21501 Pipe Assy, Exhaust, Tail
2008-08 → 2010-12 ended
1NZFE,2SZFE NCP91,SCP90 F,ILL,U ¥25,200
17430-21511 Pipe Assy, Exhaust, Tail
2008-08 → 2010-12 ended
2NZFE NCP95 ¥25,200
17430-21550 Pipe Assy, Exhaust, Tail
2008-09 → 2010-12 ended
1NZFE,2SZFE NCP91,SCP90 RS ¥25,200
17430-40051 Pipe Assy, Exhaust, Tail
2008-08 → 2010-12 ended
1KRFE KSP90 ¥17,800
17451 — Gasket, Exhaust Pipe
17451-23040 Gasket, Exhaust Pipe
2005-01 → 2007-08 ended
1NZFE,2SZFE NCP91,SCP90 ¥1,160
17451-40020 Gasket, Exhaust Pipe
2005-01 → 2006-06 ended
1KRFE KSP90 ¥1,160
17451-40030 Gasket, Exhaust Pipe
2006-07 → 2006-11 ended
1KRFE KSP90 ¥1,160
17451-40031 Gasket, Exhaust Pipe
2006-12 → 2007-08 ended
1KRFE KSP90 ¥1,150
90917-06081 note Gasket, Exhaust Pipe
2005-01 → 2007-08 ended
2NZFE NCP95 ¥580
90917-06083 note Gasket, Exhaust Pipe
2005-01 → 2007-04 ended
2NZFE NCP95 ¥350
90917-06089 note Gasket, Exhaust Pipe
2007-05 → 2007-08 ended
2NZFE NCP95 ¥500
17451-23041 Gasket, Exhaust Pipe
2007-08 → 2008-08 ended
1NZFE,2SZFE NCP91,SCP90 F,ILL,U ¥1,150
17451-23041 Gasket, Exhaust Pipe
2007-08 → 2008-09 ended
1NZFE,2SZFE NCP91,SCP90 RS ¥1,150
17451-40031 Gasket, Exhaust Pipe
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,150
90917-06081 note Gasket, Exhaust Pipe
2007-08 → 2008-08 ended
2NZFE NCP95 ¥580
90917-06089 note Gasket, Exhaust Pipe
2007-08 → 2008-08 ended
2NZFE NCP95 ¥500
17451-23041 Gasket, Exhaust Pipe
2008-08 → 2010-09 ended
1NZFE,2SZFE NCP91,SCP90 ¥1,150
17451-23042 Gasket, Exhaust Pipe
2010-10 → 2010-12 ended
1NZFE,2SZFE NCP91,SCP90 ¥790
17451-40031 Gasket, Exhaust Pipe
2008-08 → 2010-10 ended
1KRFE KSP90 ¥1,150
17451-40032 Gasket, Exhaust Pipe
2010-11 → 2010-12 ended
1KRFE KSP90 ¥950
90917-06081 note Gasket, Exhaust Pipe
2008-08 → 2010-12 ended
2NZFE NCP95 ¥580
90917-06089 note Gasket, Exhaust Pipe
2008-08 → 2010-12 ended
2NZFE NCP95 ¥500
17565A — Support, Exhaust Pipe, NO.4
17565-40010 Support, Exhaust Pipe, NO.4
2005-01 → 2007-08 ended
2NZFE NCP95 ¥510
17565-40010 Support, Exhaust Pipe, NO.4
2005-01 → 2007-08 ended
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 ¥510
17565-40010 Support, Exhaust Pipe, NO.4
2007-08 → 2008-08 ended
2NZFE NCP95 ¥510
17565-40010 Support, Exhaust Pipe, NO.4
2007-08 → 2008-08 ended
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 B,F,ILL,U ¥510
17565-40010 Support, Exhaust Pipe, NO.4
2007-08 → 2008-09 ended
1NZFE,2SZFE NCP91,SCP90 RS ¥510
17565-40010 Support, Exhaust Pipe, NO.4
2008-08 → 2010-12 ended
2NZFE NCP95 ¥510
17565-40010 Support, Exhaust Pipe, NO.4
2008-08 → 2010-12 ended
1KRFE,1NZFE,2SZFE KSP90,NCP91,SCP90 ¥510
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
