Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

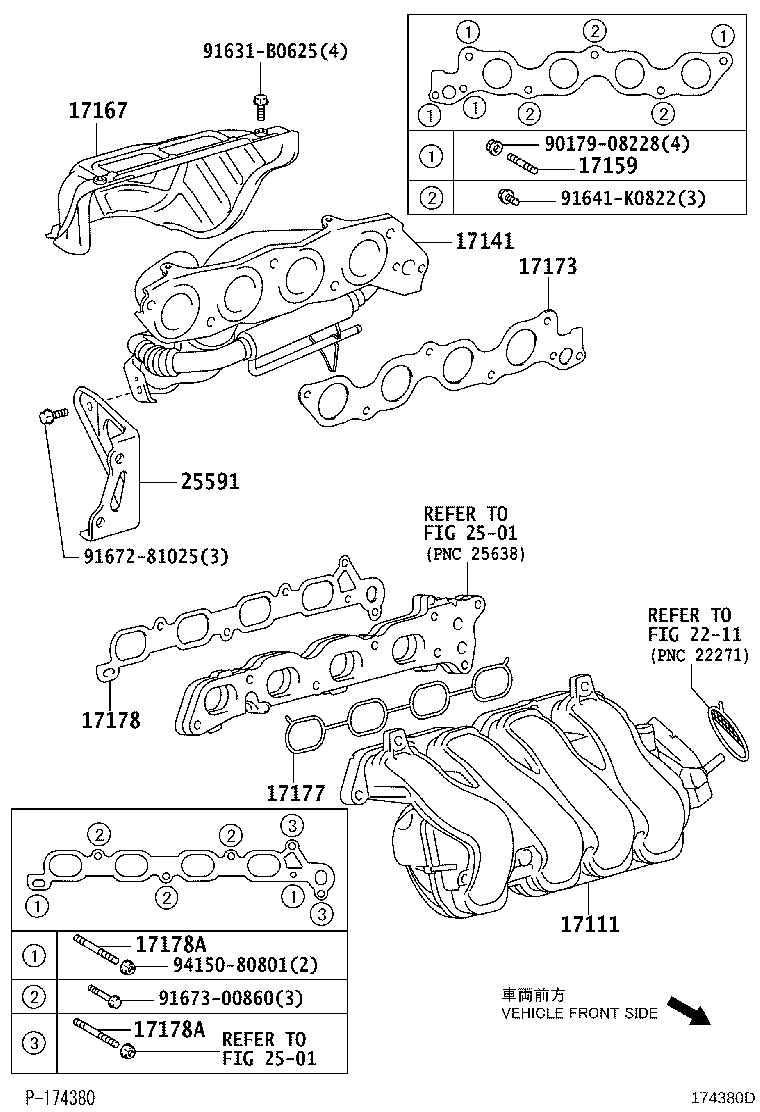

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17101-21070 |
Manifold, Intake
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥16,900 | |
| 17101-21090 |
Manifold, Intake
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥14,100 | |
| 17101-23030 |
Manifold, Intake
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥17,500 | |
| 17101-40010 |
Manifold, Intake
2005-01 → 2005-08
ended
|
1KRFE KSP90 | ¥16,800 | |
| 17101-40011 |
Manifold, Intake
2005-08 → 2007-08
ended
|
1KRFE KSP90 | ¥16,900 | |
| 17101-21070 |
Manifold, Intake
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥16,900 | |
| 17101-21070 |
Manifold, Intake
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥16,900 | |
| 17101-21090 |
Manifold, Intake
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥14,100 | |
| 17101-23030 |
Manifold, Intake
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥17,500 | |
| 17101-23030 |
Manifold, Intake
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥17,500 | |
| 17101-40011 |
Manifold, Intake
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥16,900 | |
| 17101-21070 |
Manifold, Intake
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥16,900 | |
| 17101-21090 |
Manifold, Intake
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥14,100 | |
| 17101-23030 |
Manifold, Intake
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥17,500 | |
| 17101-40011 |
Manifold, Intake
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥16,900 | |
| 17141 — Manifold, Exhaust | ||||
| 17104-21030 |
Manifold, Exhaust
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥36,700 | |
| 17140-21040 |
Manifold, Exhaust
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥79,800 | |
| 17104-21030 |
Manifold, Exhaust
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥36,700 | |
| 17104-21030 |
Manifold, Exhaust
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥36,700 | |
| 17140-21040 |
Manifold, Exhaust
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥79,800 | |
| 17104-21030 |
Manifold, Exhaust
2008-08 → 2010-07
ended
|
1NZFE NCP91 CVFC | ¥36,700 | |
| 17104-21030 |
Manifold, Exhaust
2008-08 → 2010-08
ended
|
1NZFE NCP91 5F | ¥36,700 | |
| 17104-21041 |
Manifold, Exhaust
2010-07 → 2010-12
ended
|
1NZFE NCP91 CVFC | ¥23,000 | |
| 17140-21040 |
Manifold, Exhaust
2008-08 → 2010-07
ended
|
2NZFE NCP95 | ¥79,800 | |
| 17140-21070 |
Manifold, Exhaust
2010-07 → 2010-12
ended
|
2NZFE NCP95 | ¥96,600 | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08387 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥170 | |
| 90116-08395 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥120 | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥210 | |
| 90126-08037 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥340 | |
| 90126-08037 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥340 | |
| 90116-08387 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-08 → 2008-09
ended
|
2SZFE SCP90 | ¥170 | |
| 90116-08395 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-08 → 2008-09
ended
|
2SZFE SCP90 | ¥120 | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥210 | |
| 90126-08037 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥340 | |
| 90126-08037 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥340 | |
| 90126-08037 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥340 | |
| 90116-08387 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥170 | |
| 90116-08395 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥120 | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥210 | |
| 90126-08037 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥340 | |
| 90126-08037 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥340 | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-21110 |
Insulator, Exhaust Manifold Heat, NO.1
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥5,300 | |
| 17167-21140 |
Insulator, Exhaust Manifold Heat, NO.1
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥8,100 | |
| 17167-23030 |
Insulator, Exhaust Manifold Heat, NO.1
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥2,100 | |
| 17167-40020 |
Insulator, Exhaust Manifold Heat, NO.1
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥7,500 | |
| 17167-21110 |
Insulator, Exhaust Manifold Heat, NO.1
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥5,300 | |
| 17167-21110 |
Insulator, Exhaust Manifold Heat, NO.1
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥5,300 | |
| 17167-21140 |
Insulator, Exhaust Manifold Heat, NO.1
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥8,100 | |
| 17167-23030 |
Insulator, Exhaust Manifold Heat, NO.1
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥2,100 | |
| 17167-23030 |
Insulator, Exhaust Manifold Heat, NO.1
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥2,100 | |
| 17167-40020 |
Insulator, Exhaust Manifold Heat, NO.1
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥7,500 | |
| 17167-21110 |
Insulator, Exhaust Manifold Heat, NO.1
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥5,300 | |
| 17167-21140 |
Insulator, Exhaust Manifold Heat, NO.1
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥8,100 | |
| 17167-23030 |
Insulator, Exhaust Manifold Heat, NO.1
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥2,100 | |
| 17167-40020 |
Insulator, Exhaust Manifold Heat, NO.1
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥7,500 | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-21020 |
Gasket, Exhaust Manifold TO Head
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥980 | |
| 17173-21030 |
Gasket, Exhaust Manifold TO Head
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥1,070 | |
| 17173-23010 |
Gasket, Exhaust Manifold TO Head
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥1,410 | |
| 17173-40020 |
Gasket, Exhaust Manifold TO Head
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,090 | |
| 17173-21020 |
Gasket, Exhaust Manifold TO Head
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥980 | |
| 17173-21030 |
Gasket, Exhaust Manifold TO Head
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥1,070 | |
| 17173-21030 |
Gasket, Exhaust Manifold TO Head
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥1,070 | |
| 17173-23010 |
Gasket, Exhaust Manifold TO Head
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥1,410 | |
| 17173-23010 |
Gasket, Exhaust Manifold TO Head
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥1,410 | |
| 17173-40020 |
Gasket, Exhaust Manifold TO Head
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,090 | |
| 17173-21020 |
Gasket, Exhaust Manifold TO Head
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥980 | |
| 17173-21030 |
Gasket, Exhaust Manifold TO Head
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥1,070 | |
| 17173-23010 |
Gasket, Exhaust Manifold TO Head
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥1,410 | |
| 17173-40020 |
Gasket, Exhaust Manifold TO Head
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥1,090 | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-21020 |
Gasket, Intake Manifold TO Head, NO.1
2005-01 → 2007-08
ended
|
2NZFE NCP95 | ¥440 | |
| 17177-21030 |
Gasket, Intake Manifold TO Head, NO.1
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥820 | |
| 17177-23010 |
Gasket, Intake Manifold TO Head, NO.1
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥1,320 | |
| 17177-40020 |
Gasket, Intake Manifold TO Head, NO.1
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥1,070 | |
| 17177-21020 |
Gasket, Intake Manifold TO Head, NO.1
2007-08 → 2008-08
ended
|
2NZFE NCP95 | ¥440 | |
| 17177-21030 |
Gasket, Intake Manifold TO Head, NO.1
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥820 | |
| 17177-21030 |
Gasket, Intake Manifold TO Head, NO.1
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥820 | |
| 17177-23010 |
Gasket, Intake Manifold TO Head, NO.1
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥1,320 | |
| 17177-23010 |
Gasket, Intake Manifold TO Head, NO.1
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥1,320 | |
| 17177-40020 |
Gasket, Intake Manifold TO Head, NO.1
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥1,070 | |
| 17177-21020 |
Gasket, Intake Manifold TO Head, NO.1
2008-08 → 2010-12
ended
|
2NZFE NCP95 | ¥440 | |
| 17177-21030 |
Gasket, Intake Manifold TO Head, NO.1
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥820 | |
| 17177-23010 |
Gasket, Intake Manifold TO Head, NO.1
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥1,320 | |
| 17177-40020 |
Gasket, Intake Manifold TO Head, NO.1
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥1,070 | |
| 17178 — Gasket, Intake Manifold TO Head, NO.2 | ||||
| 17178-21010 |
Gasket, Intake Manifold TO Head, NO.2
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥500 | |
| 17178-23020 |
Gasket, Intake Manifold TO Head, NO.2
2005-01 → 2007-08
ended
|
2SZFE SCP90 | ¥940 | |
| 17178-40020 |
Gasket, Intake Manifold TO Head, NO.2
2005-01 → 2007-08
ended
|
1KRFE KSP90 | ¥810 | |
| 17178-21010 |
Gasket, Intake Manifold TO Head, NO.2
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥500 | |
| 17178-21010 |
Gasket, Intake Manifold TO Head, NO.2
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥500 | |
| 17178-23020 |
Gasket, Intake Manifold TO Head, NO.2
2007-08 → 2008-08
ended
|
2SZFE SCP90 F,ILL,U | ¥940 | |
| 17178-23020 |
Gasket, Intake Manifold TO Head, NO.2
2007-08 → 2008-09
ended
|
2SZFE SCP90 RS | ¥940 | |
| 17178-40020 |
Gasket, Intake Manifold TO Head, NO.2
2007-08 → 2008-08
ended
|
1KRFE KSP90 | ¥810 | |
| 17178-21010 |
Gasket, Intake Manifold TO Head, NO.2
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥500 | |
| 17178-23020 |
Gasket, Intake Manifold TO Head, NO.2
2008-08 → 2010-12
ended
|
2SZFE SCP90 | ¥940 | |
| 17178-40020 |
Gasket, Intake Manifold TO Head, NO.2
2008-08 → 2010-12
ended
|
1KRFE KSP90 | ¥810 | |
| 17178A — Stud, Hex Lobular(INTAKE MANIFOLD TO HEAD GASKET) | ||||
| 90126-08049 |
Stud, Hex Lobular(INTAKE MANIFOLD TO HEAD GASKET)
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥190 | |
| 90126-08049 |
Stud, Hex Lobular(INTAKE MANIFOLD TO HEAD GASKET)
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥190 | |
| 90126-08049 |
Stud, Hex Lobular(INTAKE MANIFOLD TO HEAD GASKET)
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥190 | |
| 90126-08049 |
Stud, Hex Lobular(INTAKE MANIFOLD TO HEAD GASKET)
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥190 | |
| 25591 — Bracket, Manifold Support | ||||
| 25591-21060 |
Bracket, Manifold Support
2005-01 → 2007-08
ended
|
1NZFE NCP91 | ¥1,540 | |
| 25591-21060 |
Bracket, Manifold Support
2007-08 → 2008-08
ended
|
1NZFE NCP91 ILL,U | ¥1,540 | |
| 25591-21060 |
Bracket, Manifold Support
2007-08 → 2008-09
ended
|
1NZFE NCP91 RS | ¥1,540 | |
| 25591-21060 |
Bracket, Manifold Support
2008-08 → 2010-12
ended
|
1NZFE NCP91 | ¥1,540 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
