Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 174649E 17650 — VALVE ASSY, VACUUM SWITCHING (4 parts) 23826 — HOSE, FUEL VAPOR FEED, NO.1 (13 parts) 23827A — HOSE, FUEL VAPOR FEED, NO.2 (11 parts) 9046912014 — not listed in this catalogue 9046611003 — not listed in this catalogue 9046611003 — not listed in this catalogue 7701 — not listed in this catalogue 1201 — not listed in this catalogue 1201 — not listed in this catalogue

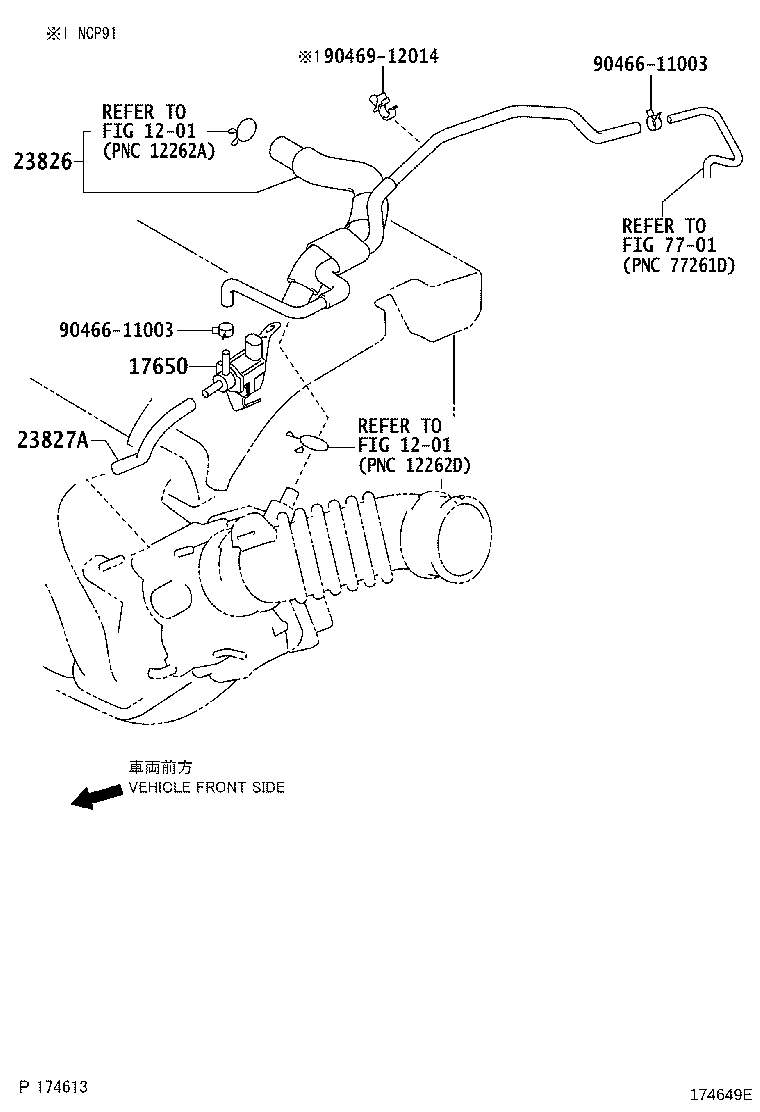

174649E · 3 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
17650 — Valve Assy, Vacuum Switching
25860-21070 Valve Assy, Vacuum Switching
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥5,600
25860-21070 Valve Assy, Vacuum Switching
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥5,600
25860-21070 Valve Assy, Vacuum Switching
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥5,600
25860-21070 Valve Assy, Vacuum Switching
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥5,600
23826 — Hose, Fuel Vapor Feed, NO.1
23820-21090 Hose, Fuel Vapor Feed, NO.1
2005-08 → 2007-08 ended
1NZFE NCP91 ¥6,300
23820-21100 Hose, Fuel Vapor Feed, NO.1
2005-08 → 2007-08 ended
2NZFE NCP95 ¥4,540
23826-21100 Hose, Fuel Vapor Feed, NO.1
2005-01 → 2005-08 ended
1NZFE,2NZFE NCP9# ¥3,420
23826-23060 Hose, Fuel Vapor Feed, NO.1
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,020
23826-40010 Hose, Fuel Vapor Feed, NO.1
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,540
23820-21090 Hose, Fuel Vapor Feed, NO.1
2007-08 → 2008-09 ended
1NZFE NCP91 ¥6,300
23820-21100 Hose, Fuel Vapor Feed, NO.1
2007-08 → 2008-08 ended
2NZFE NCP95 ¥4,540
23826-23060 Hose, Fuel Vapor Feed, NO.1
2007-08 → 2008-09 ended
2SZFE SCP90 ¥1,020
23826-40010 Hose, Fuel Vapor Feed, NO.1
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,540
23820-21090 Hose, Fuel Vapor Feed, NO.1
2008-08 → 2010-12 ended
1NZFE NCP91 ¥6,300
23820-21100 Hose, Fuel Vapor Feed, NO.1
2008-08 → 2010-12 ended
2NZFE NCP95 ¥4,540
23826-23060 Hose, Fuel Vapor Feed, NO.1
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,020
23826-40010 Hose, Fuel Vapor Feed, NO.1
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,540
23827A — Hose, Fuel Vapor Feed, NO.2
23827-21150 Hose, Fuel Vapor Feed, NO.2
2006-02 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥640
23827-23040 Hose, Fuel Vapor Feed, NO.2
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,540
23827-40011 Hose, Fuel Vapor Feed, NO.2
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,690
95328-07017 Hose, Fuel Vapor Feed, NO.2
2005-01 → 2006-01 ended
1NZFE,2NZFE NCP9# ¥700
23827-21150 Hose, Fuel Vapor Feed, NO.2
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥640
23827-21150 Hose, Fuel Vapor Feed, NO.2
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥640
23827-23040 Hose, Fuel Vapor Feed, NO.2
2007-08 → 2008-09 ended
2SZFE SCP90 ¥1,540
23827-40011 Hose, Fuel Vapor Feed, NO.2
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,690
23827-21150 Hose, Fuel Vapor Feed, NO.2
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥640
23827-23040 Hose, Fuel Vapor Feed, NO.2
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,540
23827-40011 Hose, Fuel Vapor Feed, NO.2
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,690
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
