Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

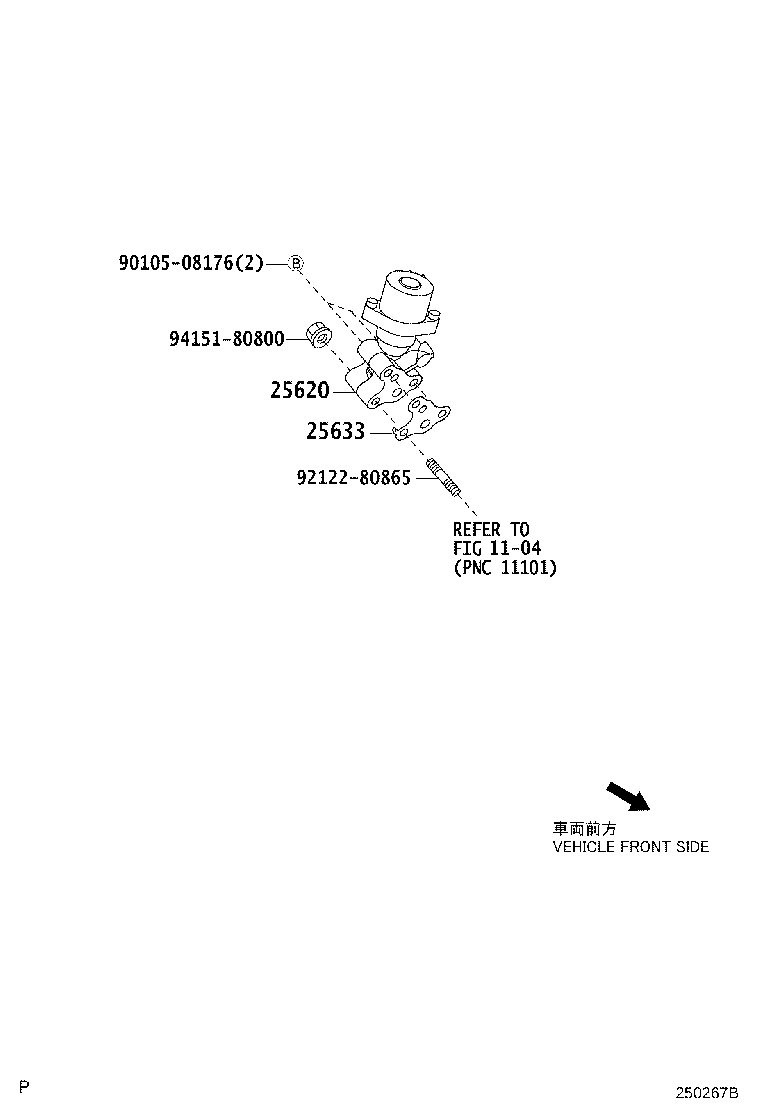

Exploded illustration 250267B 9415180800 — not listed in this catalogue 1104 — not listed in this catalogue 9212280865 — not listed in this catalogue 9010508176 — not listed in this catalogue 25620 — VALVE ASSY, EGR (11 parts) 25633 — GASKET, EGR VALVE (11 parts)
250267B · 2 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
25620 — Valve Assy, Egr
25620-21010 Valve Assy, Egr
2005-01 → 2007-08 ended
1NZFE NCP91 ¥18,400
25620-23010 Valve Assy, Egr
2005-01 → 2007-08 ended
2SZFE SCP90 ¥29,200
25620-40020 Valve Assy, Egr
2005-01 → 2007-08 ended
1KRFE KSP90 ¥29,200
25620-21010 Valve Assy, Egr
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥18,400
25620-21010 Valve Assy, Egr
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥18,400
25620-23010 Valve Assy, Egr
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥29,200
25620-23010 Valve Assy, Egr
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥29,200
25620-40020 Valve Assy, Egr
2007-08 → 2008-08 ended
1KRFE KSP90 ¥29,200
25620-21010 Valve Assy, Egr
2008-08 → 2010-12 ended
1NZFE NCP91 ¥18,400
25620-23010 Valve Assy, Egr
2008-08 → 2010-12 ended
2SZFE SCP90 ¥29,200
25620-40020 Valve Assy, Egr
2008-08 → 2010-12 ended
1KRFE KSP90 ¥29,200
25633 — Gasket, Egr Valve
25633-21020 Gasket, Egr Valve
2005-01 → 2007-08 ended
1NZFE NCP91 ¥270
25633-23010 Gasket, Egr Valve
2005-01 → 2007-08 ended
2SZFE SCP90 ¥450
25633-40020 Gasket, Egr Valve
2005-01 → 2007-08 ended
1KRFE KSP90 ¥450
25633-21020 Gasket, Egr Valve
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥270
25633-21020 Gasket, Egr Valve
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥270
25633-23010 Gasket, Egr Valve
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥450
25633-23010 Gasket, Egr Valve
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥450
25633-40020 Gasket, Egr Valve
2007-08 → 2008-08 ended
1KRFE KSP90 ¥450
25633-21020 Gasket, Egr Valve
2008-08 → 2010-12 ended
1NZFE NCP91 ¥270
25633-23010 Gasket, Egr Valve
2008-08 → 2010-12 ended
2SZFE SCP90 ¥450
25633-40020 Gasket, Egr Valve
2008-08 → 2010-12 ended
1KRFE KSP90 ¥450
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
