Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

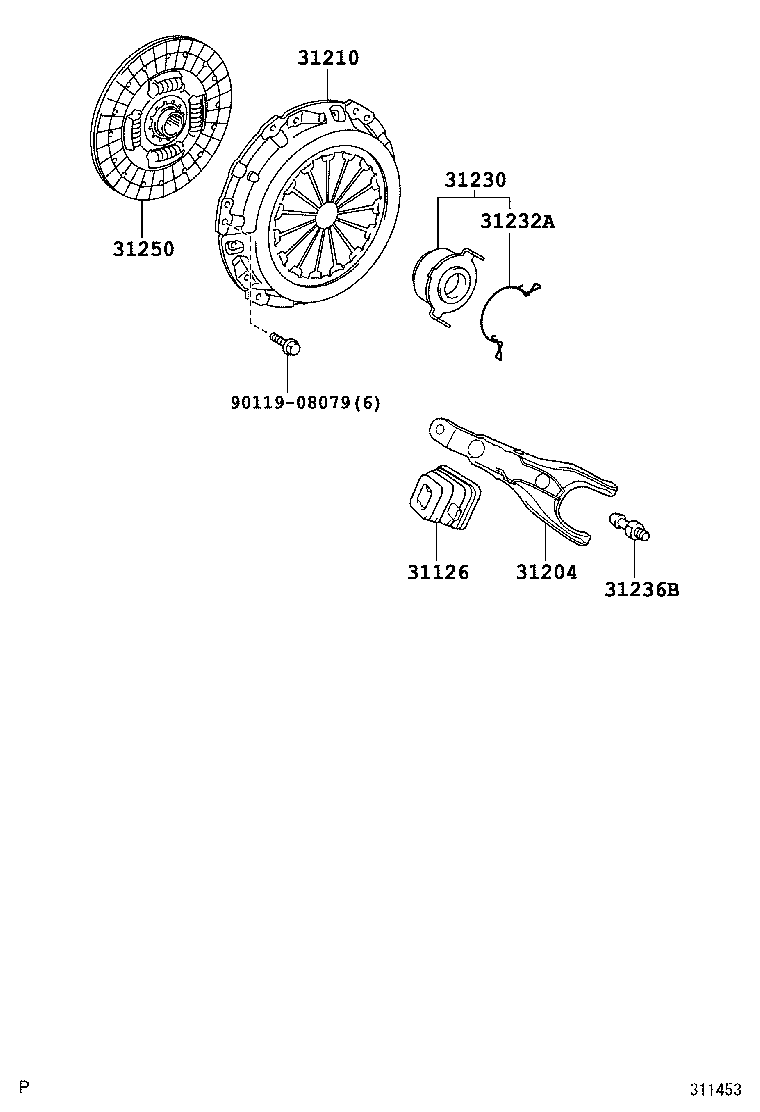

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31126 — Boot, Clutch Release Fork | ||||
| 31126-12051 |
Boot, Clutch Release Fork
2005-01 → 2007-08
ended
|
NCP91 5F | ¥570 | |
| 31126-12051 |
Boot, Clutch Release Fork
2007-08 → 2008-09
ended
|
NCP91 5F | ¥570 | |
| 31126-12051 |
Boot, Clutch Release Fork
2008-09 → 2010-08
ended
|
NCP91 5F | ¥570 | |
| 31204 — Fork Sub-assy, Clutch Release | ||||
| 31204-52010 |
Fork Sub-assy, Clutch Release
2005-01 → 2007-08
ended
|
NCP91 5F | ¥1,290 | |
| 31204-52010 |
Fork Sub-assy, Clutch Release
2007-08 → 2008-09
ended
|
NCP91 5F | ¥1,290 | |
| 31204-52010 |
Fork Sub-assy, Clutch Release
2008-09 → 2010-08
ended
|
NCP91 5F | ¥1,290 | |
| 31210 — Cover Assy, Clutch | ||||
| 31210-52050 |
Cover Assy, Clutch
2005-01 → 2006-02
ended
|
NCP91 5F | ¥12,200 | |
| 31210-52051 |
Cover Assy, Clutch
2006-03 → 2007-02
ended
|
NCP91 5F | ¥12,200 | |
| 31210-52052 |
Cover Assy, Clutch
2007-03 → 2007-08
ended
|
NCP91 5F | ¥10,600 | |
| 31210-52052 |
Cover Assy, Clutch
2007-08 → 2008-09
ended
|
NCP91 5F | ¥10,600 | |
| 31210-52052 |
Cover Assy, Clutch
2008-09 → —
|
NCP91 5F | ¥10,600 | |
| 31230 — Bearing Assy, Clutch Release | ||||
| 31230-12180 |
Bearing Assy, Clutch Release
2005-01 → 2007-08
ended
|
NCP91 5F | ¥4,470 | |
| 31230-12180 |
Bearing Assy, Clutch Release
2007-08 → 2008-09
ended
|
NCP91 5F | ¥4,470 | |
| 31230-12180 |
Bearing Assy, Clutch Release
2008-09 → 2008-12
ended
|
NCP91 5F | ¥4,470 | |
| 31230-12181 |
Bearing Assy, Clutch Release
2008-12 → 2010-08
ended
|
NCP91 5F | ¥3,520 | |
| 31232A — Clip, Release Bearing Hub | ||||
| 31232-12080 |
Clip, Release Bearing Hub
2005-01 → 2007-08
ended
|
NCP91 5F | ¥110 | |
| 31232-12080 |
Clip, Release Bearing Hub
2007-08 → 2008-09
ended
|
NCP91 5F | ¥110 | |
| 31232-12080 |
Clip, Release Bearing Hub
2008-09 → 2010-08
ended
|
NCP91 5F | ¥110 | |
| 31236B — Support, Release Fork | ||||
| 31236-12020 |
Support, Release Fork
2005-01 → 2007-08
ended
|
NCP91 5F | ¥460 | |
| 31236-12020 |
Support, Release Fork
2007-08 → 2008-09
ended
|
NCP91 5F | ¥460 | |
| 31236-12020 |
Support, Release Fork
2008-09 → 2010-08
ended
|
NCP91 5F | ¥460 | |
| 31250 — Disc Assy, Clutch | ||||
| 31250-52050 |
Disc Assy, Clutch
2005-01 → 2007-08
ended
|
NCP91 5F | ¥15,500 | |
| 31250-52050 |
Disc Assy, Clutch
2007-08 → 2008-09
ended
|
NCP91 5F | ¥15,500 | |
| 31250-52050 |
Disc Assy, Clutch
2008-09 → 2010-07
ended
|
NCP91 5F | ¥15,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
