Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

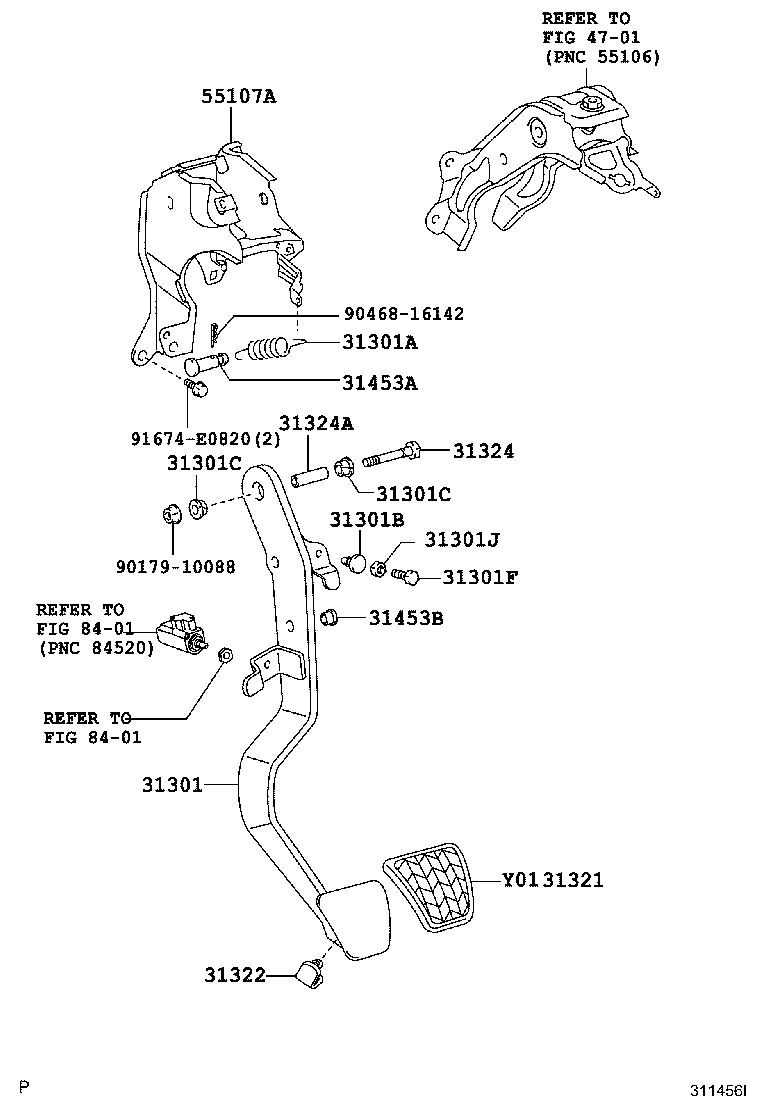

Exploded illustration 311456I 31301 — PEDAL SUB-ASSY, CLUTCH (4 parts) 31301A — SPRING(FOR CLUTCH PEDAL) (3 parts) 31301B — CUSHION, NO.1(FOR CLUTCH PEDAL) (3 parts) 31301C — BUSH(FOR CLUTCH PEDAL) (3 parts) 31301C — BUSH(FOR CLUTCH PEDAL) (3 parts) 31324 — SHAFT, CLUTCH PEDAL (3 parts) 31321 — PAD, CLUTCH PEDAL (3 parts) 31322 — STOPPER, CLUTCH PEDAL (3 parts) 31324A — COLLAR, CLUTCH PEDAL SHAFT (3 parts) 31453A — PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) (3 parts) 31453B — BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) (4 parts) 55107A — SUPPORT SUB-ASSY, CLUTCH PEDAL (4 parts) 9046816142 — not listed in this catalogue 9017910088 — not listed in this catalogue 91674E0820 — not listed in this catalogue 8401 — not listed in this catalogue 31301J — NUT(FOR CLUTCH PEDAL STOPPER) (3 parts) 31301F — BOLT(FOR CLUTCH PEDAL STOPPER) (3 parts) 4701 — not listed in this catalogue 8401 — not listed in this catalogue
311456I · 14 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
31301 — Pedal Sub-assy, Clutch
31301-52100 Pedal Sub-assy, Clutch
2005-01 → 2007-08 ended
NCP91 5F ¥2,500
31301-52100 Pedal Sub-assy, Clutch
2007-08 → 2008-07 ended
NCP91 5F ¥2,500
31301-52130 Pedal Sub-assy, Clutch
2008-08 → 2008-09 ended
NCP91 5F ¥2,500
31301-52130 Pedal Sub-assy, Clutch
2008-09 → —
NCP91 5F ¥2,500
31301A — Spring(FOR CLUTCH PEDAL)
90507-14047 Spring(FOR CLUTCH PEDAL)
2005-01 → 2007-08 ended
NCP91 5F ¥100
90507-14047 Spring(FOR CLUTCH PEDAL)
2007-08 → 2008-09 ended
NCP91 5F ¥100
90507-14047 Spring(FOR CLUTCH PEDAL)
2008-09 → 2010-08 ended
NCP91 5F ¥100
31301B — Cushion, NO.1(FOR CLUTCH PEDAL)
90541-06036 Cushion, NO.1(FOR CLUTCH PEDAL)
2005-01 → 2007-08 ended
NCP91 5F ¥110
90541-06036 Cushion, NO.1(FOR CLUTCH PEDAL)
2007-08 → 2008-09 ended
NCP91 5F ¥110
90541-06036 Cushion, NO.1(FOR CLUTCH PEDAL)
2008-09 → 2010-08 ended
NCP91 5F ¥110
31301C — Bush(FOR CLUTCH PEDAL)
90386-13015 Bush(FOR CLUTCH PEDAL)
2005-01 → 2007-08 ended
NCP91 5F ¥120
90386-13015 Bush(FOR CLUTCH PEDAL)
2007-08 → 2008-09 ended
NCP91 5F ¥120
90386-13015 Bush(FOR CLUTCH PEDAL)
2008-09 → 2010-08 ended
NCP91 5F ¥120
31301F — Bolt(FOR CLUTCH PEDAL STOPPER)
91112-61025 Bolt(FOR CLUTCH PEDAL STOPPER)
2005-01 → 2007-08 ended
NCP91 5F ¥80
91112-61025 Bolt(FOR CLUTCH PEDAL STOPPER)
2007-08 → 2008-09 ended
NCP91 5F ¥80
91112-61025 Bolt(FOR CLUTCH PEDAL STOPPER)
2008-09 → 2010-08 ended
NCP91 5F ¥80
31301J — Nut(FOR CLUTCH PEDAL STOPPER)
90170-10017 Nut(FOR CLUTCH PEDAL STOPPER)
2005-01 → 2007-08 ended
NCP91 5F ¥100
90170-10017 Nut(FOR CLUTCH PEDAL STOPPER)
2007-08 → 2008-09 ended
NCP91 5F ¥100
90170-10017 Nut(FOR CLUTCH PEDAL STOPPER)
2008-09 → 2010-08 ended
NCP91 5F ¥100
31321 — Pad, Clutch Pedal
31321-52010 Pad, Clutch Pedal
2005-01 → 2007-08 ended
NCP91 5F ¥200
31321-52010 Pad, Clutch Pedal
2007-08 → 2008-09 ended
NCP91 5F ¥200
31321-52010 Pad, Clutch Pedal
2008-09 → 2010-08 ended
NCP91 5F ¥200
31322 — Stopper, Clutch Pedal
31322-52010 Stopper, Clutch Pedal
2005-01 → 2007-08 ended
NCP91 5F ¥400
31322-52010 Stopper, Clutch Pedal
2007-08 → 2008-09 ended
NCP91 5F ¥400
31322-52010 Stopper, Clutch Pedal
2008-09 → 2010-08 ended
NCP91 5F ¥400
31324 — Shaft, Clutch Pedal
90101-10015 Shaft, Clutch Pedal
2005-01 → 2007-08 ended
NCP91 5F ¥160
90101-10015 Shaft, Clutch Pedal
2007-08 → 2008-09 ended
NCP91 5F ¥160
90101-10015 Shaft, Clutch Pedal
2008-09 → 2010-08 ended
NCP91 5F ¥160
31324A — Collar, Clutch Pedal Shaft
90387-10003 Collar, Clutch Pedal Shaft
2005-01 → 2007-08 ended
NCP91 5F ¥370
90387-10003 Collar, Clutch Pedal Shaft
2007-08 → 2008-09 ended
NCP91 5F ¥370
90387-10003 Collar, Clutch Pedal Shaft
2008-09 → 2010-08 ended
NCP91 5F ¥370
31453A — Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08051 note Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2005-01 → 2007-08 ended
NCP91 5F ¥170
90249-08051 note Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2007-08 → 2008-09 ended
NCP91 5F ¥170
90249-08051 note Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2008-09 → 2010-08 ended
NCP91 5F ¥170
31453B — Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002 Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2005-01 → 2006-09 ended
NCP91 5F ¥240
90386-08033 Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2006-10 → 2007-08 ended
NCP91 5F ¥110
90386-08033 Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2007-08 → 2008-09 ended
NCP91 5F ¥110
90386-08033 Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
2008-09 → 2010-08 ended
NCP91 5F ¥110
55107A — Support Sub-assy, Clutch Pedal
55107-52110 Support Sub-assy, Clutch Pedal
2005-01 → 2007-08 ended
NCP91 5F ¥2,680
55107-52110 Support Sub-assy, Clutch Pedal
2007-08 → 2008-07 ended
NCP91 5F ¥2,680
55107-52170 Support Sub-assy, Clutch Pedal
2008-08 → 2008-09 ended
NCP91 5F ¥2,680
55107-52170 Support Sub-assy, Clutch Pedal
2008-09 → 2010-08 ended
NCP91 5F ¥2,680
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
