Exploded illustration 312310B 31418 — HOSE, CLUTCH (3 parts) 31481 — TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE (3 parts) 31482 — TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE (3 parts) 31482C — CLAMP(FOR CLUTCH TUBE) (3 parts) 31482C — CLAMP(FOR CLUTCH TUBE) (3 parts) 31484A — BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) (3 parts) 31484C — BRACKET, CLUTCH TUBE, NO.1 (4 parts) 31485 — BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) (3 parts) 9167180616 — not listed in this catalogue 9011910550 — not listed in this catalogue 9046108652 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9167180816 — not listed in this catalogue 3103 — not listed in this catalogue 3105 — not listed in this catalogue

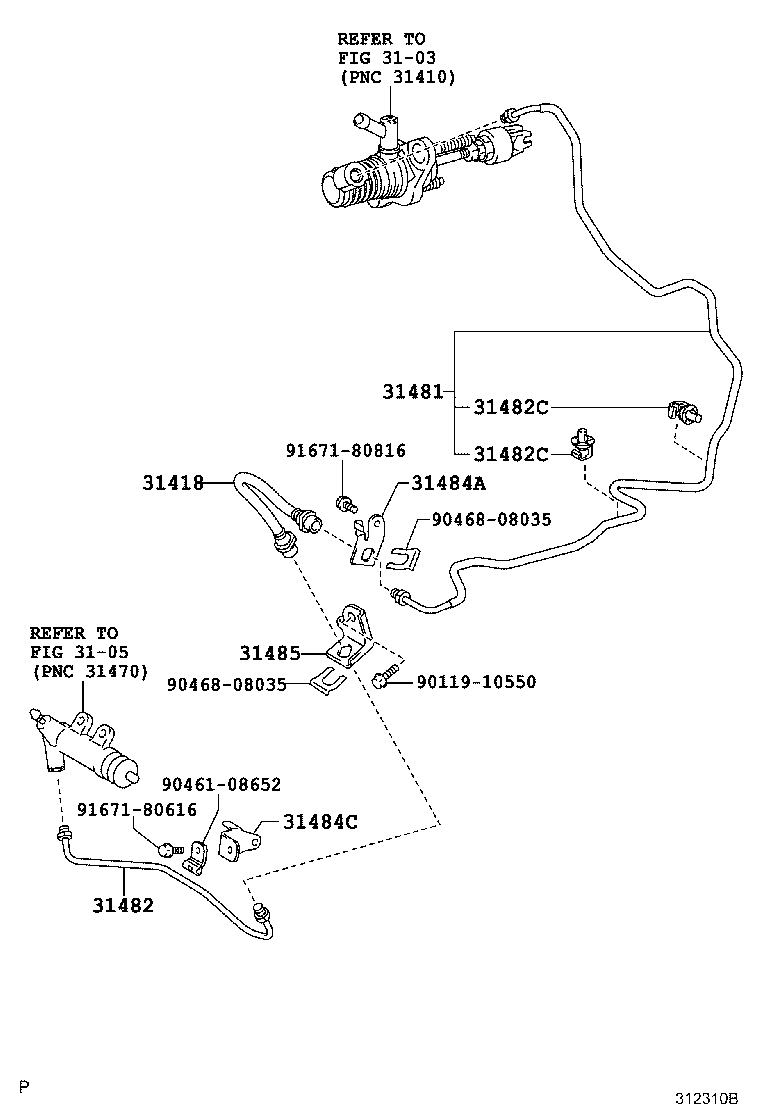

312310B · 8 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
31418 — Hose, Clutch
90947-02E09 Hose, Clutch
2005-01 → 2007-08 ended
NCP91 5F ¥1,170
90947-02E09 Hose, Clutch
2007-08 → 2008-09 ended
NCP91 5F ¥1,170
90947-02E09 Hose, Clutch
2008-09 → 2010-08 ended
NCP91 5F ¥1,170
31481 — Tube, Clutch Master Cylinder TO Flexible Hose
31481-52100 Tube, Clutch Master Cylinder TO Flexible Hose
2005-01 → 2007-08 ended
NCP91 5F ¥1,140
31481-52100 Tube, Clutch Master Cylinder TO Flexible Hose
2007-08 → 2008-09 ended
NCP91 5F ¥1,140
31481-52120 Tube, Clutch Master Cylinder TO Flexible Hose
2008-09 → 2010-08 ended
NCP91 5F ¥1,160
31482 — Tube, Clutch Release Cylinder TO Flexible Hose
31482-52070 Tube, Clutch Release Cylinder TO Flexible Hose
2005-01 → 2007-08 ended
NCP91 5F ¥480
31482-52070 Tube, Clutch Release Cylinder TO Flexible Hose
2007-08 → 2008-09 ended
NCP91 5F ¥480
31482-52070 Tube, Clutch Release Cylinder TO Flexible Hose
2008-09 → 2010-08 ended
NCP91 5F ¥480
31482C — Clamp(FOR CLUTCH TUBE)
90949-01D17 Clamp(FOR CLUTCH TUBE)
2005-01 → 2007-08 ended
NCP91 5F ¥110
90949-01D17 Clamp(FOR CLUTCH TUBE)
2007-08 → 2008-09 ended
NCP91 5F ¥110
90949-01D17 Clamp(FOR CLUTCH TUBE)
2008-09 → 2010-08 ended
NCP91 5F ¥110
31484A — Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484-52090 Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2005-01 → 2007-08 ended
NCP91 5F ¥710
31484-52090 Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2007-08 → 2008-09 ended
NCP91 5F ¥710
31484-52090 Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2008-09 → 2010-08 ended
NCP91 5F ¥710
31484C — Bracket, Clutch Tube, NO.1
31484-12271 Bracket, Clutch Tube, NO.1
2005-01 → 2005-12 ended
NCP91 5F ¥470
31484-52150 Bracket, Clutch Tube, NO.1
2006-01 → 2007-08 ended
NCP91 5F ¥360
31484-52150 Bracket, Clutch Tube, NO.1
2007-08 → 2008-09 ended
NCP91 5F ¥360
31484-52150 Bracket, Clutch Tube, NO.1
2008-09 → 2010-08 ended
NCP91 5F ¥360
31485 — Bracket, Flexible Hose, NO.2(FOR CLUTCH)
31484-52050 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
2005-01 → 2007-08 ended
NCP91 5F ¥540
31484-52050 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
2007-08 → 2008-09 ended
NCP91 5F ¥540
31484-52050 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
2008-09 → 2010-08 ended
NCP91 5F ¥540
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
