Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

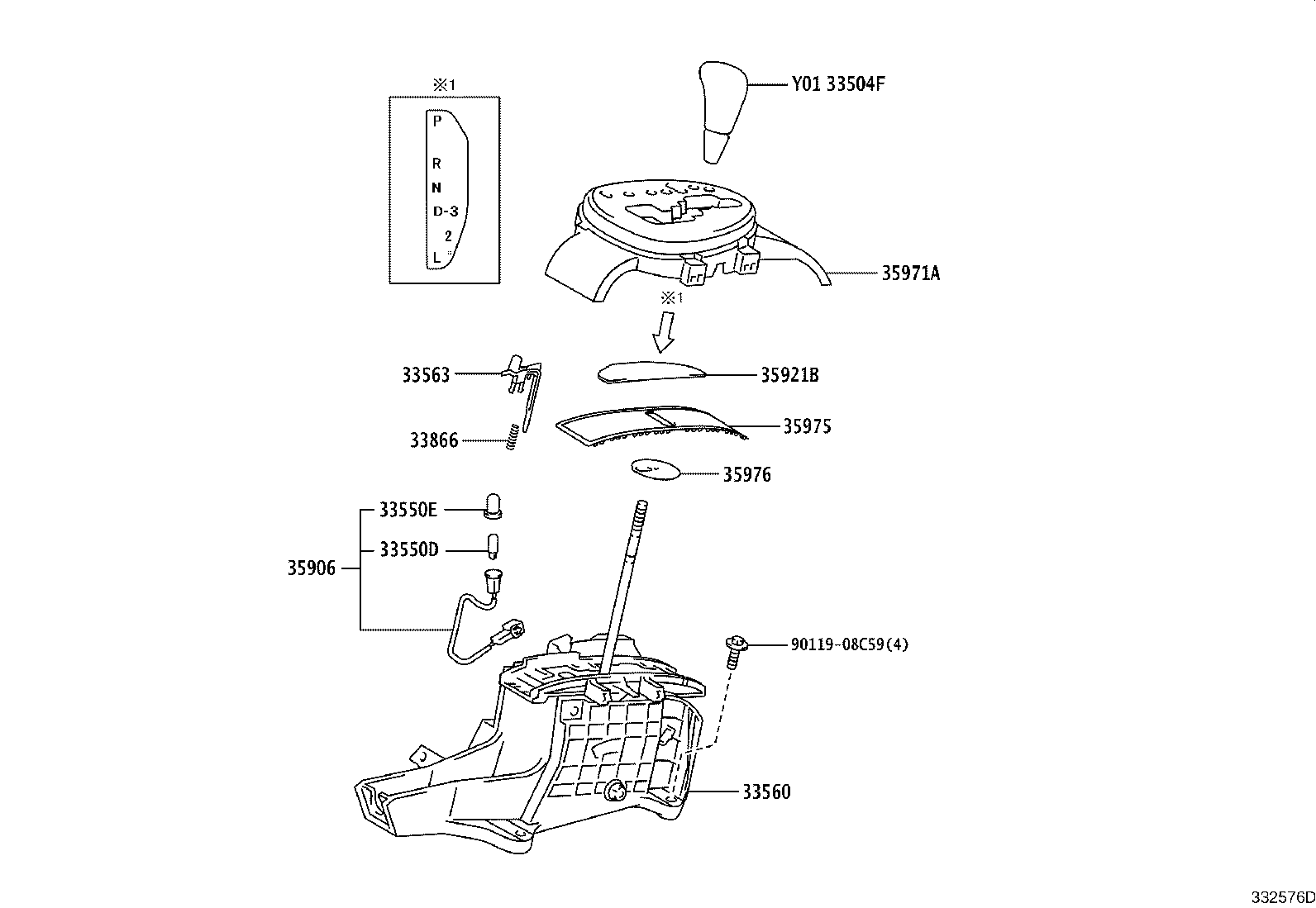

Exploded illustration 332576D 33504F — KNOB SUB-ASSY, SHIFT LEVER (14 parts) 33560 — UNIT ASSY, SHIFT LOCK CONTROL (28 parts) 33563 — BUTTON, SHIFT LOCK RELEASE (6 parts) 33866 — SPRING, SHIFT LOCK RELEASE (4 parts) 35921B — PLATE, CONTROL POSITION INDICATOR NO,2 (9 parts) 35971A — HOUSING, POSITION INDICATOR, UPPER (24 parts) 35975 — COVER, SLIDE (FOR POSITION INDICATOR) (6 parts) 35976 — COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) (6 parts) 9011908C59 — not listed in this catalogue 35906 — WIRE SUB-ASSY, INDICATOR LAMP (6 parts) 33550D — BULB, POSITION INDICATOR LAMP (3 parts) 33550E — CAP, POSITION INDICATOR LAMP (4 parts)
332576D · 11 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
110 parts on this figure
Part number Description Fitment Price
33504F — Knob Sub-assy, Shift Lever
33504-13061-B5 note Knob Sub-assy, Shift Lever
2005-01 → 2007-08 ended
NCP91 5F ¥8,100
33504-52080-B0 note Knob Sub-assy, Shift Lever
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥2,720
33504-52090-B0 note Knob Sub-assy, Shift Lever
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥6,200
33504-52090-B0 note Knob Sub-assy, Shift Lever
2005-01 → 2007-08 ended
NCP91 CVFC RS ¥6,200
33504-13061-B5 note Knob Sub-assy, Shift Lever
2007-08 → 2008-09 ended
NCP91 5F ¥8,100
33504-52080-B0 note Knob Sub-assy, Shift Lever
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,720
33504-52080-E0 note Knob Sub-assy, Shift Lever
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,720
33504-52090-B0 note Knob Sub-assy, Shift Lever
2007-08 → 2008-09 ended
NCP91,SCP90 CVFC RS ¥6,200
33504-52090-E0 note Knob Sub-assy, Shift Lever
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥6,200
33504-12310-B1 note Knob Sub-assy, Shift Lever
2008-09 → 2010-08 ended
NCP91 5F ¥6,200
33504-52080-B0 note Knob Sub-assy, Shift Lever
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,720
33504-52080-E0 note Knob Sub-assy, Shift Lever
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,720
33504-52090-B0 note Knob Sub-assy, Shift Lever
2008-09 → 2010-12 ended
NCP91,SCP90 CVFC RS ¥6,200
33504-52090-E0 note Knob Sub-assy, Shift Lever
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥6,200
33550D — Bulb, Position Indicator Lamp
35955-74010 note Bulb, Position Indicator Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM ¥260
35955-74010 note Bulb, Position Indicator Lamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ATM ¥260
35955-74010 note Bulb, Position Indicator Lamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥260
33550E — Cap, Position Indicator Lamp
35956-52010 Cap, Position Indicator Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM (ILL,RS) ¥100
35956-52020 Cap, Position Indicator Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥110
35956-52010 Cap, Position Indicator Lamp
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ATM ¥100
35956-52010 Cap, Position Indicator Lamp
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥100
33560 — Unit Assy, Shift Lock Control
33560-52170 Unit Assy, Shift Lock Control
2005-01 → 2007-08 ended
SCP90 U ¥38,700
33560-52170 note Unit Assy, Shift Lock Control
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC (F,RS,X) ¥38,700
33560-52180 Unit Assy, Shift Lock Control
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC (B,F,ILL,RS,X) ¥38,700
33560-52200 Unit Assy, Shift Lock Control
2005-01 → 2007-08 ended
NCP95 U ¥38,700
33560-52200 note Unit Assy, Shift Lock Control
2005-01 → 2007-08 ended
NCP95 F ¥38,700
33560-52210 Unit Assy, Shift Lock Control
2005-01 → 2007-08 ended
NCP95 F,ILL ¥38,700
33560-52170 Unit Assy, Shift Lock Control
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 ILL,U ¥38,700
33560-52170 note Unit Assy, Shift Lock Control
2007-08 → 2008-08 ended
KSP90,SCP90 F ¥38,700
33560-52170 note Unit Assy, Shift Lock Control
2007-08 → 2008-09 ended
SCP90 RS ¥38,700
33560-52180 Unit Assy, Shift Lock Control
2007-08 → 2008-08 ended
KSP90,SCP90 B,F ¥38,700
33560-52180 Unit Assy, Shift Lock Control
2007-08 → 2008-09 ended
SCP90 RS ¥38,700
33560-52200 note Unit Assy, Shift Lock Control
2007-08 → 2008-08 ended
NCP95 F ¥38,700
33560-52200 Unit Assy, Shift Lock Control
2007-08 → 2008-08 ended
NCP95 ILL,U ¥38,700
33560-52210 Unit Assy, Shift Lock Control
2007-08 → 2008-08 ended
NCP95 F ¥38,700
33560-52340 Unit Assy, Shift Lock Control
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥38,700
33560-52170 Unit Assy, Shift Lock Control
2008-08 → 2010-07 ended
KSP90 U ¥38,700
33560-52170 note Unit Assy, Shift Lock Control
2008-08 → 2010-07 ended
KSP90 F ¥38,700
33560-52170 note Unit Assy, Shift Lock Control
2009-02 → 2010-07 ended
KSP90 F ¥38,700
33560-52170 note Unit Assy, Shift Lock Control
2009-02 → 2010-08 ended
SCP90 F ¥38,700
33560-52170 Unit Assy, Shift Lock Control
2008-08 → 2010-12 ended
NCP91,SCP90 ILL,U ¥38,700
33560-52170 note Unit Assy, Shift Lock Control
2008-08 → 2010-12 ended
SCP90 F,RS ¥38,700
33560-52180 Unit Assy, Shift Lock Control
2010-07 → 2010-12 ended
KSP90 U ¥38,700
33560-52180 Unit Assy, Shift Lock Control
2008-08 → 2010-12 ended
KSP90,SCP90 B,F,RS ¥38,700
33560-52200 Unit Assy, Shift Lock Control
2008-08 → 2010-12 ended
NCP95 ILL,U ¥38,700
33560-52200 note Unit Assy, Shift Lock Control
2008-08 → 2010-12 ended
NCP95 F ¥38,700
33560-52200 note Unit Assy, Shift Lock Control
2009-02 → 2010-08 ended
NCP95 F ¥38,700
33560-52210 Unit Assy, Shift Lock Control
2008-08 → 2010-12 ended
NCP95 F ¥38,700
33560-52340 Unit Assy, Shift Lock Control
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥38,700
33563 — Button, Shift Lock Release
33563-52080 Button, Shift Lock Release
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM ¥590
33563-52080 Button, Shift Lock Release
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥590
33563-52080 Button, Shift Lock Release
2007-08 → 2008-09 ended
SCP90 RS ¥590
33563-52140 Button, Shift Lock Release
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥670
33563-52080 Button, Shift Lock Release
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥590
33563-52140 Button, Shift Lock Release
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥670
33866 — Spring, Shift Lock Release
33866-52010 Spring, Shift Lock Release
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM ¥150
33866-52010 Spring, Shift Lock Release
2007-08 → 2008-09 ended
NCP91,SCP90 CVFC RS ¥150
33866-52010 Spring, Shift Lock Release
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥150
33866-52010 Spring, Shift Lock Release
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥150
35906 — Wire Sub-assy, Indicator Lamp
35906-52050 Wire Sub-assy, Indicator Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥700
35906-52080 Wire Sub-assy, Indicator Lamp
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM (ILL,RS) ¥700
35906-52080 Wire Sub-assy, Indicator Lamp
2007-08 → 2008-09 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥700
35906-52120 Wire Sub-assy, Indicator Lamp
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥360
35906-52080 Wire Sub-assy, Indicator Lamp
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥700
35906-52120 Wire Sub-assy, Indicator Lamp
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥360
35921B — Plate, Control Position Indicator NO,2
35921-52070 Plate, Control Position Indicator NO,2
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC ¥840
35921-52080 Plate, Control Position Indicator NO,2
2005-01 → 2007-08 ended
NCP95 ¥840
35921-52070 Plate, Control Position Indicator NO,2
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥840
35921-52070 Plate, Control Position Indicator NO,2
2007-08 → 2008-09 ended
SCP90 RS ¥840
35921-52080 Plate, Control Position Indicator NO,2
2007-08 → 2008-08 ended
NCP95 ¥840
35921-52120 Plate, Control Position Indicator NO,2
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥840
35921-52070 Plate, Control Position Indicator NO,2
2008-08 → 2010-12 ended
SCP90;KSP90,NCP91 B,F,ILL,U ¥840
35921-52080 Plate, Control Position Indicator NO,2
2008-08 → 2010-12 ended
NCP95 ¥840
35921-52120 Plate, Control Position Indicator NO,2
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥840
35971A — Housing, Position Indicator, Upper
35971-52200 Housing, Position Indicator, Upper
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC (B,F,RS,U,X) ¥1,940
35971-52210 Housing, Position Indicator, Upper
2005-01 → 2007-08 ended
NCP95 F,U ¥1,940
35971-52290 Housing, Position Indicator, Upper
2005-12 → 2007-08 ended
KSP90,SCP90 ILL ¥1,940
35971-52300 Housing, Position Indicator, Upper
2005-12 → 2007-08 ended
NCP95 ILL ¥1,940
35971-52200 Housing, Position Indicator, Upper
2007-08 → 2008-08 ended
KSP90,SCP90 B,F ¥1,940
35971-52200 Housing, Position Indicator, Upper
2007-08 → 2008-09 ended
SCP90 RS ¥1,940
35971-52210 Housing, Position Indicator, Upper
2007-08 → 2008-08 ended
NCP95 F ¥1,940
35971-52330 Housing, Position Indicator, Upper
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥2,520
35971-52340 Housing, Position Indicator, Upper
2007-08 → 2008-08 ended
NCP95 U ¥2,560
35971-52350 Housing, Position Indicator, Upper
2007-08 → 2008-08 ended
NCP95 ILL ¥2,560
35971-52360 Housing, Position Indicator, Upper
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 U ¥2,560
35971-52370 Housing, Position Indicator, Upper
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥2,560
35971-52200 Housing, Position Indicator, Upper
2008-08 → 2010-12 ended
KSP90,SCP90 B,F,RS ¥1,940
35971-52210 Housing, Position Indicator, Upper
2008-08 → 2010-12 ended
NCP95 F ¥1,940
35971-52330 Housing, Position Indicator, Upper
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥2,520
35971-52340 Housing, Position Indicator, Upper
2008-08 → 2010-12 ended
NCP95 U ¥2,560
35971-52350 Housing, Position Indicator, Upper
2008-08 → 2010-12 ended
NCP95 ILL ¥2,560
35971-52360 Housing, Position Indicator, Upper
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 U ¥2,560
35971-52370 Housing, Position Indicator, Upper
2008-08 → 2010-12 ended
NCP91,SCP90 ILL ¥2,560
35971-52420 note Housing, Position Indicator, Upper
2009-02 → 2010-08 ended
KSP90,SCP90 F ¥2,920
35971-52420 note Housing, Position Indicator, Upper
2009-02 → 2010-08 ended
SCP90 F ¥2,920
35971-52420 note Housing, Position Indicator, Upper
2009-02 → 2010-07 ended
KSP90 F ¥2,920
35971-52430 note Housing, Position Indicator, Upper
2009-02 → 2010-08 ended
NCP95 F ¥2,920
35971-52430 note Housing, Position Indicator, Upper
2009-02 → 2010-08 ended
NCP95 F ¥2,920
35975 — Cover, Slide (FOR POSITION INDICATOR)
35975-52080 Cover, Slide (FOR POSITION INDICATOR)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM ¥750
35975-52080 Cover, Slide (FOR POSITION INDICATOR)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥750
35975-52080 Cover, Slide (FOR POSITION INDICATOR)
2007-08 → 2008-09 ended
SCP90 RS ¥750
35975-52110 Cover, Slide (FOR POSITION INDICATOR)
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥780
35975-52080 Cover, Slide (FOR POSITION INDICATOR)
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥750
35975-52110 Cover, Slide (FOR POSITION INDICATOR)
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥780
35976 — Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35976-52080 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM ¥590
35976-52080 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥590
35976-52080 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2007-08 → 2008-09 ended
SCP90 RS ¥590
35976-52110 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥590
35976-52080 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥590
35976-52110 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
