Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

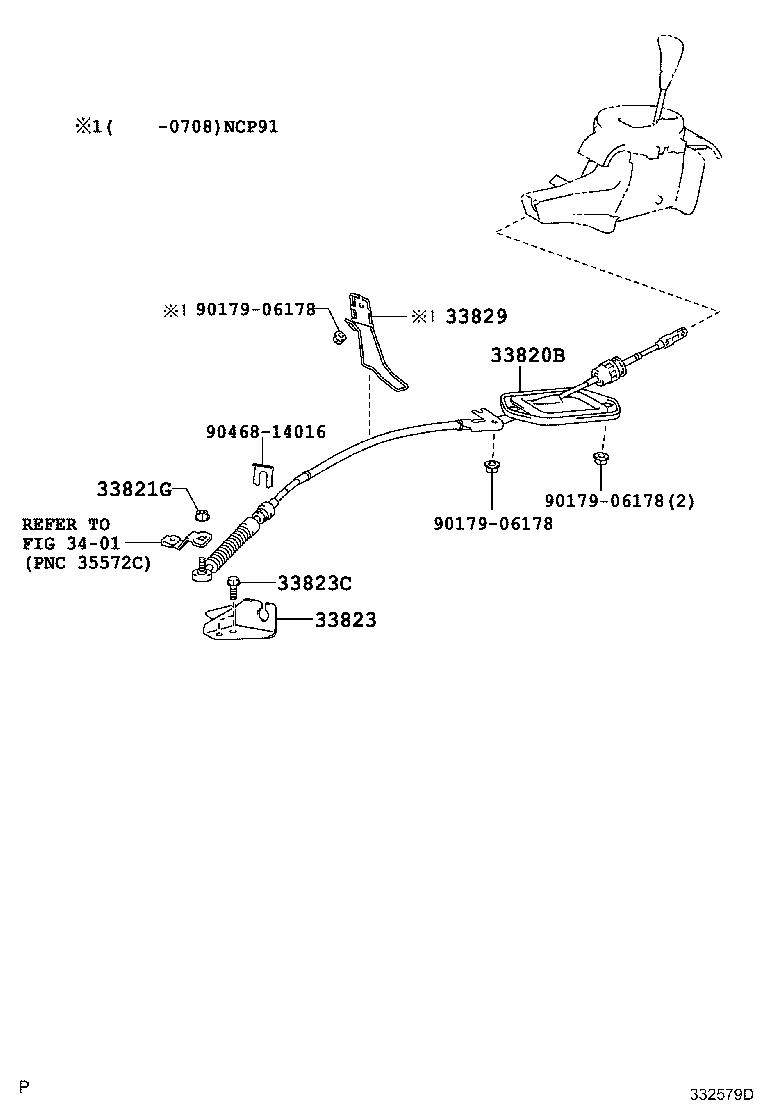

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-52440 |
Cable Assy, Transmission Control
2005-01 → 2007-08
ended
|
NCP91 5F | ¥25,500 | |
| 33820-52450 |
Cable Assy, Transmission Control
2005-01 → 2007-08
ended
|
KSP90,SCP90 | ¥15,200 | |
| 33820-52460 |
Cable Assy, Transmission Control
2005-01 → 2007-08
ended
|
NCP91 CVFC | ¥15,200 | |
| 33820-52490 |
Cable Assy, Transmission Control
2005-01 → 2007-08
ended
|
NCP95 | ¥17,200 | |
| 33820-52440 |
Cable Assy, Transmission Control
2007-08 → 2008-09
ended
|
NCP91 5F | ¥25,500 | |
| 33820-52450 |
Cable Assy, Transmission Control
2007-08 → 2008-08
ended
|
KSP90,SCP90 B,F,ILL,U | ¥15,200 | |
| 33820-52450 |
Cable Assy, Transmission Control
2007-08 → 2008-09
ended
|
SCP90 RS | ¥15,200 | |
| 33820-52460 |
Cable Assy, Transmission Control
2007-08 → 2008-08
ended
|
NCP91 ILL,U | ¥15,200 | |
| 33820-52460 |
Cable Assy, Transmission Control
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥15,200 | |
| 33820-52490 |
Cable Assy, Transmission Control
2007-08 → 2008-08
ended
|
NCP95 | ¥17,200 | |
| 33820-52440 |
Cable Assy, Transmission Control
2008-09 → 2010-08
ended
|
NCP91 5F | ¥25,500 | |
| 33820-52450 |
Cable Assy, Transmission Control
2008-08 → 2010-12
ended
|
KSP90,SCP90 | ¥15,200 | |
| 33820-52460 |
Cable Assy, Transmission Control
2008-08 → 2010-12
ended
|
NCP91 CVFC | ¥15,200 | |
| 33820-52490 |
Cable Assy, Transmission Control
2008-08 → 2010-12
ended
|
NCP95 | ¥17,200 | |
| 33821G — Nut (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ATM | ¥80 | |
| 90179-08061 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥80 | |
| 90179-08061 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2007-08 → 2008-09
ended
|
NCP91,SCP90 CVFC RS | ¥80 | |
| 94151-80800 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥80 | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-52020 |
Bracket, Transmission Control Cable, NO.1
2005-01 → 2007-08
ended
|
NCP95 | ¥620 | |
| 33823-52070 |
Bracket, Transmission Control Cable, NO.1
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 CVFC | ¥910 | |
| 33823-52020 |
Bracket, Transmission Control Cable, NO.1
2007-08 → 2008-08
ended
|
NCP95 | ¥620 | |
| 33823-52070 |
Bracket, Transmission Control Cable, NO.1
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥910 | |
| 33823-52070 |
Bracket, Transmission Control Cable, NO.1
2007-08 → 2008-09
ended
|
NCP91,SCP90 CVFC RS | ¥910 | |
| 33823-52020 |
Bracket, Transmission Control Cable, NO.1
2008-08 → 2010-12
ended
|
NCP95 | ¥620 | |
| 33823-52070 |
Bracket, Transmission Control Cable, NO.1
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 CVFC | ¥910 | |
| 33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 CVFC | ¥140 | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2005-01 → 2007-08
ended
|
NCP95 | ¥140 | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥140 | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2007-08 → 2008-08
ended
|
NCP95 | ¥140 | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2007-08 → 2008-09
ended
|
NCP91,SCP90 CVFC RS | ¥140 | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2008-08 → 2010-12
ended
|
KSP90,NCP91,SCP90 CVFC | ¥140 | |
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2008-08 → 2010-12
ended
|
NCP95 | ¥140 | |
| 33829 — Support, Transmission Control Cable | ||||
| 33829-52020 note |
Support, Transmission Control Cable
2005-01 → 2007-08
ended
|
NCP95 | ¥320 | |
| 33829-52090 note |
Support, Transmission Control Cable
2005-01 → 2005-09
ended
|
NCP95 | ¥480 | |
| 33829-52090 |
Support, Transmission Control Cable
2005-01 → 2005-11
ended
|
NCP91 5F | ¥480 | |
| 33829-52090 |
Support, Transmission Control Cable
2005-01 → 2005-09
ended
|
NCP91 CVFC | ¥480 | |
| 33829-52091 |
Support, Transmission Control Cable
2005-12 → 2007-06
ended
|
NCP91 5F | ¥620 | |
| 33829-52092 |
Support, Transmission Control Cable
2007-07 → 2007-08
ended
|
NCP91 5F | ¥460 | |
| 33829-52020 note |
Support, Transmission Control Cable
2007-08 → 2008-08
ended
|
NCP95 | ¥320 | |
| 33829-52092 |
Support, Transmission Control Cable
2007-08 → 2007-12
ended
|
NCP91 5F | ¥460 | |
| 33829-52092 |
Support, Transmission Control Cable
2008-01 → 2008-09
ended
|
NCP91 5F | ¥460 | |
| 33829-52020 note |
Support, Transmission Control Cable
2008-08 → 2010-12
ended
|
NCP95 | ¥320 | |
| 33829-52092 |
Support, Transmission Control Cable
2008-09 → 2010-08
ended
|
NCP91 5F | ¥460 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
