Exploded illustration 333845A 33261D — BUSH (FOR SHIFT & SELECT LEVER) (3 parts) 33504F — KNOB SUB-ASSY, SHIFT LEVER (14 parts) 33520A — SHAFT ASSY, FLOOR SHIFT CONTROL (3 parts) 33524F — BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT) (3 parts) 33527 — LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) (4 parts) 33530F — LEVER ASSY, SHIFT (FOR FLOOR SHIFT) (4 parts) 33531 — BOOT, DUST (FOR CONTROL SHIFT LEVER) (3 parts) 33534E — CRANK, SELECTING BELL, NO.2 (3 parts) 33534F — BUSH (FOR SELECTING BELLCRANK NO.2) (3 parts) 33534F — BUSH (FOR SELECTING BELLCRANK NO.2) (3 parts) 33534G — WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) (3 parts) 33534G — WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) (3 parts) 33557F — COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) (3 parts) 33557A — COVER, SELECTING BELLCRANK DUST, NO.1 (3 parts) 33590F — CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT) (3 parts) 33558 — COVER, SELECTING BELLCRANK DUST, NO.2 (3 parts) 33558 — COVER, SELECTING BELLCRANK DUST, NO.2 (3 parts) 33820B — CABLE ASSY, TRANSMISSION CONTROL (14 parts) 33821C — WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) (3 parts) 33821C — WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) (3 parts) 33829 — SUPPORT, TRANSMISSION CONTROL CABLE (11 parts) 9011908C59 — not listed in this catalogue 9017908025 — not listed in this catalogue 9046814016 — not listed in this catalogue 9046814016 — not listed in this catalogue 9046814029 — not listed in this catalogue 9046814029 — not listed in this catalogue 9046814039 — not listed in this catalogue 9046814041 — not listed in this catalogue 91612B1020 — not listed in this catalogue 9161261030 — not listed in this catalogue 9017908025 — not listed in this catalogue 9017906178 — not listed in this catalogue 9017906178 — not listed in this catalogue 9415180841 — not listed in this catalogue 9415180841 — not listed in this catalogue 33281F — PIN, LEVER LOCK (FOR FLOOR SHIFT) (3 parts) 9017906178 — not listed in this catalogue 9413060800 — not listed in this catalogue 9453100800 — not listed in this catalogue

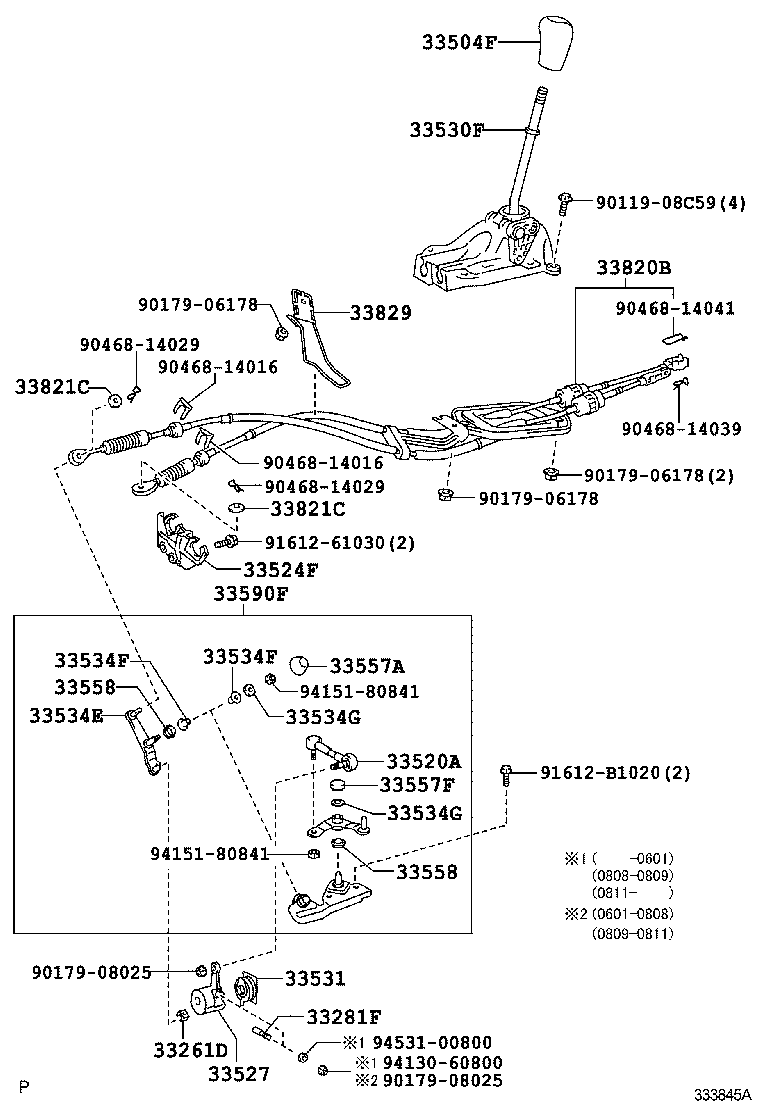

333845A · 22 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
86 parts on this figure
Part number Description Fitment Price
33261D — Bush (FOR SHIFT & SELECT LEVER)
33557-33010 Bush (FOR SHIFT & SELECT LEVER)
2005-01 → 2007-08 ended
NCP91 5F ¥450
33557-33010 Bush (FOR SHIFT & SELECT LEVER)
2007-08 → 2008-09 ended
NCP91 5F ¥450
33557-33010 Bush (FOR SHIFT & SELECT LEVER)
2008-09 → 2010-08 ended
NCP91 5F ¥450
33281F — Pin, Lever Lock (FOR FLOOR SHIFT)
33281-16020 Pin, Lever Lock (FOR FLOOR SHIFT)
2005-01 → 2007-08 ended
NCP91 5F ¥160
33281-16020 Pin, Lever Lock (FOR FLOOR SHIFT)
2007-08 → 2008-09 ended
NCP91 5F ¥160
33281-16020 Pin, Lever Lock (FOR FLOOR SHIFT)
2008-09 → 2010-08 ended
NCP91 5F ¥160
33504F — Knob Sub-assy, Shift Lever
33504-13061-B5 note Knob Sub-assy, Shift Lever
2005-01 → 2007-08 ended
NCP91 5F ¥8,100
33504-52080-B0 note Knob Sub-assy, Shift Lever
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥2,720
33504-52090-B0 note Knob Sub-assy, Shift Lever
2005-01 → 2007-08 ended
NCP91 CVFC RS ¥6,200
33504-52090-B0 note Knob Sub-assy, Shift Lever
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥6,200
33504-13061-B5 note Knob Sub-assy, Shift Lever
2007-08 → 2008-09 ended
NCP91 5F ¥8,100
33504-52080-B0 note Knob Sub-assy, Shift Lever
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,720
33504-52080-E0 note Knob Sub-assy, Shift Lever
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,720
33504-52090-B0 note Knob Sub-assy, Shift Lever
2007-08 → 2008-09 ended
NCP91,SCP90 CVFC RS ¥6,200
33504-52090-E0 note Knob Sub-assy, Shift Lever
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥6,200
33504-12310-B1 note Knob Sub-assy, Shift Lever
2008-09 → 2010-08 ended
NCP91 5F ¥6,200
33504-52080-B0 note Knob Sub-assy, Shift Lever
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,720
33504-52080-E0 note Knob Sub-assy, Shift Lever
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,720
33504-52090-B0 note Knob Sub-assy, Shift Lever
2008-09 → 2010-12 ended
NCP91,SCP90 CVFC RS ¥6,200
33504-52090-E0 note Knob Sub-assy, Shift Lever
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥6,200
33520A — Shaft Assy, Floor Shift Control
33520-52050 Shaft Assy, Floor Shift Control
2005-01 → 2007-08 ended
NCP91 5F ¥1,490
33520-52050 Shaft Assy, Floor Shift Control
2007-08 → 2008-09 ended
NCP91 5F ¥1,490
33520-52050 Shaft Assy, Floor Shift Control
2008-09 → 2010-08 ended
NCP91 5F ¥1,490
33524F — Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
33524-52050 Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2005-01 → 2007-08 ended
NCP91 5F ¥2,460
33524-52050 Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2007-08 → 2008-09 ended
NCP91 5F ¥2,460
33524-52050 Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
2008-09 → 2010-07 ended
NCP91 5F ¥2,460
33527 — Lever, Control Shift (FOR FLOOR SHIFT)
33527-52010 Lever, Control Shift (FOR FLOOR SHIFT)
2005-01 → 2006-01 ended
NCP91 5F ¥3,670
33527-52011 Lever, Control Shift (FOR FLOOR SHIFT)
2006-01 → 2007-08 ended
NCP91 5F ¥2,290
33527-52011 Lever, Control Shift (FOR FLOOR SHIFT)
2007-08 → 2008-09 ended
NCP91 5F ¥2,290
33527-52011 Lever, Control Shift (FOR FLOOR SHIFT)
2008-09 → 2010-08 ended
NCP91 5F ¥2,290
33530F — Lever Assy, Shift (FOR FLOOR SHIFT)
33530-52110 Lever Assy, Shift (FOR FLOOR SHIFT)
2005-01 → 2007-05 ended
NCP91 5F ¥5,800
33530-52210 Lever Assy, Shift (FOR FLOOR SHIFT)
2007-06 → 2007-08 ended
NCP91 5F ¥3,610
33530-52210 Lever Assy, Shift (FOR FLOOR SHIFT)
2007-08 → 2008-09 ended
NCP91 5F ¥3,610
33530-52210 Lever Assy, Shift (FOR FLOOR SHIFT)
2008-09 → 2010-08 ended
NCP91 5F ¥3,610
33531 — Boot, Dust (FOR CONTROL SHIFT LEVER)
33531-17010 Boot, Dust (FOR CONTROL SHIFT LEVER)
2005-01 → 2007-08 ended
NCP91 5F ¥490
33531-17010 Boot, Dust (FOR CONTROL SHIFT LEVER)
2007-08 → 2008-09 ended
NCP91 5F ¥490
33531-17010 Boot, Dust (FOR CONTROL SHIFT LEVER)
2008-09 → 2010-08 ended
NCP91 5F ¥490
33534E — Crank, Selecting Bell, NO.2
33534-52020 Crank, Selecting Bell, NO.2
2005-01 → 2007-08 ended
NCP91 5F ¥1,850
33534-52020 Crank, Selecting Bell, NO.2
2007-08 → 2008-09 ended
NCP91 5F ¥1,850
33534-52020 Crank, Selecting Bell, NO.2
2008-09 → 2010-08 ended
NCP91 5F ¥1,850
33534F — Bush (FOR SELECTING BELLCRANK NO.2)
90386-12022 Bush (FOR SELECTING BELLCRANK NO.2)
2005-01 → 2007-08 ended
NCP91 5F ¥130
90386-12022 Bush (FOR SELECTING BELLCRANK NO.2)
2007-08 → 2008-09 ended
NCP91 5F ¥130
90386-12022 Bush (FOR SELECTING BELLCRANK NO.2)
2008-09 → 2010-08 ended
NCP91 5F ¥130
33534G — Washer, Plate (FOR SELECTING BELLCRANK NO.2)
90201-08028 Washer, Plate (FOR SELECTING BELLCRANK NO.2)
2005-01 → 2007-08 ended
NCP91 5F ¥100
90201-08028 Washer, Plate (FOR SELECTING BELLCRANK NO.2)
2007-08 → 2008-09 ended
NCP91 5F ¥100
90201-08028 Washer, Plate (FOR SELECTING BELLCRANK NO.2)
2008-09 → 2010-08 ended
NCP91 5F ¥100
33557A — Cover, Selecting Bellcrank Dust, NO.1
33557-32010 Cover, Selecting Bellcrank Dust, NO.1
2005-01 → 2007-08 ended
NCP91 5F ¥280
33557-32010 Cover, Selecting Bellcrank Dust, NO.1
2007-08 → 2008-09 ended
NCP91 5F ¥280
33557-32010 Cover, Selecting Bellcrank Dust, NO.1
2008-09 → 2010-08 ended
NCP91 5F ¥280
33557F — Cover, Control Bellcrank Dust (FOR FLOOR SHIFT)
33557-20010 Cover, Control Bellcrank Dust (FOR FLOOR SHIFT)
2005-01 → 2007-08 ended
NCP91 5F ¥370
33557-20010 Cover, Control Bellcrank Dust (FOR FLOOR SHIFT)
2007-08 → 2008-09 ended
NCP91 5F ¥370
33557-20010 Cover, Control Bellcrank Dust (FOR FLOOR SHIFT)
2008-09 → 2010-08 ended
NCP91 5F ¥370
33558 — Cover, Selecting Bellcrank Dust, NO.2
33558-10030 Cover, Selecting Bellcrank Dust, NO.2
2005-01 → 2007-08 ended
NCP91 5F ¥230
33558-10030 Cover, Selecting Bellcrank Dust, NO.2
2007-08 → 2008-09 ended
NCP91 5F ¥230
33558-10030 Cover, Selecting Bellcrank Dust, NO.2
2008-09 → 2010-08 ended
NCP91 5F ¥230
33590F — Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
33590-52030 Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
2005-01 → 2007-08 ended
NCP91 5F ¥6,800
33590-52030 Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
2007-08 → 2008-09 ended
NCP91 5F ¥6,800
33590-52030 Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
2008-09 → 2010-08 ended
NCP91 5F ¥6,800
33820B — Cable Assy, Transmission Control
33820-52440 Cable Assy, Transmission Control
2005-01 → 2007-08 ended
NCP91 5F ¥25,500
33820-52450 Cable Assy, Transmission Control
2005-01 → 2007-08 ended
KSP90,SCP90 ¥15,200
33820-52460 Cable Assy, Transmission Control
2005-01 → 2007-08 ended
NCP91 CVFC ¥15,200
33820-52490 Cable Assy, Transmission Control
2005-01 → 2007-08 ended
NCP95 ¥17,200
33820-52440 Cable Assy, Transmission Control
2007-08 → 2008-09 ended
NCP91 5F ¥25,500
33820-52450 Cable Assy, Transmission Control
2007-08 → 2008-08 ended
KSP90,SCP90 B,F,ILL,U ¥15,200
33820-52450 Cable Assy, Transmission Control
2007-08 → 2008-09 ended
SCP90 RS ¥15,200
33820-52460 Cable Assy, Transmission Control
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥15,200
33820-52460 Cable Assy, Transmission Control
2007-08 → 2008-08 ended
NCP91 ILL,U ¥15,200
33820-52490 Cable Assy, Transmission Control
2007-08 → 2008-08 ended
NCP95 ¥17,200
33820-52440 Cable Assy, Transmission Control
2008-09 → 2010-08 ended
NCP91 5F ¥25,500
33820-52450 Cable Assy, Transmission Control
2008-08 → 2010-12 ended
KSP90,SCP90 ¥15,200
33820-52460 Cable Assy, Transmission Control
2008-08 → 2010-12 ended
NCP91 CVFC ¥15,200
33820-52490 Cable Assy, Transmission Control
2008-08 → 2010-12 ended
NCP95 ¥17,200
33821C — Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
90201-08267 note Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
2005-01 → 2007-08 ended
NCP91 5F ¥100
90201-08267 note Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
2007-08 → 2008-09 ended
NCP91 5F ¥100
90201-08267 note Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
2008-09 → 2010-08 ended
NCP91 5F ¥100
33829 — Support, Transmission Control Cable
33829-52020 note Support, Transmission Control Cable
2005-01 → 2007-08 ended
NCP95 ¥320
33829-52090 note Support, Transmission Control Cable
2005-01 → 2005-09 ended
NCP95 ¥480
33829-52090 Support, Transmission Control Cable
2005-01 → 2005-09 ended
NCP91 CVFC ¥480
33829-52090 Support, Transmission Control Cable
2005-01 → 2005-11 ended
NCP91 5F ¥480
33829-52091 Support, Transmission Control Cable
2005-12 → 2007-06 ended
NCP91 5F ¥620
33829-52092 Support, Transmission Control Cable
2007-07 → 2007-08 ended
NCP91 5F ¥460
33829-52020 note Support, Transmission Control Cable
2007-08 → 2008-08 ended
NCP95 ¥320
33829-52092 Support, Transmission Control Cable
2007-08 → 2007-12 ended
NCP91 5F ¥460
33829-52092 Support, Transmission Control Cable
2008-01 → 2008-09 ended
NCP91 5F ¥460
33829-52020 note Support, Transmission Control Cable
2008-08 → 2010-12 ended
NCP95 ¥320
33829-52092 Support, Transmission Control Cable
2008-09 → 2010-08 ended
NCP91 5F ¥460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
