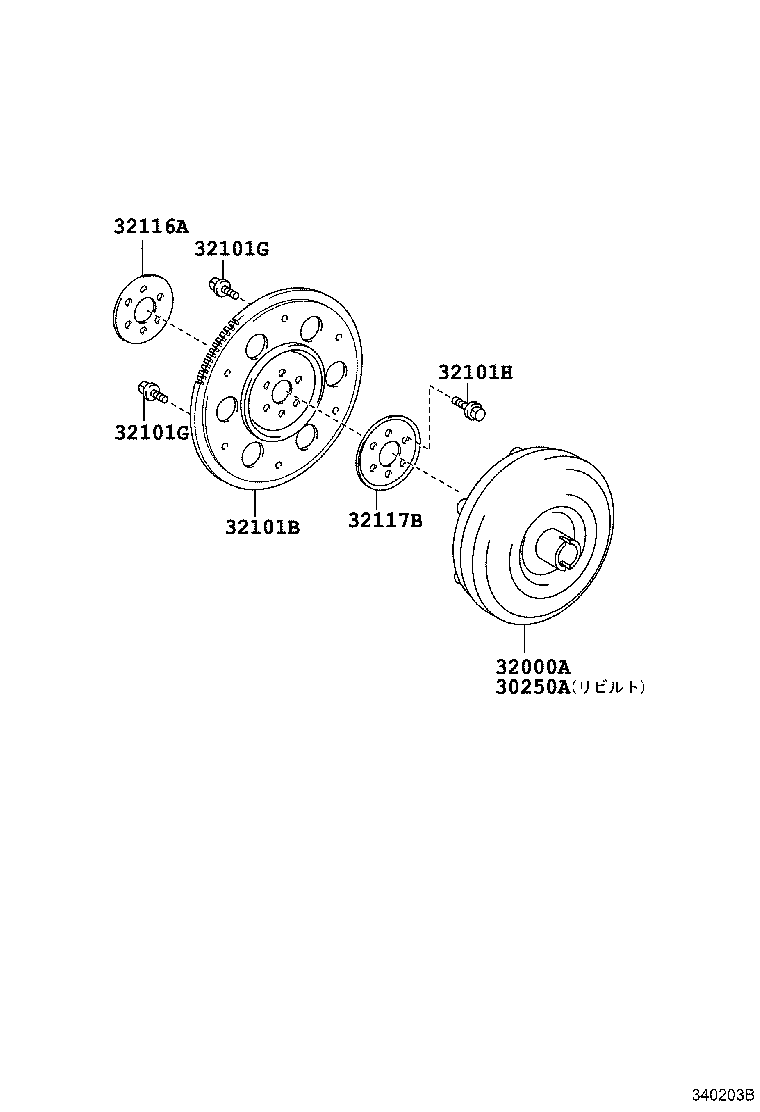

Exploded illustration 340203B 32000A — CONVERTER ASSY, TORQUE (11 parts) 30250A — CONVERTER ASSY, TORQUE, REBUILT (11 parts) 32101B — GEAR SUB-ASSY, DRIVE PLATE & RING (11 parts) 32101H — BOLT, HEXAGON(FOR DRIVE PLATE SETTING) (5 parts) 32101G — BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) (8 parts) 32101G — BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) (8 parts) 32117B — SPACER, DRIVE PLATE, REAR (8 parts) 32116A — SPACER, DRIVE PLATE, FRONT (8 parts)
340203B · 8 callouts Full size ↗
62 parts on this figure
Part number Description Fitment Price
30250A — Converter Assy, Torque, Rebuilt
30250-52080 Converter Assy, Torque, Rebuilt
2005-01 → 2007-08 ended
NCP91 CVFC ¥82,200
30250-52090 Converter Assy, Torque, Rebuilt
2005-01 → 2007-08 ended
KSP90 ¥74,200
30250-52100 Converter Assy, Torque, Rebuilt
2005-01 → 2007-08 ended
SCP90 ¥74,200
30250-52080 Converter Assy, Torque, Rebuilt
2007-08 → 2008-09 ended
NCP91 CVFC ¥82,200
30250-52090 Converter Assy, Torque, Rebuilt
2007-08 → 2008-08 ended
KSP90 ¥74,200
30250-52100 Converter Assy, Torque, Rebuilt
2007-08 → 2008-09 ended
SCP90 ¥74,200
30250-52080 Converter Assy, Torque, Rebuilt
2008-08 → 2010-12 ended
NCP91 CVFC ¥82,200
30250-52090 Converter Assy, Torque, Rebuilt
2008-08 → 2010-07 ended
KSP90 ¥74,200
30250-52091 Converter Assy, Torque, Rebuilt
2010-07 → 2010-12 ended
KSP90 ¥61,800
30250-52100 Converter Assy, Torque, Rebuilt
2008-08 → 2010-07 ended
SCP90 ¥74,200
30250-52101 Converter Assy, Torque, Rebuilt
2010-07 → 2010-12 ended
SCP90 ¥74,200
32000A — Converter Assy, Torque
32000-52080 Converter Assy, Torque
2005-01 → 2007-08 ended
NCP91 CVFC ¥118,000
32000-52090 Converter Assy, Torque
2005-01 → 2007-08 ended
KSP90 ¥106,000
32000-52100 Converter Assy, Torque
2005-01 → 2007-08 ended
SCP90 ¥106,000
32000-52080 Converter Assy, Torque
2007-08 → 2008-09 ended
NCP91 CVFC ¥118,000
32000-52090 Converter Assy, Torque
2007-08 → 2008-08 ended
KSP90 ¥106,000
32000-52100 Converter Assy, Torque
2007-08 → 2008-09 ended
SCP90 ¥106,000
32000-52080 Converter Assy, Torque
2008-08 → 2010-12 ended
NCP91 CVFC ¥118,000
32000-52090 Converter Assy, Torque
2008-08 → 2010-07 ended
KSP90 ¥106,000
32000-52091 Converter Assy, Torque
2010-07 → 2010-12 ended
KSP90 ¥88,100
32000-52100 Converter Assy, Torque
2008-08 → 2010-07 ended
SCP90 ¥106,000
32000-52101 Converter Assy, Torque
2010-07 → 2010-12 ended
SCP90 ¥106,000
32101B — Gear Sub-assy, Drive Plate & Ring
32101-52021 Gear Sub-assy, Drive Plate & Ring
2005-01 → 2007-08 ended
NCP91 CVFC ¥11,600
32101-52060 note Gear Sub-assy, Drive Plate & Ring
2005-04 → 2007-08 ended
KSP90 B,F ¥17,500
32111-52030 Gear Sub-assy, Drive Plate & Ring
2005-01 → 2007-08 ended
KSP90,SCP90 ¥6,100
32101-52021 Gear Sub-assy, Drive Plate & Ring
2007-08 → 2008-08 ended
NCP91 ILL,U ¥11,600
32101-52021 Gear Sub-assy, Drive Plate & Ring
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥11,600
32101-52060 note Gear Sub-assy, Drive Plate & Ring
2007-08 → 2008-08 ended
KSP90 B,F ¥17,500
32111-52030 Gear Sub-assy, Drive Plate & Ring
2007-08 → 2008-08 ended
KSP90,SCP90 B,F,ILL,U ¥6,100
32111-52030 Gear Sub-assy, Drive Plate & Ring
2007-08 → 2008-09 ended
SCP90 RS ¥6,100
32101-52021 Gear Sub-assy, Drive Plate & Ring
2008-08 → —
NCP91 CVFC ¥11,600
32101-52060 note Gear Sub-assy, Drive Plate & Ring
2008-08 → 2010-07 ended
KSP90 B,F ¥17,500
32111-52030 Gear Sub-assy, Drive Plate & Ring
2008-08 → —
KSP90,SCP90 ¥6,100
32101G — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08107 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC ¥190
90119-08269 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC ¥170
90109-08107 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 CVFC ¥190
90119-08269 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 CVFC ¥170
90109-08107 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2008-08 → 2008-10 ended
KSP90,NCP91,SCP90 CVFC ¥190
90109-08113 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2008-11 → —
KSP90,NCP91,SCP90 CVFC ¥80
90119-08269 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2008-08 → 2008-10 ended
KSP90,NCP91,SCP90 CVFC ¥170
90119-08498 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2008-11 → —
KSP90,NCP91,SCP90 CVFC ¥80
32101H — Bolt, Hexagon(FOR DRIVE PLATE SETTING)
90105-10048 Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC ¥130
90105-10048 Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥130
90105-10048 Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2007-08 → 2008-09 ended
NCP91,SCP90 CVFC RS ¥130
90105-10048 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 CVFC ¥130
90105-A0022 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2008-08 → 2010-03 ended
KSP90,NCP91,SCP90 CVFC —
32116A — Spacer, Drive Plate, Front
32116-52010 Spacer, Drive Plate, Front
2005-01 → 2007-08 ended
KSP90,SCP90 ¥470
32116-52030 Spacer, Drive Plate, Front
2005-01 → 2007-08 ended
NCP91 CVFC ¥680
32116-52010 Spacer, Drive Plate, Front
2007-08 → 2008-08 ended
KSP90,SCP90 B,F,ILL,U ¥470
32116-52010 Spacer, Drive Plate, Front
2007-08 → 2008-09 ended
SCP90 RS ¥470
32116-52030 Spacer, Drive Plate, Front
2007-08 → 2008-08 ended
NCP91 ILL,U ¥680
32116-52030 Spacer, Drive Plate, Front
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥680
32116-52010 Spacer, Drive Plate, Front
2008-08 → —
KSP90,SCP90 ¥470
32116-52030 Spacer, Drive Plate, Front
2008-08 → —
NCP91 CVFC ¥680
32117B — Spacer, Drive Plate, Rear
32117-52010 Spacer, Drive Plate, Rear
2005-01 → 2007-08 ended
KSP90,SCP90 ¥930
32117-52030 Spacer, Drive Plate, Rear
2005-01 → 2007-08 ended
NCP91 CVFC ¥1,050
32117-52010 Spacer, Drive Plate, Rear
2007-08 → 2008-08 ended
KSP90,SCP90 B,F,ILL,U ¥930
32117-52010 Spacer, Drive Plate, Rear
2007-08 → 2008-09 ended
SCP90 RS ¥930
32117-52030 Spacer, Drive Plate, Rear
2007-08 → 2008-08 ended
NCP91 ILL,U ¥1,050
32117-52030 Spacer, Drive Plate, Rear
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥1,050
32117-52010 Spacer, Drive Plate, Rear
2008-08 → —
KSP90,SCP90 ¥930
32117-52030 Spacer, Drive Plate, Rear
2008-08 → —
NCP91 CVFC ¥1,050
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
