Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

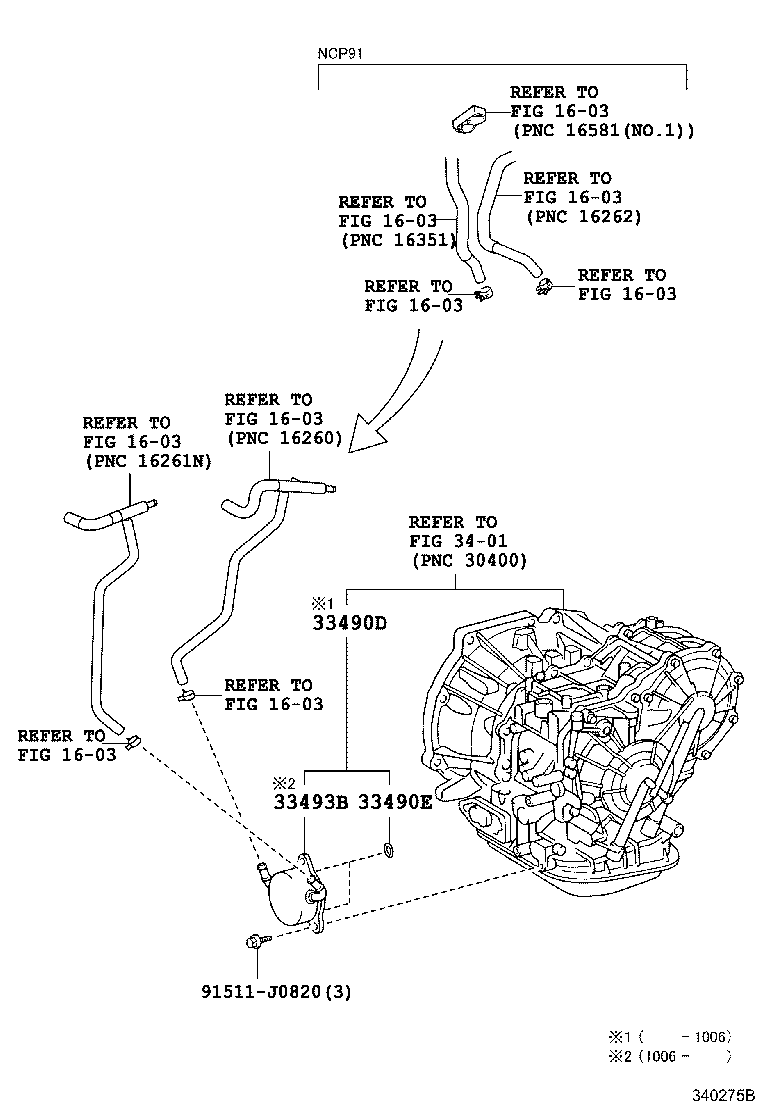

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33490D — Cooler Assy, Transmission Oil | ||||
| 33490-52010 |
Cooler Assy, Transmission Oil
2005-01 → 2007-08
ended
|
NCP91 CVFC | ¥17,200 | |
| 33490-52020 |
Cooler Assy, Transmission Oil
2005-01 → 2007-08
ended
|
KSP90,SCP90 | ¥17,200 | |
| 33490-52030 |
Cooler Assy, Transmission Oil
2007-08 → 2008-09
ended
|
NCP91 CVFC | ¥10,800 | |
| 33490-52040 |
Cooler Assy, Transmission Oil
2007-08 → 2008-09
ended
|
KSP90,SCP90 | ¥10,800 | |
| 33490-52030 |
Cooler Assy, Transmission Oil
2008-08 → 2010-06
ended
|
NCP91 CVFC | ¥10,800 | |
| 33490-52040 |
Cooler Assy, Transmission Oil
2008-08 → 2010-06
ended
|
KSP90,SCP90 | ¥10,800 | |
| 33490E — Ring, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-19020 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2005-01 → 2007-08
ended
|
KSP90,NCP91,SCP90 CVFC | ¥170 | |
| 90301-19020 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2007-08 → 2008-08
ended
|
KSP90,NCP91,SCP90 B,F,ILL,U | ¥170 | |
| 90301-19020 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2007-08 → 2008-09
ended
|
NCP91,SCP90 CVFC RS | ¥170 | |
| 90301-19020 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2008-08 → 2010-06
ended
|
KSP90,NCP91,SCP90 CVFC | ¥170 | |
| 90301-20012 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2010-06 → 2010-12
ended
|
KSP90,NCP91,SCP90 CVFC | ¥170 | |
| 33493B — Cooler, Oil | ||||
| 33493-52010 |
Cooler, Oil
2010-06 → 2010-12
ended
|
NCP91 CVFC | ¥6,500 | |
| 33493-52020 |
Cooler, Oil
2010-06 → 2010-12
ended
|
KSP90,SCP90 | ¥8,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
