Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

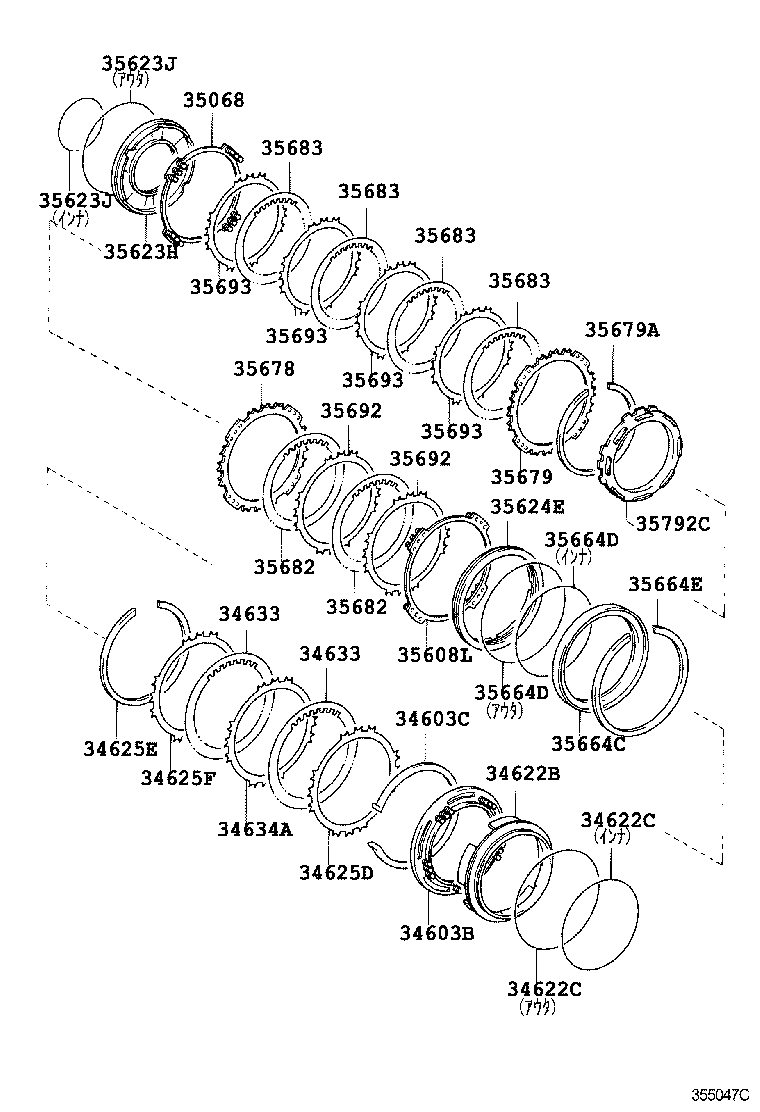

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 34603B — Spring Sub-assy, Overdrive Brake Return | ||||
| 34603-52010 |
Spring Sub-assy, Overdrive Brake Return
2005-01 → 2007-08
ended
|
NCP95 | ¥1,580 | |
| 34603-52010 |
Spring Sub-assy, Overdrive Brake Return
2007-08 → 2008-08
ended
|
NCP95 | ¥1,580 | |
| 34603-52010 |
Spring Sub-assy, Overdrive Brake Return
2008-08 → —
|
NCP95 | ¥1,580 | |
| 34603C — Ring, Hole Snap(FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90520-99047 |
Ring, Hole Snap(FOR OVERDRIVE BRAKE RETURN SPRING)
2005-01 → 2007-08
ended
|
NCP95 | ¥390 | |
| 90520-99047 |
Ring, Hole Snap(FOR OVERDRIVE BRAKE RETURN SPRING)
2007-08 → 2008-08
ended
|
NCP95 | ¥390 | |
| 90520-99047 |
Ring, Hole Snap(FOR OVERDRIVE BRAKE RETURN SPRING)
2008-08 → —
|
NCP95 | ¥390 | |
| 34622B — Piston, 2ND Coast & Overdrive Brake | ||||
| 34622-52010 |
Piston, 2ND Coast & Overdrive Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥4,120 | |
| 34622-52010 |
Piston, 2ND Coast & Overdrive Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥4,120 | |
| 34622-52010 |
Piston, 2ND Coast & Overdrive Brake
2008-08 → —
|
NCP95 | ¥4,120 | |
| 34622C — Ring, O(FOR 2ND COAST & OVERDRIVE) | ||||
| 90301-99113 note |
Ring, O(FOR 2ND COAST & OVERDRIVE)
2005-01 → 2007-08
ended
|
NCP95 | ¥270 | |
| 90301-99115 note |
Ring, O(FOR 2ND COAST & OVERDRIVE)
2005-01 → 2007-08
ended
|
NCP95 | ¥200 | |
| 90301-99113 note |
Ring, O(FOR 2ND COAST & OVERDRIVE)
2007-08 → 2008-08
ended
|
NCP95 | ¥270 | |
| 90301-99115 note |
Ring, O(FOR 2ND COAST & OVERDRIVE)
2007-08 → 2008-08
ended
|
NCP95 | ¥200 | |
| 90301-99113 note |
Ring, O(FOR 2ND COAST & OVERDRIVE)
2008-08 → —
|
NCP95 | ¥270 | |
| 90301-99115 note |
Ring, O(FOR 2ND COAST & OVERDRIVE)
2008-08 → —
|
NCP95 | ¥200 | |
| 34625D — Flange, 2ND Coast & Overdrive Brake | ||||
| 34625-52010 note |
Flange, 2ND Coast & Overdrive Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥1,780 | |
| 34625-52020 note |
Flange, 2ND Coast & Overdrive Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥1,960 | |
| 34625-52030 note |
Flange, 2ND Coast & Overdrive Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥2,170 | |
| 34625-52040 note |
Flange, 2ND Coast & Overdrive Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥2,360 | |
| 34625-52050 note |
Flange, 2ND Coast & Overdrive Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥2,400 | |
| 34625-52010 note |
Flange, 2ND Coast & Overdrive Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥1,780 | |
| 34625-52020 note |
Flange, 2ND Coast & Overdrive Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥1,960 | |
| 34625-52030 note |
Flange, 2ND Coast & Overdrive Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥2,170 | |
| 34625-52040 note |
Flange, 2ND Coast & Overdrive Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥2,360 | |
| 34625-52050 note |
Flange, 2ND Coast & Overdrive Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥2,400 | |
| 34625-52010 note |
Flange, 2ND Coast & Overdrive Brake
2008-08 → —
|
NCP95 | ¥1,780 | |
| 34625-52020 note |
Flange, 2ND Coast & Overdrive Brake
2008-08 → —
|
NCP95 | ¥1,960 | |
| 34625-52030 note |
Flange, 2ND Coast & Overdrive Brake
2008-08 → —
|
NCP95 | ¥2,170 | |
| 34625-52040 note |
Flange, 2ND Coast & Overdrive Brake
2008-08 → —
|
NCP95 | ¥2,360 | |
| 34625-52050 note |
Flange, 2ND Coast & Overdrive Brake
2008-08 → —
|
NCP95 | ¥2,400 | |
| 34625E — Ring, Hole Snap(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE) | ||||
| 90520-99046 |
Ring, Hole Snap(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)
2005-01 → 2007-08
ended
|
NCP95 | ¥390 | |
| 90520-99046 |
Ring, Hole Snap(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)
2007-08 → 2008-08
ended
|
NCP95 | ¥390 | |
| 90520-99046 |
Ring, Hole Snap(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)
2008-08 → —
|
NCP95 | ¥390 | |
| 34625F — Flange, 2ND Coast & Overdrive Brake, NO.2 | ||||
| 34625-52100 |
Flange, 2ND Coast & Overdrive Brake, NO.2
2005-01 → 2007-08
ended
|
NCP95 | ¥3,790 | |
| 34625-52100 |
Flange, 2ND Coast & Overdrive Brake, NO.2
2007-08 → 2008-08
ended
|
NCP95 | ¥3,790 | |
| 34625-52100 |
Flange, 2ND Coast & Overdrive Brake, NO.2
2008-08 → —
|
NCP95 | ¥3,790 | |
| 34633 — Disc, 2ND Coast & Overdrive Brake | ||||
| 34633-52030 |
Disc, 2ND Coast & Overdrive Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥3,020 | |
| 34633-52030 |
Disc, 2ND Coast & Overdrive Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥3,020 | |
| 34633-52030 |
Disc, 2ND Coast & Overdrive Brake
2008-08 → —
|
NCP95 | ¥3,020 | |
| 34634A — Plate, 2ND Coast & Overdrive Brake | ||||
| 34634-52010 |
Plate, 2ND Coast & Overdrive Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥1,630 | |
| 34634-52010 |
Plate, 2ND Coast & Overdrive Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥1,630 | |
| 34634-52010 |
Plate, 2ND Coast & Overdrive Brake
2008-08 → —
|
NCP95 | ¥1,630 | |
| 35068 — Spring Sub-assy, 1ST & Reverse Brake Return | ||||
| 35068-52020 |
Spring Sub-assy, 1ST & Reverse Brake Return
2005-01 → 2007-08
ended
|
NCP95 | ¥2,680 | |
| 35068-52020 |
Spring Sub-assy, 1ST & Reverse Brake Return
2007-08 → 2008-08
ended
|
NCP95 | ¥2,680 | |
| 35068-52020 |
Spring Sub-assy, 1ST & Reverse Brake Return
2008-08 → —
|
NCP95 | ¥2,680 | |
| 35608L — Spring Sub-assy, 2ND Brake Piston Return | ||||
| 35608-52010 |
Spring Sub-assy, 2ND Brake Piston Return
2005-01 → 2007-08
ended
|
NCP95 | ¥1,090 | |
| 35608-52010 |
Spring Sub-assy, 2ND Brake Piston Return
2007-08 → 2008-08
ended
|
NCP95 | ¥1,090 | |
| 35608-52010 |
Spring Sub-assy, 2ND Brake Piston Return
2008-08 → —
|
NCP95 | ¥1,090 | |
| 35623H — Piston, 1ST & Reverse Brake | ||||
| 35623-52020 |
Piston, 1ST & Reverse Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥2,100 | |
| 35623-52020 |
Piston, 1ST & Reverse Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥2,100 | |
| 35623-52020 |
Piston, 1ST & Reverse Brake
2008-08 → —
|
NCP95 | ¥2,100 | |
| 35623J — Ring, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-97001 note |
Ring, O (FOR 1ST & REVERSE BRAKE)
2005-01 → 2007-08
ended
|
NCP95 | ¥320 | |
| 90301-99113 note |
Ring, O (FOR 1ST & REVERSE BRAKE)
2005-01 → 2007-08
ended
|
NCP95 | ¥270 | |
| 90301-97001 note |
Ring, O (FOR 1ST & REVERSE BRAKE)
2007-08 → 2008-08
ended
|
NCP95 | ¥320 | |
| 90301-99113 note |
Ring, O (FOR 1ST & REVERSE BRAKE)
2007-08 → 2008-08
ended
|
NCP95 | ¥270 | |
| 90301-97001 note |
Ring, O (FOR 1ST & REVERSE BRAKE)
2008-08 → 2010-12
ended
|
NCP95 | ¥320 | |
| 90301-99113 note |
Ring, O (FOR 1ST & REVERSE BRAKE)
2008-08 → 2010-12
ended
|
NCP95 | ¥270 | |
| 35624E — Piston, 2ND Brake | ||||
| 35624-52010 |
Piston, 2ND Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥2,830 | |
| 35624-52010 |
Piston, 2ND Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥2,830 | |
| 35624-52010 |
Piston, 2ND Brake
2008-08 → —
|
NCP95 | ¥2,830 | |
| 35664C — Cylinder, 2ND Brake | ||||
| 35664-52010 |
Cylinder, 2ND Brake
2005-01 → 2007-08
ended
|
NCP95 | ¥1,850 | |
| 35664-52010 |
Cylinder, 2ND Brake
2007-08 → 2008-08
ended
|
NCP95 | ¥1,850 | |
| 35664-52010 |
Cylinder, 2ND Brake
2008-08 → —
|
NCP95 | ¥1,850 | |
| 35664D — Ring, O(FOR 2ND BRAKE CYLINDER) | ||||
| 90301-99114 note |
Ring, O(FOR 2ND BRAKE CYLINDER)
2005-01 → 2007-08
ended
|
NCP95 | ¥260 | |
| 90301-99116 note |
Ring, O(FOR 2ND BRAKE CYLINDER)
2005-01 → 2007-08
ended
|
NCP95 | ¥220 | |
| 90301-99114 note |
Ring, O(FOR 2ND BRAKE CYLINDER)
2007-08 → 2008-08
ended
|
NCP95 | ¥260 | |
| 90301-99116 note |
Ring, O(FOR 2ND BRAKE CYLINDER)
2007-08 → 2008-08
ended
|
NCP95 | ¥220 | |
| 90301-99114 note |
Ring, O(FOR 2ND BRAKE CYLINDER)
2008-08 → —
|
NCP95 | ¥260 | |
| 90301-99116 note |
Ring, O(FOR 2ND BRAKE CYLINDER)
2008-08 → —
|
NCP95 | ¥220 | |
| 35664E — Ring, Hole Snap(FOR 2ND BRAKE CYLINDER) | ||||
| 90520-99046 |
Ring, Hole Snap(FOR 2ND BRAKE CYLINDER)
2005-01 → 2007-08
ended
|
NCP95 | ¥390 | |
| 90520-99046 |
Ring, Hole Snap(FOR 2ND BRAKE CYLINDER)
2007-08 → 2008-08
ended
|
NCP95 | ¥390 | |
| 90520-99046 |
Ring, Hole Snap(FOR 2ND BRAKE CYLINDER)
2008-08 → —
|
NCP95 | ¥390 | |
| 35678 — Flange, Brake(FOR 2ND BRAKE) | ||||
| 35678-52010 note |
Flange, Brake(FOR 2ND BRAKE)
2005-01 → 2007-08
ended
|
NCP95 | ¥3,690 | |
| 35678-52010 note |
Flange, Brake(FOR 2ND BRAKE)
2007-08 → 2008-08
ended
|
NCP95 | ¥3,690 | |
| 35678-52010 note |
Flange, Brake(FOR 2ND BRAKE)
2008-08 → —
|
NCP95 | ¥3,690 | |
| 35679 — Flange, Brake(FOR 1ST & REVERSE) | ||||
| 35679-52010 note |
Flange, Brake(FOR 1ST & REVERSE)
2005-01 → 2007-08
ended
|
NCP95 | ¥2,700 | |
| 35679-52010 note |
Flange, Brake(FOR 1ST & REVERSE)
2007-08 → 2008-08
ended
|
NCP95 | ¥2,700 | |
| 35679-52010 note |
Flange, Brake(FOR 1ST & REVERSE)
2008-08 → —
|
NCP95 | ¥2,700 | |
| 35679A — Ring, Hole Snap(FOR BRAKE FLANGE) | ||||
| 90520-99042 |
Ring, Hole Snap(FOR BRAKE FLANGE)
2005-01 → 2007-08
ended
|
NCP95 | ¥270 | |
| 90520-99042 |
Ring, Hole Snap(FOR BRAKE FLANGE)
2007-08 → 2008-08
ended
|
NCP95 | ¥270 | |
| 90520-99042 |
Ring, Hole Snap(FOR BRAKE FLANGE)
2008-08 → —
|
NCP95 | ¥270 | |
| 35682 — Disc, Brake(FOR 2ND BRAKE) | ||||
| 35682-52010 |
Disc, Brake(FOR 2ND BRAKE)
2005-01 → 2007-08
ended
|
NCP95 | ¥550 | |
| 35682-52010 |
Disc, Brake(FOR 2ND BRAKE)
2007-08 → 2008-08
ended
|
NCP95 | ¥550 | |
| 35682-52010 |
Disc, Brake(FOR 2ND BRAKE)
2008-08 → —
|
NCP95 | ¥550 | |
| 35683 — Disc, Brake(FOR 1ST & REVERSE) | ||||
| 35683-52020 |
Disc, Brake(FOR 1ST & REVERSE)
2005-01 → 2005-11
ended
|
NCP95 | ¥430 | |
| 35683-52070 |
Disc, Brake(FOR 1ST & REVERSE)
2005-11 → 2007-08
ended
|
NCP95 | ¥380 | |
| 35683-52070 |
Disc, Brake(FOR 1ST & REVERSE)
2007-08 → 2008-08
ended
|
NCP95 | ¥380 | |
| 35683-52070 |
Disc, Brake(FOR 1ST & REVERSE)
2008-08 → —
|
NCP95 | ¥380 | |
| 35692 — Plate, Brake(FOR 2ND BRAKE) | ||||
| 35692-52010 |
Plate, Brake(FOR 2ND BRAKE)
2005-01 → 2007-08
ended
|
NCP95 | ¥950 | |
| 35692-52010 |
Plate, Brake(FOR 2ND BRAKE)
2007-08 → 2008-08
ended
|
NCP95 | ¥950 | |
| 35692-52010 |
Plate, Brake(FOR 2ND BRAKE)
2008-08 → —
|
NCP95 | ¥950 | |
| 35693 — Plate, Brake (FOR 1ST & REVERSE) | ||||
| 35693-52020 |
Plate, Brake (FOR 1ST & REVERSE)
2005-01 → 2007-08
ended
|
NCP95 | ¥520 | |
| 35693-52020 |
Plate, Brake (FOR 1ST & REVERSE)
2007-08 → 2008-08
ended
|
NCP95 | ¥520 | |
| 35693-52020 |
Plate, Brake (FOR 1ST & REVERSE)
2008-08 → —
|
NCP95 | ¥520 | |
| 35792C — Clutch, 1 Way, NO.2 | ||||
| 35792-52010 |
Clutch, 1 Way, NO.2
2005-01 → 2007-08
ended
|
NCP95 | ¥30,100 | |
| 35792-52010 |
Clutch, 1 Way, NO.2
2007-08 → 2008-08
ended
|
NCP95 | ¥30,100 | |
| 35792-52010 |
Clutch, 1 Way, NO.2
2008-08 → 2010-12
ended
|
NCP95 | ¥30,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
