Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

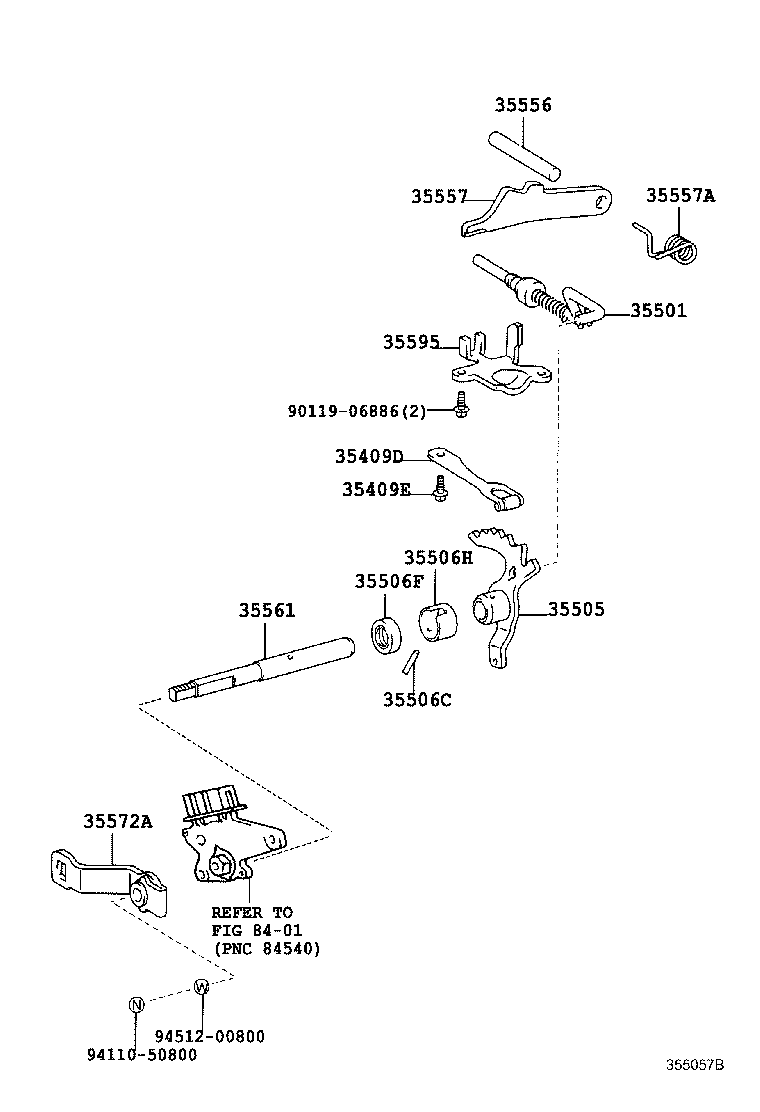

39 parts on this figure

Part number	Description	Fitment	Price
35409D — Spring Sub-assy, Manual Detent
35409-52010	Spring Sub-assy, Manual Detent 2005-01 → 2007-08 ended	NCP95	¥430
35409-52010	Spring Sub-assy, Manual Detent 2007-08 → 2008-08 ended	NCP95	¥430
35409-52010	Spring Sub-assy, Manual Detent 2008-08 → —	NCP95	¥430
35409E — Bolt(FOR MANUAL DETENT SPRING)
90105-06053	Bolt(FOR MANUAL DETENT SPRING) 2005-01 → 2007-08 ended	NCP95	¥70
90105-06053	Bolt(FOR MANUAL DETENT SPRING) 2007-08 → 2008-08 ended	NCP95	¥70
90105-06053	Bolt(FOR MANUAL DETENT SPRING) 2008-08 → 2010-12 ended	NCP95	¥70
35501 — Rod Sub-assy, Parking Lock
35501-52010	Rod Sub-assy, Parking Lock 2005-01 → 2007-08 ended	NCP95	¥1,480
35501-52010	Rod Sub-assy, Parking Lock 2007-08 → 2008-08 ended	NCP95	¥1,480
35501-52010	Rod Sub-assy, Parking Lock 2008-08 → —	NCP95	¥1,480
35505 — Lever Sub-assy, Manual Valve
35505-12090	Lever Sub-assy, Manual Valve 2005-01 → 2007-08 ended	NCP95	¥1,390
35505-12090	Lever Sub-assy, Manual Valve 2007-08 → 2008-08 ended	NCP95	¥1,390
35505-12090	Lever Sub-assy, Manual Valve 2008-08 → —	NCP95	¥1,390
35506C — Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT)
90254-04011	Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT) 2005-01 → 2007-08 ended	NCP95	¥160
90254-04011	Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT) 2007-08 → 2008-08 ended	NCP95	¥160
90254-04011	Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT) 2008-08 → —	NCP95	¥160
35506F — Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
90311-12002	Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) 2005-01 → 2007-08 ended	NCP95	¥270
90311-12002	Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) 2007-08 → 2008-08 ended	NCP95	¥270
90311-12002	Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) 2008-08 → —	NCP95	¥270
35506H — Spacer (FOR MANUAL VALVE LEVER SHAFT)
90560-20006	Spacer (FOR MANUAL VALVE LEVER SHAFT) 2005-01 → 2007-08 ended	NCP95	¥230
90560-20006	Spacer (FOR MANUAL VALVE LEVER SHAFT) 2007-08 → 2008-08 ended	NCP95	¥230
90560-20006	Spacer (FOR MANUAL VALVE LEVER SHAFT) 2008-08 → —	NCP95	¥230
35556 — Shaft, Parking Lock Pawl
35556-52010	Shaft, Parking Lock Pawl 2005-01 → 2007-08 ended	NCP95	¥490
35556-52010	Shaft, Parking Lock Pawl 2007-08 → 2008-08 ended	NCP95	¥490
35556-52010	Shaft, Parking Lock Pawl 2008-08 → —	NCP95	¥490
35557 — Pawl, Parking Lock
35557-52010	Pawl, Parking Lock 2005-01 → 2007-08 ended	NCP95	¥2,340
35557-52010	Pawl, Parking Lock 2007-08 → 2008-08 ended	NCP95	¥2,340
35557-52010	Pawl, Parking Lock 2008-08 → —	NCP95	¥2,340
35557A — Spring, Torsion (FOR PARKING LOCK PAWL)
90949-03084	Spring, Torsion (FOR PARKING LOCK PAWL) 2005-01 → 2007-08 ended	NCP95	¥160
90949-03084	Spring, Torsion (FOR PARKING LOCK PAWL) 2007-08 → 2008-08 ended	NCP95	¥160
90949-03084	Spring, Torsion (FOR PARKING LOCK PAWL) 2008-08 → —	NCP95	¥160
35561 — Shaft, Manual Valve Lever
35561-52010	Shaft, Manual Valve Lever 2005-01 → 2007-08 ended	NCP95	¥1,520
35561-52010	Shaft, Manual Valve Lever 2007-08 → 2008-08 ended	NCP95	¥1,520
35561-52010	Shaft, Manual Valve Lever 2008-08 → —	NCP95	¥1,520
35572A — Lever, Transmission Control Shaft
35572-52080	Lever, Transmission Control Shaft 2005-01 → 2007-08 ended	NCP95	¥770
35572-52080	Lever, Transmission Control Shaft 2007-08 → 2008-08 ended	NCP95	¥770
35572-52080	Lever, Transmission Control Shaft 2008-08 → 2010-12 ended	NCP95	¥770
35595 — Bracket, Parking Lock Pawl
35595-52010	Bracket, Parking Lock Pawl 2005-01 → 2007-08 ended	NCP95	¥500
35595-52010	Bracket, Parking Lock Pawl 2007-08 → 2008-08 ended	NCP95	¥500
35595-52010	Bracket, Parking Lock Pawl 2008-08 → —	NCP95	¥500

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
