Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

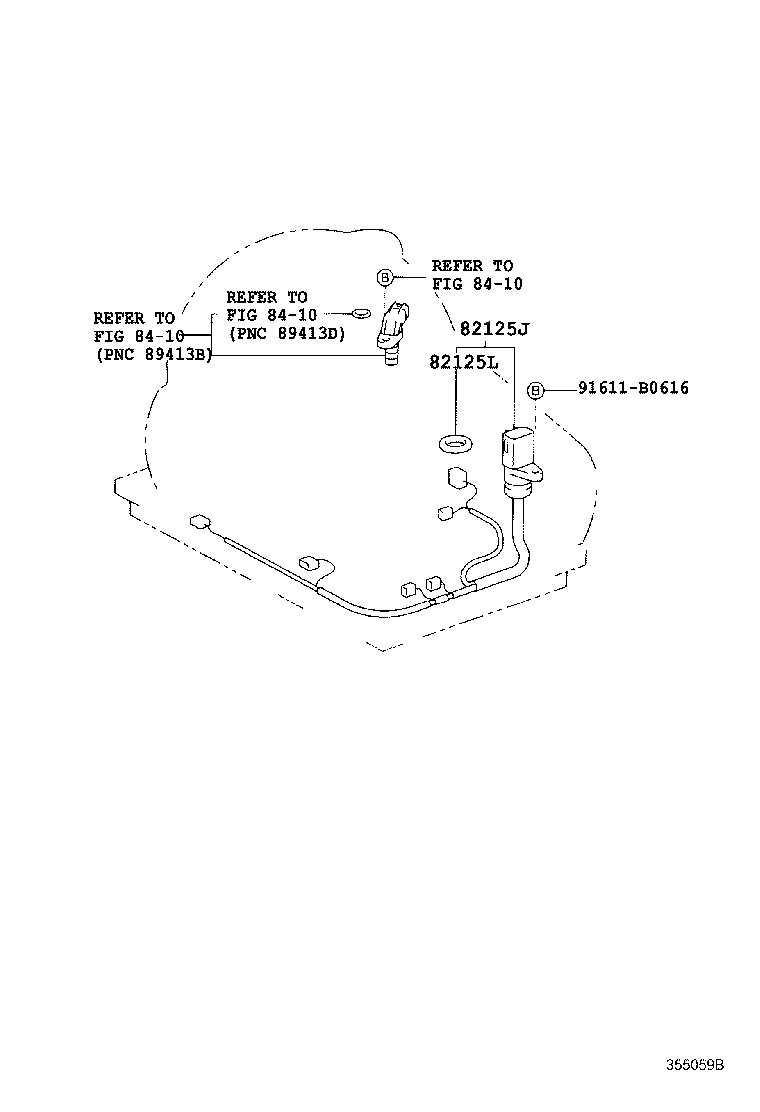

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82125J — Wire, Transmission | ||||
| 82125-52010 |
Wire, Transmission
2005-01 → 2007-08
ended
|
NCP95 | ¥2,840 | |
| 82125-52010 |
Wire, Transmission
2007-08 → 2008-08
ended
|
NCP95 | ¥2,840 | |
| 82125-52010 |
Wire, Transmission
2008-08 → 2010-12
ended
|
NCP95 | ¥2,840 | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2005-01 → 2007-08
ended
|
NCP95 | ¥170 | |
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2007-08 → 2008-08
ended
|
NCP95 | ¥170 | |
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2008-08 → 2010-12
ended
|
NCP95 | ¥170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
