Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

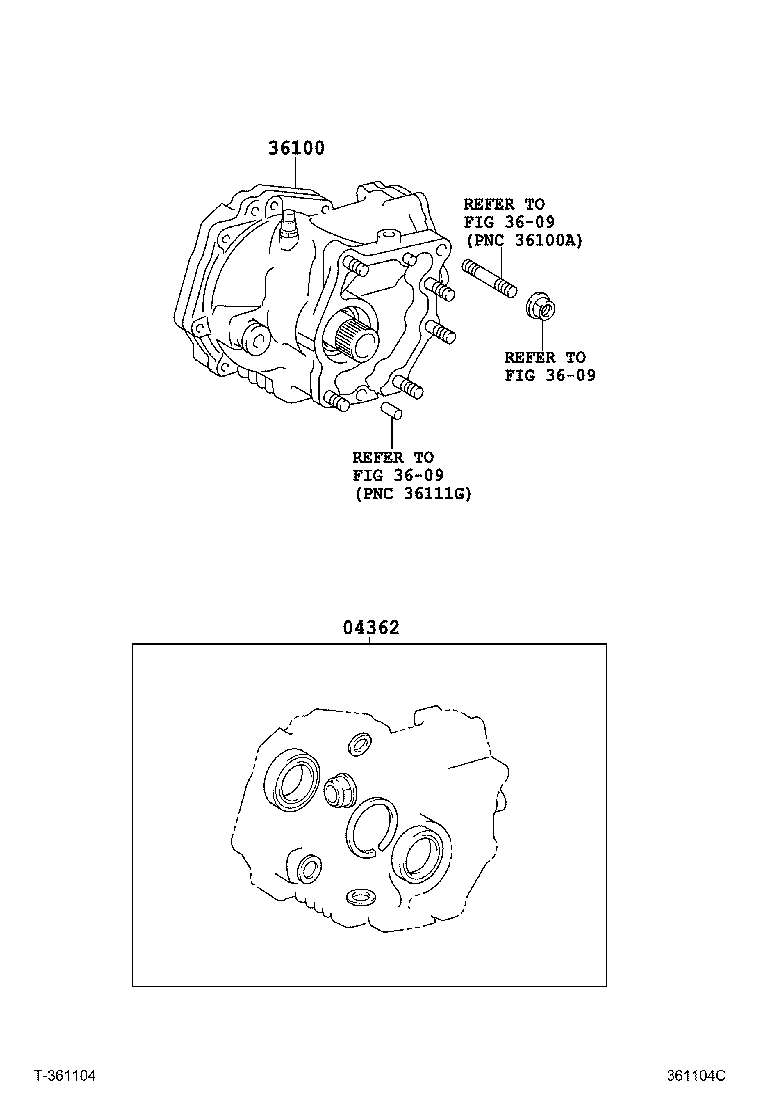

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04362 — Gasket Kit, Transfer Overhaul | ||||
| 04362-52020 |
Gasket Kit, Transfer Overhaul
2005-01 → 2007-08
ended
|
NCP95 | ¥1,530 | |
| 04362-52020 |
Gasket Kit, Transfer Overhaul
2007-08 → 2008-08
ended
|
NCP95 | ¥1,530 | |
| 04362-52020 |
Gasket Kit, Transfer Overhaul
2008-08 → 2010-12
ended
|
NCP95 | ¥1,530 | |
| 36100 — Transfer Assy | ||||
| 36100-52030 |
Transfer Assy
2005-01 → 2007-08
ended
|
NCP95 | ¥182,000 | |
| 36100-52030 |
Transfer Assy
2007-08 → 2008-08
ended
|
NCP95 | ¥182,000 | |
| 36100-52030 |
Transfer Assy
2008-08 → 2010-12
ended
|
NCP95 | ¥182,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
