Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

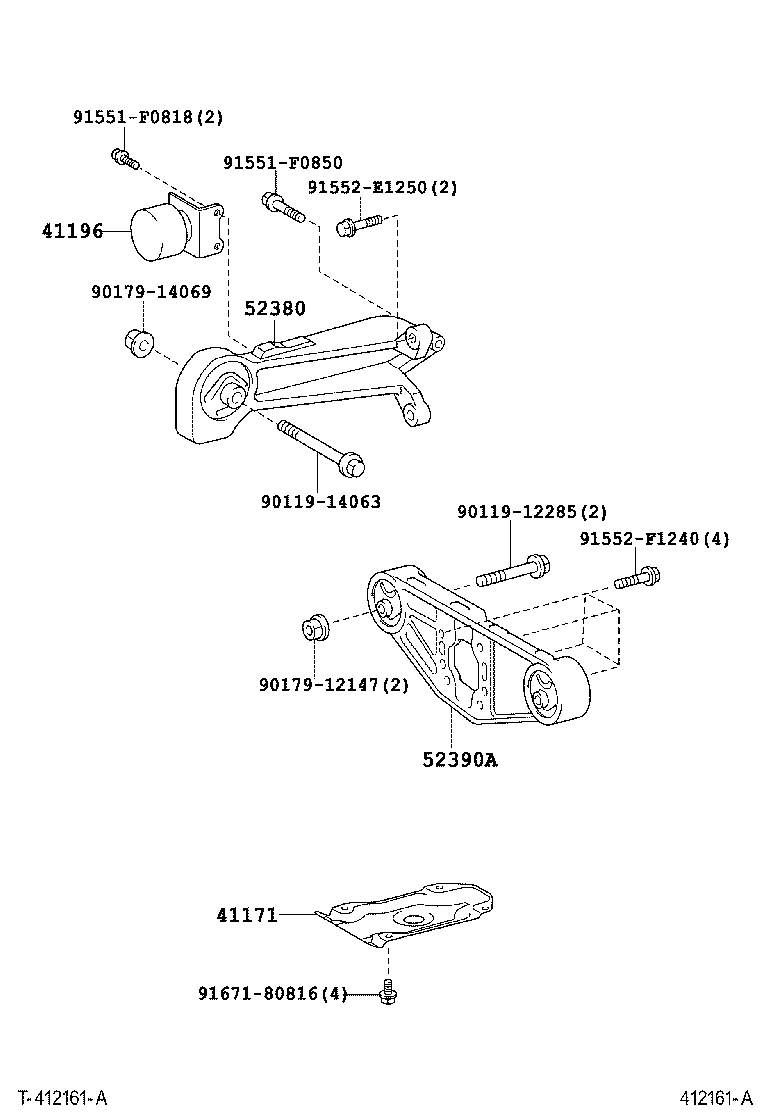

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41171 — Protector, Differential, Rear | ||||
| 41171-52010 |
Protector, Differential, Rear
2005-01 → 2007-08
ended
|
NCP95 | ¥1,400 | |
| 41171-52010 |
Protector, Differential, Rear
2007-08 → 2008-08
ended
|
NCP95 | ¥1,400 | |
| 41171-52010 |
Protector, Differential, Rear
2008-08 → 2010-12
ended
|
NCP95 | ¥1,400 | |
| 41196 — Damper, Rear Differential Dynamic | ||||
| 41196-52010 |
Damper, Rear Differential Dynamic
2005-01 → 2007-08
ended
|
NCP95 | ¥3,740 | |
| 41196-52010 |
Damper, Rear Differential Dynamic
2007-08 → 2008-08
ended
|
NCP95 | ¥3,740 | |
| 41196-52010 |
Damper, Rear Differential Dynamic
2008-08 → 2010-12
ended
|
NCP95 | ¥3,740 | |
| 52380 — Support, Rear Differential, NO.1 | ||||
| 52380-52010 |
Support, Rear Differential, NO.1
2005-01 → 2007-08
ended
|
NCP95 | ¥8,000 | |
| 52380-52010 |
Support, Rear Differential, NO.1
2007-08 → 2008-08
ended
|
NCP95 | ¥8,000 | |
| 52380-52010 |
Support, Rear Differential, NO.1
2008-08 → 2010-12
ended
|
NCP95 | ¥8,000 | |
| 52390A — Support Assy, Differential, Rear | ||||
| 52390-52010 |
Support Assy, Differential, Rear
2005-01 → 2007-08
ended
|
NCP95 | ¥8,800 | |
| 52390-52010 |
Support Assy, Differential, Rear
2007-08 → 2008-08
ended
|
NCP95 | ¥8,800 | |
| 52390-52010 |
Support Assy, Differential, Rear
2008-08 → 2010-12
ended
|
NCP95 | ¥8,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
