Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 412176E 42330 — SHAFT ASSY, REAR DRIVE, RH (3 parts) 42360C — JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH (3 parts) 42347C — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (3 parts) 42347E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (3 parts) 42341B — RING, SNAP (FOR REAR DRIVE SHAFT RH) (3 parts) 41336J — COVER, REAR DRIVE SHAFT DUST, RH (3 parts) 42360L — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH) (3 parts) 42330G — OIL SEAL, REAR DRIVE SHAFT, RH (3 parts) 42346E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (3 parts) 42346C — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (3 parts) 04437C — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH (5 parts) 42370A — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH (4 parts)

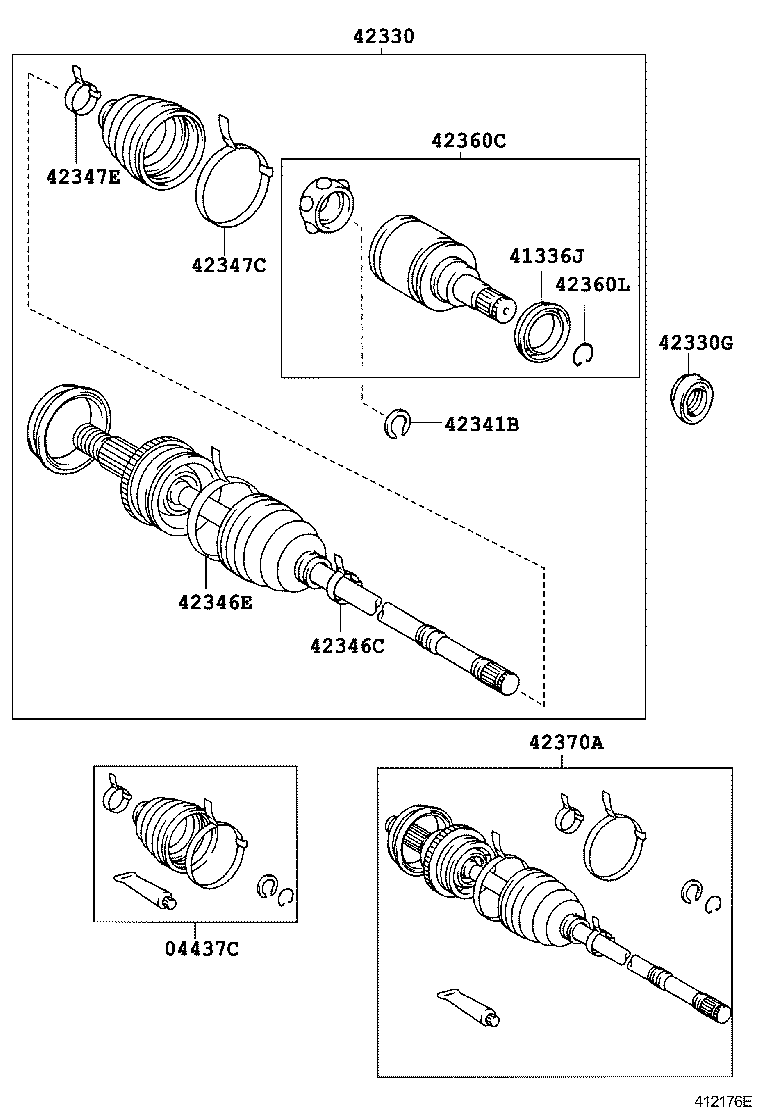

412176E · 12 callouts Full size ↗
39 parts on this figure
Part number Description Fitment Price
04437C — Boot Kit, Rear Drive Shaft Inboard Joint, RH
04439-52020 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2005-09 → 2007-08 ended
NCP95 ¥6,700
04439-52030 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2005-01 → 2005-09 ended
NCP95 ¥6,700
04439-52020 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2007-08 → 2008-08 ended
NCP95 ¥6,700
04439-52020 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2008-08 → 2009-02 ended
NCP95 ¥6,700
04439-52050 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2009-02 → 2010-12 ended
NCP95 ¥6,700
41336J — Cover, Rear Drive Shaft Dust, RH
41336-28050 Cover, Rear Drive Shaft Dust, RH
2005-01 → 2007-08 ended
NCP95 ¥200
41336-28050 Cover, Rear Drive Shaft Dust, RH
2007-08 → 2008-08 ended
NCP95 ¥200
41336-28050 Cover, Rear Drive Shaft Dust, RH
2008-08 → 2010-12 ended
NCP95 ¥200
42330 — Shaft Assy, Rear Drive, RH
42340-52010 Shaft Assy, Rear Drive, RH
2005-01 → 2007-08 ended
NCP95 ¥61,800
42340-52010 Shaft Assy, Rear Drive, RH
2007-08 → 2008-08 ended
NCP95 ¥61,800
42340-52010 Shaft Assy, Rear Drive, RH
2008-08 → 2010-12 ended
NCP95 ¥61,800
42330G — Oil Seal, Rear Drive Shaft, RH
90311-37004 Oil Seal, Rear Drive Shaft, RH
2005-01 → 2007-08 ended
NCP95 ¥350
90311-37004 Oil Seal, Rear Drive Shaft, RH
2007-08 → 2008-08 ended
NCP95 ¥350
90311-37004 Oil Seal, Rear Drive Shaft, RH
2008-08 → 2010-12 ended
NCP95 ¥350
42341B — Ring, Snap (FOR REAR DRIVE SHAFT RH)
90520-21020 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2005-01 → 2007-08 ended
NCP95 ¥170
90520-21020 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2007-08 → 2008-08 ended
NCP95 ¥170
90520-21020 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2008-08 → 2010-12 ended
NCP95 ¥170
42346C — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-52200 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP95 ¥360
42345-52200 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
NCP95 ¥360
42345-52200 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP95 ¥360
42346E — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-52190 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP95 ¥460
42345-52190 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
NCP95 ¥460
42345-52190 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP95 ¥460
42347C — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP95 ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
NCP95 ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP95 ¥220
42347E — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP95 ¥160
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
NCP95 ¥160
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP95 ¥160
42360C — Joint Assy, Rear Drive Shaft Inboard, RH
42360-52010 Joint Assy, Rear Drive Shaft Inboard, RH
2005-01 → 2007-08 ended
NCP95 ¥9,100
42360-52010 Joint Assy, Rear Drive Shaft Inboard, RH
2007-08 → 2008-08 ended
NCP95 ¥9,100
42360-52010 Joint Assy, Rear Drive Shaft Inboard, RH
2008-08 → 2010-12 ended
NCP95 ¥9,100
42360L — Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2005-01 → 2007-08 ended
NCP95 ¥70
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2007-08 → 2008-08 ended
NCP95 ¥70
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2008-08 → 2010-12 ended
NCP95 ¥70
42370A — Shaft Assy, Rear Drive Outboard Joint, RH
42370-59095 Shaft Assy, Rear Drive Outboard Joint, RH
2005-01 → 2005-09 ended
NCP95 ¥50,300
42370-59125 Shaft Assy, Rear Drive Outboard Joint, RH
2005-09 → 2007-08 ended
NCP95 ¥50,200
42370-59125 Shaft Assy, Rear Drive Outboard Joint, RH
2007-08 → 2008-08 ended
NCP95 ¥50,200
42370-59125 Shaft Assy, Rear Drive Outboard Joint, RH
2008-08 → 2010-12 ended
NCP95 ¥50,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
