Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

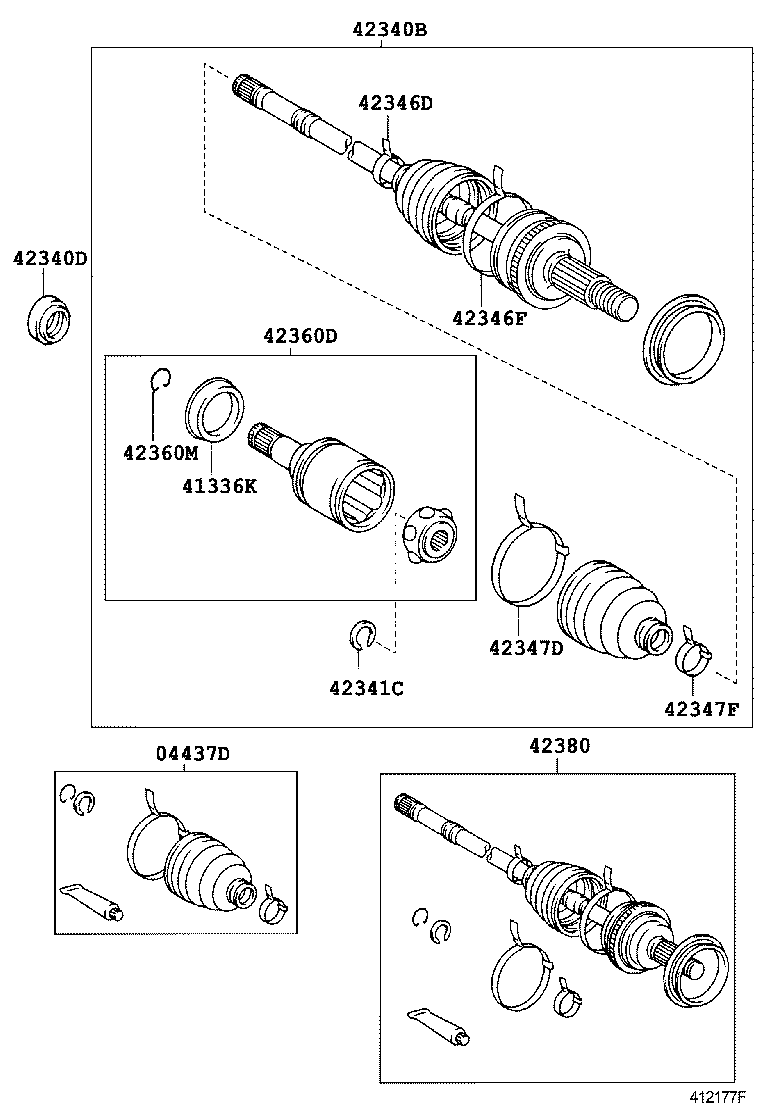

Exploded illustration 412177F 42340B — SHAFT ASSY, REAR DRIVE, LH (3 parts) 42360D — JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH (3 parts) 42346D — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (3 parts) 42346F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (3 parts) 42347F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH (3 parts) 42347D — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) (3 parts) 42341C — RING, SNAP (FOR REAR DRIVE SHAFT LH) (3 parts) 41336K — COVER, REAR DRIVE SHAFT DUST, LH (3 parts) 42360M — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH) (3 parts) 42340D — OIL SEAL, REAR DRIVE SHAFT, LH (3 parts) 04437D — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH (5 parts) 42380 — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH (4 parts)
412177F · 12 callouts Full size ↗
39 parts on this figure
Part number Description Fitment Price
04437D — Boot Kit, Rear Drive Shaft Inboard Joint, LH
04439-52020 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2005-09 → 2007-08 ended
NCP95 ¥6,700
04439-52030 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2005-01 → 2005-09 ended
NCP95 ¥6,700
04439-52020 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2007-08 → 2008-08 ended
NCP95 ¥6,700
04439-52020 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2008-08 → 2009-02 ended
NCP95 ¥6,700
04439-52050 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2009-02 → 2010-12 ended
NCP95 ¥6,700
41336K — Cover, Rear Drive Shaft Dust, LH
41336-28050 Cover, Rear Drive Shaft Dust, LH
2005-01 → 2007-08 ended
NCP95 ¥200
41336-28050 Cover, Rear Drive Shaft Dust, LH
2007-08 → 2008-08 ended
NCP95 ¥200
41336-28050 Cover, Rear Drive Shaft Dust, LH
2008-08 → 2010-12 ended
NCP95 ¥200
42340B — Shaft Assy, Rear Drive, LH
42340-52010 Shaft Assy, Rear Drive, LH
2005-01 → 2007-08 ended
NCP95 ¥61,800
42340-52010 Shaft Assy, Rear Drive, LH
2007-08 → 2008-08 ended
NCP95 ¥61,800
42340-52010 Shaft Assy, Rear Drive, LH
2008-08 → 2010-12 ended
NCP95 ¥61,800
42340D — Oil Seal, Rear Drive Shaft, LH
90311-37004 Oil Seal, Rear Drive Shaft, LH
2005-01 → 2007-08 ended
NCP95 ¥350
90311-37004 Oil Seal, Rear Drive Shaft, LH
2007-08 → 2008-08 ended
NCP95 ¥350
90311-37004 Oil Seal, Rear Drive Shaft, LH
2008-08 → 2010-12 ended
NCP95 ¥350
42341C — Ring, Snap (FOR REAR DRIVE SHAFT LH)
90520-21020 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2005-01 → 2007-08 ended
NCP95 ¥170
90520-21020 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2007-08 → 2008-08 ended
NCP95 ¥170
90520-21020 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2008-08 → 2010-12 ended
NCP95 ¥170
42346D — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-52200 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
NCP95 ¥360
42345-52200 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2007-08 → 2008-08 ended
NCP95 ¥360
42345-52200 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
NCP95 ¥360
42346F — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-52190 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
NCP95 ¥460
42345-52190 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2007-08 → 2008-08 ended
NCP95 ¥460
42345-52190 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
NCP95 ¥460
42347D — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
NCP95 ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2007-08 → 2008-08 ended
NCP95 ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
NCP95 ¥220
42347F — Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42345-12130 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2005-01 → 2007-08 ended
NCP95 ¥160
42345-12130 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2007-08 → 2008-08 ended
NCP95 ¥160
42345-12130 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2008-08 → 2010-12 ended
NCP95 ¥160
42360D — Joint Assy, Rear Drive Shaft Inboard, LH
42360-52010 Joint Assy, Rear Drive Shaft Inboard, LH
2005-01 → 2007-08 ended
NCP95 ¥9,100
42360-52010 Joint Assy, Rear Drive Shaft Inboard, LH
2007-08 → 2008-08 ended
NCP95 ¥9,100
42360-52010 Joint Assy, Rear Drive Shaft Inboard, LH
2008-08 → 2010-12 ended
NCP95 ¥9,100
42360M — Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2005-01 → 2007-08 ended
NCP95 ¥70
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2007-08 → 2008-08 ended
NCP95 ¥70
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2008-08 → 2010-12 ended
NCP95 ¥70
42380 — Shaft Assy, Rear Drive Outboard Joint, LH
42370-59095 Shaft Assy, Rear Drive Outboard Joint, LH
2005-01 → 2005-09 ended
NCP95 ¥50,300
42370-59125 Shaft Assy, Rear Drive Outboard Joint, LH
2005-09 → 2007-08 ended
NCP95 ¥50,200
42370-59125 Shaft Assy, Rear Drive Outboard Joint, LH
2007-08 → 2008-08 ended
NCP95 ¥50,200
42370-59125 Shaft Assy, Rear Drive Outboard Joint, LH
2008-08 → 2010-12 ended
NCP95 ¥50,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
