Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

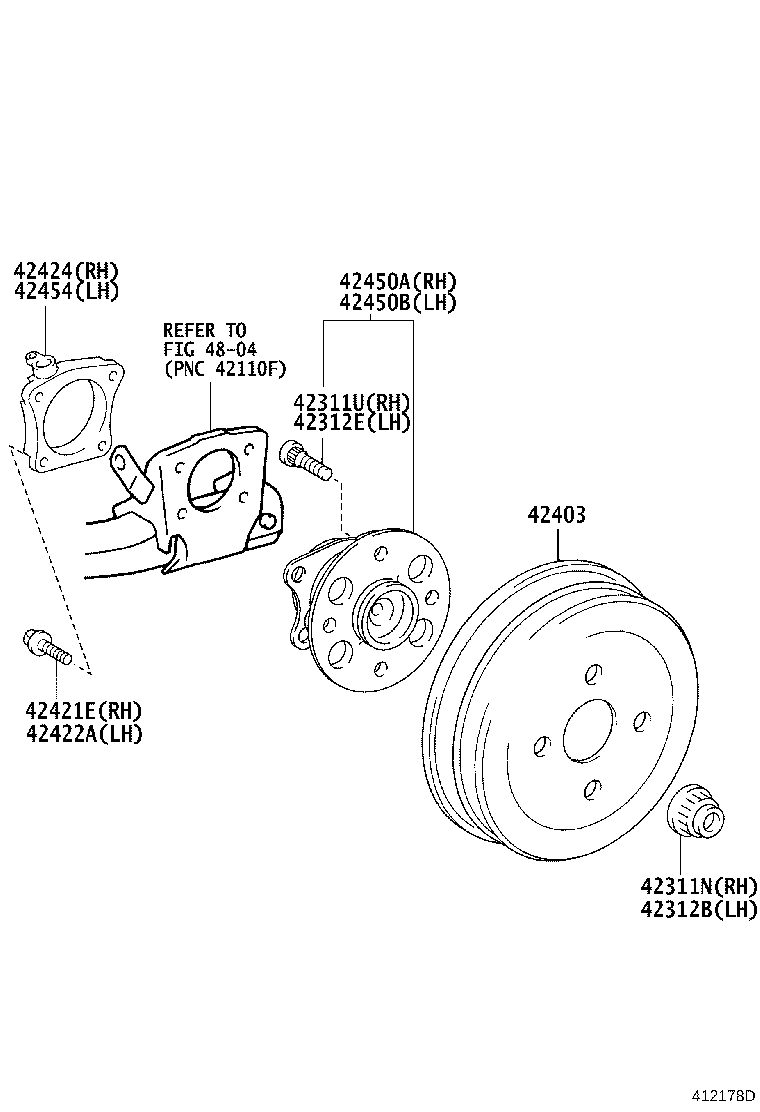

Exploded illustration 412178D 42311U — BOLT, HUB(FOR REAR AXLE RH) (4 parts) 42312E — BOLT, HUB(FOR REAR AXLE LH) (4 parts) 42424 — RETAINER, REAR AXLE BEARING, OUTER, RH (3 parts) 42454 — RETAINER, REAR AXLE BEARING, OUTER, LH (3 parts) 42403 — DRUM SUB-ASSY, REAR BRAKE (4 parts) 42421E — BOLT (FOR REAR AXLE BEARING CASE RH) (7 parts) 42422A — BOLT (FOR REAR AXLE BEARING CASE LH) (7 parts) 42450A — HUB & BEARING ASSY, REAR AXLE, RH (6 parts) 42450B — HUB & BEARING ASSY, REAR AXLE, LH (6 parts) 4804 — not listed in this catalogue 42311N — NUT(FOR REAR AXLE SHAFT RH) (3 parts) 42312B — NUT(FOR REAR AXLE SHAFT LH) (3 parts)
412178D · 11 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
42311N — Nut(FOR REAR AXLE SHAFT RH)
90177-22001 Nut(FOR REAR AXLE SHAFT RH)
2005-01 → 2007-08 ended
NCP95 ¥220
90177-22001 Nut(FOR REAR AXLE SHAFT RH)
2007-08 → 2008-08 ended
NCP95 ¥220
90177-22001 Nut(FOR REAR AXLE SHAFT RH)
2008-08 → 2010-12 ended
NCP95 ¥220
42311U — Bolt, Hub(FOR REAR AXLE RH)
90942-02049 Bolt, Hub(FOR REAR AXLE RH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
90942-02049 Bolt, Hub(FOR REAR AXLE RH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
90942-02049 Bolt, Hub(FOR REAR AXLE RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
90942-02049 Bolt, Hub(FOR REAR AXLE RH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
42312B — Nut(FOR REAR AXLE SHAFT LH)
90177-22001 Nut(FOR REAR AXLE SHAFT LH)
2005-01 → 2007-08 ended
NCP95 ¥220
90177-22001 Nut(FOR REAR AXLE SHAFT LH)
2007-08 → 2008-08 ended
NCP95 ¥220
90177-22001 Nut(FOR REAR AXLE SHAFT LH)
2008-08 → 2010-12 ended
NCP95 ¥220
42312E — Bolt, Hub(FOR REAR AXLE LH)
90942-02049 Bolt, Hub(FOR REAR AXLE LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥240
90942-02049 Bolt, Hub(FOR REAR AXLE LH)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥240
90942-02049 Bolt, Hub(FOR REAR AXLE LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥240
90942-02049 Bolt, Hub(FOR REAR AXLE LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥240
42403 — Drum Sub-assy, Rear Brake
42431-52070 Drum Sub-assy, Rear Brake
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥6,500
42431-52070 Drum Sub-assy, Rear Brake
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,500
42431-52070 Drum Sub-assy, Rear Brake
2007-08 → 2008-09 ended
SCP90 RS ¥6,500
42431-52070 Drum Sub-assy, Rear Brake
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥6,500
42421E — Bolt (FOR REAR AXLE BEARING CASE RH)
90105-12350 Bolt (FOR REAR AXLE BEARING CASE RH)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥160
90105-12351 Bolt (FOR REAR AXLE BEARING CASE RH)
2005-01 → 2007-08 ended
NCP95 ¥190
90105-12350 Bolt (FOR REAR AXLE BEARING CASE RH)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥160
90105-12350 Bolt (FOR REAR AXLE BEARING CASE RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
90105-12351 Bolt (FOR REAR AXLE BEARING CASE RH)
2007-08 → 2008-08 ended
NCP95 ¥190
90105-12350 Bolt (FOR REAR AXLE BEARING CASE RH)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥160
90105-12351 Bolt (FOR REAR AXLE BEARING CASE RH)
2008-08 → 2010-12 ended
NCP95 ¥190
42422A — Bolt (FOR REAR AXLE BEARING CASE LH)
90105-12350 Bolt (FOR REAR AXLE BEARING CASE LH)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥160
90105-12351 Bolt (FOR REAR AXLE BEARING CASE LH)
2005-01 → 2007-08 ended
NCP95 ¥190
90105-12350 Bolt (FOR REAR AXLE BEARING CASE LH)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥160
90105-12350 Bolt (FOR REAR AXLE BEARING CASE LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
90105-12351 Bolt (FOR REAR AXLE BEARING CASE LH)
2007-08 → 2008-08 ended
NCP95 ¥190
90105-12350 Bolt (FOR REAR AXLE BEARING CASE LH)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥160
90105-12351 Bolt (FOR REAR AXLE BEARING CASE LH)
2008-08 → 2010-12 ended
NCP95 ¥190
42424 — Retainer, Rear Axle Bearing, Outer, RH
42424-52020 Retainer, Rear Axle Bearing, Outer, RH
2005-01 → 2007-08 ended
NCP95 ¥2,080
42424-52020 Retainer, Rear Axle Bearing, Outer, RH
2007-08 → 2008-08 ended
NCP95 ¥2,080
42424-52020 Retainer, Rear Axle Bearing, Outer, RH
2008-08 → 2010-12 ended
NCP95 ¥2,080
42450A — Hub & Bearing Assy, Rear Axle, RH
42410-52060 Hub & Bearing Assy, Rear Axle, RH
2005-01 → 2007-08 ended
NCP95 ¥9,000
42450-52060 Hub & Bearing Assy, Rear Axle, RH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥28,700
42410-52060 Hub & Bearing Assy, Rear Axle, RH
2007-08 → 2008-08 ended
NCP95 ¥9,000
42450-52060 Hub & Bearing Assy, Rear Axle, RH
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥28,700
42410-52060 Hub & Bearing Assy, Rear Axle, RH
2008-08 → 2010-12 ended
NCP95 ¥9,000
42450-52060 Hub & Bearing Assy, Rear Axle, RH
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥28,700
42450B — Hub & Bearing Assy, Rear Axle, LH
42410-52060 Hub & Bearing Assy, Rear Axle, LH
2005-01 → 2007-08 ended
NCP95 ¥9,000
42450-52060 Hub & Bearing Assy, Rear Axle, LH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥28,700
42410-52060 Hub & Bearing Assy, Rear Axle, LH
2007-08 → 2008-08 ended
NCP95 ¥9,000
42450-52060 Hub & Bearing Assy, Rear Axle, LH
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥28,700
42410-52060 Hub & Bearing Assy, Rear Axle, LH
2008-08 → 2010-12 ended
NCP95 ¥9,000
42450-52060 Hub & Bearing Assy, Rear Axle, LH
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥28,700
42454 — Retainer, Rear Axle Bearing, Outer, LH
42454-52020 Retainer, Rear Axle Bearing, Outer, LH
2005-01 → 2007-08 ended
NCP95 ¥2,080
42454-52020 Retainer, Rear Axle Bearing, Outer, LH
2007-08 → 2008-08 ended
NCP95 ¥2,080
42454-52020 Retainer, Rear Axle Bearing, Outer, LH
2008-08 → 2010-12 ended
NCP95 ¥2,080
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
