Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

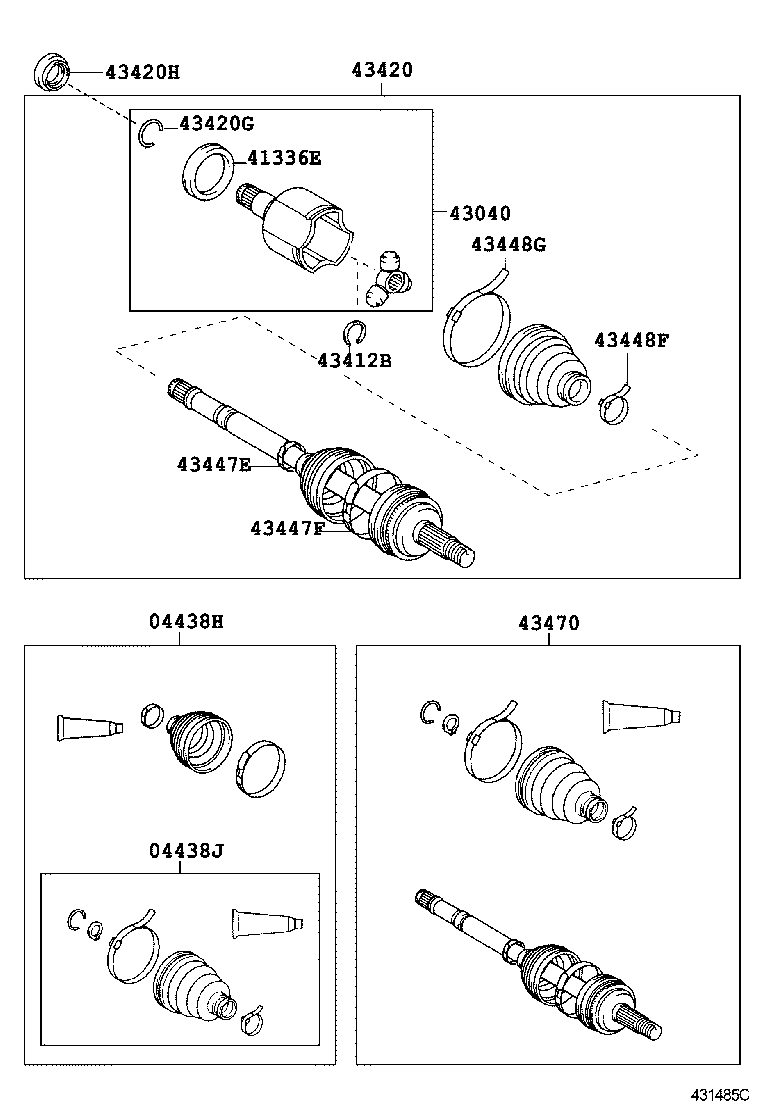

Exploded illustration 431485C 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (13 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (4 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (13 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (12 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (11 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (12 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (13 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (15 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (4 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (23 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (15 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (17 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (9 parts)
431485C · 13 callouts Full size ↗
161 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-12530 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-04 → 2007-08 ended
NCP91 ¥10,800
04427-52260 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2005-01 → 2006-03 ended
NCP91 ¥10,800
04427-52380 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2005-01 → 2007-08 ended
KSP90 ¥10,800
04427-52690 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2005-01 → 2007-08 ended
SCP90 ¥10,800
04427-52700 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-04 → 2007-08 ended
NCP95 ¥10,800
04428-52140 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2005-01 → 2006-03 ended
NCP95 ¥10,800
04427-12530 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-08 → 2008-09 ended
NCP91 ¥10,800
04427-52380 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-08 → 2008-08 ended
KSP90 ¥10,800
04427-52680 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-08 → 2008-08 ended
NCP95 ¥10,800
04427-52690 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-08 → 2008-09 ended
SCP90 ¥10,800
04428-52780 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2008-08 → 2008-08 ended
KSP90 ¥10,800
04427-12530 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2008-08 → 2009-09 ended
NCP91 ¥10,800
04427-52170 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2008-08 → 2010-12 ended
SCP90 ¥12,000
04427-52671 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-09 → 2009-11 ended
NCP91 ¥10,800
04427-52680 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2008-08 → 2009-08 ended
NCP95 ¥10,800
04427-52840 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-04 → 2010-12 ended
KSP90 ¥10,800
04427-52890 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-11 → 2010-02 ended
NCP91 ¥10,800
04427-52891 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-03 → 2010-07 ended
NCP91 5F ¥9,000
04427-52891 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-03 → 2010-12 ended
NCP91 CVFC ¥9,000
04428-52501 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-09 → 2009-10 ended
NCP95 ¥10,800
04428-52780 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2008-08 → 2009-04 ended
KSP90 ¥10,800
04428-52800 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-11 → 2010-03 ended
NCP95 ¥10,800
04428-52801 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-03 → 2010-12 ended
NCP95 ¥10,800
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-52140 Boot Kit, Front Drive Shaft Inboard Joint, LH
2005-01 → 2007-08 ended
SCP90 ¥5,500
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, LH
2005-01 → 2007-08 ended
NCP91 ¥6,700
04437-52310 Boot Kit, Front Drive Shaft Inboard Joint, LH
2005-01 → 2007-08 ended
KSP90 ¥6,700
04438-52230 Boot Kit, Front Drive Shaft Inboard Joint, LH
2005-01 → 2007-08 ended
NCP95 ¥6,700
04437-52140 Boot Kit, Front Drive Shaft Inboard Joint, LH
2007-08 → 2008-09 ended
SCP90 ¥5,500
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, LH
2007-08 → 2008-09 ended
NCP91 ¥6,700
04437-52310 Boot Kit, Front Drive Shaft Inboard Joint, LH
2007-08 → 2008-08 ended
KSP90 ¥6,700
04438-52230 Boot Kit, Front Drive Shaft Inboard Joint, LH
2007-08 → 2008-08 ended
NCP95 ¥6,700
04437-12400 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-09 → 2010-12 ended
NCP95 ¥5,500
04437-52140 Boot Kit, Front Drive Shaft Inboard Joint, LH
2008-08 → 2010-12 ended
SCP90 ¥5,500
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, LH
2008-08 → 2009-09 ended
NCP91 ¥6,700
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-09 → 2010-07 ended
NCP91 5F ¥5,500
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-09 → 2010-12 ended
NCP91 CVFC ¥5,500
04437-52310 Boot Kit, Front Drive Shaft Inboard Joint, LH
2008-08 → 2010-12 ended
KSP90 ¥6,700
04438-52230 Boot Kit, Front Drive Shaft Inboard Joint, LH
2008-08 → 2009-09 ended
NCP95 ¥6,700
41336E — Cover, Front Drive Shaft Dust, LH
41336-12010 Cover, Front Drive Shaft Dust, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥130
41336-12010 Cover, Front Drive Shaft Dust, LH
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥130
41336-12010 Cover, Front Drive Shaft Dust, LH
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥130
41336-12010 Cover, Front Drive Shaft Dust, LH
2008-08 → 2010-07 ended
NCP91 5F ¥130
43040 — Joint Assy, Front Drive Inboard, LH
43030-52040 Joint Assy, Front Drive Inboard, LH
2005-01 → 2007-08 ended
KSP90 ¥15,800
43403-10011 Joint Assy, Front Drive Inboard, LH
2005-01 → 2007-08 ended
NCP91 ¥19,500
43403-12040 Joint Assy, Front Drive Inboard, LH
2005-01 → 2007-08 ended
NCP95 ¥27,100
43403-16020 Joint Assy, Front Drive Inboard, LH
2005-01 → 2007-08 ended
SCP90 ¥19,400
43030-52040 Joint Assy, Front Drive Inboard, LH
2007-08 → 2008-08 ended
KSP90 ¥15,800
43403-10011 Joint Assy, Front Drive Inboard, LH
2007-08 → 2008-09 ended
NCP91 ¥19,500
43403-12040 Joint Assy, Front Drive Inboard, LH
2007-08 → 2008-08 ended
NCP95 ¥27,100
43403-16020 Joint Assy, Front Drive Inboard, LH
2007-08 → 2008-09 ended
SCP90 ¥19,400
43030-52040 Joint Assy, Front Drive Inboard, LH
2008-08 → 2010-12 ended
KSP90 ¥15,800
43403-10011 Joint Assy, Front Drive Inboard, LH
2008-08 → 2010-07 ended
NCP91 5F ¥19,500
43403-10011 Joint Assy, Front Drive Inboard, LH
2008-08 → 2010-12 ended
NCP91 CVFC ¥19,500
43403-12040 Joint Assy, Front Drive Inboard, LH
2008-08 → 2010-12 ended
NCP95 ¥27,100
43403-16020 Joint Assy, Front Drive Inboard, LH
2008-08 → 2010-12 ended
SCP90 ¥19,400
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-16020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2005-01 → 2007-08 ended
SCP90 ¥60
43425-52010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2005-01 → 2007-08 ended
KSP90 ¥50
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2005-01 → 2007-08 ended
NCP91 ¥110
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2005-01 → 2007-08 ended
NCP95 ¥100
43425-16020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2007-08 → 2008-09 ended
SCP90 ¥60
43425-52010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2007-08 → 2008-08 ended
KSP90 ¥50
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2007-08 → 2008-09 ended
NCP91 ¥110
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2007-08 → 2008-08 ended
NCP95 ¥100
43425-16020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2008-08 → 2010-12 ended
SCP90 ¥60
43425-52010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2008-08 → 2010-12 ended
KSP90 ¥50
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2008-08 → 2010-07 ended
NCP91 5F ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2008-08 → 2010-12 ended
NCP91 CVFC ¥110
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2008-08 → 2010-12 ended
NCP95 ¥100
43420 — Shaft Assy, Front Drive, LH
43420-52180 Shaft Assy, Front Drive, LH
2005-01 → 2007-08 ended
KSP90 ¥75,000
43420-52190 Shaft Assy, Front Drive, LH
2005-01 → 2007-08 ended
SCP90 ¥75,000
43420-52210 Shaft Assy, Front Drive, LH
2005-01 → 2007-08 ended
NCP91 ¥62,500
43420-52220 Shaft Assy, Front Drive, LH
2005-01 → 2007-08 ended
NCP95 ¥75,000
43420-52180 Shaft Assy, Front Drive, LH
2007-08 → 2008-08 ended
KSP90 ¥75,000
43420-52190 Shaft Assy, Front Drive, LH
2007-08 → 2008-09 ended
SCP90 ¥75,000
43420-52210 Shaft Assy, Front Drive, LH
2007-08 → 2008-09 ended
NCP91 ¥62,500
43420-52220 Shaft Assy, Front Drive, LH
2007-08 → 2008-08 ended
NCP95 ¥75,000
43420-52280 Shaft Assy, Front Drive, LH
2008-08 → 2008-08 ended
KSP90 ¥59,300
43420-52190 Shaft Assy, Front Drive, LH
2008-08 → 2010-03 ended
SCP90 ¥75,000
43420-52191 Shaft Assy, Front Drive, LH
2010-04 → 2010-12 ended
SCP90 ¥75,000
43420-52210 Shaft Assy, Front Drive, LH
2008-08 → 2010-12 ended
NCP91 CVFC ¥62,500
43420-52210 Shaft Assy, Front Drive, LH
2008-08 → 2010-07 ended
NCP91 5F ¥62,500
43420-52220 Shaft Assy, Front Drive, LH
2008-08 → 2010-12 ended
NCP95 ¥75,000
43420-52280 Shaft Assy, Front Drive, LH
2008-08 → 2010-12 ended
KSP90 ¥59,300
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥100
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥100
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2008-08 → 2010-07 ended
NCP91 5F ¥100
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥100
43420H — Oil Seal, Front Drive Shaft, LH
90311-34022 Oil Seal, Front Drive Shaft, LH
2005-01 → 2007-08 ended
KSP90,SCP90 ¥240
90311-34026 Oil Seal, Front Drive Shaft, LH
2005-01 → 2007-08 ended
NCP9# ATM ¥470
90311-34028 Oil Seal, Front Drive Shaft, LH
2005-01 → 2007-08 ended
NCP91 5F ¥310
90311-34022 Oil Seal, Front Drive Shaft, LH
2007-08 → 2008-09 ended
KSP90,SCP90 ¥240
90311-34026 Oil Seal, Front Drive Shaft, LH
2007-08 → 2008-09 ended
NCP9# ATM ¥470
90311-34028 Oil Seal, Front Drive Shaft, LH
2007-08 → 2008-09 ended
NCP91 5F ¥310
90311-34022 Oil Seal, Front Drive Shaft, LH
2008-08 → 2010-12 ended
KSP90,SCP90 ¥240
90311-34026 Oil Seal, Front Drive Shaft, LH
2008-08 → 2010-12 ended
NCP9# ATM ¥470
90311-34034 Oil Seal, Front Drive Shaft, LH
2008-09 → 2010-08 ended
NCP91 5F ¥470
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52240 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
SCP90 ¥280
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
NCP9# ¥220
42345-52270 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
KSP90 ¥260
42345-52240 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-08 → 2008-09 ended
SCP90 ¥280
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-08 → 2008-09 ended
NCP9# ¥220
42345-52270 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-08 → 2008-08 ended
KSP90 ¥260
42345-74040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2008-08 ended
KSP90 ¥240
42345-52240 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
SCP90 ¥280
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2010-07 ended
NCP91 5F ¥220
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
NCP9# ATM ¥220
42345-74040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
KSP90 ¥240
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52170 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
KSP90 ¥480
42345-52230 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
SCP90 ¥430
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
NCP9# ¥330
42345-52170 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-08 → 2008-08 ended
KSP90 ¥480
42345-52230 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-08 → 2008-09 ended
SCP90 ¥430
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-08 → 2008-09 ended
NCP9# ¥330
42345-74030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2008-08 ended
KSP90 ¥400
42345-52230 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
SCP90 ¥430
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2010-07 ended
NCP91 5F ¥330
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
NCP9# ATM ¥330
42345-74030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2008-08 → 2009-06 ended
KSP90 ¥400
42345-74110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-06 → 2010-12 ended
KSP90 ¥410
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16140 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
SCP90 ¥250
42345-52130 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
KSP90 ¥280
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
NCP9# ¥80
42345-16140 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-08 → 2008-09 ended
SCP90 ¥250
42345-52130 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-08 → 2008-08 ended
KSP90 ¥280
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-08 → 2008-09 ended
NCP9# ¥80
42345-16140 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
SCP90 ¥250
42345-52130 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-11 ended
KSP90 ¥280
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2009-09 ended
NCP95 ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-07 ended
NCP91 5F ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
NCP91 CVFC ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-09 → 2010-12 ended
NCP95 ¥80
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
NCP95 ¥300
42345-16150 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
SCP90 ¥330
42345-52120 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
KSP90 ¥280
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-01 → 2007-08 ended
NCP91 ¥350
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-08 → 2008-08 ended
NCP95 ¥300
42345-16150 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-08 → 2008-09 ended
SCP90 ¥330
42345-52120 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-08 → 2008-08 ended
KSP90 ¥280
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-08 → 2008-09 ended
NCP91 ¥350
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
NCP95 ¥300
42345-16150 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
SCP90 ¥330
42345-52120 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
KSP90 ¥280
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-12 ended
NCP91 CVFC ¥350
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2008-08 → 2010-07 ended
NCP91 5F ¥350
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-59315 Shaft Assy, Front Drive Outboard Joint, LH
2005-01 → 2007-08 ended
NCP91 ¥47,900
43470-59325 Shaft Assy, Front Drive Outboard Joint, LH
2005-01 → 2007-08 ended
KSP90 ¥47,100
43470-59345 Shaft Assy, Front Drive Outboard Joint, LH
2005-01 → 2007-08 ended
SCP90 ¥47,300
43470-59385 Shaft Assy, Front Drive Outboard Joint, LH
2005-01 → 2007-08 ended
NCP95 ¥47,600
43470-59315 Shaft Assy, Front Drive Outboard Joint, LH
2007-08 → 2008-09 ended
NCP91 ¥47,900
43470-59325 Shaft Assy, Front Drive Outboard Joint, LH
2007-08 → 2008-08 ended
KSP90 ¥47,100
43470-59345 Shaft Assy, Front Drive Outboard Joint, LH
2007-08 → 2008-09 ended
SCP90 ¥47,300
43470-59385 Shaft Assy, Front Drive Outboard Joint, LH
2007-08 → 2008-08 ended
NCP95 ¥47,600
43470-59745 Shaft Assy, Front Drive Outboard Joint, LH
2008-08 → 2008-08 ended
KSP90 ¥54,800
43470-59315 Shaft Assy, Front Drive Outboard Joint, LH
2008-08 → 2009-09 ended
NCP91 ¥47,900
43470-59345 Shaft Assy, Front Drive Outboard Joint, LH
2008-08 → 2010-04 ended
SCP90 ¥47,300
43470-59346 Shaft Assy, Front Drive Outboard Joint, LH
2010-04 → 2010-12 ended
SCP90 ¥47,300
43470-59535 Shaft Assy, Front Drive Outboard Joint, LH
2008-08 → 2009-09 ended
NCP95 ¥47,800
43470-59536 Shaft Assy, Front Drive Outboard Joint, LH
2009-09 → 2010-12 ended
NCP95 ¥47,800
43470-59696 Shaft Assy, Front Drive Outboard Joint, LH
2009-09 → 2010-07 ended
NCP91 5F ¥52,100
43470-59696 Shaft Assy, Front Drive Outboard Joint, LH
2009-09 → 2010-12 ended
NCP91 CVFC ¥52,100
43470-59745 Shaft Assy, Front Drive Outboard Joint, LH
2008-08 → 2010-12 ended
KSP90 ¥54,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
