Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

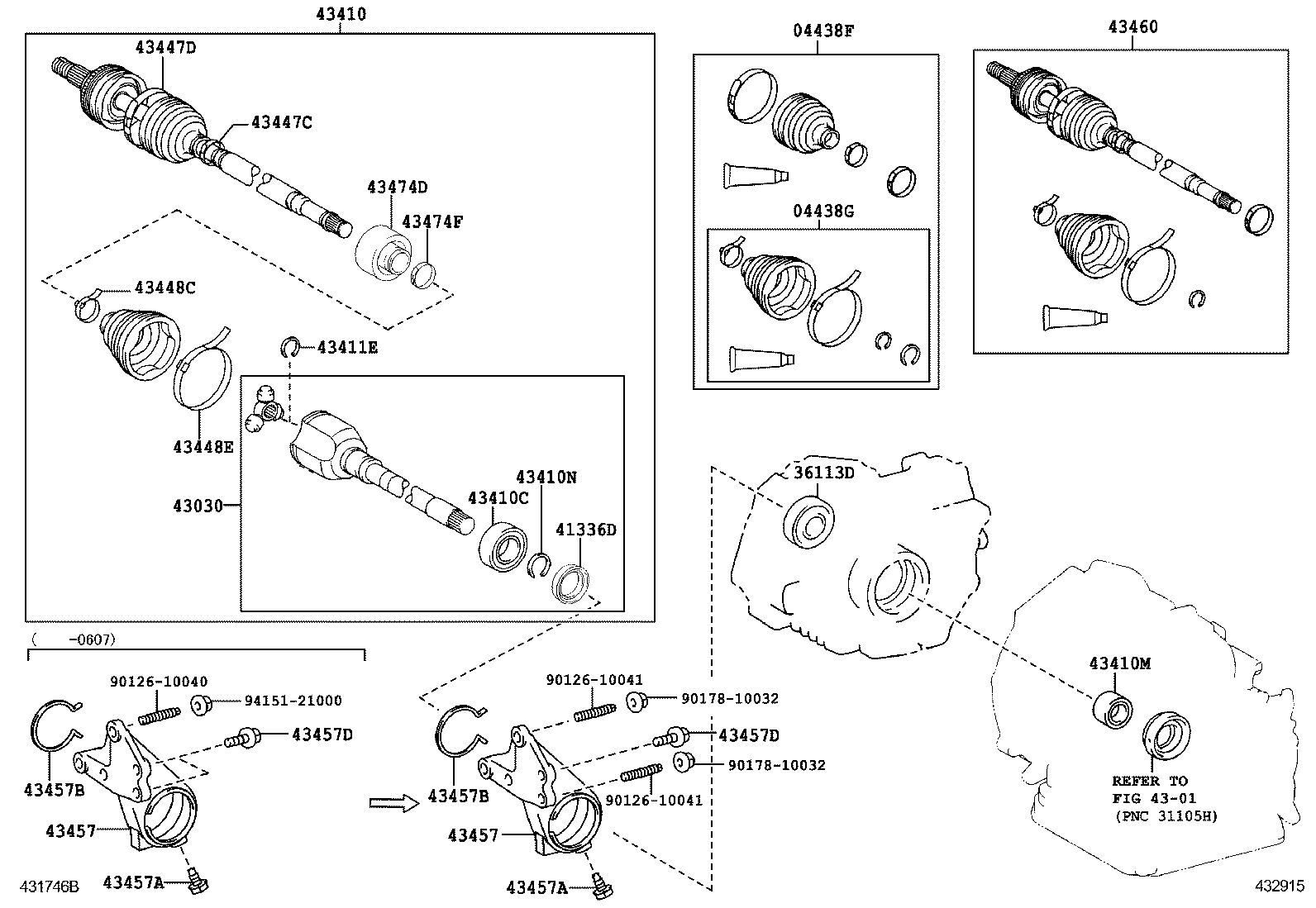

Exploded illustration 432915 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (13 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (7 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (7 parts) 36113D — SEAL, OIL (FOR TRANSFER CASE RH) (3 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (8 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (13 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (13 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (10 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (12 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (11 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (15 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (3 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (13 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (7 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (3 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (3 parts) 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (3 parts) 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (3 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (4 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (4 parts) 9415121000 — not listed in this catalogue 9017810032 — not listed in this catalogue 9012610041 — not listed in this catalogue 9017810032 — not listed in this catalogue 9012610041 — not listed in this catalogue 9012610040 — not listed in this catalogue 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (5 parts) 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (5 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (16 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (23 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (17 parts) 4301 — not listed in this catalogue
432915 · 25 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
206 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-12530 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2006-04 → 2007-08 ended
NCP91 ¥10,800
04427-52220 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2005-01 → 2005-02 ended
SCP90 ¥10,800
04427-52260 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2005-01 → 2006-03 ended
NCP91 ¥10,800
04427-52310 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2005-01 → 2006-03 ended
NCP95 ¥10,800
04427-52380 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2005-01 → 2007-08 ended
KSP90 ¥10,800
04427-52690 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2005-03 → 2007-08 ended
SCP90 ¥10,800
04427-52700 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2006-04 → 2007-08 ended
NCP95 ¥10,800
04427-12530 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2007-08 → 2008-09 ended
NCP91 ¥10,800
04427-52380 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2007-08 → 2008-08 ended
KSP90 ¥10,800
04427-52680 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2007-08 → 2008-08 ended
NCP95 ¥10,800
04427-52690 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2007-08 → 2008-09 ended
SCP90 ¥10,800
04427-52840 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2008-08 → 2008-08 ended
KSP90 ¥10,800
04427-12530 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2008-08 → 2009-09 ended
NCP91 ¥10,800
04427-52170 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2008-08 → 2010-12 ended
SCP90 ¥12,000
04427-52531 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-09 → 2009-10 ended
NCP95 ¥10,800
04427-52671 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-09 → 2009-10 ended
NCP91 ¥10,800
04427-52680 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2008-08 → 2009-09 ended
NCP95 ¥10,800
04427-52840 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2008-08 → 2010-12 ended
KSP90 ¥10,800
04427-52870 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-11 → 2010-03 ended
NCP95 ¥10,800
04427-52871 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-03 → 2010-12 ended
NCP95 ¥10,800
04427-52890 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-11 → 2010-02 ended
NCP91 ¥10,800
04427-52891 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-03 → 2010-07 ended
NCP91 5F ¥9,000
04427-52891 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-03 → 2010-12 ended
NCP91 CVFC ¥9,000
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-52140 Boot Kit, Front Drive Shaft Inboard Joint, RH
2005-03 → 2007-08 ended
SCP90 ¥5,500
04437-52160 Boot Kit, Front Drive Shaft Inboard Joint, RH
2005-01 → 2005-03 ended
SCP90 ¥5,600
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, RH
2005-01 → 2007-08 ended
NCP91 ¥6,700
04437-52310 Boot Kit, Front Drive Shaft Inboard Joint, RH
2005-01 → 2007-08 ended
KSP90 ¥6,700
04438-52230 Boot Kit, Front Drive Shaft Inboard Joint, RH
2005-01 → 2007-08 ended
NCP95 ¥6,700
04437-52140 Boot Kit, Front Drive Shaft Inboard Joint, RH
2007-08 → 2008-09 ended
SCP90 ¥5,500
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, RH
2007-08 → 2008-09 ended
NCP91 ¥6,700
04437-52310 Boot Kit, Front Drive Shaft Inboard Joint, RH
2007-08 → 2008-08 ended
KSP90 ¥6,700
04438-52230 Boot Kit, Front Drive Shaft Inboard Joint, RH
2007-08 → 2008-08 ended
NCP95 ¥6,700
04437-52140 Boot Kit, Front Drive Shaft Inboard Joint, RH
2008-08 → 2010-12 ended
SCP90 ¥5,500
04437-52190 Boot Kit, Front Drive Shaft Inboard Joint, RH
2008-08 → 2009-09 ended
NCP91 ¥6,700
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-09 → 2010-07 ended
NCP91 5F ¥5,500
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-09 → 2010-12 ended
NCP91 CVFC ¥5,500
04437-52310 Boot Kit, Front Drive Shaft Inboard Joint, RH
2008-08 → 2010-12 ended
KSP90 ¥6,700
04437-52441 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-09 → 2010-12 ended
NCP95 ¥6,700
04438-52230 Boot Kit, Front Drive Shaft Inboard Joint, RH
2008-08 → 2009-09 ended
NCP95 ¥6,700
36113D — Seal, Oil (FOR TRANSFER CASE RH)
90311-35056 Seal, Oil (FOR TRANSFER CASE RH)
2005-01 → 2007-08 ended
NCP95 ¥310
90311-35056 Seal, Oil (FOR TRANSFER CASE RH)
2007-08 → 2008-08 ended
NCP95 ¥310
90311-35056 Seal, Oil (FOR TRANSFER CASE RH)
2008-08 → 2010-12 ended
NCP95 ¥310
41336D — Cover, Front Drive Shaft Dust, RH
41336-12010 Cover, Front Drive Shaft Dust, RH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥130
41336-52020 Cover, Front Drive Shaft Dust, RH
2005-01 → 2007-08 ended
NCP95 ¥250
41336-12010 Cover, Front Drive Shaft Dust, RH
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥130
41336-52020 Cover, Front Drive Shaft Dust, RH
2007-08 → 2008-08 ended
NCP95 ¥250
41336-12010 Cover, Front Drive Shaft Dust, RH
2008-08 → 2010-07 ended
NCP91 5F ¥130
41336-12010 Cover, Front Drive Shaft Dust, RH
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 CVFC ¥130
41336-52020 Cover, Front Drive Shaft Dust, RH
2008-08 → 2010-12 ended
NCP95 ¥250
43030 — Joint Assy, Front Drive Inboard, RH
43030-52040 Joint Assy, Front Drive Inboard, RH
2005-01 → 2007-08 ended
KSP90 ¥15,800
43030-52050 Joint Assy, Front Drive Inboard, RH
2005-01 → 2007-08 ended
NCP95 ¥32,700
43403-10011 Joint Assy, Front Drive Inboard, RH
2005-01 → 2007-08 ended
NCP91 ¥19,500
43403-16020 Joint Assy, Front Drive Inboard, RH
2005-01 → 2007-08 ended
SCP90 ¥19,400
43030-52040 Joint Assy, Front Drive Inboard, RH
2007-08 → 2008-08 ended
KSP90 ¥15,800
43030-52050 Joint Assy, Front Drive Inboard, RH
2007-08 → 2008-08 ended
NCP95 ¥32,700
43403-10011 Joint Assy, Front Drive Inboard, RH
2007-08 → 2008-09 ended
NCP91 ¥19,500
43403-16020 Joint Assy, Front Drive Inboard, RH
2007-08 → 2008-09 ended
SCP90 ¥19,400
43030-52040 Joint Assy, Front Drive Inboard, RH
2008-08 → 2010-12 ended
KSP90 ¥15,800
43030-52050 Joint Assy, Front Drive Inboard, RH
2008-08 → 2010-12 ended
NCP95 ¥32,700
43403-10011 Joint Assy, Front Drive Inboard, RH
2008-08 → 2010-07 ended
NCP91 5F ¥19,500
43403-10011 Joint Assy, Front Drive Inboard, RH
2008-08 → 2010-12 ended
NCP91 CVFC ¥19,500
43403-16020 Joint Assy, Front Drive Inboard, RH
2008-08 → 2010-12 ended
SCP90 ¥19,400
43410 — Shaft Assy, Front Drive, RH
43410-52180 Shaft Assy, Front Drive, RH
2005-01 → 2007-08 ended
KSP90 ¥82,800
43410-52190 Shaft Assy, Front Drive, RH
2005-01 → 2007-08 ended
SCP90 ¥82,800
43410-52210 Shaft Assy, Front Drive, RH
2005-01 → 2007-08 ended
NCP91 ¥68,900
43410-52220 Shaft Assy, Front Drive, RH
2005-01 → 2007-08 ended
NCP95 ¥82,800
43410-52180 Shaft Assy, Front Drive, RH
2007-08 → 2008-08 ended
KSP90 ¥82,800
43410-52190 Shaft Assy, Front Drive, RH
2007-08 → 2008-09 ended
SCP90 ¥82,800
43410-52210 Shaft Assy, Front Drive, RH
2007-08 → 2008-09 ended
NCP91 ¥68,900
43410-52220 Shaft Assy, Front Drive, RH
2007-08 → 2008-08 ended
NCP95 ¥82,800
43410-52280 Shaft Assy, Front Drive, RH
2008-08 → 2008-08 ended
KSP90 ¥68,900
43410-52190 Shaft Assy, Front Drive, RH
2008-08 → 2010-03 ended
SCP90 ¥82,800
43410-52191 Shaft Assy, Front Drive, RH
2010-04 → 2010-12 ended
SCP90 ¥82,800
43410-52210 Shaft Assy, Front Drive, RH
2008-08 → 2010-07 ended
NCP91 5F ¥68,900
43410-52210 Shaft Assy, Front Drive, RH
2008-08 → 2010-12 ended
NCP91 CVFC ¥68,900
43410-52220 Shaft Assy, Front Drive, RH
2008-08 → 2010-12 ended
NCP95 ¥82,800
43410-52280 Shaft Assy, Front Drive, RH
2008-08 → 2010-12 ended
KSP90 ¥68,900
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90363-36006 Bearing (FOR FRONT DRIVE SHAFT)
2005-01 → 2007-08 ended
NCP95 ¥2,470
90363-36006 Bearing (FOR FRONT DRIVE SHAFT)
2007-08 → 2008-08 ended
NCP95 ¥2,470
90363-36006 Bearing (FOR FRONT DRIVE SHAFT)
2008-08 → 2010-12 ended
NCP95 ¥2,470
43410M — Oil Seal, Front Drive Shaft, RH
90311-34023 Oil Seal, Front Drive Shaft, RH
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥270
90316-28003 Oil Seal, Front Drive Shaft, RH
2005-01 → 2007-08 ended
NCP95 ¥450
90311-34023 Oil Seal, Front Drive Shaft, RH
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥270
90316-28003 Oil Seal, Front Drive Shaft, RH
2007-08 → 2008-08 ended
NCP95 ¥450
90311-34023 Oil Seal, Front Drive Shaft, RH
2008-08 → 2008-11 ended
NCP91 5F ¥270
90311-34023 Oil Seal, Front Drive Shaft, RH
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 CVFC ¥270
90311-34033 Oil Seal, Front Drive Shaft, RH
2008-11 → 2010-08 ended
NCP91 5F ¥350
90316-28003 Oil Seal, Front Drive Shaft, RH
2008-08 → 2010-12 ended
NCP95 ¥450
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2005-01 → 2007-08 ended
NCP95 ¥110
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥100
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2007-08 → 2008-08 ended
NCP95 ¥110
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥100
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2008-08 → 2010-12 ended
NCP95 ¥110
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2008-08 → 2010-07 ended
NCP91 5F ¥100
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 CVFC ¥100
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-16020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2005-01 → 2007-08 ended
SCP90 ¥60
43425-52010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2005-01 → 2007-08 ended
KSP90 ¥50
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2005-01 → 2007-08 ended
NCP91 ¥110
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2005-01 → 2007-08 ended
NCP95 ¥100
43425-16020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2007-08 → 2008-09 ended
SCP90 ¥60
43425-52010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2007-08 → 2008-08 ended
KSP90 ¥50
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2007-08 → 2008-09 ended
NCP91 ¥110
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2007-08 → 2008-08 ended
NCP95 ¥100
43425-16020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2008-08 → 2010-12 ended
SCP90 ¥60
43425-52010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2008-08 → 2010-12 ended
KSP90 ¥50
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2008-08 → 2010-07 ended
NCP91 5F ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2008-08 → 2010-12 ended
NCP91 CVFC ¥110
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2008-08 → 2010-12 ended
NCP95 ¥100
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52240 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
SCP90 ¥280
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP9# ¥220
42345-52270 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
KSP90 ¥260
42345-52240 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-08 → 2008-09 ended
SCP90 ¥280
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-08 → 2008-09 ended
NCP9# ¥220
42345-52270 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
KSP90 ¥260
42345-74040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2008-08 ended
KSP90 ¥240
42345-52240 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
SCP90 ¥280
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2010-07 ended
NCP91 5F ¥220
42345-52260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP9# ATM ¥220
42345-74040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
KSP90 ¥240
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52170 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
KSP90 ¥480
42345-52230 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
SCP90 ¥430
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP9# ¥330
42345-52170 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
KSP90 ¥480
42345-52230 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-08 → 2008-09 ended
SCP90 ¥430
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-08 → 2008-09 ended
NCP9# ¥330
42345-74030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2008-08 ended
KSP90 ¥400
42345-52230 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
SCP90 ¥430
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2010-07 ended
NCP91 5F ¥330
42345-52250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP9# ATM ¥330
42345-74030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2008-08 → 2009-06 ended
KSP90 ¥400
42345-74110 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-06 → 2010-12 ended
KSP90 ¥410
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16140 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
SCP90 ¥250
42345-52130 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
KSP90 ¥280
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP9# ¥80
42345-16140 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-08 → 2008-09 ended
SCP90 ¥250
42345-52130 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
KSP90 ¥280
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-08 → 2008-09 ended
NCP9# ¥80
42345-16140 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
SCP90 ¥250
42345-52130 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-11 ended
KSP90 ¥280
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-07 ended
NCP91 5F ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP9# ATM ¥80
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP95 ¥300
42345-16150 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
SCP90 ¥330
42345-52120 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
KSP90 ¥280
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-01 → 2007-08 ended
NCP91 ¥350
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
NCP95 ¥300
42345-16150 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-08 → 2008-09 ended
SCP90 ¥330
42345-52120 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-08 → 2008-08 ended
KSP90 ¥280
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-08 → 2008-09 ended
NCP91 ¥350
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP95 ¥300
42345-16150 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
SCP90 ¥330
42345-52120 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
KSP90 ¥280
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-07 ended
NCP91 5F ¥350
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2008-08 → 2010-12 ended
NCP91 CVFC ¥350
43457 — Bracket, Drive Shaft Bearing
43457-52010 Bracket, Drive Shaft Bearing
2005-01 → 2007-08 ended
NCP95 ¥4,780
43457-52010 Bracket, Drive Shaft Bearing
2007-08 → 2008-08 ended
NCP95 ¥4,780
43457-52010 Bracket, Drive Shaft Bearing
2008-08 → 2010-12 ended
NCP95 ¥4,780
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90109-10180 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2006-01 → 2006-07 ended
NCP95 ¥170
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2005-01 → 2007-08 ended
NCP95 ¥200
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2007-08 → 2008-08 ended
NCP95 ¥200
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2008-08 → 2010-12 ended
NCP95 ¥200
43457B — Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2005-01 → 2007-08 ended
NCP95 ¥140
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2007-08 → 2008-08 ended
NCP95 ¥140
90521-75002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2008-08 → 2010-12 ended
NCP95 ¥140
43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2005-01 → 2005-08 ended
NCP95 ¥100
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2005-08 → 2006-01 ended
NCP95 ¥100
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2006-07 → 2007-08 ended
NCP95 ¥100
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2007-08 → 2008-08 ended
NCP95 ¥100
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2008-08 → 2010-12 ended
NCP95 ¥100
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-59325 Shaft Assy, Front Drive Outboard Joint, RH
2005-01 → 2007-08 ended
SCP90 ¥56,300
43460-59415 Shaft Assy, Front Drive Outboard Joint, RH
2005-01 → 2007-08 ended
NCP91 ¥55,800
43460-59425 Shaft Assy, Front Drive Outboard Joint, RH
2005-01 → 2007-08 ended
NCP95 ¥46,300
43460-59575 Shaft Assy, Front Drive Outboard Joint, RH
2005-01 → 2007-08 ended
KSP90 ¥53,700
43460-59325 Shaft Assy, Front Drive Outboard Joint, RH
2007-08 → 2008-09 ended
SCP90 ¥56,300
43460-59415 Shaft Assy, Front Drive Outboard Joint, RH
2007-08 → 2008-09 ended
NCP91 ¥55,800
43460-59425 Shaft Assy, Front Drive Outboard Joint, RH
2007-08 → 2008-08 ended
NCP95 ¥46,300
43460-59575 Shaft Assy, Front Drive Outboard Joint, RH
2007-08 → 2008-08 ended
KSP90 ¥53,700
43460-59775 Shaft Assy, Front Drive Outboard Joint, RH
2008-08 → 2008-08 ended
KSP90 ¥61,300
43460-59325 Shaft Assy, Front Drive Outboard Joint, RH
2008-08 → 2010-04 ended
SCP90 ¥56,300
43460-59326 Shaft Assy, Front Drive Outboard Joint, RH
2010-04 → 2010-12 ended
SCP90 ¥56,300
43460-59415 Shaft Assy, Front Drive Outboard Joint, RH
2008-08 → 2009-09 ended
NCP91 ¥55,800
43460-59416 Shaft Assy, Front Drive Outboard Joint, RH
2009-09 → 2010-07 ended
NCP91 5F ¥55,800
43460-59416 Shaft Assy, Front Drive Outboard Joint, RH
2009-09 → 2010-12 ended
NCP91 CVFC ¥55,800
43460-59425 Shaft Assy, Front Drive Outboard Joint, RH
2008-08 → 2009-09 ended
NCP95 ¥46,300
43460-59426 Shaft Assy, Front Drive Outboard Joint, RH
2009-09 → 2010-12 ended
NCP95 ¥46,300
43460-59775 Shaft Assy, Front Drive Outboard Joint, RH
2008-08 → 2010-12 ended
KSP90 ¥61,300
43474D — Damper, Front Drive Shaft, RH
43474-52030 Damper, Front Drive Shaft, RH
2005-01 → 2007-08 ended
NCP91 ¥4,640
43474-52050 Damper, Front Drive Shaft, RH
2005-01 → 2007-08 ended
NCP95 ¥4,210
43474-52060 Damper, Front Drive Shaft, RH
2005-01 → 2007-08 ended
SCP90 ¥3,940
43474-52070 Damper, Front Drive Shaft, RH
2005-01 → 2007-08 ended
KSP90 ¥2,480
43474-52030 Damper, Front Drive Shaft, RH
2007-08 → 2008-09 ended
NCP91 ¥4,640
43474-52050 Damper, Front Drive Shaft, RH
2007-08 → 2008-08 ended
NCP95 ¥4,210
43474-52060 Damper, Front Drive Shaft, RH
2007-08 → 2008-09 ended
SCP90 ¥3,940
43474-52070 Damper, Front Drive Shaft, RH
2007-08 → 2008-08 ended
KSP90 ¥2,480
43474-52030 Damper, Front Drive Shaft, RH
2008-08 → 2010-07 ended
NCP91 5F ¥4,640
43474-52030 Damper, Front Drive Shaft, RH
2008-08 → 2010-12 ended
NCP91 CVFC ¥4,640
43474-52050 Damper, Front Drive Shaft, RH
2008-08 → 2010-12 ended
NCP95 ¥4,210
43474-52060 Damper, Front Drive Shaft, RH
2008-08 → 2010-12 ended
SCP90 ¥3,940
43474-52070 Damper, Front Drive Shaft, RH
2008-08 → 2010-12 ended
KSP90 ¥2,480
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2005-01 → 2007-08 ended
NCP9#,SCP90 ¥700
42345-16140 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2005-01 → 2007-08 ended
KSP90 ¥250
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2007-08 → 2008-09 ended
NCP9#,SCP90 ¥700
42345-16140 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2007-08 → 2008-08 ended
KSP90 ¥250
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2008-08 → 2010-07 ended
NCP91 5F ¥700
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2008-08 → 2010-12 ended
NCP9#,SCP90 ATM ¥700
42345-16140 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2008-08 → 2010-12 ended
KSP90 ¥250
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
