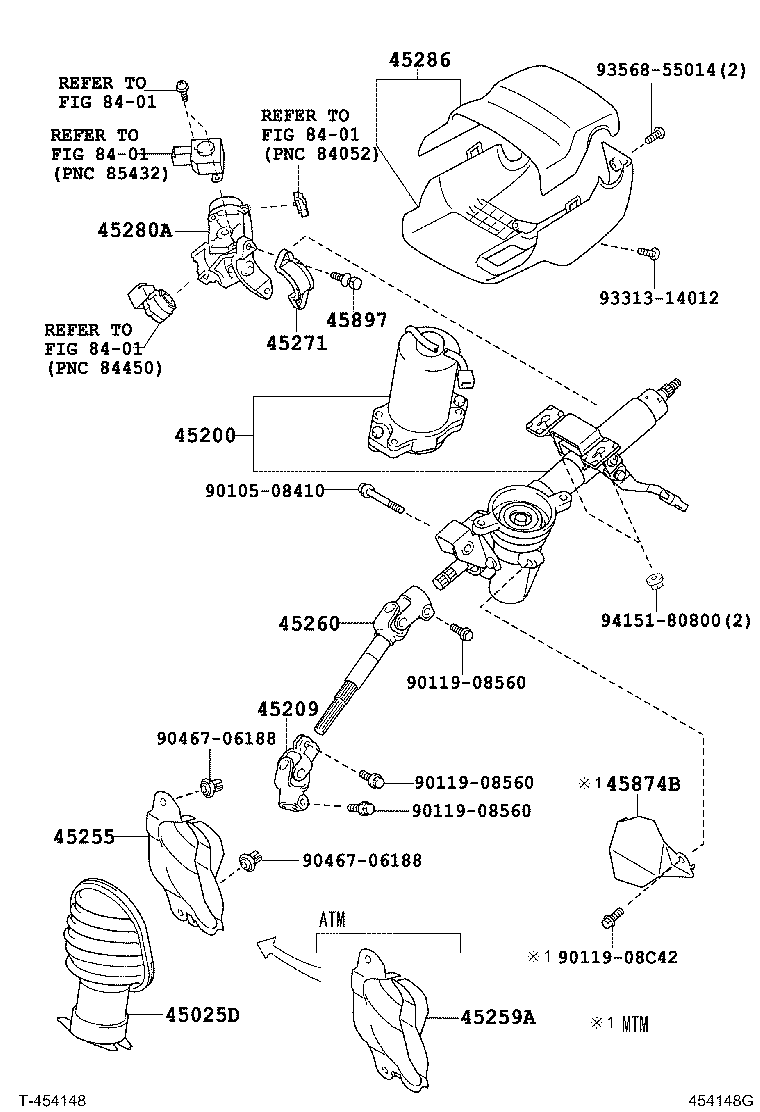

Exploded illustration 454148G 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (7 parts) 45200 — POST ASSY, STEERING (23 parts) 45209 — YOKE SUB-ASSY, STEERING SLIDING (4 parts) 45255 — PLATE, STEERING COLUMN HOLE COVER (3 parts) 45259A — SHEET, COLUMN HOLE COVER SILENCER (4 parts) 45260 — SHAFT ASSY, STEERING INTERMEDIATE, NO.2 (4 parts) 45271 — CLAMP, STEERING COLUMN, UPPER (4 parts) 45280A — BRACKET ASSY, STEERING COLUMN, UPPER (7 parts) 45286 — COVER, STEERING COLUMN (12 parts) 45874B — PROTECTOR, STEERING COLUMN, NO.1 (3 parts) 45897 — BOLT, STEERING LOCK SET (4 parts) 9415180800 — not listed in this catalogue 9011908560 — not listed in this catalogue 9011908560 — not listed in this catalogue 9011908560 — not listed in this catalogue 9046706188 — not listed in this catalogue 9046706188 — not listed in this catalogue 9011908C42 — not listed in this catalogue 9331314012 — not listed in this catalogue 9356855014 — not listed in this catalogue 9010508410 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
454148G · 11 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-52140 Cover Sub-assy, Steering Column Hole, NO.1
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥3,010
45025-52160 Cover Sub-assy, Steering Column Hole, NO.1
2005-01 → 2007-08 ended
NCP95 ¥2,140
45025-52140 Cover Sub-assy, Steering Column Hole, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥3,010
45025-52140 Cover Sub-assy, Steering Column Hole, NO.1
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥3,010
45025-52160 Cover Sub-assy, Steering Column Hole, NO.1
2007-08 → 2008-08 ended
NCP95 ¥2,140
45025-52140 Cover Sub-assy, Steering Column Hole, NO.1
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥3,010
45025-52160 Cover Sub-assy, Steering Column Hole, NO.1
2008-08 → 2010-12 ended
NCP95 ¥2,140
45200 — Post Assy, Steering
45200-52260 Post Assy, Steering
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,RS,X ¥93,400
45200-52270 note Post Assy, Steering
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥93,400
45200-52290 Post Assy, Steering
2005-01 → 2007-08 ended
NCP95,SCP90 U ¥93,400
45200-52340 note Post Assy, Steering
2005-01 → 2005-08 ended
KSP90,NCP95 F ¥93,400
45200-52341 note Post Assy, Steering
2005-08 → 2007-08 ended
KSP90 F ¥93,400
45200-52260 Post Assy, Steering
2007-08 → 2007-12 ended
KSP90,NCP9#,SCP90 B,F,RS ¥93,400
45200-52261 Post Assy, Steering
2008-01 → 2008-09 ended
NCP91,SCP90 RS ¥93,400
45200-52261 Post Assy, Steering
2008-01 → 2008-08 ended
KSP90,NCP95,SCP90 B,F ¥93,400
45200-52270 note Post Assy, Steering
2007-08 → 2007-12 ended
KSP90,NCP9#,SCP90 F,RS ¥93,400
45200-52271 note Post Assy, Steering
2008-01 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥93,400
45200-52271 note Post Assy, Steering
2008-01 → 2008-09 ended
NCP91,SCP90 RS ¥93,400
45200-52290 Post Assy, Steering
2007-08 → 2007-12 ended
KSP90,NCP9#,SCP90 ILL,U ¥93,400
45200-52291 Post Assy, Steering
2008-01 → 2008-08 ended
KSP90,NCP9#,SCP90 ILL,U ¥93,400
45200-52341 note Post Assy, Steering
2007-08 → 2007-12 ended
KSP90 F ¥93,400
45200-52342 note Post Assy, Steering
2008-01 → 2008-08 ended
KSP90 F ¥93,400
45200-52261 Post Assy, Steering
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS ¥93,400
45200-52271 note Post Assy, Steering
2008-08 → 2010-08 ended
KSP90 F ¥93,400
45200-52271 note Post Assy, Steering
2008-08 → 2010-12 ended
NCP9#,SCP90 F,RS ¥93,400
45200-52281 Post Assy, Steering
2010-08 → 2010-12 ended
KSP90 U ¥93,400
45200-52291 Post Assy, Steering
2008-08 → 2010-08 ended
KSP90 U ¥93,400
45200-52291 Post Assy, Steering
2008-08 → 2010-11 ended
NCP9#,SCP90 ILL,U ¥93,400
45200-52342 note Post Assy, Steering
2008-08 → 2010-08 ended
KSP90 F ¥93,400
45200-52520 note Post Assy, Steering
2010-08 → 2010-12 ended
KSP90 F ¥93,400
45209 — Yoke Sub-assy, Steering Sliding
45209-52040 Yoke Sub-assy, Steering Sliding
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥7,200
45209-52040 Yoke Sub-assy, Steering Sliding
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥7,200
45209-52040 Yoke Sub-assy, Steering Sliding
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥7,200
45209-52040 Yoke Sub-assy, Steering Sliding
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥7,200
45255 — Plate, Steering Column Hole Cover
45255-52130 Plate, Steering Column Hole Cover
2005-01 → 2007-08 ended
NCP91 5F ¥980
45255-52130 Plate, Steering Column Hole Cover
2007-08 → 2008-09 ended
NCP91 5F ¥980
45255-52130 Plate, Steering Column Hole Cover
2008-09 → 2010-08 ended
NCP91 5F ¥980
45259A — Sheet, Column Hole Cover Silencer
45259-52010 Sheet, Column Hole Cover Silencer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM ¥700
45259-52010 Sheet, Column Hole Cover Silencer
2007-08 → 2008-09 ended
NCP91,SCP90 CVFC RS ¥700
45259-52010 Sheet, Column Hole Cover Silencer
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥700
45259-52010 Sheet, Column Hole Cover Silencer
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM ¥700
45260 — Shaft Assy, Steering Intermediate, NO.2
45260-52170 Shaft Assy, Steering Intermediate, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥16,800
45260-52170 Shaft Assy, Steering Intermediate, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥16,800
45260-52170 Shaft Assy, Steering Intermediate, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥16,800
45260-52170 Shaft Assy, Steering Intermediate, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥16,800
45271 — Clamp, Steering Column, Upper
45271-52030 Clamp, Steering Column, Upper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥440
45271-52030 Clamp, Steering Column, Upper
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥440
45271-52030 Clamp, Steering Column, Upper
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥440
45271-52030 Clamp, Steering Column, Upper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥440
45280A — Bracket Assy, Steering Column, Upper
45280-22510 Bracket Assy, Steering Column, Upper
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ATM (B,F,ILL,RS,X) ¥14,300
45280-52090 Bracket Assy, Steering Column, Upper
2005-01 → 2007-08 ended
NCP91 5F ¥14,300
45280-22510 Bracket Assy, Steering Column, Upper
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS) ¥14,300
45280-52090 Bracket Assy, Steering Column, Upper
2007-08 → 2008-09 ended
NCP91 5F ¥14,300
45280-22510 Bracket Assy, Steering Column, Upper
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ATM (B,F,RS) ¥14,300
45280-22510 Bracket Assy, Steering Column, Upper
2010-08 → 2010-12 ended
KSP90 U ¥14,300
45280-52090 Bracket Assy, Steering Column, Upper
2008-09 → 2010-08 ended
NCP91 5F ¥14,300
45286 — Cover, Steering Column
45286-52930-B0 note Cover, Steering Column
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥3,890
45286-52930-B0 note Cover, Steering Column
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,890
45286-52930-B0 note Cover, Steering Column
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,X ¥3,890
45286-52930-B0 note Cover, Steering Column
2005-01 → 2007-08 ended
NCP91 RS ¥3,890
45286-52930-B0 note Cover, Steering Column
2005-01 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥3,890
45286-52930-B0 note Cover, Steering Column
2005-01 → 2007-08 ended
NCP91 RS ¥3,890
45286-52930-B0 note Cover, Steering Column
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥3,890
45286-52930-E0 note Cover, Steering Column
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,890
45286-52930-B0 note Cover, Steering Column
2008-08 → 2008-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥3,890
45286-52930-E0 note Cover, Steering Column
2008-08 → 2008-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,890
45286-52935-B0 note Cover, Steering Column
2008-12 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,RS,U ¥3,890
45286-52935-E0 note Cover, Steering Column
2008-12 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,890
45874B — Protector, Steering Column, NO.1
45874-52020 Protector, Steering Column, NO.1
2005-01 → 2007-08 ended
NCP91 5F ¥1,020
45874-52020 Protector, Steering Column, NO.1
2007-08 → 2008-09 ended
NCP91 5F ¥1,020
45874-52020 Protector, Steering Column, NO.1
2008-09 → 2010-08 ended
NCP91 5F ¥1,020
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥210
45897-12020 Bolt, Steering Lock Set
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥210
45897-12020 Bolt, Steering Lock Set
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥210
45897-12020 Bolt, Steering Lock Set
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥210
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
