Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

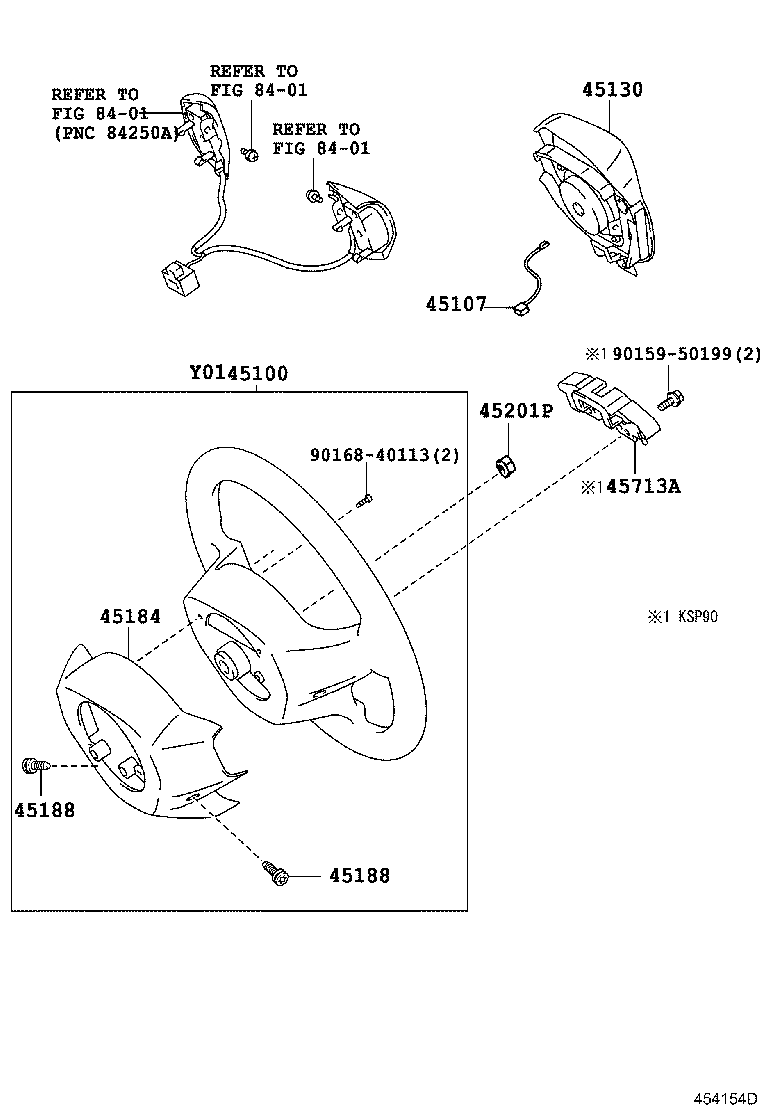

Exploded illustration 454154D 45100 — WHEEL ASSY, STEERING (17 parts) 45184 — COVER, STEERING WHEEL BOSS, LOWER (12 parts) 45201P — NUT, STEERING WHEEL SET (4 parts) 9015950199 — not listed in this catalogue 9016840113 — not listed in this catalogue 45713A — DAMPER, STEERING SHAKE (4 parts) 45130 — BUTTON ASSY, HORN (30 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 45107 — WIRE SUB-ASSY, HORN BUTTON (13 parts) 45188 — SCREW, STEERING WHEEL PAD ATTACHING (4 parts) 45188 — SCREW, STEERING WHEEL PAD ATTACHING (4 parts)
454154D · 8 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
84 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-52320-B0 note Wheel Assy, Steering
2005-01 → 2005-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥27,900
45100-52321-B0 note Wheel Assy, Steering
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥28,000
45100-52330-B0 note Wheel Assy, Steering
2005-01 → 2005-08 ended
NCP91 RS ¥63,800
45100-52331-B0 note Wheel Assy, Steering
2005-08 → 2007-08 ended
NCP91 RS ¥63,800
45100-52331-B0 note Wheel Assy, Steering
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥63,800
45100-52321-B0 note Wheel Assy, Steering
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥28,000
45100-52321-E0 note Wheel Assy, Steering
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥28,000
45100-52331-E0 note Wheel Assy, Steering
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥63,800
45100-52410-B0 note Wheel Assy, Steering
2007-08 → 2008-09 ended
NCP91 5F;SCP90 RS ¥63,800
45100-52420-B0 note Wheel Assy, Steering
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥63,800
45100-52460-B0 note Wheel Assy, Steering
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥63,800
45100-52321-B0 note Wheel Assy, Steering
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥28,000
45100-52321-E0 note Wheel Assy, Steering
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥28,000
45100-52331-E0 note Wheel Assy, Steering
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥63,800
45100-52410-B0 note Wheel Assy, Steering
2008-09 → 2010-12 ended
NCP91 5F;SCP90 RS ¥63,800
45100-52420-B0 note Wheel Assy, Steering
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥63,800
45100-52460-B0 note Wheel Assy, Steering
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥63,800
45107 — Wire Sub-assy, Horn Button
45107-48010 note Wire Sub-assy, Horn Button
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥220
45107-48010 note Wire Sub-assy, Horn Button
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥220
45107-48010 note Wire Sub-assy, Horn Button
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS ¥220
45107-48010 note Wire Sub-assy, Horn Button
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥220
45107-48010 note Wire Sub-assy, Horn Button
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 F,ILL,RS,X ¥220
45107-48010 note Wire Sub-assy, Horn Button
2005-01 → 2007-08 ended
NCP9#,SCP90 U,X ¥220
45107-48010 Wire Sub-assy, Horn Button
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥220
45107-48010 Wire Sub-assy, Horn Button
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥220
45107-48010 note Wire Sub-assy, Horn Button
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,ILL,U ¥220
45107-48010 Wire Sub-assy, Horn Button
2007-08 → 2008-09 ended
NCP91 5F;SCP90 RS ¥220
45107-48010 note Wire Sub-assy, Horn Button
2007-08 → 2008-09 ended
NCP91 5F;SCP90 RS ¥220
45107-48010 Wire Sub-assy, Horn Button
2008-08 → 2010-12 ended
NCP91 5F;NCP91 ILL,U;KSP90,NCP95,SCP90 ¥220
45107-48010 note Wire Sub-assy, Horn Button
2008-08 → 2010-12 ended
NCP91 5F;NCP91 ILL,U;KSP90,NCP95,SCP90 F,ILL,RS,U ¥220
45130 — Button Assy, Horn
45130-52350-B0 note Button Assy, Horn
2005-01 → 2007-08 ended
NCP91 RS ¥77,000
45130-52350-B0 note Button Assy, Horn
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-08 → 2007-08 ended
NCP95,SCP90 U ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-12 → 2007-08 ended
NCP91 X ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-12 → 2007-08 ended
NCP91 RS ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-12 → 2007-08 ended
NCP9#,SCP90 U,X ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-08 → 2007-08 ended
NCP91 RS ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-08 → 2007-08 ended
KSP90,NCP95,SCP90 F ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-01 → 2005-12 ended
NCP95,SCP90 U ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-01 → 2005-12 ended
NCP91 RS ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-08 → 2005-12 ended
NCP91 X ¥77,000
45130-52360-B0 note Button Assy, Horn
2005-01 → 2005-12 ended
KSP90,NCP9#,SCP90 F,X ¥77,000
45130-52350-B0 note Button Assy, Horn
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥77,000
45130-52350-E0 note Button Assy, Horn
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥77,000
45130-52360-B0 note Button Assy, Horn
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥77,000
45130-52360-E0 note Button Assy, Horn
2007-08 → 2008-08 ended
NCP9#,SCP90 ILL ¥77,000
45130-52360-E0 note Button Assy, Horn
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 F,U ¥77,000
45130-52500-B0 note Button Assy, Horn
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥77,000
45130-52510-B0 note Button Assy, Horn
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥77,000
45130-52350-B0 note Button Assy, Horn
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥77,000
45130-52350-E0 note Button Assy, Horn
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥77,000
45130-52360-B0 note Button Assy, Horn
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥77,000
45130-52360-B0 note Button Assy, Horn
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥77,000
45130-52360-E0 note Button Assy, Horn
2009-02 → 2010-08 ended
KSP90,NCP95,SCP90 F ¥77,000
45130-52360-E0 note Button Assy, Horn
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 F,U ¥77,000
45130-52360-E0 note Button Assy, Horn
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥77,000
45130-52500-B0 note Button Assy, Horn
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥77,000
45130-52510-B0 note Button Assy, Horn
2008-09 → 2010-12 ended
NCP91,SCP90 RS ¥77,000
45184 — Cover, Steering Wheel Boss, Lower
45184-52090-B0 note Cover, Steering Wheel Boss, Lower
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥2,150
45184-52090-B0 note Cover, Steering Wheel Boss, Lower
2005-01 → 2007-08 ended
NCP91 RS ¥2,150
45184-52090-B0 note Cover, Steering Wheel Boss, Lower
2005-01 → 2005-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥2,150
45184-52090-B0 note Cover, Steering Wheel Boss, Lower
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥2,150
45184-12340-B0 note Cover, Steering Wheel Boss, Lower
2007-08 → 2008-09 ended
NCP91 5F;SCP90 RS ¥2,140
45184-12350-B0 note Cover, Steering Wheel Boss, Lower
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥2,140
45184-52090-B0 note Cover, Steering Wheel Boss, Lower
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,150
45184-52090-E0 note Cover, Steering Wheel Boss, Lower
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,150
45184-12340-B0 note Cover, Steering Wheel Boss, Lower
2008-09 → 2010-12 ended
NCP91 5F;SCP90 RS ¥2,140
45184-12350-B0 note Cover, Steering Wheel Boss, Lower
2008-09 → 2010-12 ended
NCP91 CVFC RS ¥2,140
45184-52090-B0 note Cover, Steering Wheel Boss, Lower
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥2,150
45184-52090-E0 note Cover, Steering Wheel Boss, Lower
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,150
45188 — Screw, Steering Wheel Pad Attaching
45188-60010 note Screw, Steering Wheel Pad Attaching
2005-08 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥160
45188-60010 note Screw, Steering Wheel Pad Attaching
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥160
45188-60010 note Screw, Steering Wheel Pad Attaching
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥160
45188-60010 note Screw, Steering Wheel Pad Attaching
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥160
45201P — Nut, Steering Wheel Set
90179-12071 Nut, Steering Wheel Set
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥130
90179-12071 Nut, Steering Wheel Set
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥130
90179-12071 Nut, Steering Wheel Set
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥130
90179-12071 Nut, Steering Wheel Set
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥130
45713A — Damper, Steering Shake
45713-52020 Damper, Steering Shake
2005-01 → 2005-08 ended
KSP90 ¥2,380
45713-52040 Damper, Steering Shake
2005-08 → 2007-08 ended
KSP90 ¥2,530
45713-52040 Damper, Steering Shake
2007-08 → 2008-08 ended
KSP90 ¥2,530
45713-52040 Damper, Steering Shake
2008-08 → 2010-12 ended
KSP90 ¥2,530
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
