Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

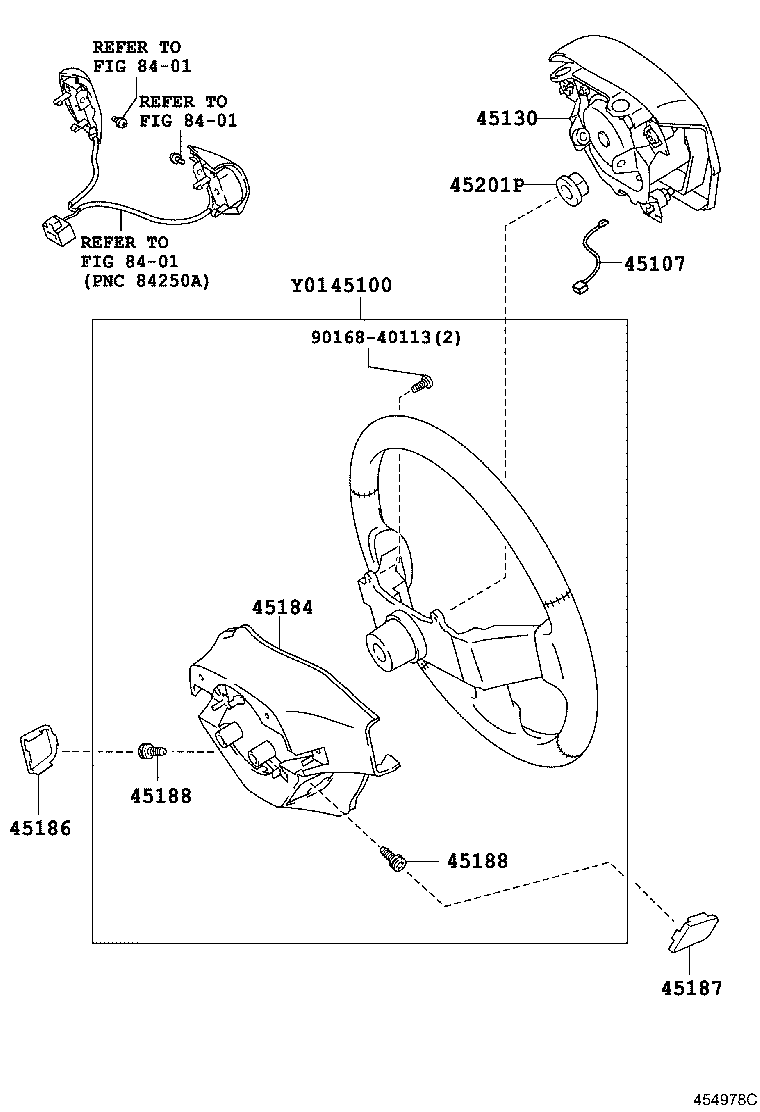

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-52320-B0 note |
Wheel Assy, Steering
2005-01 → 2005-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥27,900 | |
| 45100-52321-B0 note |
Wheel Assy, Steering
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥28,000 | |
| 45100-52330-B0 note |
Wheel Assy, Steering
2005-01 → 2005-08
ended
|
NCP91 RS | ¥63,800 | |
| 45100-52331-B0 note |
Wheel Assy, Steering
2005-08 → 2007-08
ended
|
NCP91 RS | ¥63,800 | |
| 45100-52331-B0 note |
Wheel Assy, Steering
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥63,800 | |
| 45100-52321-B0 note |
Wheel Assy, Steering
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥28,000 | |
| 45100-52321-E0 note |
Wheel Assy, Steering
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥28,000 | |
| 45100-52331-E0 note |
Wheel Assy, Steering
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥63,800 | |
| 45100-52410-B0 note |
Wheel Assy, Steering
2007-08 → 2008-09
ended
|
NCP91 5F;SCP90 RS | ¥63,800 | |
| 45100-52420-B0 note |
Wheel Assy, Steering
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥63,800 | |
| 45100-52460-B0 note |
Wheel Assy, Steering
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥63,800 | |
| 45100-52321-B0 note |
Wheel Assy, Steering
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥28,000 | |
| 45100-52321-E0 note |
Wheel Assy, Steering
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥28,000 | |
| 45100-52331-E0 note |
Wheel Assy, Steering
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥63,800 | |
| 45100-52410-B0 note |
Wheel Assy, Steering
2008-09 → 2010-12
ended
|
NCP91 5F;SCP90 RS | ¥63,800 | |
| 45100-52420-B0 note |
Wheel Assy, Steering
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥63,800 | |
| 45100-52460-B0 note |
Wheel Assy, Steering
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥63,800 | |
| 45107 — Wire Sub-assy, Horn Button | ||||
| 45107-48010 note |
Wire Sub-assy, Horn Button
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,X | ¥220 | |
| 45107-48010 note |
Wire Sub-assy, Horn Button
2005-01 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥220 | |
| 45107-48010 note |
Wire Sub-assy, Horn Button
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS | ¥220 | |
| 45107-48010 note |
Wire Sub-assy, Horn Button
2005-01 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥220 | |
| 45107-48010 note |
Wire Sub-assy, Horn Button
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,RS,X | ¥220 | |
| 45107-48010 note |
Wire Sub-assy, Horn Button
2005-01 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥220 | |
| 45107-48010 |
Wire Sub-assy, Horn Button
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥220 | |
| 45107-48010 |
Wire Sub-assy, Horn Button
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥220 | |
| 45107-48010 note |
Wire Sub-assy, Horn Button
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,ILL,U | ¥220 | |
| 45107-48010 |
Wire Sub-assy, Horn Button
2007-08 → 2008-09
ended
|
NCP91 5F;SCP90 RS | ¥220 | |
| 45107-48010 note |
Wire Sub-assy, Horn Button
2007-08 → 2008-09
ended
|
NCP91 5F;SCP90 RS | ¥220 | |
| 45107-48010 |
Wire Sub-assy, Horn Button
2008-08 → 2010-12
ended
|
NCP91 5F;NCP91 ILL,U;KSP90,NCP95,SCP90 | ¥220 | |
| 45107-48010 note |
Wire Sub-assy, Horn Button
2008-08 → 2010-12
ended
|
NCP91 5F;NCP91 ILL,U;KSP90,NCP95,SCP90 F,ILL,RS,U | ¥220 | |
| 45130 — Button Assy, Horn | ||||
| 45130-52350-B0 note |
Button Assy, Horn
2005-01 → 2007-08
ended
|
NCP91 RS | ¥77,000 | |
| 45130-52350-B0 note |
Button Assy, Horn
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-08 → 2007-08
ended
|
NCP95,SCP90 U | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-12 → 2007-08
ended
|
NCP91 X | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-12 → 2007-08
ended
|
NCP91 RS | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-12 → 2007-08
ended
|
NCP9#,SCP90 U,X | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 F | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-08 → 2007-08
ended
|
NCP91 RS | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-08 → 2007-08
ended
|
KSP90,NCP95,SCP90 F | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-01 → 2005-12
ended
|
NCP95,SCP90 U | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-01 → 2005-12
ended
|
NCP91 RS | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-08 → 2005-12
ended
|
NCP91 X | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2005-01 → 2005-12
ended
|
KSP90,NCP9#,SCP90 F,X | ¥77,000 | |
| 45130-52350-B0 note |
Button Assy, Horn
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥77,000 | |
| 45130-52350-E0 note |
Button Assy, Horn
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥77,000 | |
| 45130-52360-E0 note |
Button Assy, Horn
2007-08 → 2008-08
ended
|
NCP9#,SCP90 ILL | ¥77,000 | |
| 45130-52360-E0 note |
Button Assy, Horn
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 F,U | ¥77,000 | |
| 45130-52500-B0 note |
Button Assy, Horn
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥77,000 | |
| 45130-52510-B0 note |
Button Assy, Horn
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥77,000 | |
| 45130-52350-B0 note |
Button Assy, Horn
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥77,000 | |
| 45130-52350-E0 note |
Button Assy, Horn
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2009-02 → 2010-08
ended
|
KSP90,NCP95,SCP90 F | ¥77,000 | |
| 45130-52360-B0 note |
Button Assy, Horn
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,U | ¥77,000 | |
| 45130-52360-E0 note |
Button Assy, Horn
2009-02 → 2010-08
ended
|
KSP90,NCP95,SCP90 F | ¥77,000 | |
| 45130-52360-E0 note |
Button Assy, Horn
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 F,U | ¥77,000 | |
| 45130-52360-E0 note |
Button Assy, Horn
2008-08 → 2010-12
ended
|
NCP9#,SCP90 ILL | ¥77,000 | |
| 45130-52500-B0 note |
Button Assy, Horn
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥77,000 | |
| 45130-52510-B0 note |
Button Assy, Horn
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥77,000 | |
| 45184 — Cover, Steering Wheel Boss, Lower | ||||
| 45184-52090-B0 note |
Cover, Steering Wheel Boss, Lower
2005-12 → 2007-08
ended
|
KSP90,NCP95,SCP90 ILL | ¥2,150 | |
| 45184-52090-B0 note |
Cover, Steering Wheel Boss, Lower
2005-01 → 2007-08
ended
|
NCP91 RS | ¥2,150 | |
| 45184-52090-B0 note |
Cover, Steering Wheel Boss, Lower
2005-01 → 2005-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥2,150 | |
| 45184-52090-B0 note |
Cover, Steering Wheel Boss, Lower
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,U,X | ¥2,150 | |
| 45184-12340-B0 note |
Cover, Steering Wheel Boss, Lower
2007-08 → 2008-09
ended
|
NCP91 5F;SCP90 RS | ¥2,140 | |
| 45184-12350-B0 note |
Cover, Steering Wheel Boss, Lower
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥2,140 | |
| 45184-52090-B0 note |
Cover, Steering Wheel Boss, Lower
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥2,150 | |
| 45184-52090-E0 note |
Cover, Steering Wheel Boss, Lower
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,150 | |
| 45184-12340-B0 note |
Cover, Steering Wheel Boss, Lower
2008-09 → 2010-12
ended
|
NCP91 5F;SCP90 RS | ¥2,140 | |
| 45184-12350-B0 note |
Cover, Steering Wheel Boss, Lower
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥2,140 | |
| 45184-52090-B0 note |
Cover, Steering Wheel Boss, Lower
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,U | ¥2,150 | |
| 45184-52090-E0 note |
Cover, Steering Wheel Boss, Lower
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥2,150 | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-12020-B0 note |
Cover, Steering Wheel, Lower NO.2
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥320 | |
| 45186-12020-B0 note |
Cover, Steering Wheel, Lower NO.2
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥320 | |
| 45187 — Cover, Steering Wheel, Lower NO.3 | ||||
| 45187-12020-B0 note |
Cover, Steering Wheel, Lower NO.3
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥320 | |
| 45187-12020-B0 note |
Cover, Steering Wheel, Lower NO.3
2008-09 → 2010-12
ended
|
NCP91,SCP90 RS | ¥320 | |
| 45188 — Screw, Steering Wheel Pad Attaching | ||||
| 45188-60010 note |
Screw, Steering Wheel Pad Attaching
2005-08 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 45188-60010 note |
Screw, Steering Wheel Pad Attaching
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥160 | |
| 45188-60010 note |
Screw, Steering Wheel Pad Attaching
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥160 | |
| 45188-60010 note |
Screw, Steering Wheel Pad Attaching
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥160 | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥130 | |
| 90179-12071 |
Nut, Steering Wheel Set
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥130 | |
| 90179-12071 |
Nut, Steering Wheel Set
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥130 | |
| 90179-12071 |
Nut, Steering Wheel Set
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
