Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

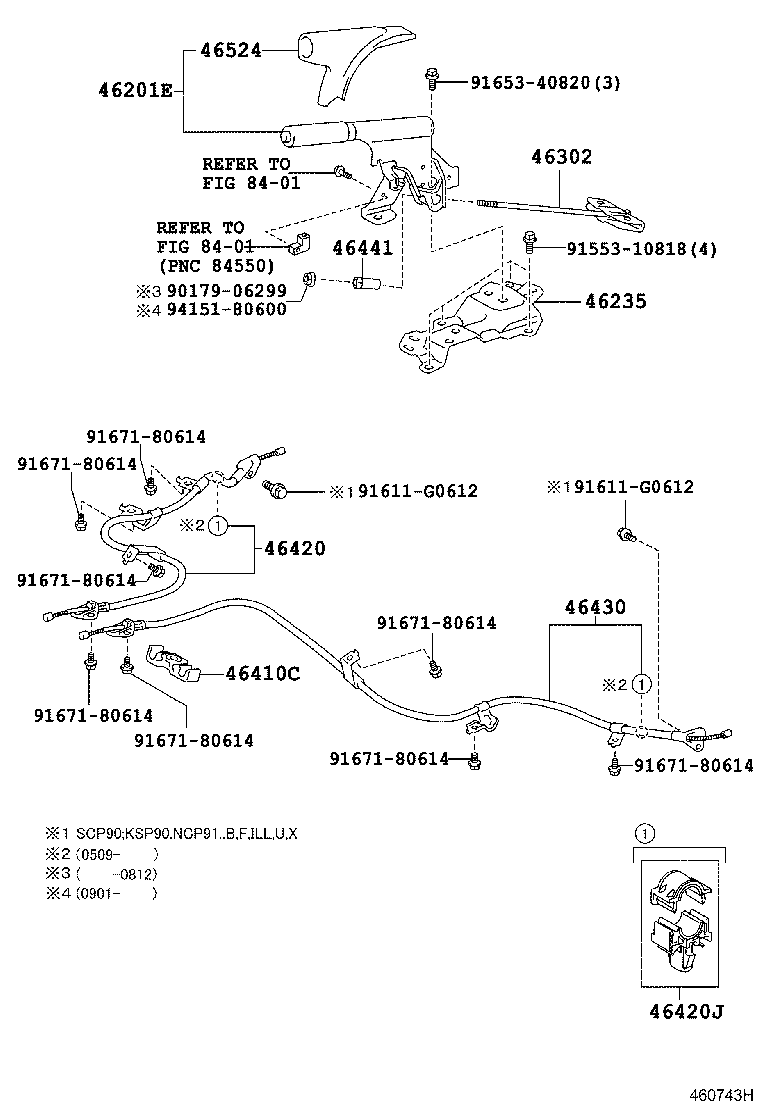

Exploded illustration 460743H 46201E — LEVER SUB-ASSY, PARKING BRAKE (23 parts) 46235 — BRACKET, PARKING BRAKE LEVER SUPPORT (6 parts) 46302 — ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 (4 parts) 46410C — CLAMP(FOR PARKING BRAKE FRONT CABLE) (4 parts) 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (13 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (4 parts) 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (13 parts) 46441 — NUT, WIRE ADJUSTING, NO.1 (4 parts) 46524 — COVER, PARKING BRAKE DUST (4 parts) 9017906299 — not listed in this catalogue 9415180600 — not listed in this catalogue 9155310818 — not listed in this catalogue 91611G0612 — not listed in this catalogue 91611G0612 — not listed in this catalogue 9165340820 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue
460743H · 9 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
46201E — Lever Sub-assy, Parking Brake
46201-52070-B0 note Lever Sub-assy, Parking Brake
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,U,X ¥8,200
46201-52080-B0 note Lever Sub-assy, Parking Brake
2005-12 → 2007-08 ended
KSP90,NCP95,SCP90 ILL ¥8,200
46201-52090-B0 note Lever Sub-assy, Parking Brake
2005-01 → 2007-08 ended
NCP91 RS ¥8,200
46201-52070-B0 note Lever Sub-assy, Parking Brake
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥8,200
46201-52070-B0 note Lever Sub-assy, Parking Brake
2007-08 → 2008-09 ended
SCP90 RS ¥8,200
46201-52070-E0 note Lever Sub-assy, Parking Brake
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,U ¥8,200
46201-52080-B0 note Lever Sub-assy, Parking Brake
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥8,200
46201-52080-B0 note Lever Sub-assy, Parking Brake
2008-01 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥8,200
46201-52080-E0 note Lever Sub-assy, Parking Brake
2007-08 → 2008-08 ended
NCP91,SCP90 ILL ¥8,200
46201-52080-E0 note Lever Sub-assy, Parking Brake
2008-01 → 2008-08 ended
NCP95 ILL ¥8,200
46201-52080-E0 note Lever Sub-assy, Parking Brake
2008-01 → 2008-08 ended
KSP90,NCP95,SCP90 F ¥8,200
46201-52080-E0 note Lever Sub-assy, Parking Brake
2007-08 → 2008-01 ended
NCP95 ILL ¥8,200
46201-52090-B0 note Lever Sub-assy, Parking Brake
2007-08 → 2008-09 ended
NCP91 RS ¥8,200
46201-52070-B0 note Lever Sub-assy, Parking Brake
2008-08 → 2010-12 ended
SCP90 F,RS,U;KSP90,NCP9# B,F,U ¥8,200
46201-52070-E0 note Lever Sub-assy, Parking Brake
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 B,F,U ¥8,200
46201-52080-B0 note Lever Sub-assy, Parking Brake
2008-08 → 2009-08 ended
KSP90,NCP95,SCP90 F ¥8,200
46201-52080-B0 note Lever Sub-assy, Parking Brake
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥8,200
46201-52080-B0 note Lever Sub-assy, Parking Brake
2009-08 → 2010-08 ended
KSP90 F ¥8,200
46201-52080-E0 note Lever Sub-assy, Parking Brake
2009-08 → 2010-08 ended
KSP90 F ¥8,200
46201-52080-E0 note Lever Sub-assy, Parking Brake
2008-08 → 2010-12 ended
NCP9#,SCP90 ILL ¥8,200
46201-52080-E0 note Lever Sub-assy, Parking Brake
2008-08 → 2009-08 ended
KSP90,NCP95,SCP90 F ¥8,200
46201-52080-E0 note Lever Sub-assy, Parking Brake
2009-08 → 2010-12 ended
NCP95,SCP90 F ¥8,200
46201-52090-B0 note Lever Sub-assy, Parking Brake
2008-09 → 2010-12 ended
NCP91 RS ¥8,200
46235 — Bracket, Parking Brake Lever Support
46235-52020 Bracket, Parking Brake Lever Support
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥1,360
46235-52030 Bracket, Parking Brake Lever Support
2005-01 → 2007-08 ended
NCP95 ¥1,600
46235-52020 Bracket, Parking Brake Lever Support
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥1,360
46235-52030 Bracket, Parking Brake Lever Support
2007-08 → 2008-08 ended
NCP95 ¥1,600
46235-52020 Bracket, Parking Brake Lever Support
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥1,360
46235-52030 Bracket, Parking Brake Lever Support
2008-08 → 2010-12 ended
NCP95 ¥1,600
46302 — Rod Sub-assy, Parking Brake Pull, NO.1
46302-52030 Rod Sub-assy, Parking Brake Pull, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥980
46302-52030 Rod Sub-assy, Parking Brake Pull, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥980
46302-52030 Rod Sub-assy, Parking Brake Pull, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥980
46302-52030 Rod Sub-assy, Parking Brake Pull, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥980
46410C — Clamp(FOR PARKING BRAKE FRONT CABLE)
46411-52030 Clamp(FOR PARKING BRAKE FRONT CABLE)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥430
46411-52030 Clamp(FOR PARKING BRAKE FRONT CABLE)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥430
46411-52030 Clamp(FOR PARKING BRAKE FRONT CABLE)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥430
46411-52030 Clamp(FOR PARKING BRAKE FRONT CABLE)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥430
46420 — Cable Assy, Parking Brake, NO.2
46420-52150 Cable Assy, Parking Brake, NO.2
2005-01 → 2005-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥4,930
46420-52151 Cable Assy, Parking Brake, NO.2
2005-09 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U,X ¥4,930
46420-52160 Cable Assy, Parking Brake, NO.2
2005-01 → 2005-08 ended
NCP91 RS ¥4,930
46420-52161 Cable Assy, Parking Brake, NO.2
2005-09 → 2007-08 ended
NCP91 RS ¥4,930
46420-52170 Cable Assy, Parking Brake, NO.2
2005-01 → 2005-08 ended
NCP95 ¥5,400
46420-52171 Cable Assy, Parking Brake, NO.2
2005-09 → 2007-08 ended
NCP95 ¥5,400
46420-52151 Cable Assy, Parking Brake, NO.2
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥4,930
46420-52151 Cable Assy, Parking Brake, NO.2
2007-08 → 2008-09 ended
SCP90 RS ¥4,930
46420-52161 Cable Assy, Parking Brake, NO.2
2007-08 → 2008-09 ended
NCP91 RS ¥4,930
46420-52171 Cable Assy, Parking Brake, NO.2
2007-08 → 2008-08 ended
NCP95 ¥5,400
46420-52151 Cable Assy, Parking Brake, NO.2
2008-08 → 2010-12 ended
SCP90;KSP90,NCP91 B,F,ILL,U ¥4,930
46420-52161 Cable Assy, Parking Brake, NO.2
2008-09 → 2010-12 ended
NCP91 RS ¥4,930
46420-52171 Cable Assy, Parking Brake, NO.2
2008-08 → 2010-12 ended
NCP95 ¥5,400
46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE)
46402-52010 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2005-09 → 2007-06 ended
KSP90,NCP9#,SCP90 ¥450
46402-52030 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2007-07 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥340
46402-52030 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 ¥340
46402-52030 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥340
46430 — Cable Assy, Parking Brake, NO.3
46430-52150 Cable Assy, Parking Brake, NO.3
2005-01 → 2005-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥4,780
46430-52151 Cable Assy, Parking Brake, NO.3
2005-09 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U,X ¥4,780
46430-52160 Cable Assy, Parking Brake, NO.3
2005-01 → 2005-08 ended
NCP91 RS ¥4,930
46430-52161 Cable Assy, Parking Brake, NO.3
2005-09 → 2007-08 ended
NCP91 RS ¥4,930
46430-52170 Cable Assy, Parking Brake, NO.3
2005-01 → 2005-08 ended
NCP95 ¥5,100
46430-52171 Cable Assy, Parking Brake, NO.3
2005-09 → 2007-08 ended
NCP95 ¥5,100
46430-52151 Cable Assy, Parking Brake, NO.3
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥4,780
46430-52151 Cable Assy, Parking Brake, NO.3
2007-08 → 2008-09 ended
SCP90 RS ¥4,780
46430-52161 Cable Assy, Parking Brake, NO.3
2007-08 → 2008-09 ended
NCP91 RS ¥4,930
46430-52171 Cable Assy, Parking Brake, NO.3
2007-08 → 2008-08 ended
NCP95 ¥5,100
46430-52151 Cable Assy, Parking Brake, NO.3
2008-08 → 2010-12 ended
SCP90;KSP90,NCP91 B,F,ILL,U ¥4,780
46430-52161 Cable Assy, Parking Brake, NO.3
2008-09 → 2010-12 ended
NCP91 RS ¥4,930
46430-52171 Cable Assy, Parking Brake, NO.3
2008-08 → 2010-12 ended
NCP95 ¥5,100
46441 — Nut, Wire Adjusting, NO.1
46441-52010 Nut, Wire Adjusting, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥190
46441-52010 Nut, Wire Adjusting, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥190
46441-52010 Nut, Wire Adjusting, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥190
46441-52010 Nut, Wire Adjusting, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥190
46524 — Cover, Parking Brake Dust
46524-52020 Cover, Parking Brake Dust
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,880
46524-52020 Cover, Parking Brake Dust
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,880
46524-52020 Cover, Parking Brake Dust
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,880
46524-52020 Cover, Parking Brake Dust
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,880
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
