Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 475132C 04479A — CYLINDER KIT, DISC BRAKE, REAR (5 parts) 04948 — FITTING KIT, DISC BRAKE, REAR (5 parts) 04466 — PAD KIT, DISC BRAKE, REAR (6 parts) 04946 — SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) (6 parts) 31478C — CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) (3 parts) 47547C — PLUG, BLEEDER(FOR REAR DISC BRAKE) (3 parts) 47716A — PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) (1 parts) 47717A — PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) (1 parts) 47721C — MOUNTING, REAR DISC BRAKE CYLINDER, RH (6 parts) 47722A — MOUNTING, REAR DISC BRAKE CYLINDER, LH (6 parts) 47731B — PISTON, REAR DISC BRAKE (3 parts) 47775D — BOOT, BUSH DUST(FOR REAR DISC BRAKE) (4 parts) 47775D — BOOT, BUSH DUST(FOR REAR DISC BRAKE) (4 parts) 47803 — COVER SUB-ASSY, DISC BRAKE DUST, REAR RH (4 parts) 47804 — COVER SUB-ASSY, DISC BRAKE DUST, REAR LH (4 parts) 47810A — BOLT, HEXAGON(FOR REAR CALIPER) (3 parts) 47814 — PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) (5 parts) 9010510404 — not listed in this catalogue 47730B — CYLINDER ASSY, REAR DISC BRAKE, RH (3 parts) 47750A — CYLINDER ASSY, DISC BRAKE, REAR LH (3 parts) 47815 — PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) (1 parts)

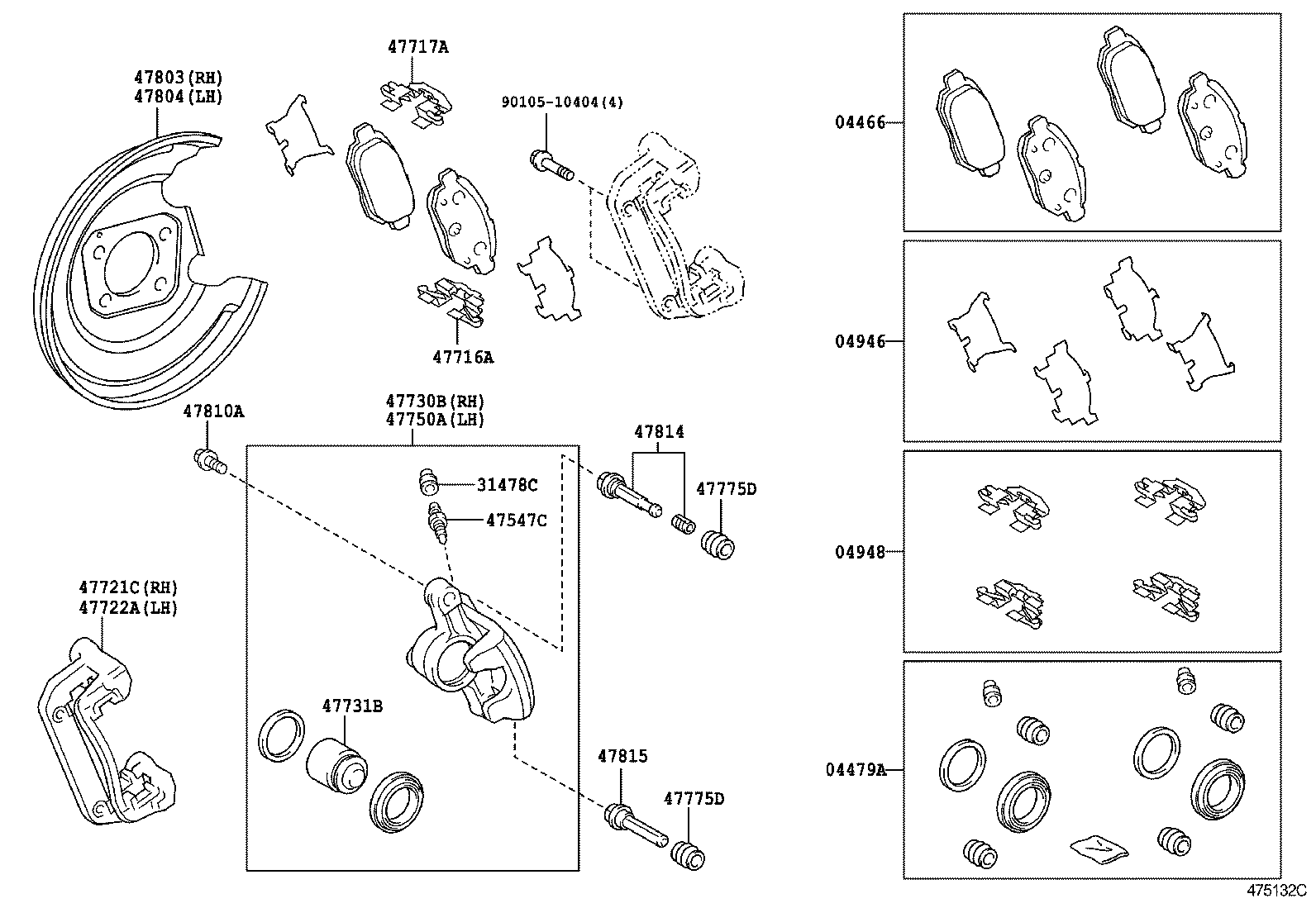

475132C · 20 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
04466 — Pad Kit, Disc Brake, Rear
04466-52070 note Pad Kit, Disc Brake, Rear
2005-01 → 2005-06 ended
NCP91 RS ¥7,900
04466-52110 note Pad Kit, Disc Brake, Rear
2005-06 → 2005-08 ended
NCP91 RS ¥7,900
04466-52120 note Pad Kit, Disc Brake, Rear
2005-08 → 2006-07 ended
NCP91 RS ¥6,800
04466-52130 note Pad Kit, Disc Brake, Rear
2006-08 → 2007-08 ended
NCP91 RS ¥7,900
04466-52130 note Pad Kit, Disc Brake, Rear
2007-08 → 2008-09 ended
NCP91 RS ¥7,900
04466-52130 note Pad Kit, Disc Brake, Rear
2008-09 → 2010-12 ended
NCP91 RS ¥7,900
04479A — Cylinder Kit, Disc Brake, Rear
04479-12230 Cylinder Kit, Disc Brake, Rear
2006-12 → 2007-08 ended
NCP91 RS ¥2,070
04479-52080 Cylinder Kit, Disc Brake, Rear
2005-01 → 2006-08 ended
NCP91 RS ¥2,060
04479-52230 Cylinder Kit, Disc Brake, Rear
2006-08 → 2006-12 ended
NCP91 RS ¥2,060
04479-52170 Cylinder Kit, Disc Brake, Rear
2007-08 → 2008-09 ended
NCP91 RS ¥1,620
04479-52170 Cylinder Kit, Disc Brake, Rear
2008-09 → 2010-12 ended
NCP91 RS ¥1,620
04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04946-52030 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2005-01 → 2005-06 ended
NCP91 RS ¥1,010
04946-52080 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2005-06 → 2005-07 ended
NCP91 RS ¥620
04946-52080 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2006-12 → 2007-08 ended
NCP91 RS ¥620
04946-52081 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2005-08 → 2006-11 ended
NCP91 RS ¥1,010
04946-52080 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2007-08 → 2008-09 ended
NCP91 RS ¥620
04946-52080 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2008-09 → 2010-12 ended
NCP91 RS ¥620
04948 — Fitting Kit, Disc Brake, Rear
04948-52010 Fitting Kit, Disc Brake, Rear
2005-01 → 2005-06 ended
NCP91 RS ¥1,670
04948-52030 Fitting Kit, Disc Brake, Rear
2005-06 → 2006-12 ended
NCP91 RS ¥1,670
04948-52040 Fitting Kit, Disc Brake, Rear
2006-12 → 2007-08 ended
NCP91 RS ¥1,670
04948-52040 Fitting Kit, Disc Brake, Rear
2007-08 → 2008-09 ended
NCP91 RS ¥1,670
04948-52040 Fitting Kit, Disc Brake, Rear
2008-09 → 2010-12 ended
NCP91 RS ¥1,670
31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE)
31478-52010 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2005-01 → 2007-08 ended
NCP91 RS ¥160
31478-52010 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2007-08 → 2008-09 ended
NCP91 RS ¥160
31478-52010 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2008-09 → 2010-12 ended
NCP91 RS ¥160
47547C — Plug, Bleeder(FOR REAR DISC BRAKE)
47847-52050 Plug, Bleeder(FOR REAR DISC BRAKE)
2005-01 → 2007-08 ended
NCP91 RS ¥220
47847-52050 Plug, Bleeder(FOR REAR DISC BRAKE)
2007-08 → 2008-09 ended
NCP91 RS ¥220
47847-52050 Plug, Bleeder(FOR REAR DISC BRAKE)
2008-09 → 2010-12 ended
NCP91 RS ¥220
47716A — Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47816-52050 Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
2005-01 → 2005-06 ended
NCP91 RS ¥440
47717A — Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
47817-52050 Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
2005-01 → 2005-06 ended
NCP91 RS ¥440
47721C — Mounting, Rear Disc Brake Cylinder, RH
47821-12150 Mounting, Rear Disc Brake Cylinder, RH
2006-12 → 2007-08 ended
NCP91 RS ¥5,200
47821-52050 Mounting, Rear Disc Brake Cylinder, RH
2005-01 → 2005-06 ended
NCP91 RS ¥7,400
47821-52051 Mounting, Rear Disc Brake Cylinder, RH
2005-06 → 2006-12 ended
NCP91 RS ¥7,400
47821-12150 Mounting, Rear Disc Brake Cylinder, RH
2007-08 → 2007-10 ended
NCP91 RS ¥5,200
47821-12151 Mounting, Rear Disc Brake Cylinder, RH
2007-10 → 2008-09 ended
NCP91 RS ¥5,200
47821-12151 Mounting, Rear Disc Brake Cylinder, RH
2008-09 → 2010-12 ended
NCP91 RS ¥5,200
47722A — Mounting, Rear Disc Brake Cylinder, LH
47821-12150 Mounting, Rear Disc Brake Cylinder, LH
2006-12 → 2007-08 ended
NCP91 RS ¥5,200
47821-52050 Mounting, Rear Disc Brake Cylinder, LH
2005-01 → 2005-06 ended
NCP91 RS ¥7,400
47821-52051 Mounting, Rear Disc Brake Cylinder, LH
2005-06 → 2006-12 ended
NCP91 RS ¥7,400
47821-12150 Mounting, Rear Disc Brake Cylinder, LH
2007-08 → 2007-10 ended
NCP91 RS ¥5,200
47821-12151 Mounting, Rear Disc Brake Cylinder, LH
2007-10 → 2008-09 ended
NCP91 RS ¥5,200
47821-12151 Mounting, Rear Disc Brake Cylinder, LH
2008-09 → 2010-12 ended
NCP91 RS ¥5,200
47730B — Cylinder Assy, Rear Disc Brake, RH
47830-52050 Cylinder Assy, Rear Disc Brake, RH
2005-01 → 2007-08 ended
NCP91 RS ¥44,500
47830-52090 Cylinder Assy, Rear Disc Brake, RH
2007-08 → 2008-09 ended
NCP91 RS ¥34,200
47830-52161 Cylinder Assy, Rear Disc Brake, RH
2008-09 → 2010-12 ended
NCP91 RS ¥28,400
47731B — Piston, Rear Disc Brake
47831-52050 Piston, Rear Disc Brake
2005-01 → 2007-08 ended
NCP91 RS ¥1,150
47831-52090 Piston, Rear Disc Brake
2007-08 → 2008-09 ended
NCP91 RS ¥670
47831-52090 Piston, Rear Disc Brake
2008-09 → 2010-12 ended
NCP91 RS ¥670
47750A — Cylinder Assy, Disc Brake, Rear LH
47850-52050 Cylinder Assy, Disc Brake, Rear LH
2005-01 → 2007-08 ended
NCP91 RS ¥44,500
47850-52090 Cylinder Assy, Disc Brake, Rear LH
2007-08 → 2008-09 ended
NCP91 RS ¥34,200
47850-52161 Cylinder Assy, Disc Brake, Rear LH
2008-09 → 2010-12 ended
NCP91 RS ¥28,400
47775D — Boot, Bush Dust(FOR REAR DISC BRAKE)
47875-12150 Boot, Bush Dust(FOR REAR DISC BRAKE)
2006-12 → 2007-08 ended
NCP91 RS ¥220
47875-52050 Boot, Bush Dust(FOR REAR DISC BRAKE)
2005-01 → 2006-12 ended
NCP91 RS ¥370
47875-12150 Boot, Bush Dust(FOR REAR DISC BRAKE)
2007-08 → 2008-09 ended
NCP91 RS ¥220
47875-12150 Boot, Bush Dust(FOR REAR DISC BRAKE)
2008-09 → 2010-12 ended
NCP91 RS ¥220
47803 — Cover Sub-assy, Disc Brake Dust, Rear RH
47803-52010 Cover Sub-assy, Disc Brake Dust, Rear RH
2005-01 → 2007-08 ended
NCP91 RS ¥1,980
47803-52010 Cover Sub-assy, Disc Brake Dust, Rear RH
2007-08 → 2007-10 ended
NCP91 RS ¥1,980
47803-52030 Cover Sub-assy, Disc Brake Dust, Rear RH
2007-10 → 2008-09 ended
NCP91 RS ¥1,650
47803-52030 Cover Sub-assy, Disc Brake Dust, Rear RH
2008-09 → 2010-12 ended
NCP91 RS ¥1,650
47804 — Cover Sub-assy, Disc Brake Dust, Rear LH
47804-52010 Cover Sub-assy, Disc Brake Dust, Rear LH
2005-01 → 2007-08 ended
NCP91 RS ¥1,980
47804-52010 Cover Sub-assy, Disc Brake Dust, Rear LH
2007-08 → 2007-10 ended
NCP91 RS ¥1,980
47804-52030 Cover Sub-assy, Disc Brake Dust, Rear LH
2007-10 → 2008-09 ended
NCP91 RS ¥1,650
47804-52030 Cover Sub-assy, Disc Brake Dust, Rear LH
2008-09 → 2010-12 ended
NCP91 RS ¥1,650
47810A — Bolt, Hexagon(FOR REAR CALIPER)
90015-AA102 Bolt, Hexagon(FOR REAR CALIPER)
2005-01 → 2007-08 ended
NCP91 RS ¥90
90015-AA102 Bolt, Hexagon(FOR REAR CALIPER)
2007-08 → 2008-09 ended
NCP91 RS ¥90
90015-AA102 Bolt, Hexagon(FOR REAR CALIPER)
2008-09 → 2010-12 ended
NCP91 RS ¥90
47814 — Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47835-12150 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2006-12 → 2007-08 ended
NCP91 RS ¥400
47835-52050 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2005-01 → 2005-06 ended
NCP91 RS ¥670
47835-52051 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2005-06 → 2006-12 ended
NCP91 RS ¥670
47835-12150 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2007-08 → 2008-09 ended
NCP91 RS ¥400
47835-12150 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2008-09 → 2010-12 ended
NCP91 RS ¥400
47815 — Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47815-52050 Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
2005-01 → 2005-06 ended
NCP91 RS ¥670
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
