Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

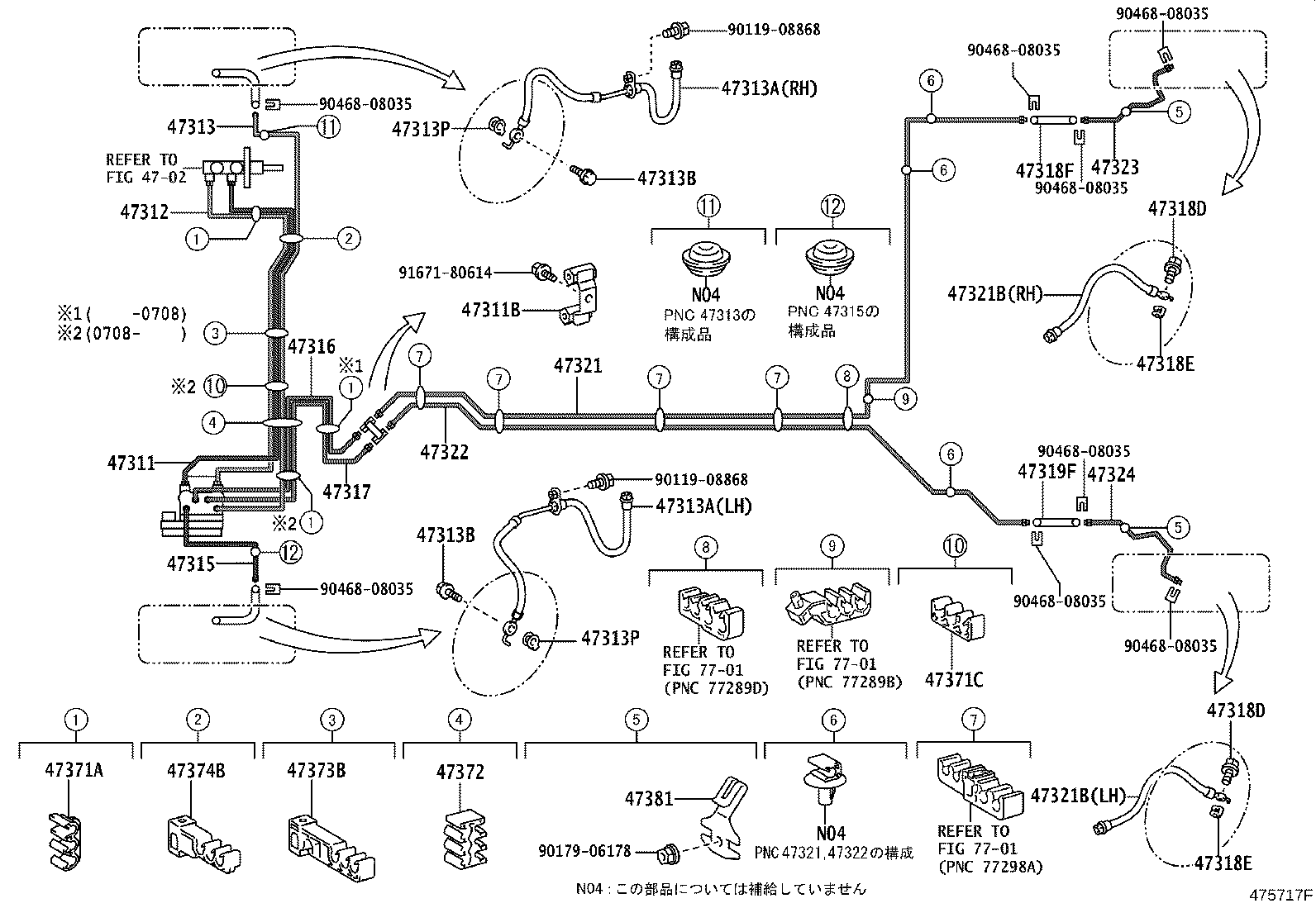

Exploded illustration 475717F 47311 — TUBE, FRONT BRAKE, NO.1 (10 parts) 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (4 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (10 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (10 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (8 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (8 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (3 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (10 parts) 47316 — TUBE, FRONT BRAKE, NO.6 (10 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (10 parts) 47371A — CLAMP, BRAKE TUBE, NO.1 (10 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (4 parts) 47373B — CLAMP, BRAKE TUBE, NO.3 (4 parts) 47374B — CLAMP, BRAKE TUBE, NO.4 (4 parts) 47381 — BRACKET, BRAKE TUBE CLAMP NO.1 (4 parts) 9011908868 — not listed in this catalogue 9011908868 — not listed in this catalogue 9167180614 — not listed in this catalogue 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47318F — HOSE, FLEXIBLE(FOR REAR RH) (7 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (7 parts) 47321B — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (3 parts) 47321B — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (3 parts) 47323 — TUBE, REAR BRAKE, NO.3 (10 parts) 47324 — TUBE, REAR BRAKE, NO.4 (10 parts) 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (3 parts) 47321 — TUBE, REAR BRAKE, NO.1 (10 parts) 47322 — TUBE, REAR BRAKE, NO.2 (10 parts) 9017906178 — not listed in this catalogue 47371C — CLAMP, BRAKE TUBE, NO.7 (3 parts) 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 4702 — not listed in this catalogue
475717F · 31 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
170 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-52221 Tube, Front Brake, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,300
47311-52231 note Tube, Front Brake, NO.1
2005-01 → 2007-08 ended
KSP90 B,F ¥1,300
47311-52231 note Tube, Front Brake, NO.1
2005-01 → 2007-08 ended
NCP91 RS ¥1,300
47311-52231 note Tube, Front Brake, NO.1
2007-08 → 2008-08 ended
KSP90 B,F ¥1,300
47311-52231 note Tube, Front Brake, NO.1
2007-08 → 2008-09 ended
NCP91 RS ¥1,300
47311-52370 Tube, Front Brake, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,090
47311-52370 Tube, Front Brake, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,090
47311-52231 note Tube, Front Brake, NO.1
2008-09 → 2010-12 ended
NCP91 RS ¥1,300
47311-52231 note Tube, Front Brake, NO.1
2008-08 → 2010-08 ended
KSP90 B,F ¥1,300
47311-52370 Tube, Front Brake, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,090
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10260 Way, NO.1(FOR FRONT BRAKE TUBE)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥810
90412-10260 Way, NO.1(FOR FRONT BRAKE TUBE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥810
90412-10260 Way, NO.1(FOR FRONT BRAKE TUBE)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥810
90412-10260 Way, NO.1(FOR FRONT BRAKE TUBE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥810
47312 — Tube, Front Brake, NO.2
47312-52201 Tube, Front Brake, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,090
47312-52211 note Tube, Front Brake, NO.2
2005-01 → 2007-08 ended
NCP91 RS ¥1,300
47312-52211 note Tube, Front Brake, NO.2
2005-01 → 2007-08 ended
KSP90 B,F ¥1,300
47312-52211 note Tube, Front Brake, NO.2
2007-08 → 2008-08 ended
KSP90 B,F ¥1,300
47312-52211 note Tube, Front Brake, NO.2
2007-08 → 2008-09 ended
NCP91 RS ¥1,300
47312-52330 Tube, Front Brake, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,300
47312-52330 Tube, Front Brake, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,300
47312-52211 note Tube, Front Brake, NO.2
2008-08 → 2010-08 ended
KSP90 B,F ¥1,300
47312-52211 note Tube, Front Brake, NO.2
2008-09 → 2010-12 ended
NCP91 RS ¥1,300
47312-52330 Tube, Front Brake, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,300
47313 — Tube, Front Brake, NO.3
47313-52110 Tube, Front Brake, NO.3
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,620
47313-52120 note Tube, Front Brake, NO.3
2005-01 → 2007-08 ended
KSP90 B,F ¥1,620
47313-52120 note Tube, Front Brake, NO.3
2005-01 → 2007-08 ended
NCP91 RS ¥1,620
47313-52120 note Tube, Front Brake, NO.3
2007-08 → 2008-08 ended
KSP90 B,F ¥1,620
47313-52120 note Tube, Front Brake, NO.3
2007-08 → 2008-09 ended
NCP91 RS ¥1,620
47313-52160 Tube, Front Brake, NO.3
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,620
47313-52160 Tube, Front Brake, NO.3
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,620
47313-52120 note Tube, Front Brake, NO.3
2008-08 → 2010-08 ended
KSP90 B,F ¥1,620
47313-52120 note Tube, Front Brake, NO.3
2008-09 → 2010-12 ended
NCP91 RS ¥1,620
47313-52160 Tube, Front Brake, NO.3
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,620
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02E07 note Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,310
90947-02E08 note Hose, Flexible, NO.1(FOR FRONT)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,310
90947-02E07 note Hose, Flexible, NO.1(FOR FRONT)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,310
90947-02E07 note Hose, Flexible, NO.1(FOR FRONT)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,310
90947-02E08 note Hose, Flexible, NO.1(FOR FRONT)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,310
90947-02E08 note Hose, Flexible, NO.1(FOR FRONT)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,310
90947-02E07 note Hose, Flexible, NO.1(FOR FRONT)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,310
90947-02E08 note Hose, Flexible, NO.1(FOR FRONT)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,310
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥220
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥220
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥220
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥280
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2007-08 → 2008-09 ended
KSP90,NCP9#,SCP90 ¥280
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥280
47315 — Tube, Front Brake, NO.5
47315-52140 Tube, Front Brake, NO.5
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥750
47315-52150 note Tube, Front Brake, NO.5
2005-01 → 2007-08 ended
KSP90 B,F ¥940
47315-52150 note Tube, Front Brake, NO.5
2005-01 → 2007-08 ended
NCP91 RS ¥940
47315-52150 note Tube, Front Brake, NO.5
2007-08 → 2008-08 ended
KSP90 B,F ¥940
47315-52150 note Tube, Front Brake, NO.5
2007-08 → 2008-09 ended
NCP91 RS ¥940
47315-52190 Tube, Front Brake, NO.5
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥750
47315-52190 Tube, Front Brake, NO.5
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥750
47315-52150 note Tube, Front Brake, NO.5
2008-08 → 2010-08 ended
KSP90 B,F ¥940
47315-52150 note Tube, Front Brake, NO.5
2008-09 → 2010-12 ended
NCP91 RS ¥940
47315-52190 Tube, Front Brake, NO.5
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥750
47316 — Tube, Front Brake, NO.6
47316-52100 Tube, Front Brake, NO.6
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥750
47316-52110 note Tube, Front Brake, NO.6
2005-01 → 2007-08 ended
KSP90 B,F ¥750
47316-52110 note Tube, Front Brake, NO.6
2005-01 → 2007-08 ended
NCP91 RS ¥750
47316-52110 note Tube, Front Brake, NO.6
2007-08 → 2008-08 ended
KSP90 B,F ¥750
47316-52110 note Tube, Front Brake, NO.6
2007-08 → 2008-09 ended
NCP91 RS ¥750
47316-52150 Tube, Front Brake, NO.6
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥750
47316-52150 Tube, Front Brake, NO.6
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥750
47316-52110 note Tube, Front Brake, NO.6
2008-08 → 2010-08 ended
KSP90 B,F ¥750
47316-52110 note Tube, Front Brake, NO.6
2008-09 → 2010-12 ended
NCP91 RS ¥750
47316-52150 Tube, Front Brake, NO.6
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥750
47317 — Tube, Front Brake, NO.7
47317-52100 Tube, Front Brake, NO.7
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥550
47317-52110 note Tube, Front Brake, NO.7
2005-01 → 2007-08 ended
KSP90 B,F ¥750
47317-52110 note Tube, Front Brake, NO.7
2005-01 → 2007-08 ended
NCP91 RS ¥750
47317-52110 note Tube, Front Brake, NO.7
2007-08 → 2008-08 ended
KSP90 B,F ¥750
47317-52110 note Tube, Front Brake, NO.7
2007-08 → 2008-09 ended
NCP91 RS ¥750
47317-52150 Tube, Front Brake, NO.7
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥750
47317-52150 Tube, Front Brake, NO.7
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥750
47317-52110 note Tube, Front Brake, NO.7
2008-08 → 2010-08 ended
KSP90 B,F ¥750
47317-52110 note Tube, Front Brake, NO.7
2008-09 → 2010-12 ended
NCP91 RS ¥750
47317-52150 Tube, Front Brake, NO.7
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥750
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2005-01 → 2007-08 ended
NCP91 RS ¥220
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2007-08 → 2008-09 ended
NCP91 RS ¥220
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2008-09 → 2010-12 ended
NCP91 RS ¥220
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2005-01 → 2007-08 ended
NCP91 RS ¥280
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2007-08 → 2008-09 ended
NCP91 RS ¥280
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2008-09 → 2010-12 ended
NCP91 RS ¥280
47318F — Hose, Flexible(FOR REAR RH)
90947-02E09 Hose, Flexible(FOR REAR RH)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥1,170
90947-02E12 Hose, Flexible(FOR REAR RH)
2005-01 → 2007-08 ended
NCP95 ¥1,290
90947-02E09 Hose, Flexible(FOR REAR RH)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥1,170
90947-02E09 Hose, Flexible(FOR REAR RH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,170
90947-02E12 Hose, Flexible(FOR REAR RH)
2007-08 → 2008-08 ended
NCP95 ¥1,290
90947-02E09 Hose, Flexible(FOR REAR RH)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥1,170
90947-02E12 Hose, Flexible(FOR REAR RH)
2008-08 → 2010-12 ended
NCP95 ¥1,290
47319F — Hose, Flexible(FOR REAR LH)
90947-02E10 Hose, Flexible(FOR REAR LH)
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥1,290
90947-02E13 Hose, Flexible(FOR REAR LH)
2005-01 → 2007-08 ended
NCP95 ¥1,290
90947-02E10 Hose, Flexible(FOR REAR LH)
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥1,290
90947-02E10 Hose, Flexible(FOR REAR LH)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,290
90947-02E13 Hose, Flexible(FOR REAR LH)
2007-08 → 2008-08 ended
NCP95 ¥1,290
90947-02E10 Hose, Flexible(FOR REAR LH)
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥1,290
90947-02E13 Hose, Flexible(FOR REAR LH)
2008-08 → 2010-12 ended
NCP95 ¥1,290
47321 — Tube, Rear Brake, NO.1
47321-52270 Tube, Rear Brake, NO.1
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥3,080
47321-52280 note Tube, Rear Brake, NO.1
2005-04 → 2007-08 ended
KSP90 B,F ¥3,430
47321-52290 Tube, Rear Brake, NO.1
2005-01 → 2005-07 ended
NCP95 ¥4,080
47321-52291 Tube, Rear Brake, NO.1
2005-08 → 2007-08 ended
NCP95 ¥4,260
47321-52270 Tube, Rear Brake, NO.1
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥3,080
47321-52280 note Tube, Rear Brake, NO.1
2007-08 → 2008-08 ended
KSP90 B,F ¥3,430
47321-52291 Tube, Rear Brake, NO.1
2007-08 → 2008-08 ended
NCP95 ¥4,260
47321-52270 Tube, Rear Brake, NO.1
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥3,080
47321-52280 note Tube, Rear Brake, NO.1
2008-08 → 2010-08 ended
KSP90 B,F ¥3,430
47321-52291 Tube, Rear Brake, NO.1
2008-08 → 2010-12 ended
NCP95 ¥4,260
47321B — Hose, Flexible(FOR REAR BRAKE TUBE)
90947-02E11 Hose, Flexible(FOR REAR BRAKE TUBE)
2005-01 → 2007-08 ended
NCP91 RS ¥1,290
90947-02E11 Hose, Flexible(FOR REAR BRAKE TUBE)
2007-08 → 2008-09 ended
NCP91 RS ¥1,290
90947-02E11 Hose, Flexible(FOR REAR BRAKE TUBE)
2008-09 → 2010-12 ended
NCP91 RS ¥1,290
47322 — Tube, Rear Brake, NO.2
47322-52250 Tube, Rear Brake, NO.2
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥2,530
47322-52260 note Tube, Rear Brake, NO.2
2005-04 → 2007-08 ended
KSP90 B,F ¥2,890
47322-52270 Tube, Rear Brake, NO.2
2005-01 → 2005-07 ended
NCP95 ¥3,070
47322-52271 Tube, Rear Brake, NO.2
2005-08 → 2007-08 ended
NCP95 ¥2,890
47322-52250 Tube, Rear Brake, NO.2
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 ¥2,530
47322-52260 note Tube, Rear Brake, NO.2
2007-08 → 2008-08 ended
KSP90 B,F ¥2,890
47322-52271 Tube, Rear Brake, NO.2
2007-08 → 2008-08 ended
NCP95 ¥2,890
47322-52250 Tube, Rear Brake, NO.2
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥2,530
47322-52260 note Tube, Rear Brake, NO.2
2008-08 → 2010-08 ended
KSP90 B,F ¥2,890
47322-52271 Tube, Rear Brake, NO.2
2008-08 → 2010-12 ended
NCP95 ¥2,890
47323 — Tube, Rear Brake, NO.3
47323-52100 Tube, Rear Brake, NO.3
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U,X ¥750
47323-52110 Tube, Rear Brake, NO.3
2005-01 → 2007-08 ended
NCP91 RS ¥550
47323-52120 Tube, Rear Brake, NO.3
2005-01 → 2007-08 ended
NCP95 ¥940
47323-52100 Tube, Rear Brake, NO.3
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥750
47323-52100 Tube, Rear Brake, NO.3
2007-08 → 2008-09 ended
SCP90 RS ¥750
47323-52110 Tube, Rear Brake, NO.3
2007-08 → 2008-09 ended
NCP91 RS ¥550
47323-52120 Tube, Rear Brake, NO.3
2007-08 → 2008-08 ended
NCP95 ¥940
47323-52100 Tube, Rear Brake, NO.3
2008-08 → 2010-12 ended
SCP90;KSP90,NCP91 B,F,ILL,U ¥750
47323-52110 Tube, Rear Brake, NO.3
2008-09 → 2010-12 ended
NCP91 RS ¥550
47323-52120 Tube, Rear Brake, NO.3
2008-08 → 2010-12 ended
NCP95 ¥940
47324 — Tube, Rear Brake, NO.4
47324-52090 Tube, Rear Brake, NO.4
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U,X ¥750
47324-52100 Tube, Rear Brake, NO.4
2005-01 → 2007-08 ended
NCP91 RS ¥550
47324-52110 Tube, Rear Brake, NO.4
2005-01 → 2007-08 ended
NCP95 ¥940
47324-52090 Tube, Rear Brake, NO.4
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥750
47324-52090 Tube, Rear Brake, NO.4
2007-08 → 2008-09 ended
SCP90 RS ¥750
47324-52100 Tube, Rear Brake, NO.4
2007-08 → 2008-09 ended
NCP91 RS ¥550
47324-52110 Tube, Rear Brake, NO.4
2007-08 → 2008-08 ended
NCP95 ¥940
47324-52090 Tube, Rear Brake, NO.4
2008-08 → 2010-12 ended
SCP90;KSP90,NCP91 B,F,ILL,U ¥750
47324-52100 Tube, Rear Brake, NO.4
2008-09 → 2010-12 ended
NCP91 RS ¥550
47324-52110 Tube, Rear Brake, NO.4
2008-08 → 2010-12 ended
NCP95 ¥940
47371A — Clamp, Brake Tube, NO.1
90464-00868 note Clamp, Brake Tube, NO.1
2005-01 → 2007-08 ended
KSP90 B,F ¥110
90464-00868 note Clamp, Brake Tube, NO.1
2005-01 → 2007-08 ended
NCP91 RS ¥110
90464-00868 Clamp, Brake Tube, NO.1
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥110
90464-00868 note Clamp, Brake Tube, NO.1
2007-08 → 2008-08 ended
KSP90 B,F ¥110
90464-00868 Clamp, Brake Tube, NO.1
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥110
90464-00868 note Clamp, Brake Tube, NO.1
2007-08 → 2008-09 ended
NCP91 RS ¥110
90464-00868 Clamp, Brake Tube, NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥110
90464-00868 note Clamp, Brake Tube, NO.1
2008-09 → 2010-12 ended
NCP91 RS ¥110
90464-00868 Clamp, Brake Tube, NO.1
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥110
90464-00868 note Clamp, Brake Tube, NO.1
2008-08 → 2010-08 ended
KSP90 B,F ¥110
47371C — Clamp, Brake Tube, NO.7
90464-00857 Clamp, Brake Tube, NO.7
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥110
90464-00857 Clamp, Brake Tube, NO.7
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥110
90464-00857 Clamp, Brake Tube, NO.7
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥110
47372 — Clamp, Brake Tube, NO.2
90949-01969 Clamp, Brake Tube, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥440
90949-01969 Clamp, Brake Tube, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥440
90949-01969 Clamp, Brake Tube, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥440
90949-01969 Clamp, Brake Tube, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥440
47373B — Clamp, Brake Tube, NO.3
90949-01D27 Clamp, Brake Tube, NO.3
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥170
90949-01D27 Clamp, Brake Tube, NO.3
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥170
90949-01D27 Clamp, Brake Tube, NO.3
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥170
90949-01D27 Clamp, Brake Tube, NO.3
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥170
47374B — Clamp, Brake Tube, NO.4
90949-01D02 Clamp, Brake Tube, NO.4
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥280
90949-01D02 Clamp, Brake Tube, NO.4
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥280
90949-01D02 Clamp, Brake Tube, NO.4
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥280
90949-01D02 Clamp, Brake Tube, NO.4
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥280
47381 — Bracket, Brake Tube Clamp NO.1
47381-52020 Bracket, Brake Tube Clamp NO.1
2005-01 → 2007-08 ended
KSP90,NCP91,SCP90 ¥200
47381-52020 Bracket, Brake Tube Clamp NO.1
2007-08 → 2008-08 ended
KSP90,NCP91,SCP90 B,F,ILL,U ¥200
47381-52020 Bracket, Brake Tube Clamp NO.1
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥200
47381-52020 Bracket, Brake Tube Clamp NO.1
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
