Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

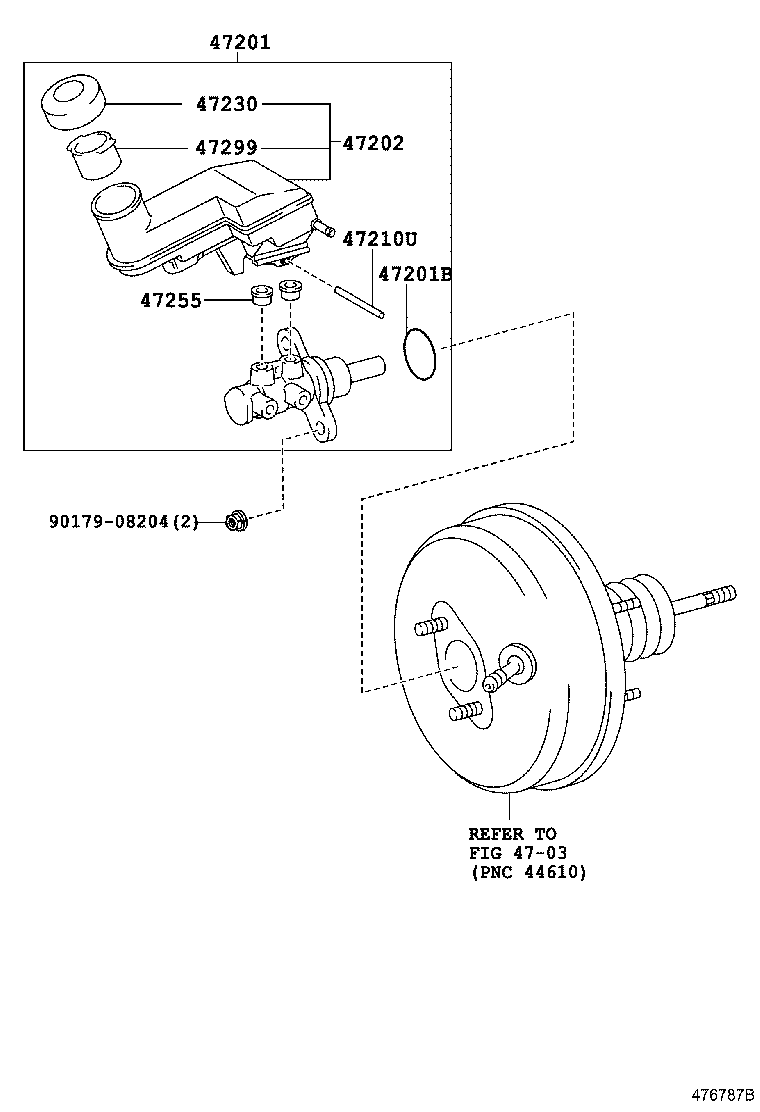

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-52250 |
Cylinder Sub-assy, Brake Master
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥28,900 | |
| 47201-52260 |
Cylinder Sub-assy, Brake Master
2005-01 → 2007-08
ended
|
NCP91 CVFC RS | ¥28,900 | |
| 47201-52280 |
Cylinder Sub-assy, Brake Master
2005-01 → 2007-08
ended
|
NCP91 5F | ¥28,900 | |
| 47201-52250 |
Cylinder Sub-assy, Brake Master
2007-08 → 2008-09
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥28,900 | |
| 47201-52260 |
Cylinder Sub-assy, Brake Master
2007-08 → 2008-09
ended
|
NCP91 CVFC RS | ¥28,900 | |
| 47201-52280 |
Cylinder Sub-assy, Brake Master
2007-08 → 2008-09
ended
|
NCP91 5F | ¥28,900 | |
| 47201-52250 |
Cylinder Sub-assy, Brake Master
2008-08 → 2010-12
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥28,900 | |
| 47201-52260 |
Cylinder Sub-assy, Brake Master
2008-09 → 2010-12
ended
|
NCP91 CVFC RS | ¥28,900 | |
| 47201-52280 |
Cylinder Sub-assy, Brake Master
2008-09 → 2010-08
ended
|
NCP91 5F | ¥28,900 | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH001 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥130 | |
| 90015-AH001 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥130 | |
| 90015-AH001 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥130 | |
| 90015-AH001 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥130 | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-52110 |
Reservoir Sub-assy, Brake Master Cylinder
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ATM | ¥9,600 | |
| 47220-52140 |
Reservoir Sub-assy, Brake Master Cylinder
2005-01 → 2007-08
ended
|
NCP91 5F | ¥9,600 | |
| 47220-52110 |
Reservoir Sub-assy, Brake Master Cylinder
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 ATM | ¥9,600 | |
| 47220-52140 |
Reservoir Sub-assy, Brake Master Cylinder
2007-08 → 2008-09
ended
|
NCP91 5F | ¥9,600 | |
| 47220-52110 |
Reservoir Sub-assy, Brake Master Cylinder
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥9,600 | |
| 47220-52140 |
Reservoir Sub-assy, Brake Master Cylinder
2008-09 → 2010-08
ended
|
NCP91 5F | ¥9,600 | |
| 47210U — Pin, Straight(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AE401 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥240 | |
| 90015-AE401 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥240 | |
| 90015-AE401 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥240 | |
| 90015-AE401 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥240 | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-52030 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,360 | |
| 47230-52030 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,360 | |
| 47230-52030 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,360 | |
| 47230-33071 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2010-05 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥1,360 | |
| 47230-33071 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2008-09 → 2010-12
ended
|
NCP91 5F | ¥1,360 | |
| 47230-33071 note |
Cap Assy, Brake Master Cylinder Reservoir Filler
2008-08 → 2010-05
ended
|
KSP90 B,F | ¥1,360 | |
| 47230-52030 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2008-08 → 2010-05
ended
|
KSP90,NCP9#,SCP90 ATM | ¥1,360 | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 90015-AT001 |
Grommet, Master Cylinder Reservoir
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥520 | |
| 90015-AT001 |
Grommet, Master Cylinder Reservoir
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥520 | |
| 90015-AT001 |
Grommet, Master Cylinder Reservoir
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥520 | |
| 90015-AT001 |
Grommet, Master Cylinder Reservoir
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥520 | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-52110 |
Strainer, Brake Master Cylinder Reservoir
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥390 | |
| 47299-52110 |
Strainer, Brake Master Cylinder Reservoir
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥390 | |
| 47299-52110 |
Strainer, Brake Master Cylinder Reservoir
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥390 | |
| 47299-52110 |
Strainer, Brake Master Cylinder Reservoir
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
