Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

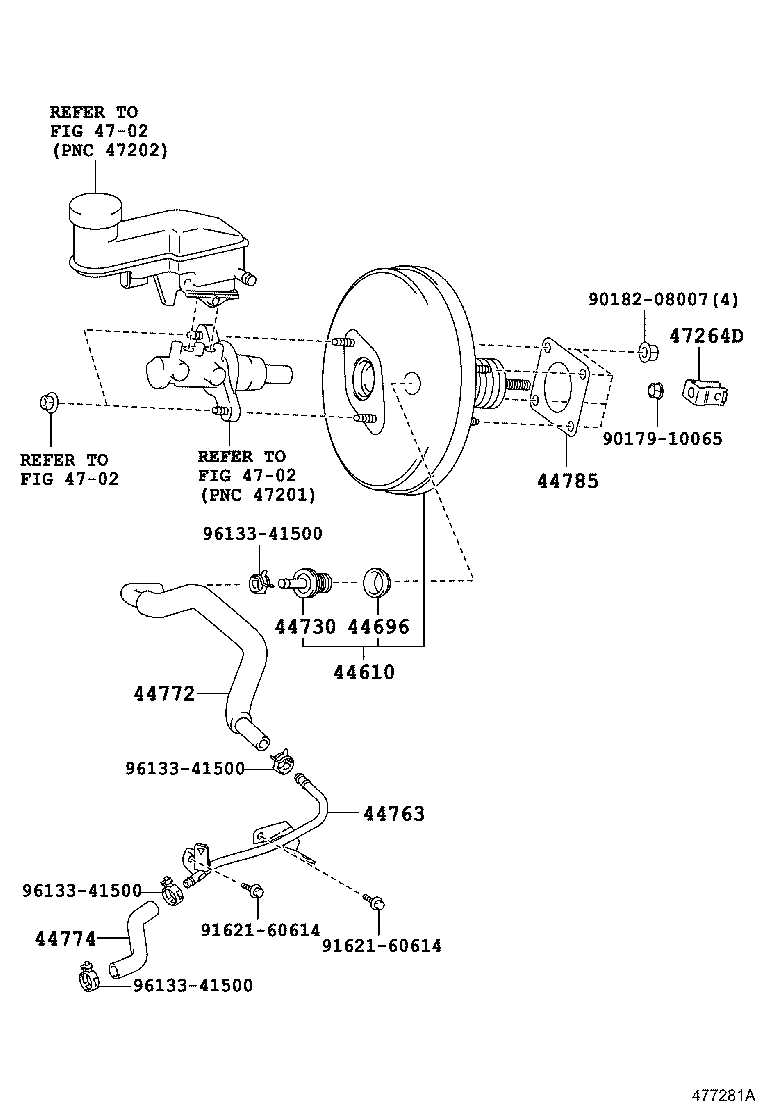

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-52370 |
Booster Assy, Brake
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥46,600 | |
| 44610-52380 note |
Booster Assy, Brake
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥46,600 | |
| 44610-52390 |
Booster Assy, Brake
2005-01 → 2007-08
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52400 note |
Booster Assy, Brake
2005-01 → 2007-08
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52370 |
Booster Assy, Brake
2007-08 → 2008-09
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥46,600 | |
| 44610-52380 note |
Booster Assy, Brake
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥46,600 | |
| 44610-52390 |
Booster Assy, Brake
2007-08 → 2008-09
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52400 note |
Booster Assy, Brake
2007-08 → 2008-09
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52370 |
Booster Assy, Brake
2008-08 → 2010-12
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥46,600 | |
| 44610-52380 note |
Booster Assy, Brake
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥46,600 | |
| 44610-52390 |
Booster Assy, Brake
2008-09 → 2010-12
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52400 note |
Booster Assy, Brake
2008-09 → 2010-12
ended
|
NCP91 RS | ¥46,600 | |
| 44696 — Grommet, Check Valve | ||||
| 90480-24015 |
Grommet, Check Valve
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥130 | |
| 90480-24015 |
Grommet, Check Valve
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥130 | |
| 90480-24015 |
Grommet, Check Valve
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥130 | |
| 90480-24015 |
Grommet, Check Valve
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥130 | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-28030 |
Valve Assy, Vacuum Check(FOR BRAKE)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,360 | |
| 44730-28030 |
Valve Assy, Vacuum Check(FOR BRAKE)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,360 | |
| 44730-28030 |
Valve Assy, Vacuum Check(FOR BRAKE)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,360 | |
| 44730-28030 |
Valve Assy, Vacuum Check(FOR BRAKE)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,360 | |
| 44763 — Tube, Booster Vacuum | ||||
| 44763-52030 |
Tube, Booster Vacuum
2005-01 → 2007-08
ended
|
NCP91 | ¥1,200 | |
| 44763-52080 |
Tube, Booster Vacuum
2005-01 → 2007-08
ended
|
NCP95 | ¥1,600 | |
| 44763-52030 |
Tube, Booster Vacuum
2007-08 → 2008-09
ended
|
NCP91 RS | ¥1,200 | |
| 44763-52030 |
Tube, Booster Vacuum
2007-08 → 2008-08
ended
|
NCP91 ILL,U | ¥1,200 | |
| 44763-52080 |
Tube, Booster Vacuum
2007-08 → 2008-08
ended
|
NCP95 | ¥1,600 | |
| 44763-52030 |
Tube, Booster Vacuum
2008-08 → 2010-12
ended
|
NCP91 | ¥1,200 | |
| 44763-52080 |
Tube, Booster Vacuum
2008-08 → 2010-12
ended
|
NCP95 | ¥1,600 | |
| 44772 — Hose, Check Valve TO Connector Tube | ||||
| 44772-52050 |
Hose, Check Valve TO Connector Tube
2005-01 → 2007-08
ended
|
NCP95 | ¥3,400 | |
| 44772-52060 |
Hose, Check Valve TO Connector Tube
2005-01 → 2007-08
ended
|
NCP91 | ¥2,980 | |
| 44772-52050 |
Hose, Check Valve TO Connector Tube
2007-08 → 2008-08
ended
|
NCP95 | ¥3,400 | |
| 44772-52060 |
Hose, Check Valve TO Connector Tube
2007-08 → 2008-08
ended
|
NCP91 ILL,U | ¥2,980 | |
| 44772-52060 |
Hose, Check Valve TO Connector Tube
2007-08 → 2008-09
ended
|
NCP91 RS | ¥2,980 | |
| 44772-52050 |
Hose, Check Valve TO Connector Tube
2008-08 → 2010-12
ended
|
NCP95 | ¥3,400 | |
| 44772-52060 |
Hose, Check Valve TO Connector Tube
2008-08 → 2010-12
ended
|
NCP91 | ¥2,980 | |
| 44774 — Hose, Union TO Connector Tube | ||||
| 44774-52070 |
Hose, Union TO Connector Tube
2005-01 → 2007-08
ended
|
NCP91 | ¥400 | |
| 95446-09130 |
Hose, Union TO Connector Tube
2005-01 → 2007-08
ended
|
NCP95 | ¥460 | |
| 44774-52070 |
Hose, Union TO Connector Tube
2007-08 → 2008-08
ended
|
NCP91 ILL,U | ¥400 | |
| 44774-52070 |
Hose, Union TO Connector Tube
2007-08 → 2008-09
ended
|
NCP91 RS | ¥400 | |
| 95446-09130 |
Hose, Union TO Connector Tube
2007-08 → 2008-08
ended
|
NCP95 | ¥460 | |
| 44774-52070 |
Hose, Union TO Connector Tube
2008-08 → 2010-12
ended
|
NCP91 | ¥400 | |
| 95446-09130 |
Hose, Union TO Connector Tube
2008-08 → 2010-12
ended
|
NCP95 | ¥460 | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-16020 |
Gasket, Brake Booster
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥220 | |
| 44785-16020 |
Gasket, Brake Booster
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥220 | |
| 44785-16020 |
Gasket, Brake Booster
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥220 | |
| 44785-16020 |
Gasket, Brake Booster
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥220 | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-12060 |
Clevis, Brake Master Cylinder Push Rod
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥250 | |
| 47264-12060 |
Clevis, Brake Master Cylinder Push Rod
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥250 | |
| 47264-12060 |
Clevis, Brake Master Cylinder Push Rod
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥250 | |
| 47264-12060 |
Clevis, Brake Master Cylinder Push Rod
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥250 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
