Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

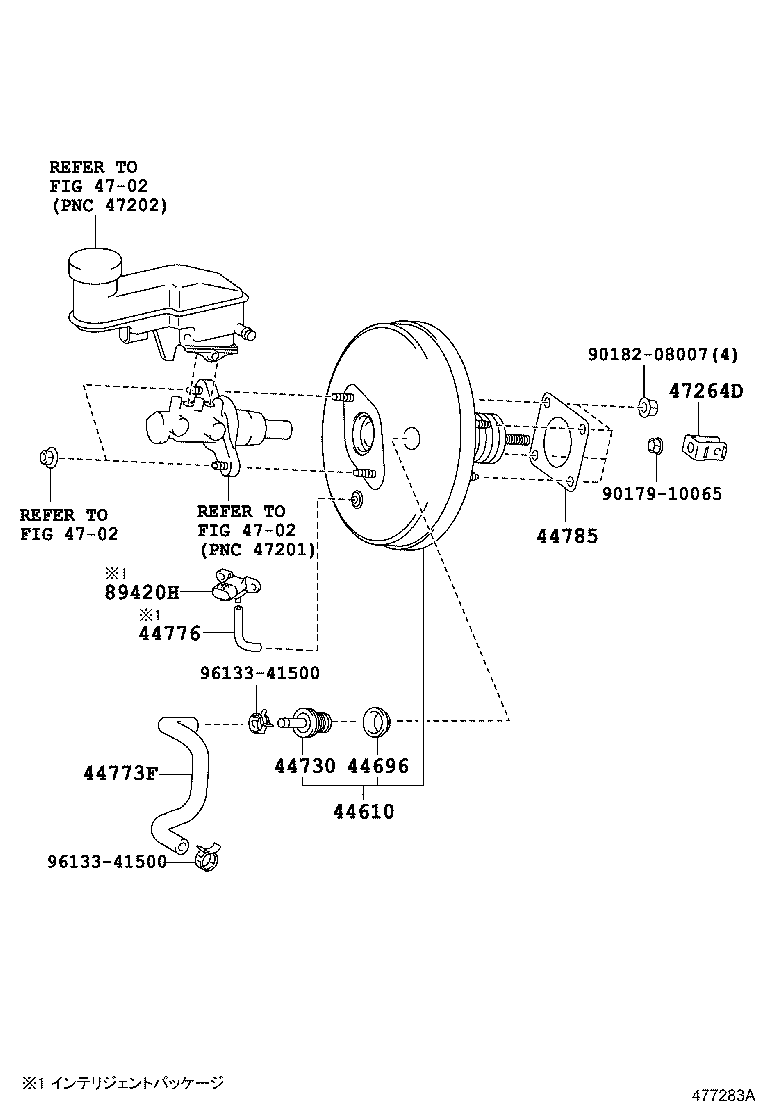

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-52370 |
Booster Assy, Brake
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U,X | ¥46,600 | |
| 44610-52380 note |
Booster Assy, Brake
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥46,600 | |
| 44610-52390 |
Booster Assy, Brake
2005-01 → 2007-08
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52400 note |
Booster Assy, Brake
2005-01 → 2007-08
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52370 |
Booster Assy, Brake
2007-08 → 2008-09
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥46,600 | |
| 44610-52380 note |
Booster Assy, Brake
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥46,600 | |
| 44610-52390 |
Booster Assy, Brake
2007-08 → 2008-09
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52400 note |
Booster Assy, Brake
2007-08 → 2008-09
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52370 |
Booster Assy, Brake
2008-08 → 2010-12
ended
|
SCP90;KSP90,NCP9# B,F,ILL,U | ¥46,600 | |
| 44610-52380 note |
Booster Assy, Brake
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥46,600 | |
| 44610-52390 |
Booster Assy, Brake
2008-09 → 2010-12
ended
|
NCP91 RS | ¥46,600 | |
| 44610-52400 note |
Booster Assy, Brake
2008-09 → 2010-12
ended
|
NCP91 RS | ¥46,600 | |
| 44696 — Grommet, Check Valve | ||||
| 90480-24015 |
Grommet, Check Valve
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥130 | |
| 90480-24015 |
Grommet, Check Valve
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥130 | |
| 90480-24015 |
Grommet, Check Valve
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥130 | |
| 90480-24015 |
Grommet, Check Valve
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥130 | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-28030 |
Valve Assy, Vacuum Check(FOR BRAKE)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥1,360 | |
| 44730-28030 |
Valve Assy, Vacuum Check(FOR BRAKE)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥1,360 | |
| 44730-28030 |
Valve Assy, Vacuum Check(FOR BRAKE)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥1,360 | |
| 44730-28030 |
Valve Assy, Vacuum Check(FOR BRAKE)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥1,360 | |
| 44773F — Hose, Union TO Check Valve | ||||
| 44773-52170 |
Hose, Union TO Check Valve
2005-01 → 2007-08
ended
|
KSP90 | ¥1,550 | |
| 44773-52180 |
Hose, Union TO Check Valve
2005-01 → 2007-08
ended
|
SCP90 | ¥1,790 | |
| 44773-52170 |
Hose, Union TO Check Valve
2007-08 → 2008-08
ended
|
KSP90 | ¥1,550 | |
| 44773-52180 |
Hose, Union TO Check Valve
2007-08 → 2008-09
ended
|
SCP90 | ¥1,790 | |
| 44773-52170 |
Hose, Union TO Check Valve
2008-08 → 2010-12
ended
|
KSP90 | ¥1,550 | |
| 44773-52180 |
Hose, Union TO Check Valve
2008-08 → 2010-12
ended
|
SCP90 | ¥1,790 | |
| 44776 — Hose, Brake Booster | ||||
| 90999-92002 note |
Hose, Brake Booster
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥460 | |
| 90999-92002 note |
Hose, Brake Booster
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥460 | |
| 90999-92002 note |
Hose, Brake Booster
2008-08 → 2010-08
ended
|
KSP90 B,F | ¥460 | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-16020 |
Gasket, Brake Booster
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥220 | |
| 44785-16020 |
Gasket, Brake Booster
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥220 | |
| 44785-16020 |
Gasket, Brake Booster
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥220 | |
| 44785-16020 |
Gasket, Brake Booster
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥220 | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-12060 |
Clevis, Brake Master Cylinder Push Rod
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥250 | |
| 47264-12060 |
Clevis, Brake Master Cylinder Push Rod
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥250 | |
| 47264-12060 |
Clevis, Brake Master Cylinder Push Rod
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥250 | |
| 47264-12060 |
Clevis, Brake Master Cylinder Push Rod
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥250 | |
| 89420H — Sensor Assy, Vacuum | ||||
| 89420-52040 note |
Sensor Assy, Vacuum
2005-04 → 2007-08
ended
|
KSP90 B,F | ¥9,300 | |
| 89420-52040 note |
Sensor Assy, Vacuum
2007-08 → 2008-08
ended
|
KSP90 B,F | ¥9,300 | |
| 89420-52040 note |
Sensor Assy, Vacuum
2008-08 → 2010-07
ended
|
KSP90 B,F | ¥9,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
