Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

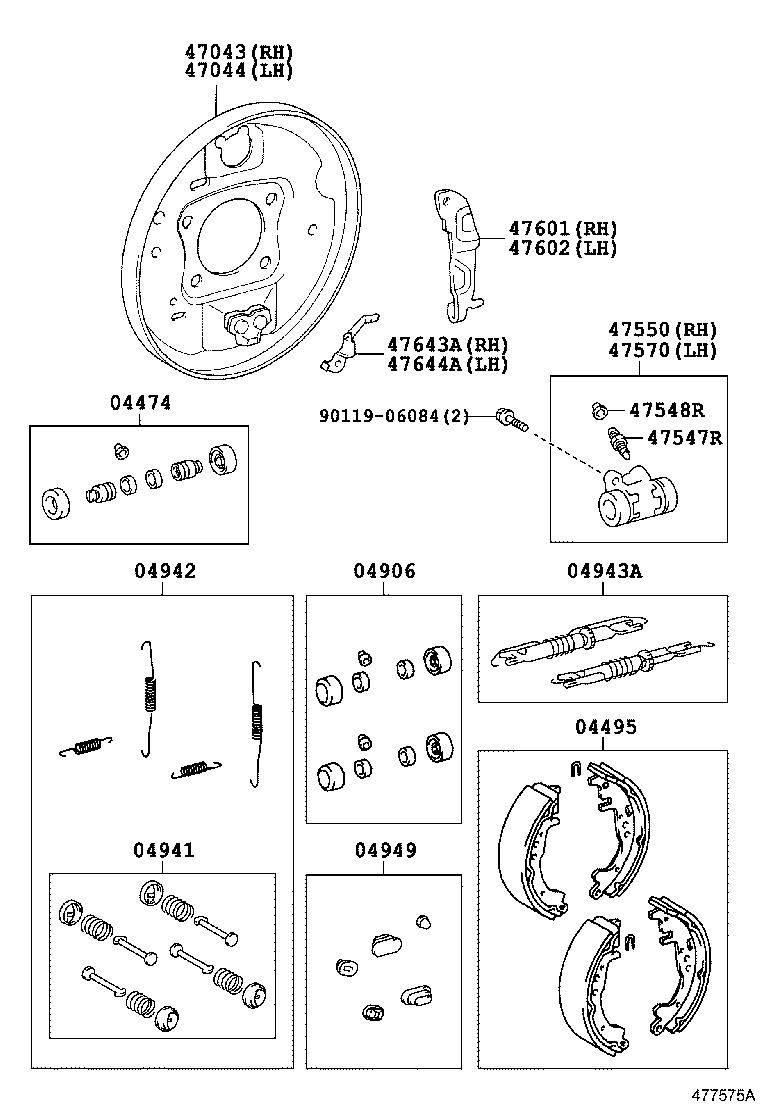

Exploded illustration 477575A 04495 — SHOE KIT, REAR BRAKE (6 parts) 04942 — SPRING KIT, REAR BRAKE (4 parts) 04941 — SPRING KIT, REAR BRAKE SHOE HOLD DOWN (4 parts) 04949 — PLUG KIT, REAR BRAKE (4 parts) 04943A — STRUT KIT, REAR BRAKE (4 parts) 47644A — LEVER, REAR BRAKE AUTOMATIC ADJUST, LH (4 parts) 47643A — LEVER, REAR BRAKE AUTOMATIC ADJUST, RH (4 parts) 47044 — PLATE SUB-ASSY, BRAKE BACKING, REAR LH (4 parts) 47043 — PLATE SUB-ASSY, BRAKE BACKING, REAR RH (4 parts) 47602 — LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) (4 parts) 47601 — LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) (4 parts) 04906 — CUP KIT, REAR WHEEL CYLINDER (4 parts) 47547R — PLUG, BLEEDER(FOR DRUM BRAKE, REAR) (4 parts) 04474 — CYLINDER KIT, REAR WHEEL (3 parts) 9011906084 — not listed in this catalogue 47548R — CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) (3 parts) 47550 — CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) (4 parts) 47570 — CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) (4 parts)
477575A · 17 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
04474 — Cylinder Kit, Rear Wheel
04474-52020 Cylinder Kit, Rear Wheel
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,730
04474-52020 Cylinder Kit, Rear Wheel
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,730
04474-52020 Cylinder Kit, Rear Wheel
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥1,730
04495 — Shoe Kit, Rear Brake
04495-52090 note Shoe Kit, Rear Brake
2005-01 → 2005-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥6,300
04495-52100 note Shoe Kit, Rear Brake
2005-01 → 2007-08 ended
NCP95;KSP90,SCP90 ILL ¥6,300
04495-52100 note Shoe Kit, Rear Brake
2005-08 → 2007-08 ended
KSP90,NCP91,SCP90 B,F,U,X ¥6,300
04495-52100 note Shoe Kit, Rear Brake
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥6,300
04495-52100 note Shoe Kit, Rear Brake
2007-08 → 2008-09 ended
SCP90 RS ¥6,300
04495-52100 note Shoe Kit, Rear Brake
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥6,300
04906 — Cup Kit, Rear Wheel Cylinder
04906-10021 Cup Kit, Rear Wheel Cylinder
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥870
04906-10021 Cup Kit, Rear Wheel Cylinder
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥870
04906-10021 Cup Kit, Rear Wheel Cylinder
2007-08 → 2008-09 ended
SCP90 RS ¥870
04906-10021 Cup Kit, Rear Wheel Cylinder
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥870
04941 — Spring Kit, Rear Brake Shoe Hold Down
04941-46010 Spring Kit, Rear Brake Shoe Hold Down
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥1,690
04941-46010 Spring Kit, Rear Brake Shoe Hold Down
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,690
04941-46010 Spring Kit, Rear Brake Shoe Hold Down
2007-08 → 2008-09 ended
SCP90 RS ¥1,690
04941-46010 Spring Kit, Rear Brake Shoe Hold Down
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥1,690
04942 — Spring Kit, Rear Brake
04942-52050 Spring Kit, Rear Brake
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,060
04942-52050 Spring Kit, Rear Brake
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,060
04942-52050 Spring Kit, Rear Brake
2007-08 → 2008-09 ended
SCP90 RS ¥2,060
04942-52050 Spring Kit, Rear Brake
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥2,060
04943A — Strut Kit, Rear Brake
04943-12010 Strut Kit, Rear Brake
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,730
04943-12010 Strut Kit, Rear Brake
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,730
04943-12010 Strut Kit, Rear Brake
2007-08 → 2008-09 ended
SCP90 RS ¥2,730
04943-12010 Strut Kit, Rear Brake
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥2,730
04949 — Plug Kit, Rear Brake
04949-12010 Plug Kit, Rear Brake
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥800
04949-12010 Plug Kit, Rear Brake
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥800
04949-12010 Plug Kit, Rear Brake
2007-08 → 2008-09 ended
SCP90 RS ¥800
04949-12010 Plug Kit, Rear Brake
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥800
47043 — Plate Sub-assy, Brake Backing, Rear RH
47043-52100 Plate Sub-assy, Brake Backing, Rear RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,370
47043-52100 Plate Sub-assy, Brake Backing, Rear RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,370
47043-52100 Plate Sub-assy, Brake Backing, Rear RH
2007-08 → 2008-09 ended
SCP90 RS ¥2,370
47043-52100 Plate Sub-assy, Brake Backing, Rear RH
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥2,370
47044 — Plate Sub-assy, Brake Backing, Rear LH
47044-52100 Plate Sub-assy, Brake Backing, Rear LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥2,370
47044-52100 Plate Sub-assy, Brake Backing, Rear LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,370
47044-52100 Plate Sub-assy, Brake Backing, Rear LH
2007-08 → 2008-09 ended
SCP90 RS ¥2,370
47044-52100 Plate Sub-assy, Brake Backing, Rear LH
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥2,370
47547R — Plug, Bleeder(FOR DRUM BRAKE, REAR)
47547-20010 Plug, Bleeder(FOR DRUM BRAKE, REAR)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥200
47547-20010 Plug, Bleeder(FOR DRUM BRAKE, REAR)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥200
47547-20010 Plug, Bleeder(FOR DRUM BRAKE, REAR)
2007-08 → 2008-09 ended
SCP90 RS ¥200
47547-20010 Plug, Bleeder(FOR DRUM BRAKE, REAR)
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥200
47548R — Cap, Bleeder Plug(FOR DRUM BRAKE, REAR)
31478-30010 Cap, Bleeder Plug(FOR DRUM BRAKE, REAR)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥160
31478-30010 Cap, Bleeder Plug(FOR DRUM BRAKE, REAR)
2007-08 → 2008-09 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥160
31478-30010 Cap, Bleeder Plug(FOR DRUM BRAKE, REAR)
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥160
47550 — Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
47550-20211 Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥3,130
47550-20211 Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,130
47550-20211 Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
2007-08 → 2008-09 ended
SCP90 RS ¥3,130
47550-20211 Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥3,130
47570 — Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
47570-20101 Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥3,130
47570-20101 Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥3,130
47570-20101 Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
2007-08 → 2008-09 ended
SCP90 RS ¥3,130
47570-20101 Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥3,130
47601 — Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
47601-52100 Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥580
47601-52100 Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥580
47601-52100 Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
2007-08 → 2008-09 ended
SCP90 RS ¥580
47601-52100 Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥580
47602 — Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
47602-52100 Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥580
47602-52100 Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥580
47602-52100 Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
2007-08 → 2008-09 ended
SCP90 RS ¥580
47602-52100 Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥580
47643A — Lever, Rear Brake Automatic Adjust, RH
47643-47010 Lever, Rear Brake Automatic Adjust, RH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥200
47643-47010 Lever, Rear Brake Automatic Adjust, RH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥200
47643-47010 Lever, Rear Brake Automatic Adjust, RH
2007-08 → 2008-09 ended
SCP90 RS ¥200
47643-47010 Lever, Rear Brake Automatic Adjust, RH
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥200
47644A — Lever, Rear Brake Automatic Adjust, LH
47644-47010 Lever, Rear Brake Automatic Adjust, LH
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U,X ¥200
47644-47010 Lever, Rear Brake Automatic Adjust, LH
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥200
47644-47010 Lever, Rear Brake Automatic Adjust, LH
2007-08 → 2008-09 ended
SCP90 RS ¥200
47644-47010 Lever, Rear Brake Automatic Adjust, LH
2008-08 → 2010-12 ended
SCP90;KSP90,NCP9# B,F,ILL,U ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
