Toyota Vitz
2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan
Supported model
Data version 2011-04

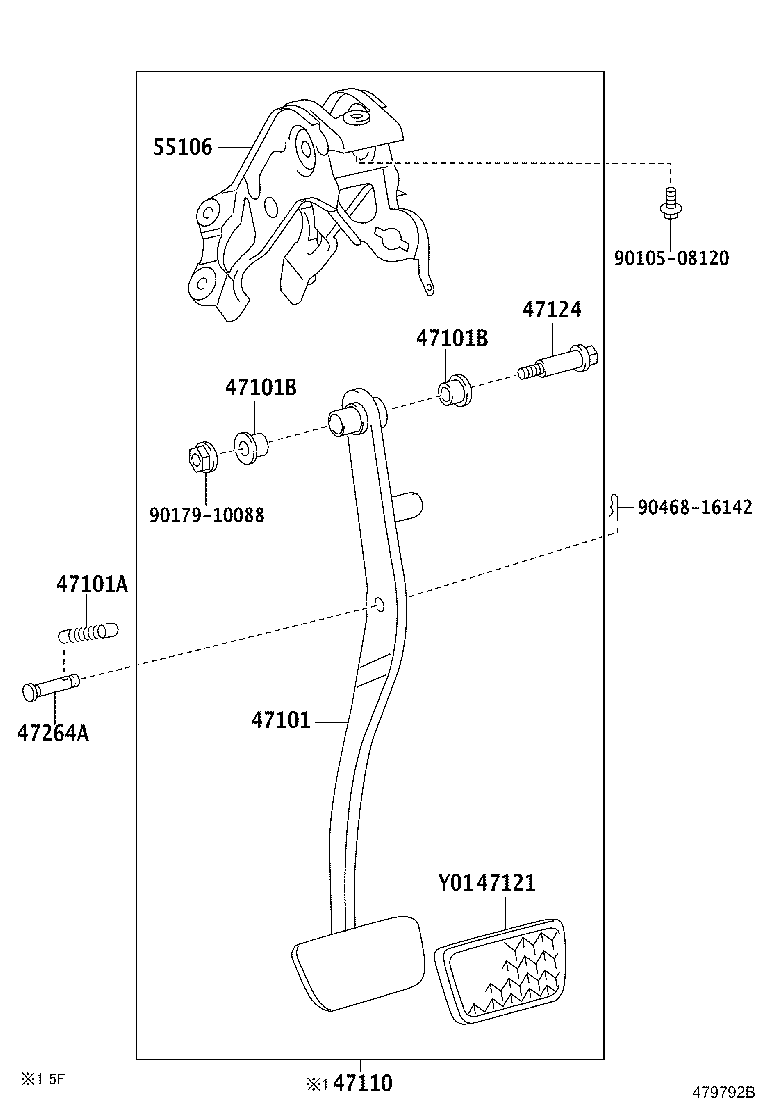

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101 — Pedal Sub-assy, Brake | ||||
| 47101-52240 |
Pedal Sub-assy, Brake
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ATM | ¥2,790 | |
| 47101-52240 |
Pedal Sub-assy, Brake
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 ATM | ¥2,790 | |
| 47101-52240 |
Pedal Sub-assy, Brake
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥2,790 | |
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90506-14077 |
Spring(FOR BRAKE PEDAL RETURN)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥180 | |
| 90506-14077 |
Spring(FOR BRAKE PEDAL RETURN)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥180 | |
| 90506-14077 |
Spring(FOR BRAKE PEDAL RETURN)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥180 | |
| 90506-14077 |
Spring(FOR BRAKE PEDAL RETURN)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥180 | |
| 47101B — Bush(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥120 | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥120 | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥120 | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥120 | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-52260 |
Support Assy, Brake Pedal
2005-01 → 2007-08
ended
|
NCP91 5F | ¥10,900 | |
| 47110-52260 |
Support Assy, Brake Pedal
2007-08 → 2008-08
ended
|
NCP91 5F | ¥10,900 | |
| 47110-52260 |
Support Assy, Brake Pedal
2008-09 → 2010-08
ended
|
NCP91 5F | ¥10,900 | |
| 47121 — Pad, Brake Pedal | ||||
| 31321-52010 |
Pad, Brake Pedal
2005-01 → 2007-08
ended
|
NCP91 5F | ¥200 | |
| 47121-52010 |
Pad, Brake Pedal
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 ATM | ¥260 | |
| 31321-52010 |
Pad, Brake Pedal
2007-08 → 2008-09
ended
|
NCP91 5F | ¥200 | |
| 47121-52010 |
Pad, Brake Pedal
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥260 | |
| 47121-52010 |
Pad, Brake Pedal
2007-08 → 2008-09
ended
|
NCP91,SCP90 CVFC RS | ¥260 | |
| 31321-52010 |
Pad, Brake Pedal
2008-09 → 2010-08
ended
|
NCP91 5F | ¥200 | |
| 47121-52010 |
Pad, Brake Pedal
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 ATM | ¥260 | |
| 47124 — Shaft, Brake Pedal | ||||
| 90109-10167 |
Shaft, Brake Pedal
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥190 | |
| 90109-10167 |
Shaft, Brake Pedal
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥190 | |
| 90109-10167 |
Shaft, Brake Pedal
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥190 | |
| 90109-10167 |
Shaft, Brake Pedal
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥190 | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90249-08051 |
Pin(FOR PUSH ROD)
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥170 | |
| 90249-08051 |
Pin(FOR PUSH ROD)
2007-08 → 2008-08
ended
|
KSP90,NCP9#,SCP90 B,F,ILL,U | ¥170 | |
| 90249-08051 |
Pin(FOR PUSH ROD)
2007-08 → 2008-09
ended
|
NCP91,SCP90 RS | ¥170 | |
| 90249-08051 |
Pin(FOR PUSH ROD)
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥170 | |
| 55106 — Support Sub-assy, Brake Pedal | ||||
| 55106-52130 |
Support Sub-assy, Brake Pedal
2005-01 → 2007-08
ended
|
KSP90,NCP9#,SCP90 | ¥3,370 | |
| 55106-52130 |
Support Sub-assy, Brake Pedal
2007-08 → 2008-09
ended
|
KSP90,NCP9#,SCP90 | ¥3,370 | |
| 55106-52130 |
Support Sub-assy, Brake Pedal
2008-08 → 2010-12
ended
|
KSP90,NCP9#,SCP90 | ¥3,370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
